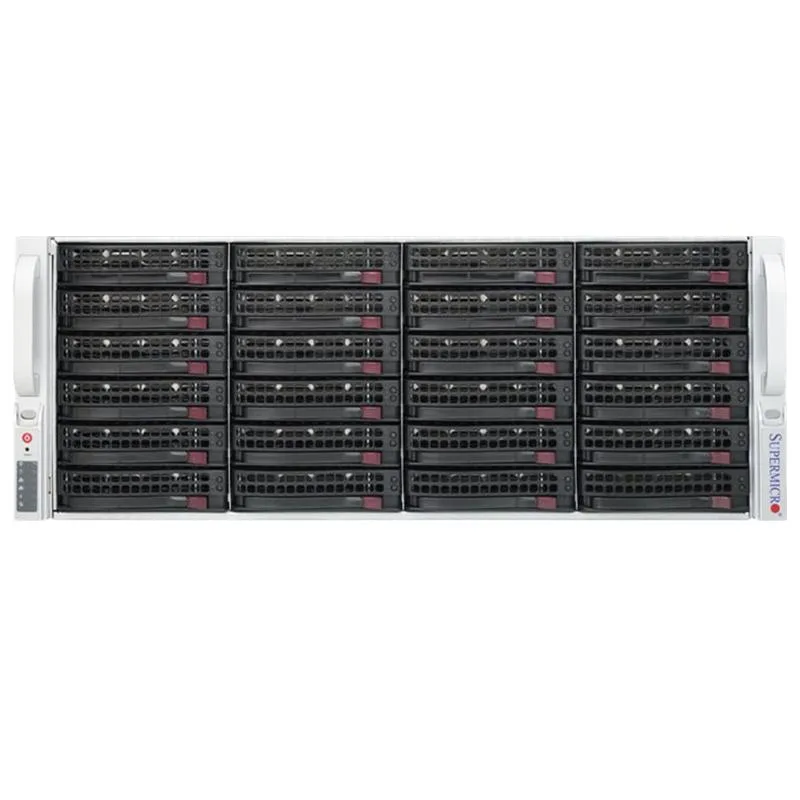

Supermicro 4U rack server, silver front with twenty-four 3.5 inch drive trays

Supermicro

Supermicro SYS-8048B-TRFT 4U rack server 4x Xeon E7-4890 v2 2.8GHz 15-core 2TB DDR3 24x 3.5" bays

SKU CH-JETX-JEMBD

4U rack server with four 15-core Xeon processors, 2TB DDR3 ECC memory, 24 hot-swap 3.5-inch drive bays and dual 10GBase-T networking

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.80 GHz
  • CPU SocketLGA 2011
  • Number of CPU Cores15-Core Processor
  • Four Xeon E7-4890 v2 processors deliver 60 cores for heavy workloads
  • 2 TB DDR3 registered ECC memory supports large in-memory datasets
  • MegaRAID 9361-8i handles RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache
  • 24 hot-swap 3.5-inch bays provide high-density SAS or SATA storage
  • Dual 10 GbE X540 ports plus IPMI 2.0 give fast data and remote management

Quad-socket server for enterprise workloads

The Supermicro SYS-8048B-TRFT is a 4U rackmount system built for compute-intensive and storage-heavy applications. It ships with four Intel Xeon E7-4890 v2 processors running at 2.8 GHz with 15 cores each. The platform includes 2 TB of DDR3 1600 MHz registered ECC memory across 64 DIMM slots. This configuration targets organisations running large databases, virtualisation clusters or high-performance computing tasks.

24 hot-swap 3.5-inch drive bays define storage

The chassis provides 24 front-accessible bays that accept SATA or SAS hard drives for massive raw capacity. A MegaRAID 9361-8i controller with 1 GB cache and battery backup supports RAID 0, 1, 5, 6, 10, 50 and 60. No drives are included, so buyers must supply their own disks. The 8-port controller limits the number of direct SAS connections to eight devices without additional expanders.

Tool-less trays simplify drive installation

Drive trays slide into the front bays without screws, and the four 1620 W platinum power supplies are hot-swap redundant. IPMI 2.0 with a dedicated RJ45 port gives KVM-over-LAN and virtual media access for remote management. The front bezel and rack rails are not included, so they must be sourced separately. The 1U height listed in the spec sheet conflicts with the 4U form factor, so verify rack space before ordering.

Punti di forza

  • Four Xeon E7-4890 v2 processors deliver 60 cores for heavy workloads
  • 2 TB DDR3 registered ECC memory supports large in-memory datasets
  • MegaRAID 9361-8i handles RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache
  • 24 hot-swap 3.5-inch bays provide high-density SAS or SATA storage
  • Dual 10 GbE X540 ports plus IPMI 2.0 give fast data and remote management

Caratteristiche tecniche

BrandSUPERMICRO
SeriesCSE-848X + X10QBi-R1.01A
ModelSYS-8048B-TRFT
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.80 GHz
CPU SocketLGA 2011
Number of CPU Cores15-Core Processor
# of Processors InstalledE7-4890 V2
Installed Memory Size2TB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSuperMicro AOC-STG-i2T - Intel X540 - 2x RJ45 10GBase-T Ports
Management PortRJ 45
Features24 x 3.5" SATA/SAS Hot-Plug Drive Bays

Domande su questo articolo

What does the 2.8 GHz clock on the four Xeon E7-4890 v2 processors mean for real-world throughput?

Four 15-core Xeon E7-4890 v2 CPUs at 2.8 GHz provide 60 physical cores and can turbo to 3.4 GHz, giving heavy multi-threaded workloads a large, consistent compute pool.

How does the LSI MegaRAID 9361-8i controller limit the 24 drive bays in practice?

The 9361-8i is an 8-port SAS 12 Gb/s RAID card, so only eight drives connect directly to hardware RAID; the remaining bays need an expander or additional controller.

What mounting hardware must be sourced separately to install this 4U chassis in a rack?

The supplier notes that front bezel and rack-mount rails are not included, so you must provide compatible rails and a bezel for a standard 4U rack opening.
