Space Gray aluminum M.2 NVMe SATA enclosure with USB-C port

ankmax

ankmax UC312M2 NVMe SATA card reader Space Gray

SKU CH-WQY9-GKDQF

Tool-free M.2 enclosure reads NVMe and SATA SSDs at 10 Gbps over USB-C

  • Type1 card
  • ColorSpace Gray
  • InterfacePCI
  • Transfer up to 930 MB/s via USB 3.1 Gen 2 10 Gbps

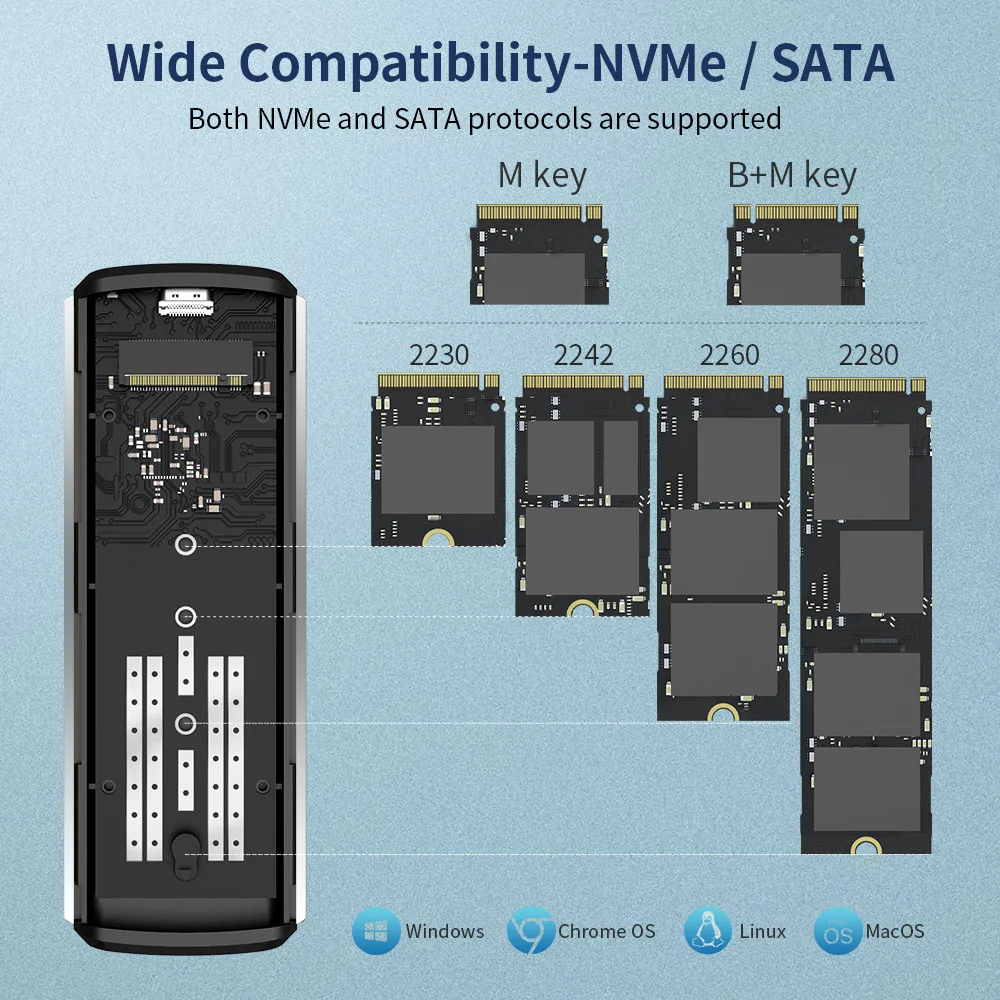

  • Works with NVMe and SATA M.2 drives in 2230 2242 2260 2280 sizes
  • RTL9210B controller enables UASP and TRIM for speed and longevity
  • Tool-free aluminium shell dissipates heat without extra parts
  • USB-C and Thunderbolt 3 host connection for broad compatibility

M.2 NVMe and SATA enclosure

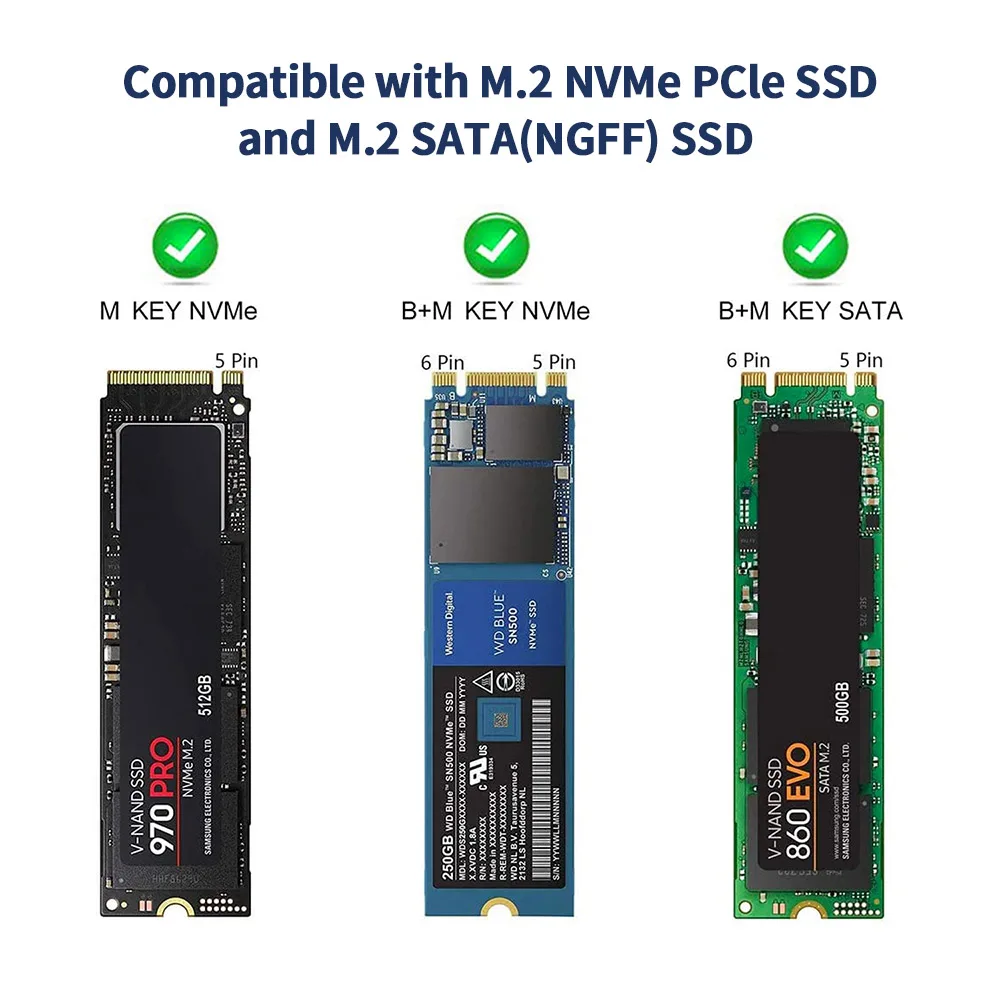

The UC312M2 adapter turns an M.2 solid-state drive into a portable USB-C device. It accepts NVMe PCIe and SATA NGFF modules in 2230, 2242, 2260 and 2280 lengths. The aluminium shell acts as a heatsink and protects the drive while travelling. No SSD is included in the package.

Tool-free installation and compatibility

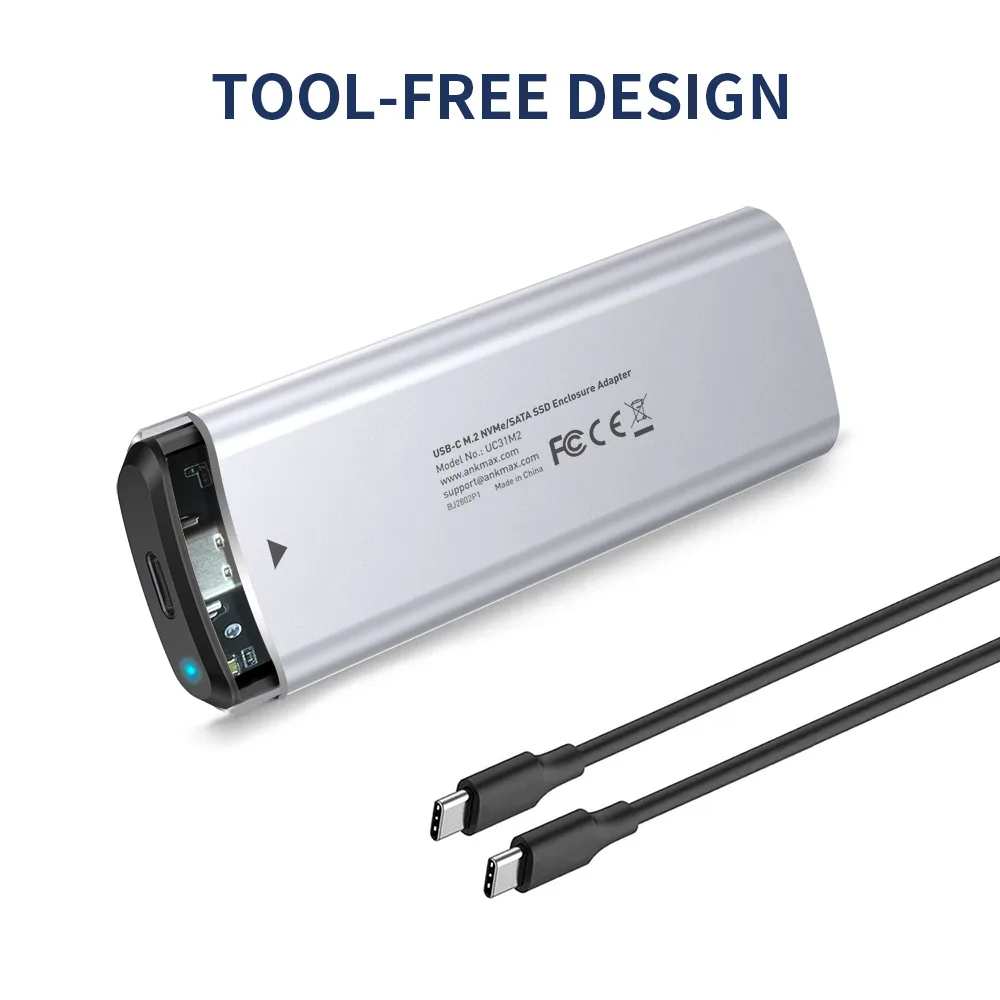

Slide the drive into the M-key slot, secure it with the built-in screw and close the lid — no tools required. The RTL9210B controller enables UASP and TRIM for sustained performance. The enclosure does not support M.2 PCIe AHCI drives, Wi-Fi cards, capture cards or mSATA modules.

USB 3.1 Gen 2 10 Gbps interface

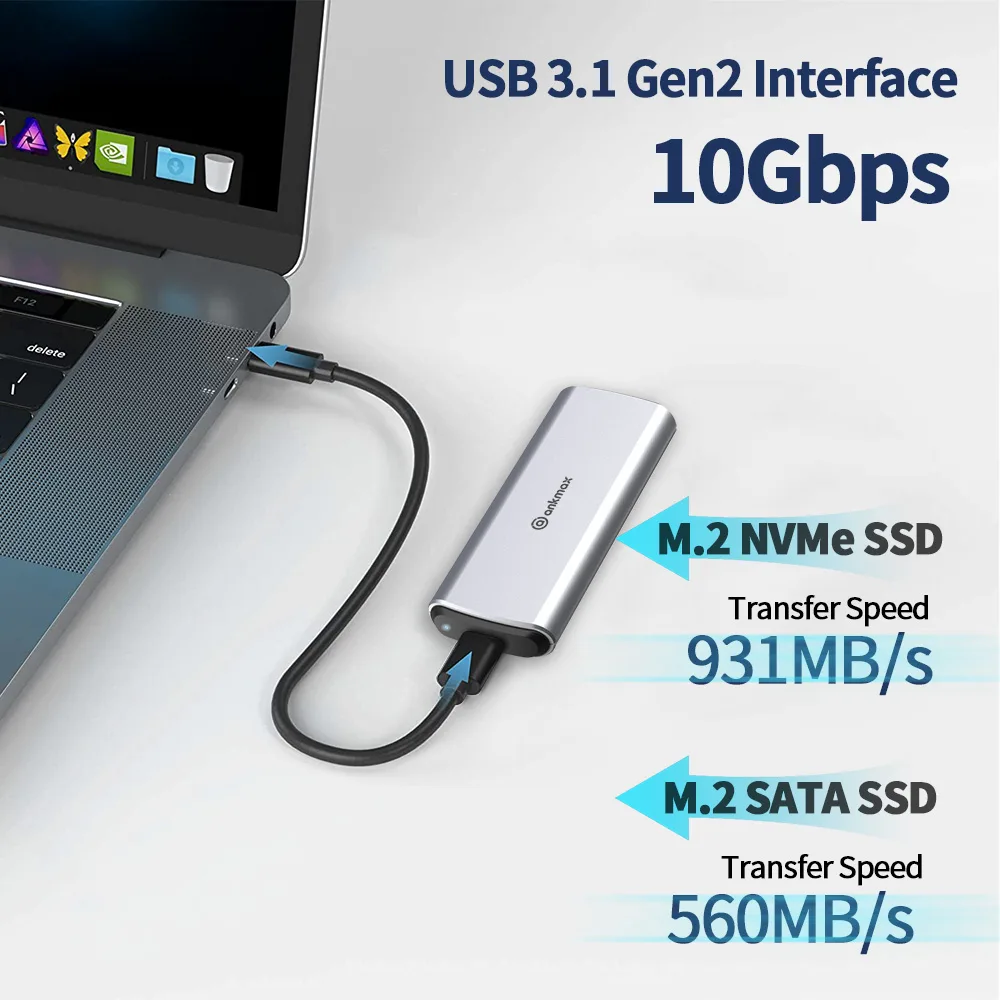

A USB-C 3.1 Gen 2 connection delivers up to 10 Gbps bandwidth, with real-world transfers reaching 930 MB/s on Thunderbolt 3 or USB 3.1 Gen 2 hosts. Slower ports will reduce throughput proportionally. Buyers needing more than 2 TB of drive capacity or a different host connector cannot use this enclosure.

特長

  • Transfer up to 930 MB/s via USB 3.1 Gen 2 10 Gbps
  • Works with NVMe and SATA M.2 drives in 2230 2242 2260 2280 sizes
  • RTL9210B controller enables UASP and TRIM for speed and longevity
  • Tool-free aluminium shell dissipates heat without extra parts
  • USB-C and Thunderbolt 3 host connection for broad compatibility

仕様

Type1 card
ColorSpace Gray
InterfacePCI

この商品に関する質問

How do I confirm the UC312M2 is delivering the rated 930 MB/s after I install an SSD?

Connect the enclosure to a USB 3.1 Gen 2 or Thunderbolt 3 port, then run a sequential read/write benchmark such as CrystalDiskMark; sustained results near 930 MB/s indicate the RTL9210B controller and UASP/TRIM are functioning correctly.

What ships with the UC312M2 and what must I provide myself?

The package includes the aluminium enclosure, a USB-C to USB-C cable, a USB-C to USB-A adapter, thermal pads, a screwdriver and mounting screws; you must supply a compatible M.2 NVMe or SATA SSD in 2230, 2242, 2260 or 2280 form factor.

Which M.2 lengths does the UC312M2 accept and how do I pick the right one?

The tool-free tray adjusts to 2230, 2242, 2260 and 2280 sizes; choose the length that matches your SSD — 2280 is the most common for desktop drives, while 2230 and 2242 are typical for ultrabooks and tablets.
