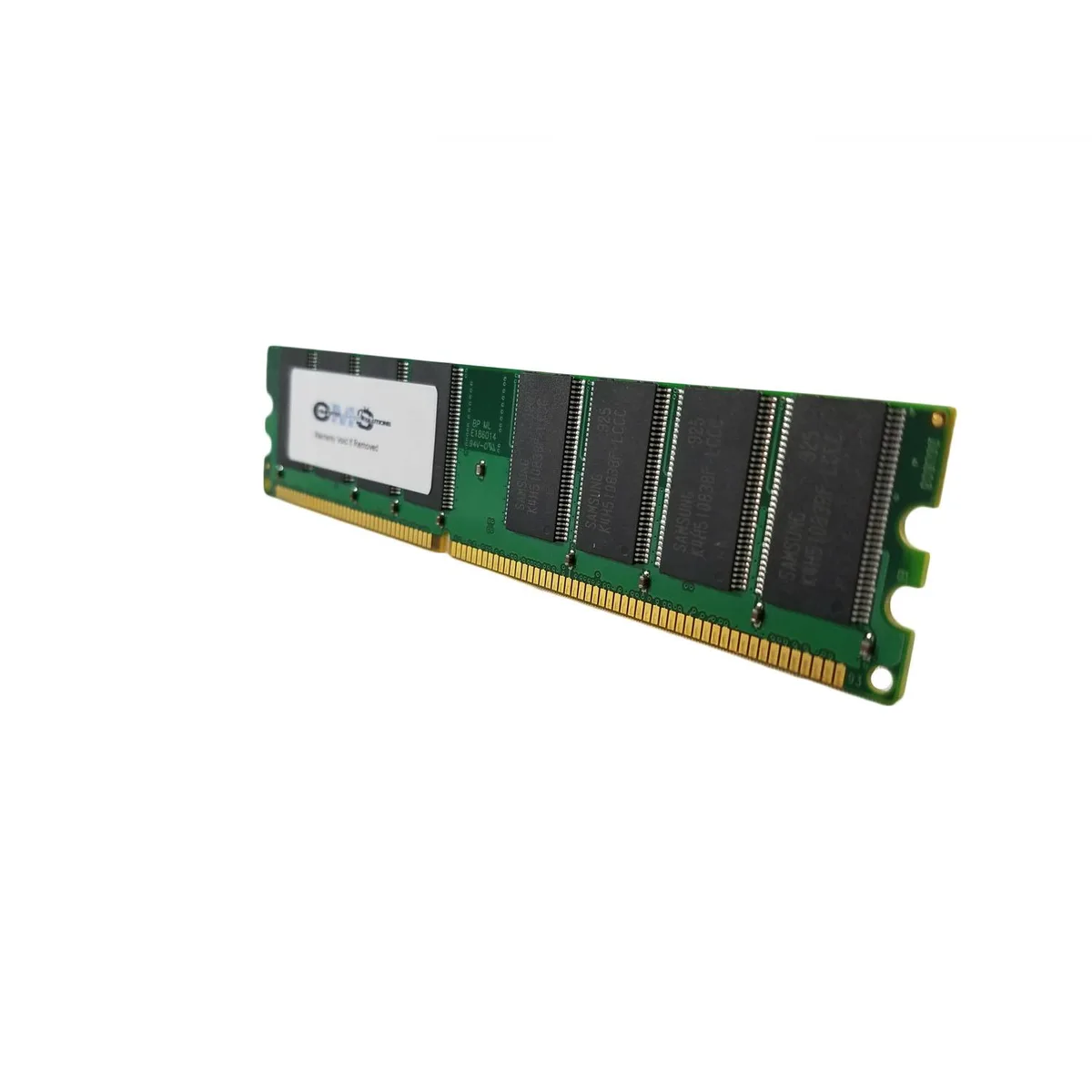

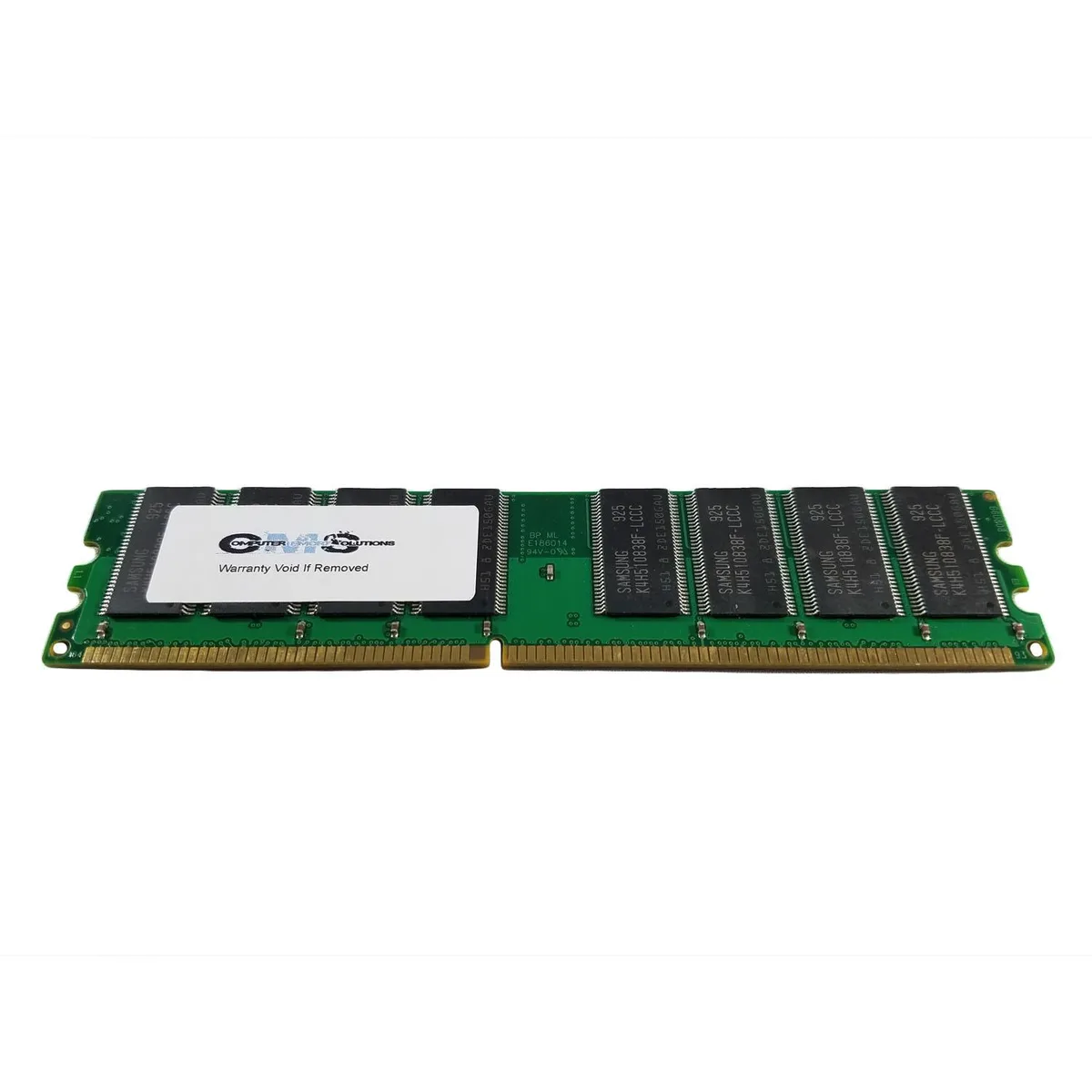

Green 184-pin DDR1 DIMM stick with black chips, no heat spreader

Computer Memory Solutions

Computer Memory Solutions 1GB DDR1 400MHz CL3 184-Pin DIMM for HP dc7100 SFF

SKU CH-XDQ8-VBZMT

Adds 1 GB of DDR1-400 CL3 memory to HP dc7100 SFF desktops using an 184-pin DIMM

  • Capacity1GB
  • Type184-Pin DDR SDRAM
  • SpeedDDR 400 (PC 3200)
  • CAS LatencyCL3
  • Timing3-3-3
  • Voltage2.6V
  • 1GB capacity expands dc7100 SFF memory
  • DDR1 400MHz speed matches system specification
  • CL3 3-3-3 timing optimises latency
  • 184-pin DIMM fits desktop memory slots
  • Non-ECC unbuffered design ensures compatibility

1GB DDR1 DIMM for HP dc7100 SFF

This 1GB DDR1 module is built for the HP Compaq Business Desktop dc7100 small-form-factor chassis. It runs at 400 MHz with CL3 timing and uses an unbuffered, non-ECC 184-pin layout. The stick is intended for owners of that specific desktop who need a straightforward memory increase.

Replaces an empty slot or a smaller stick

The dc7100 SFF accepts up to 4GB across four sockets, so adding this 1GB DIMM fills one free slot or swaps out a lower-capacity module. The upgrade is worthwhile when the system currently holds less than the 4GB maximum and you want more headroom for period-correct applications.

Check socket count and existing modules first

Verify the motherboard still has a free 184-pin DIMM socket and that any installed memory matches the 2.6V, CL3, unbuffered specification. The board uses a 2Rx8 organisation, so mixing ranks should be avoided. This module is not for builders who need ECC, registered memory, or a different pin count.

特長

  • 1GB capacity expands dc7100 SFF memory
  • DDR1 400MHz speed matches system specification
  • CL3 3-3-3 timing optimises latency
  • 184-pin DIMM fits desktop memory slots
  • Non-ECC unbuffered design ensures compatibility

仕様

BrandComputer Memory Solutions
ModelCM128643200DIMM
Capacity1GB
Type184-Pin DDR SDRAM
SpeedDDR 400 (PC 3200)
CAS LatencyCL3
Timing3-3-3
Voltage2.6V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemHp/Compaq Business Desktop Dc7100 Sff
Package Content1 Memory RAM Stick

この商品に関する質問

Does the 184-pin DDR1 DIMM fit the HP dc7100 SFF memory slots?

Yes, the 184-pin DDR1 DIMM matches the four DDR sockets in the HP dc7100 SFF and is guaranteed compatible with that system.

How do I install the 1GB DDR1 module and what step is often missed?

Power off the PC, open the SFF case, align the 184-pin module notch with the slot key, press firmly until both retention clips click, then verify the BIOS recognises 400 MHz operation.

When should the 2.6V DDR1 stick be replaced or checked?

Replace the module if the system fails memory tests, shows random reboots, or cannot reach the rated 400 MHz speed; otherwise the stick requires no routine maintenance.
