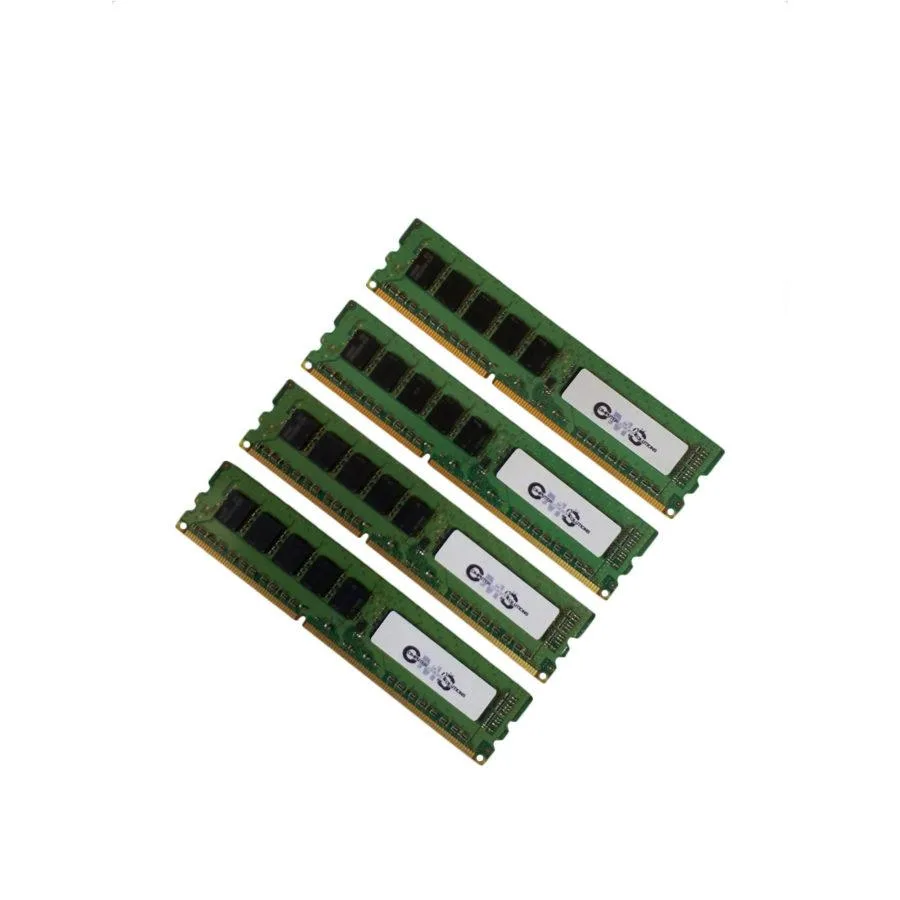

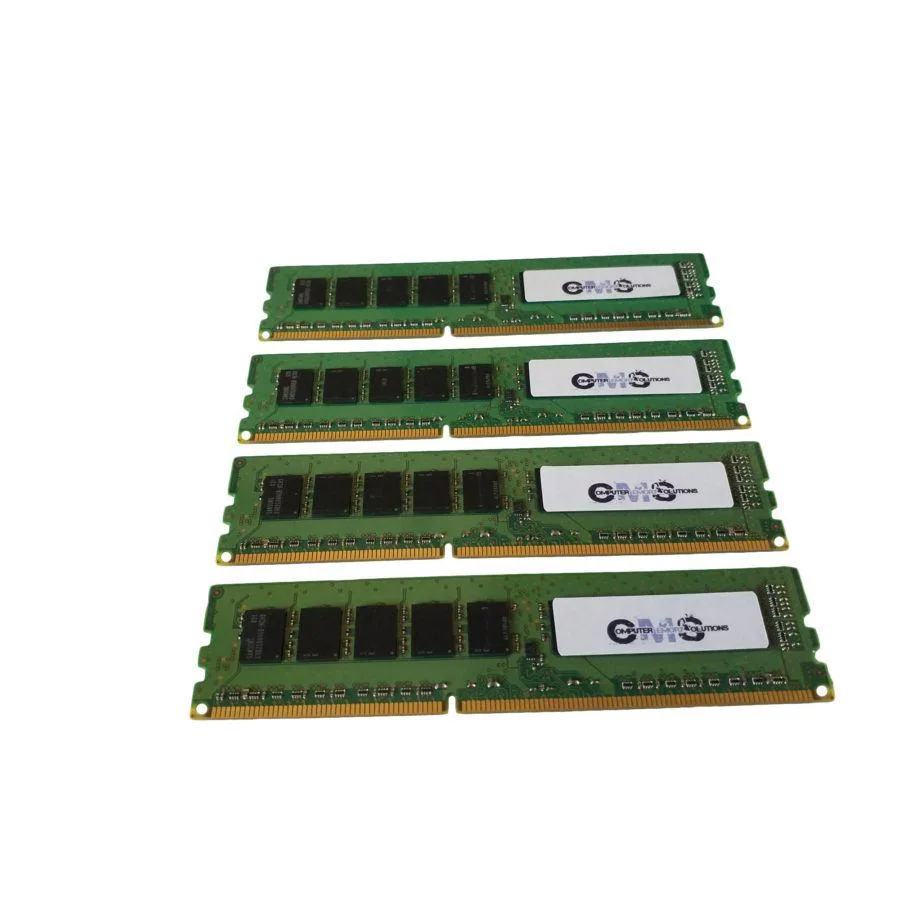

Four green DDR4 DIMM sticks, no heat spreaders, 288 pins each

Computer Memory Solutions

Computer Memory Solutions 64GB (4x16GB) DDR4 2400 ECC Non-Registered DIMM for Synology RS1619xs+

SKU CH-9Q2D-NYC6Y

Four 16 GB DDR4 ECC DIMMs running at 2400 MHz CL17 add 64 GB to a Synology RS1619xs+

  • Capacity64GB (4 x 16GB)
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.2V
  • 64 GB total capacity expands Synology RS1619xs+ to its 64 GB limit
  • ECC protection detects and corrects single-bit errors for data integrity
  • DDR4 2400 speed with CL17 timing delivers responsive throughput
  • Four 16 GB modules fill all four DIMM slots for optimal channel population
  • 2 V DDR4 voltage reduces power draw compared to previous DDR generations

Synology RS1619xs+ 64GB DDR4 ECC Kit

This 64GB kit contains four 16GB unregistered ECC DIMMs built for the Synology RackStation RS1619xs+. Each module runs at DDR4 2400 with CL17 timing at 1.2V. The 288-pin design fills all four memory slots in the NAS.

Upgrading from lower-capacity DDR4 ECC modules

The jump is worth it when the RS1619xs+ hits its 64GB memory ceiling and workloads such as virtualisation or heavy file caching need the maximum addressable space. Replacing smaller sticks with this 4x16GB set reaches that limit in a single step.

Build integration for the RS1619xs+

Installation uses the four native DIMM slots and requires no registered or buffered memory support. The kit frees no additional slots because the platform maximum is 64GB across four sockets. No heat spreaders are included, so airflow in the rack chassis handles cooling.

特長

  • 64 GB total capacity expands Synology RS1619xs+ to its 64 GB limit
  • ECC protection detects and corrects single-bit errors for data integrity
  • DDR4 2400 speed with CL17 timing delivers responsive throughput
  • Four 16 GB modules fill all four DIMM slots for optimal channel population
  • 2 V DDR4 voltage reduces power draw compared to previous DDR generations

仕様

BrandComputer Memory Solutions
ModelCM2048722400ECCNR
Capacity64GB (4 x 16GB)
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.2V
ECCYes
Buffered/RegisteredUnregistered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemSynology RackStation RS1619xs+
Package Content4 Memory RAM Sticks

この商品に関する質問

Does the 288-pin DDR4 DIMM fit the four slots in the Synology RS1619xs+?

Yes, each 16 GB module uses the standard 288-pin DDR4 form factor that matches the four DIMM sockets in the RS1619xs+.

What is the correct order for inserting the four unregistered ECC sticks?

Populate all four slots with the matching 2Rx8 modules; the system will recognise the full 64 GB kit automatically.

Will the 1.2 V DDR4 2400 modules need any firmware update or battery change later?

No firmware or battery maintenance is required; the ECC DIMMs run at 1.2 V and are covered by the manufacturer's limited lifetime warranty.
