Small rectangular plastic pull-chain switch with four wire terminals

DAYONE ZE-268S6 3-speed 4-wire fan control

SKU CH-5ERG-P6CQE MPN ZE-268S6.

Three-speed, four-wire pull-chain switch rated 6 A at 125 VAC and 3 A at 250 VAC, UL and CSA certified for ceiling fans, wall lamps and cabinet lights

  • Product nameceiling-fan-pull-chains DAYONE
  • voltage250 volts
  • electrical usage (watts)6 amps, 250 volts
  • weight8 grams
  • descriptionceiling-fan-pull-chains, DAYONE, ZEAM2800, application, Ceil
  • finishPlastic
  • Three-speed control with off, low, medium and high settings
  • Four-wire design compatible with Hunter, Casablanca and other brands
  • UL approved and CSA certified for North American safety
  • Rated 6 amps at 125 volts and 3 amps at 250 volts

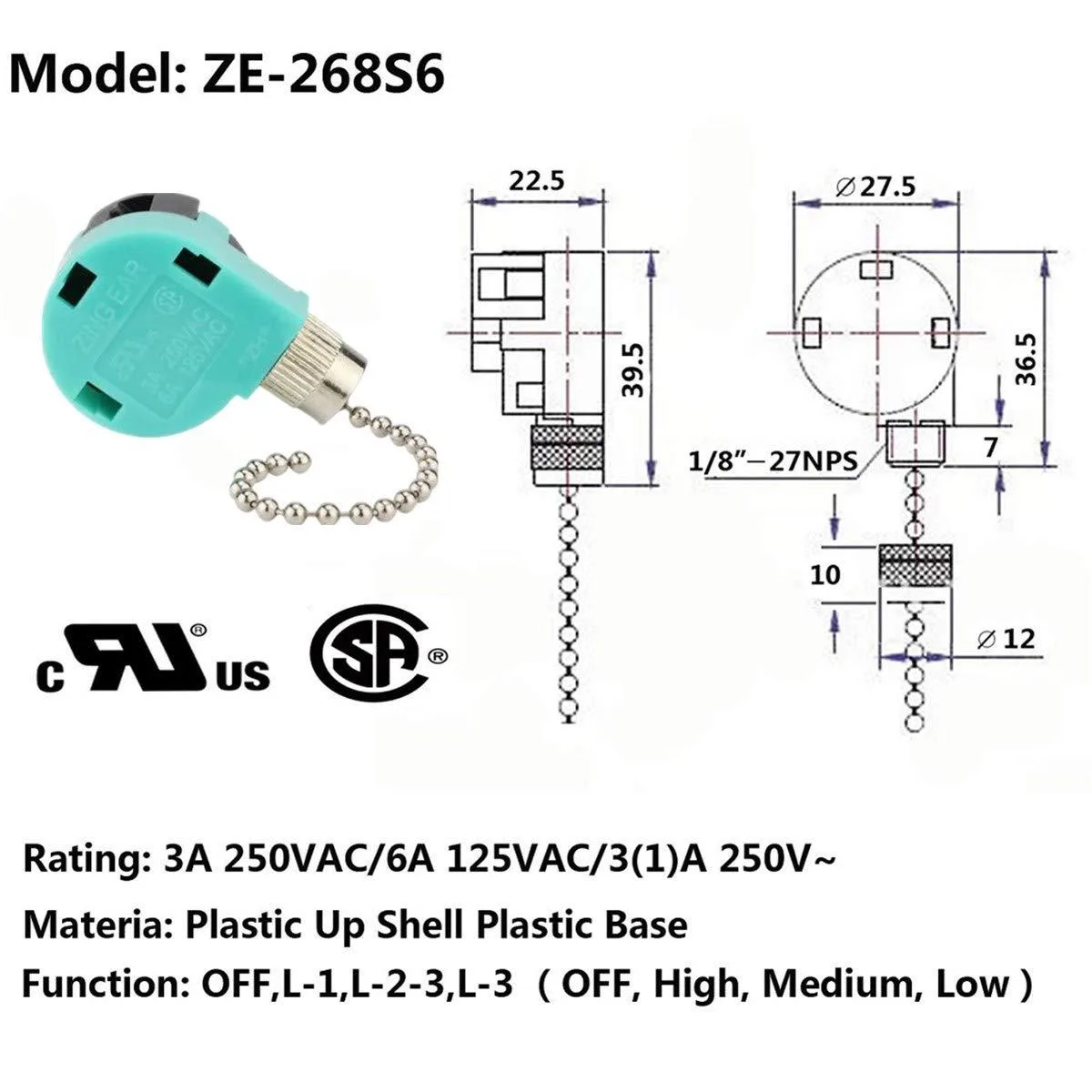

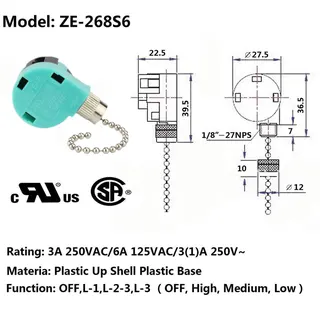

  • Compact plastic body measuring 5 cm by 3 cm by 1.5 cm

Three-speed pull-chain switch

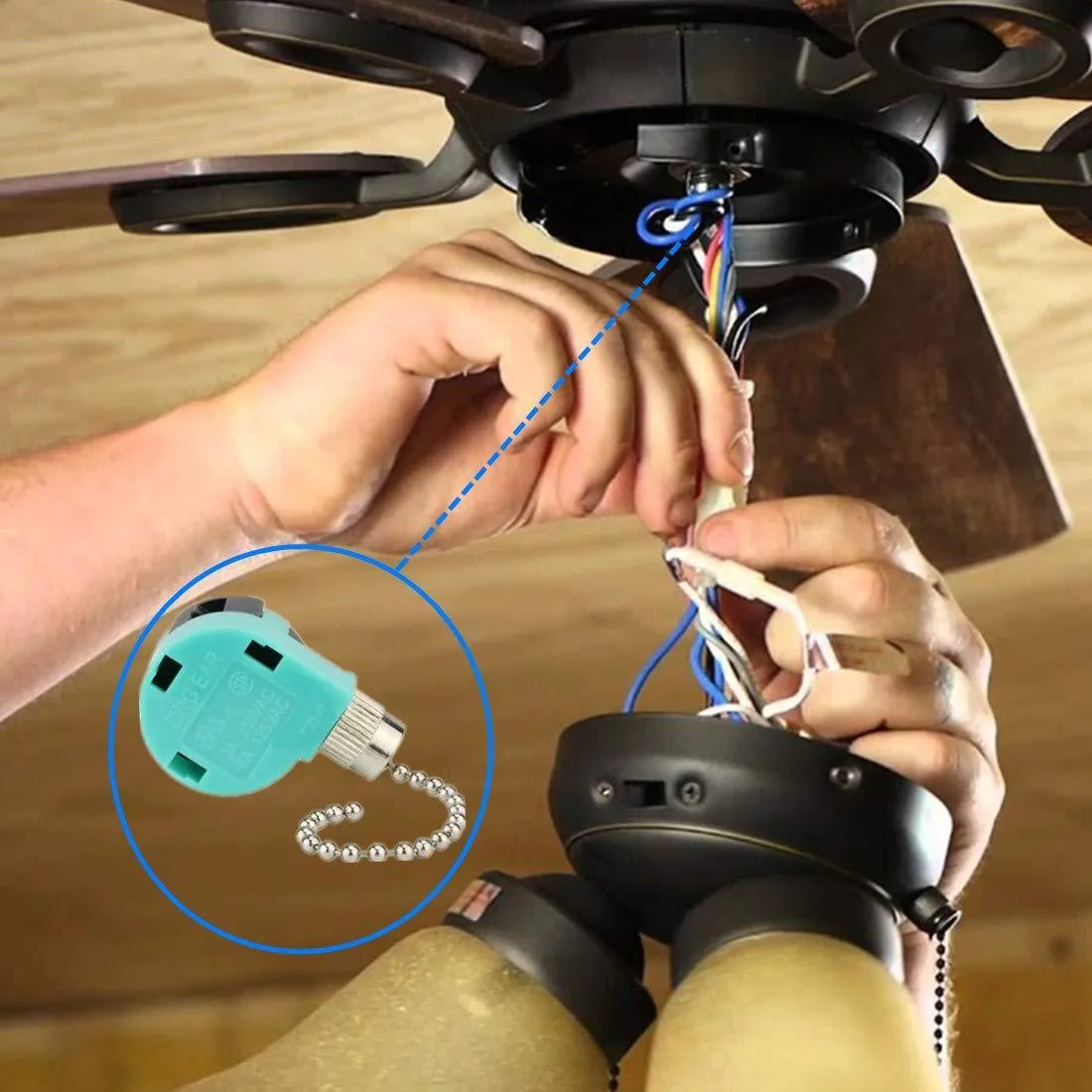

The DAYONE ZE-268S6 replaces a worn or broken pull-chain control on ceiling fans, wall lamps or cabinet lights. It provides three distinct speed settings plus an off position through a simple chain pull. The unit is rated for 6 amps at 125 volts AC and 3 amps at 250 volts AC, with UL and CSA safety certifications. It fits many popular fan brands using a standard four-wire connection.

Four-wire 6 A rating limits use

The switch handles up to 6 A at 125 V AC or 3 A at 250 V AC, so it suits typical residential ceiling fans and light fixtures within that range. It cannot control loads exceeding those current values or motors requiring variable-speed electronics beyond three fixed steps. The plastic body measures 5 cm by 3 cm by 1.5 cm and weighs 8 grams, fitting inside standard canopy spaces. Wiring must follow the existing L, 1, 2, 3 terminal layout exactly.

Replaces single-speed or faulty units

This part upgrades a single-speed pull switch or restores a three-speed fan that has lost one or more settings. The jump is worth it when the original switch clicks without changing speed, the chain pulls loose, or the fan runs only on high. It is not for buyers who need continuously variable speed, remote control, smart-home integration, or a switch rated for higher-amperage commercial motors.

特長

  • Three-speed control with off, low, medium and high settings
  • Four-wire design compatible with Hunter, Casablanca and other brands
  • UL approved and CSA certified for North American safety
  • Rated 6 amps at 125 volts and 3 amps at 250 volts
  • Compact plastic body measuring 5 cm by 3 cm by 1.5 cm

仕様

BrandDAYONE
ModelZEAM2800
Product nameceiling-fan-pull-chains DAYONE
voltage250 volts
electrical usage (watts)6 amps, 250 volts
weight8 grams
descriptionceiling-fan-pull-chains, DAYONE, ZEAM2800, application, Ceiling Fans, Wall Lamps, Cabinet Lights, Hunter, Casablanca, Harbor Breeze, Hampton Bay
finishPlastic
materialPlastic
dimensions5 cm x 3 cm x 1.5 cm

この商品に関する質問

Which DAYONE ZE-268S6 version should I choose for my ceiling fan?

The ZE-268S6 is a single 3-speed 4-wire pull-chain switch rated 6 A at 125 VAC and 3 A at 250 VAC; match it to fans using the same L-1-2-3 terminal layout.

What does the 6 A / 125 VAC rating mean once the switch is installed?

It confirms the switch can safely carry up to 6 amps on a 125 V circuit, covering typical residential ceiling fans and cabinet lights.

What wiring standard does the 4-wire interface follow and what does it limit?

The switch uses a standard L-1-2-3 terminal arrangement; it controls three fan speeds plus off and is UL approved and CSA certified for 6 A / 125 VAC – 3 A / 250 VAC operation.
