Green PCB PCIe x1 card with two USB-C and two USB-A ports on a metal bracket

ESTONE

ESTONE PCIE22A2C 4-Port USB 3.0 PCIe Card (2× Type-C, 2× Type-A)

SKU CH-VPYY-5DFV6

Adds two USB-C and two USB-A ports at 5.0 Gbps through a PCIe x1 slot with no external power cable required

  • TypePCI to USB Card
  • External USB Ports4x USB Ports
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add four USB 3.0 ports with two Type-C and two Type-A connectors
  • Superspeed 5.0 Gbps data transfer for fast file moves
  • Built-in self-powered design delivers 5V/3000mA per port without extra cables
  • Fits PCIe x1, x4, x8 or x16 slots on 2.0 and 3.0 motherboards
  • Works with Windows 7/8/10/11 and Mac OS 10.8.2 and above

4-Port USB 3.0 PCIe Card

This ESTONE PCIE22A2C expansion card adds four SuperSpeed USB 3.0 ports to a desktop computer through a single PCI Express x1 slot. Two ports use the USB Type-C connector and two use the standard Type-A connector. The card delivers a combined data transfer rate of up to 5.0 Gbps and draws power directly from the slot, so no external power cable is required.

Desktop builders needing more USB 3.0 ports

The card suits anyone upgrading an older tower or a compact workstation that lacks front-panel Type-C ports. It works with Windows 7 through 11 and Mac OS 10.8.2 or later. Builders who need more than four additional ports, or who require dedicated high-current charging profiles beyond the provided 5V/3A per port, should consider a different solution.

PCI Express x1 slot requirement

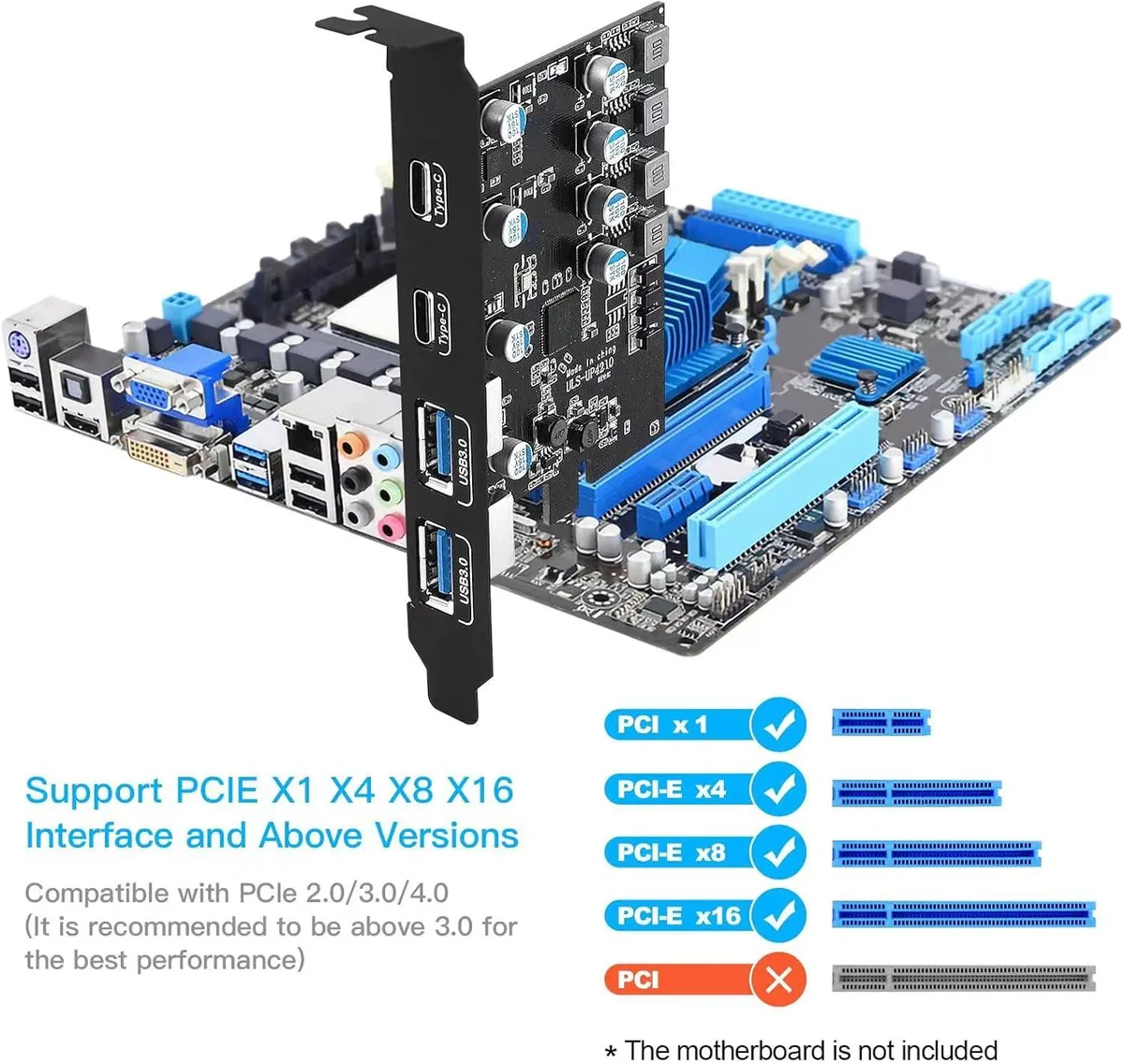

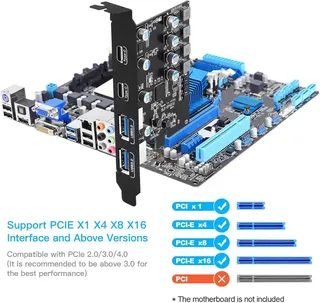

Installation requires one free PCI Express x1, x4, x8 or x16 socket on the motherboard. The bracket occupies a standard full-height expansion slot at the rear of the case.

特長

  • Add four USB 3.0 ports with two Type-C and two Type-A connectors
  • Superspeed 5.0 Gbps data transfer for fast file moves
  • Built-in self-powered design delivers 5V/3000mA per port without extra cables
  • Fits PCIe x1, x4, x8 or x16 slots on 2.0 and 3.0 motherboards
  • Works with Windows 7/8/10/11 and Mac OS 10.8.2 and above

仕様

BrandESTONE
SeriesPCIE22A2C
ModelPCIE22A2C
TypePCI to USB Card
External USB Ports4x USB Ports
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
SpecificationsSuperSpeed USB 3.0 data transfer rate up to 5Gbps; Backward compatible with USB 2.0 & USB 1.x
Compliant with PCI Express Specification 2.0
Built-In Self-Powered, no power cable needed - maximum 5V/3000mA power output to USB device
4 downstream ports support data rate: Low/Full/High/SuperSpeed - Support Full/Slim Size Desktop PCs - Low Profile Bracket
Supported OS: Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit); Linux
?
FeaturesAdding 4 USB 3.0 ports (2X Type-C - 2X USB-A) on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.
Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device saf
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

この商品に関する質問

What is the total bandwidth shared across all four ports under sustained load?

The card shares a single 5.0 Gbps USB 3.0 link across all four ports, so combined throughput cannot exceed that figure.

Does the card draw auxiliary power or generate extra heat during all-day operation?

It uses built-in self-powered technology and needs no external power cable, drawing all current from the PCI Express slot.

Which PCI Express slot width and operating system version are required for the card to function?

It fits any PCIe x1, x4, x8 or x16 socket and supports Windows 7/8/10/11 (32/64-bit) plus Mac OS 10.8.2 and above.
