Silver 19-inch 2U rackmount chassis with twelve 3.5-inch hot-swap drive bays

HOTCFWQ

HOTCFWQ 2U 12-bay 6Gb SAS/SATA rackmount server chassis

SKU CH-K327-NYBV2

A 19-inch 2U rackmount chassis holding twelve hot-swap 3.5-inch SAS or SATA drives with a 6Gb/s backplane, seven full-height expansion slots and support for motherboards up to 10.5 inches deep

  • Chassis TypeRackmount
  • 12 hot-swap 3.5" bays support 6Gb/s SAS and SATA drives
  • Standard 19" rackmount fits 2U space at 88mm height
  • Seven full-height PCI/PCIe slots provide expansion capacity
  • 0mm SGCC zinc-coated steel chassis meets EMC design standards
  • Front panel includes two USB 2.0 ports and status LEDs

12-bay 2U rackmount server chassis

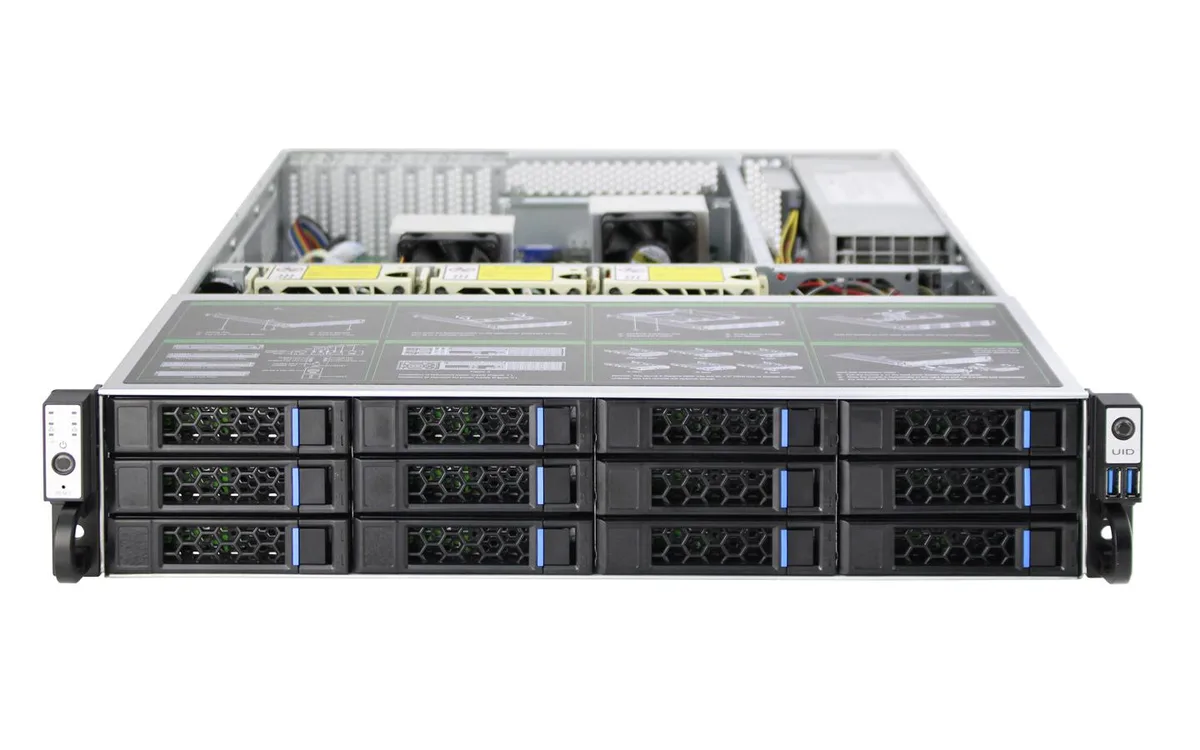

The HOTCFWQ chassis fits a standard 19" rack at 88 mm height and holds twelve 3.5" hot-swap drive bays. A 6Gb/s SAS/SATA backplane with a temperature-control chipset handles the drives. The steel frame uses 1.0 mm SGCC zinc-coated material and includes three 8038 ball-bearing fans as standard.

Suits storage servers needing dense 3.5" capacity

This unit targets cloud storage, big data or security monitoring builds that want twelve front-accessible bays in 2U. It supports motherboards up to 12" x 10.5" and seven full-height PCI/PCIE slots. Buyers who need 2.5" drive trays, 12Gb/s SAS backplanes or more than seven expansion slots should consider other designs.

6Gb/s SAS/SATA hot-swap backplane

The backplane sets the maximum drive interface speed at 6Gb/s for both SAS and SATA drives. Twelve bays connect through this single backplane, so every drive shares that bandwidth ceiling. If the deployment requires 12Gb/s SAS throughput per drive, this chassis will not meet that requirement.

特長

  • 12 hot-swap 3.5" bays support 6Gb/s SAS and SATA drives
  • Standard 19" rackmount fits 2U space at 88mm height
  • Seven full-height PCI/PCIe slots provide expansion capacity
  • 0mm SGCC zinc-coated steel chassis meets EMC design standards
  • Front panel includes two USB 2.0 ports and status LEDs

仕様

Chassis TypeRackmount

この商品に関する質問

How loud and hot does the chassis get with the three included 8038 ball-bearing fans running continuously?

The chassis ships with three 8038 ball-bearing fans and has a fourth 8 cm fan position available; the backplane includes a temperature-control chipset to manage airflow.

Which motherboard form factors fit the 12" x 10.5" maximum size and the 7 full-height PCI/PCIe slots?

The chassis supports any motherboard up to 12" x 10.5" and provides seven full-height PCI/PCIe expansion slots for add-in cards.

Will my existing 6 Gb/s SAS or SATA 3.5" drives work in the 12 hot-swap bays without adapters?

Yes, the 12 hot-swap bays accept 3.5" SAS (II or III) and SATA (II or III) drives at 6 Gb/s directly on the 6 Gb/s backplane.
