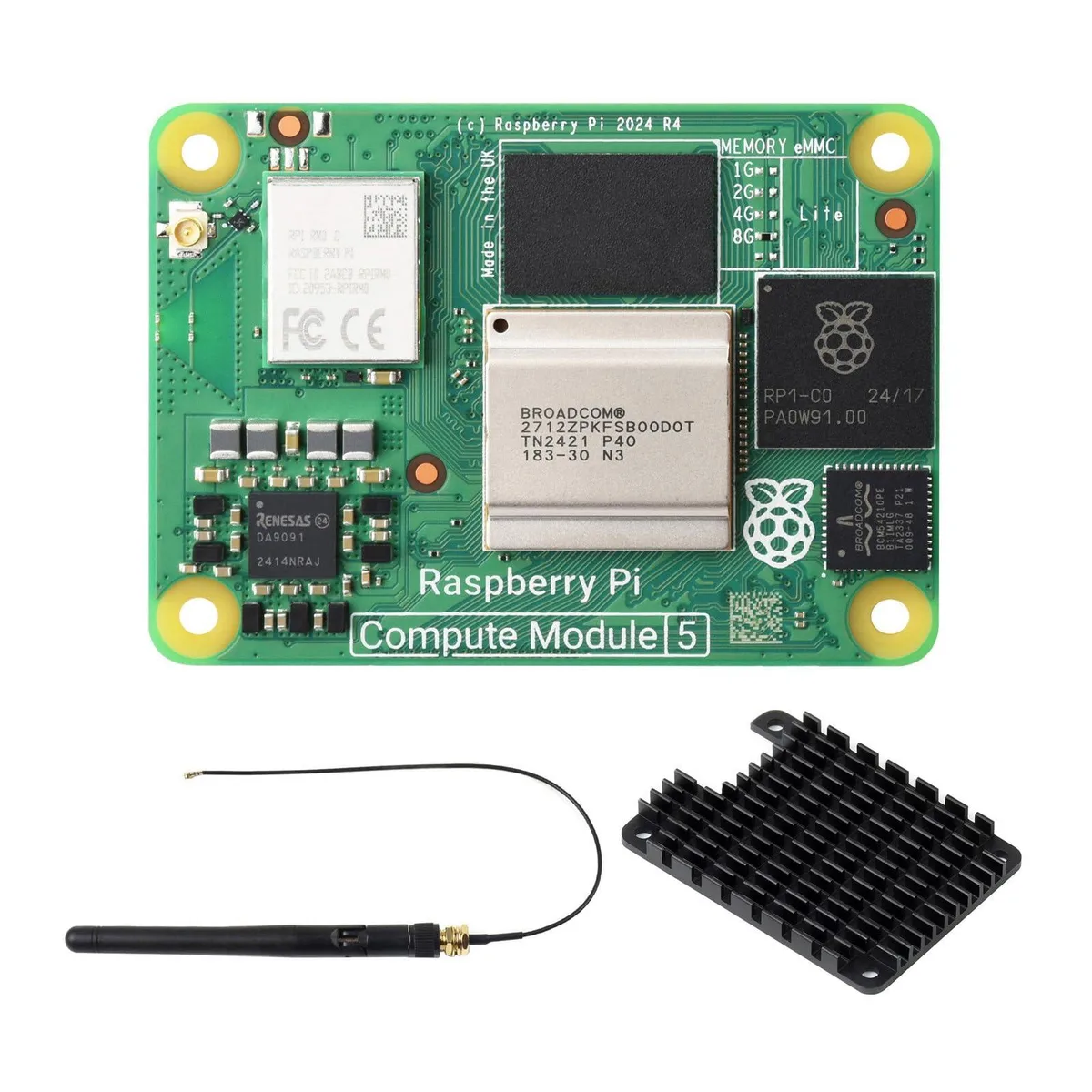

Raspberry Pi Compute Module 5 board with heatsink and antenna kit

KEHIPI

KEHIPI CM5 Compute Module 5 8GB Lite Wireless Antenna Heatsink

SKU CH-MNQH-NF0AN

Development board with Raspberry Pi Compute Module 5, 8 GB RAM, wireless antenna kit and heatsink included

  • 8GB RAM and wireless let you build connected edge devices
  • BCM2712 quad-core Cortex-A76 64-bit SoC delivers Raspberry Pi 5 performance in a compact module
  • 0GB Lite eMMC gives you freedom to choose your own storage solution
  • Antenna kit and heatsink included so the module is ready for thermal management and RF integration
  • PCIe Gen 2 x1 and Gigabit Ethernet PHY with IEEE1588 support expand I/O for industrial applications

Compute Module 5 with 8GB RAM and Wireless

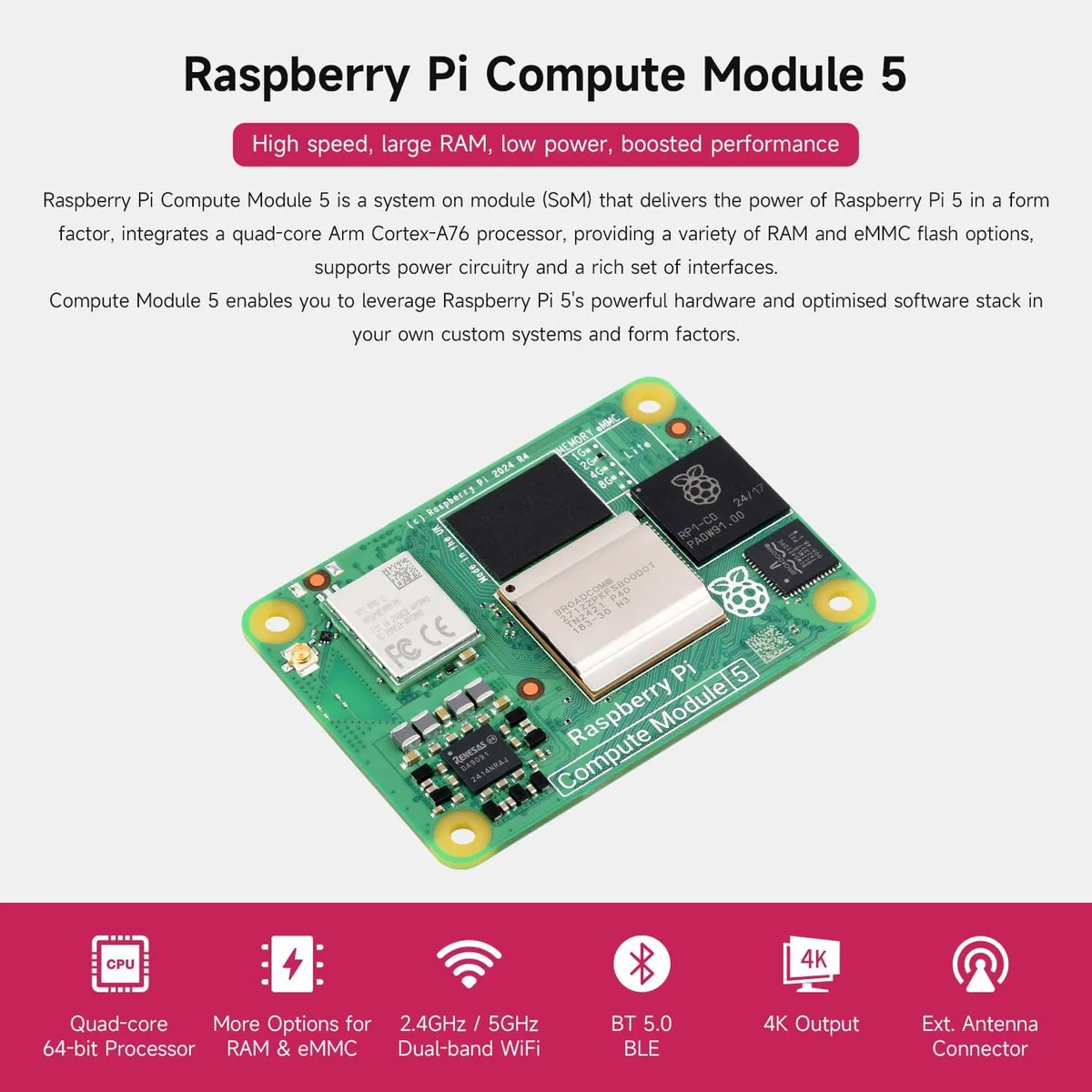

This kit bundles an official Raspberry Pi Compute Module 5 (part CM5108000) with 8GB RAM, zero onboard eMMC, and a certified radio module, plus an external antenna kit and a dedicated heatsink. It targets engineers and makers building custom IoT edge devices or embedded Linux appliances that need the Pi 5 software stack in a compact system-on-module form factor.

PCIe Gen 2 x1 Carrier Required

The module exposes a single-lane PCIe Gen 2 interface and Gigabit Ethernet with IEEE1588 support through its B-to-B connectors, so it suits designers who can provide a carrier board with those routings. Projects without a carrier, or teams needing built-in storage or multiple PCIe lanes, should look elsewhere.

Zero Onboard eMMC Means External Boot Mandatory

The CM5108000 ships with 0GB (Lite) eMMC flash, so every deployment must boot from an external source such as an SD card, USB device, or network — this single constraint decides whether the module fits your bill of materials.

特長

  • 8GB RAM and wireless let you build connected edge devices
  • BCM2712 quad-core Cortex-A76 64-bit SoC delivers Raspberry Pi 5 performance in a compact module
  • 0GB Lite eMMC gives you freedom to choose your own storage solution
  • Antenna kit and heatsink included so the module is ready for thermal management and RF integration
  • PCIe Gen 2 x1 and Gigabit Ethernet PHY with IEEE1588 support expand I/O for industrial applications

仕様

Brandwaveshare
Part NumberCM5108000 Package A

この商品に関する質問

Should I choose the 8GB Lite version or one with 16, 32 or 64 GB eMMC?

The 8GB Lite module has no onboard eMMC flash, so you must add a separate storage device such as an SD card; versions with 16, 32 or 64 GB eMMC include storage on the module itself.

What does the BCM2712 quad-core Cortex-A76 processor deliver in a real machine?

The BCM2712 quad-core Cortex-A76 64-bit SoC provides the same performance as a Raspberry Pi 5 in a compact system-on-module form factor for custom embedded designs.

What does the onboard PCIe Gen 2 x1 interface actually cap in practice?

The onboard PCIe Gen 2 x1 interface allows connecting additional modules such as storage or I/O expansion boards using a single lane of second-generation PCI Express bandwidth.
