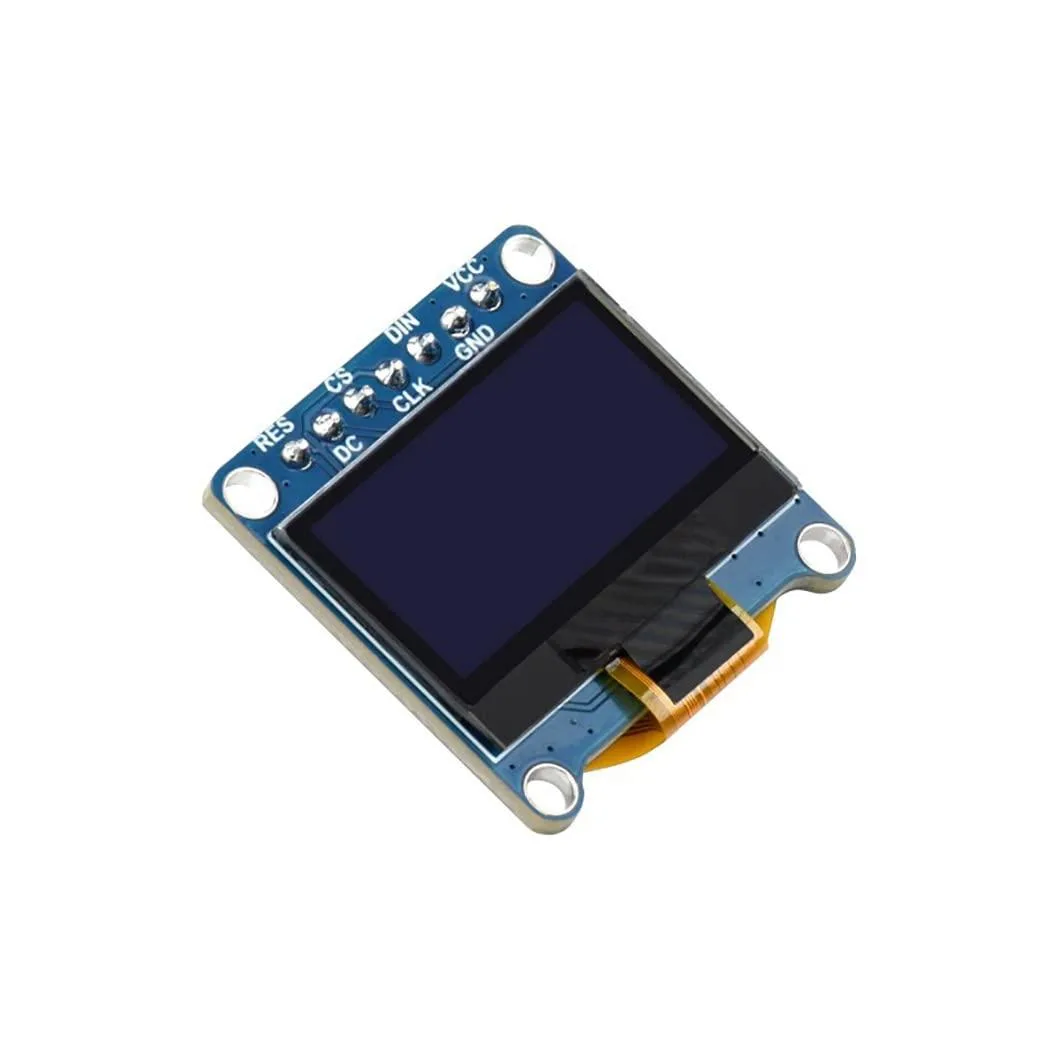

Tiny rectangular OLED module with blue pixels and narrow bezel

LORDWORLD

LORDWORLD 0.96 Inch OLED Display Module Blue

SKU CH-YXEV-8CW6Y

A compact 0.96 inch OLED module with SPI and I2C interfaces, onboard voltage translation and example code for Raspberry Pi, Arduino and STM32

  • Compact 0.96 inch OLED fits tight enclosures
  • Ultra-narrow bezel maximises visible area
  • Dual SPI and I2C interfaces simplify wiring
  • Onboard voltage translator eases logic-level matching
  • Online examples accelerate Raspberry Pi, Arduino and STM32 development

Compact OLED for Embedded Projects

This 0.96 inch OLED module adds a tiny graphical display to Raspberry Pi boards, Arduino boards and STM32 boards. It uses 4-wire SPI or I2C communication for straightforward wiring. Online examples are provided to help you start quickly. The ultra-narrow bezel keeps the footprint small on a breadboard or custom PCB.

Makers Who Need a Small Status Screen

Developers building sensor nodes, handheld gadgets or debug consoles will appreciate the ready-made code samples and dual-interface support. The display shows blue pixels on a dark background for clear indoor readability. Projects that require colour graphics, touch input or a larger viewing area should consider a different module.

28×64 Pixel Resolution Decides Fit

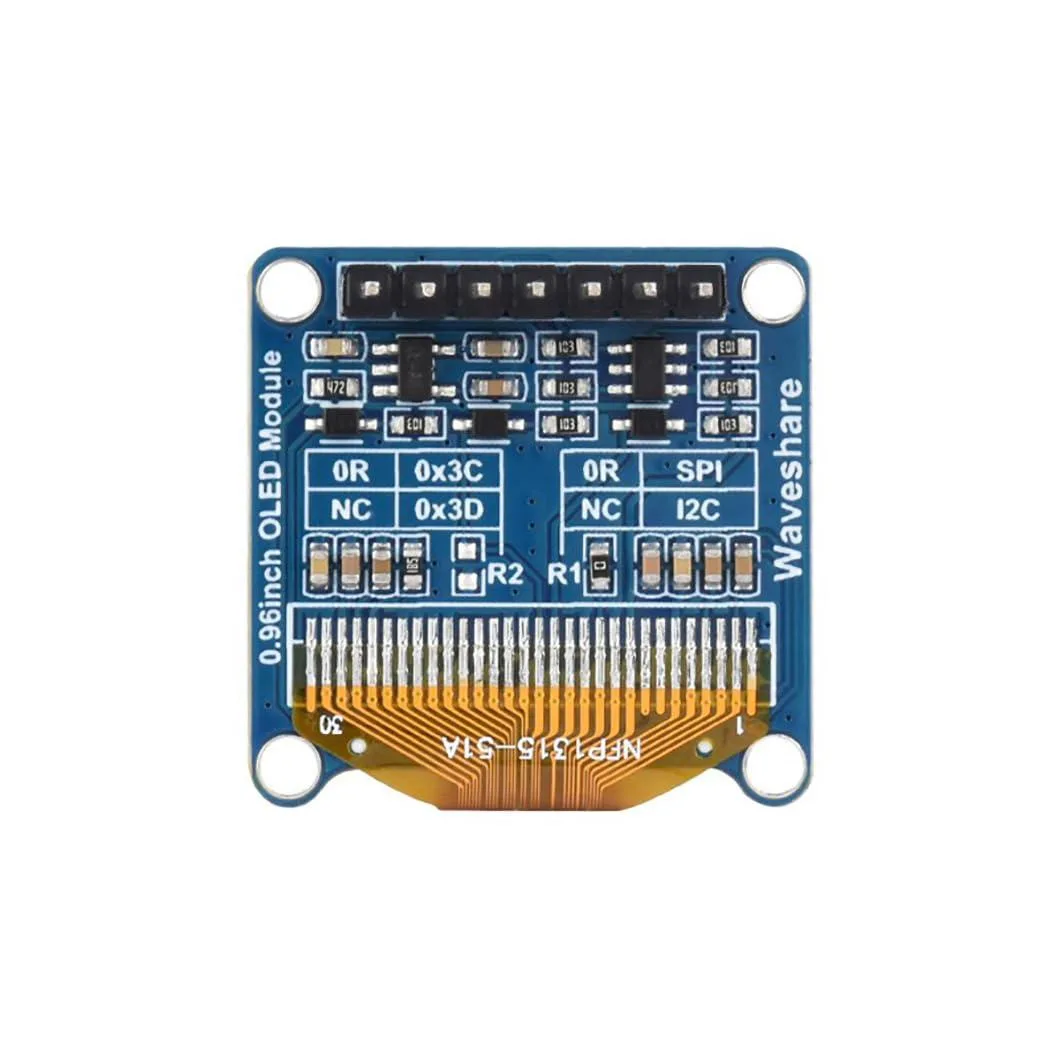

The screen resolves 28 columns by 64 rows, which determines how much text or graphics fit at once. Verify that your layout works within this grid before committing to the part. The SPI and I2C interfaces share the same pin header, so only one protocol is active at a time.

特長

  • Compact 0.96 inch OLED fits tight enclosures
  • Ultra-narrow bezel maximises visible area
  • Dual SPI and I2C interfaces simplify wiring
  • Onboard voltage translator eases logic-level matching
  • Online examples accelerate Raspberry Pi, Arduino and STM32 development

仕様

BrandLORDWORLD

この商品に関する質問

How do I connect the 0.96 inch OLED module using the 4-wire SPI interface?

Wire the module's SPI pins to the matching GPIO header on your Raspberry Pi or Arduino, then select SPI mode via the onboard jumpers; the common mistake is leaving the I2C jumpers bridged while driving SPI.

What maintenance will the 0.96 inch OLED display need over time?

No scheduled maintenance is required; if pixel burn-in appears after prolonged static content, the only remedy is replacing the module.

At what point does the 0.96 inch OLED hit its limit during continuous operation?

The first limit is pixel burn-in from static images shown for many hours; use screen-saver patterns or dimming to extend usable life.
