Small green circuit board with HDMI port and CSI ribbon connector

LORDWORLD

LORDWORLD HDMI to CSI Camera Adapter 1080p 30fps

SKU CH-KVNT-8FD7J

Converts HDMI camera signals to CSI for Raspberry Pi boards up to 1080p at 30 fps

  • Connect HDMI cameras directly to Raspberry Pi CSI ports
  • Capture video at 1080p resolution and 30fps frame rate
  • Works with Raspberry Pi 4B, 3B+, 3B, 2B, 1B+, Zero, Zero W
  • Backward compatible with existing CSI camera software stacks
  • Requires extra FCC cable for Pi Zero and Zero W models

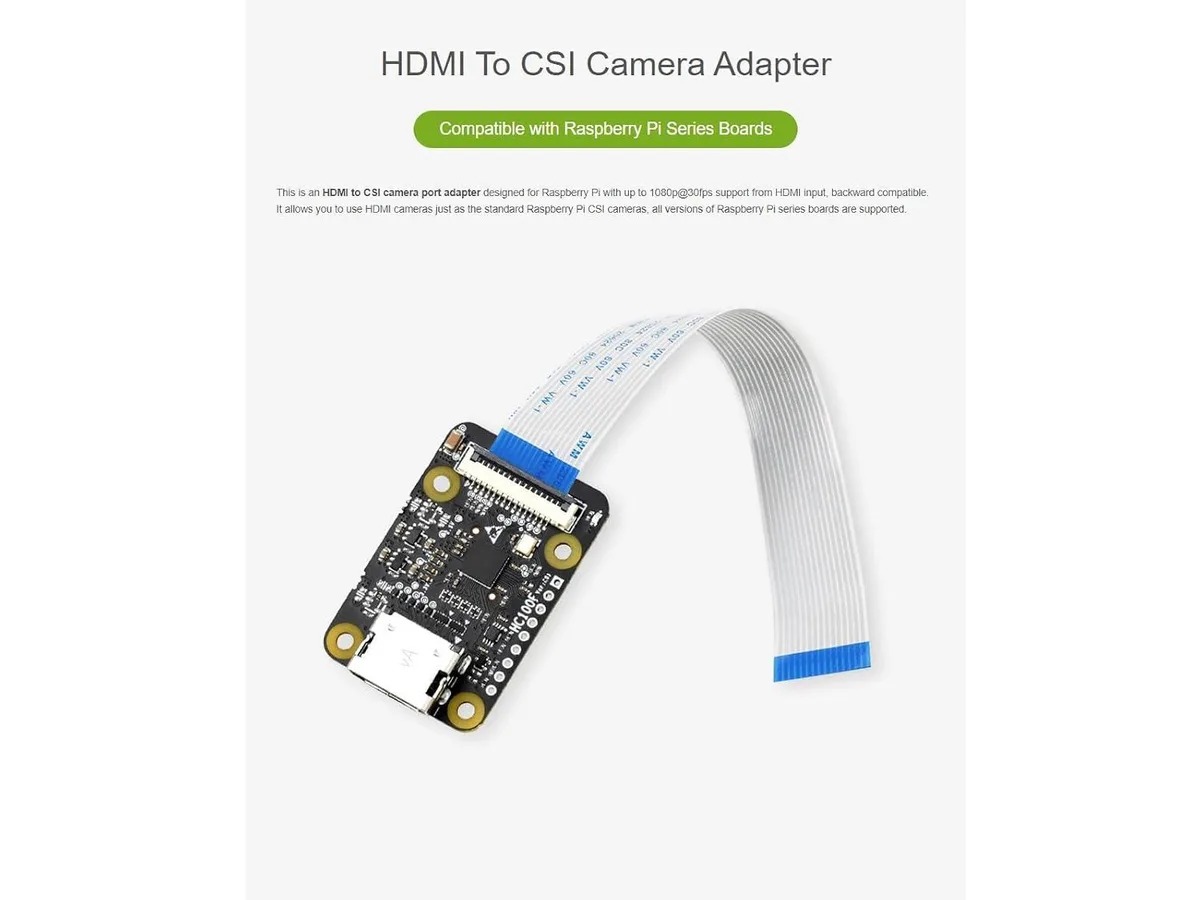

HDMI-to-CSI adapter for Raspberry Pi

This LORDWORLD board converts an HDMI video source into a CSI signal that Raspberry Pi boards can read. It accepts HDMI input up to 1080p at 30 fps and works with Pi 4B, 3B+, 3B, 3A+, 2B, 1B+, Zero and Zero W. A separate FFC cable is required for Zero and Zero W models. The package contains one adapter unit.

Makers adding HDMI cameras to Pi projects

Developers who want to attach an HDMI camera to a Raspberry Pi CSI port will find this adapter fits the workflow. It is not for builders who need higher frame rates or resolutions beyond 1080p 30fps. It is also not for users who lack an FFC cable for Zero or Zero W boards. Projects requiring direct USB video input should look elsewhere.

1080p 30fps HDMI capture limit

The single specification that decides suitability is the maximum capture rate of 1080p at 30 fps. Any source exceeding that resolution or frame rate will not be supported. Confirm your camera output matches this ceiling before purchase.

特長

  • Connect HDMI cameras directly to Raspberry Pi CSI ports
  • Capture video at 1080p resolution and 30fps frame rate
  • Works with Raspberry Pi 4B, 3B+, 3B, 2B, 1B+, Zero, Zero W
  • Backward compatible with existing CSI camera software stacks
  • Requires extra FCC cable for Pi Zero and Zero W models

仕様

BrandLORDWORLD

この商品に関する質問

How do I verify the adapter is capturing video at 1080p 30fps after connecting it to my Raspberry Pi?

Open a terminal and run a camera test command such as `libcamera-hello` or `raspivid`; the preview window should display live footage at the stated resolution and frame rate without errors.

What comes in the package and is anything else needed for a Raspberry Pi Zero W?

The box contains one HDMI to CSI adapter; for Raspberry Pi Zero or Zero W an extra FCC (flex) cable must be purchased separately.

Which Raspberry Pi models work with this adapter without extra cables?

The adapter is compatible with Raspberry Pi 4 Model B, 3 Model B+/3B, 3 Model A+, 2 Model B, and 1 Model B+ directly; Zero and Zero W require an additional FCC cable.
