Compact silver anodized aluminum digital servo with metal gear and horn

LORDWORLD

LORDWORLD HPS-2027MG 20KG 270° Digital Servo

SKU CH-51VF-2VV8T

Delivers 20kg·cm torque at 7.4V with 270° control, IP67 waterproofing, metal gears, dual ball bearings, and an anodized aluminum case

  • High torque for heavy loads with 20kg-cm at 7.4V

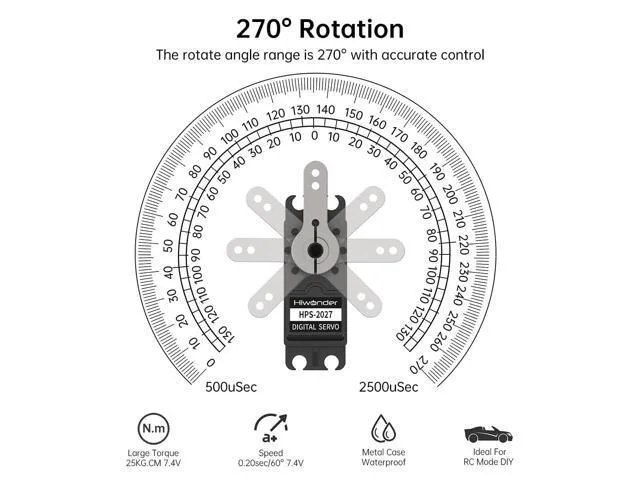

  • Wide 270° control angle enables extended motion range
  • IP67 waterproof sealing protects against splashes and dust
  • Anodized aluminium case dissipates heat and lowers power draw
  • Metal gears with dual ball bearings give smooth, quiet operation

High-torque servo for RC models

The LORDWORLD HPS-2027MG delivers a maximum torque of 20KG.CM at 7.4V, making it suitable for 1/6, 1/8, 1/10 and 1/12 scale RC cars, robots, boats and aircraft. Its digital control provides a 270° range of motion for precise steering and positioning in demanding DIY projects.

Metal gear train with dual bearings

The unit uses full metal gears and dual-ball bearings driven by a high-precision potentiometer. This combination ensures high accuracy, strong linearity and minimal backlash, giving reliable feedback for competitive or autonomous applications.

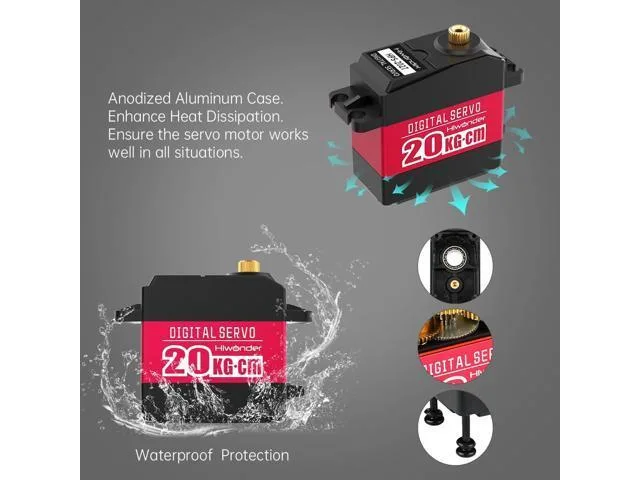

IP67 sealed aluminium housing

An anodised aluminium case dissipates heat efficiently while the IP67 rating protects internals from water splashes and dust ingress. The servo weighs 68g and measures 40mm by 20mm by 40.5mm, keeping the power-to-weight ratio favourable for mobile platforms.

特長

  • High torque for heavy loads with 20kg-cm at 7.4V
  • Wide 270° control angle enables extended motion range
  • IP67 waterproof sealing protects against splashes and dust
  • Anodized aluminium case dissipates heat and lowers power draw
  • Metal gears with dual ball bearings give smooth, quiet operation

仕様

BrandLORDWORLD

この商品に関する質問

What does the 20KG.CM torque at 7.4V actually deliver in a 1/10 scale RC car?

The 20KG.CM rating at 7.4V gives strong steering force for 1/10, 1/8, 1/6 and 1/12 scale cars, robots and model vehicles, with the metal arm transmitting that torque directly to the linkage.

How does the 25T spline interface limit horn compatibility?

The 25-tooth spline only accepts 25T servo horns; the included metal horn fits this pattern, and any replacement must match the 25T count to engage correctly.

Will the 40 by 20 by 40.5mm case with 68g weight fit a standard 1/10 chassis mounting pattern?

The 40mm x 20mm x 40.5mm dimensions and 68g mass match common 1/10, 1/8, 1/6 and 1/12 mounting spaces, and the anodized aluminum case uses the usual four-hole flange layout.
