Small green circuit board with gold castellated edges, USB-C port and camera connector

LORDWORLD

LORDWORLD Luckfox Pico Mini RV1103 128MB development board

SKU CH-EC0C-RAJN9

Tiny Linux development board with 128 MB flash, ARM Cortex-A7 and RISC-V cores, plus NPU and ISP for edge AI projects

  • Compact castellated-hole design simplifies product integration
  • RV1103 chip combines ARM Cortex-A7 and RISC-V cores
  • On-board NPU and ISP accelerate AI vision tasks
  • 128 MB SLC NAND flash provides reliable onboard storage
  • TF card slot and CSI camera interface expand peripheral options

Luckfox Pico Mini RV1103 board

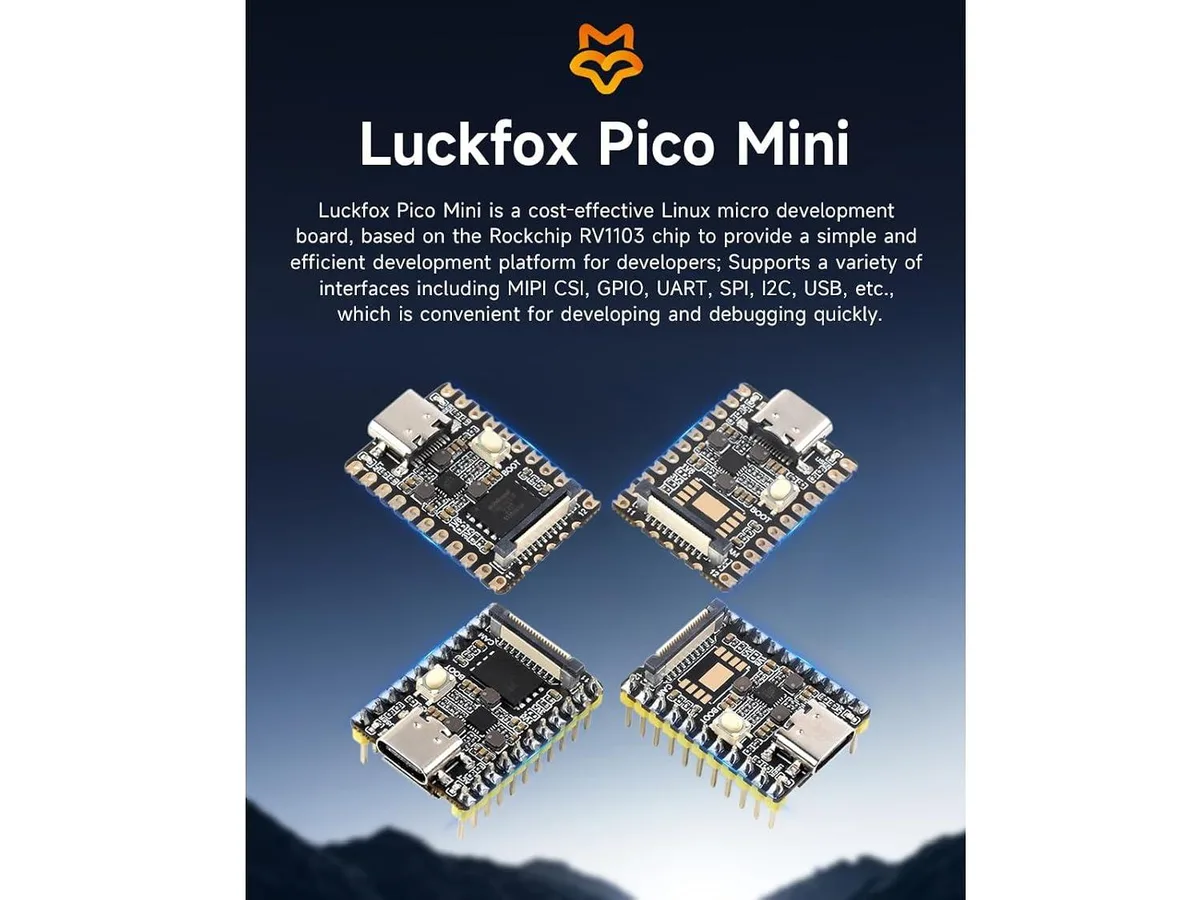

The LORDWORLD Luckfox Pico Mini RV1103 is a compact Linux micro development board built around the RV1103 chip. It integrates an ARM Cortex-A7 core alongside a RISC-V MCU, NPU and ISP for highly integrated performance. The board features castellated holes with immersion gold design and includes a USB Type-C connector, CSI camera interface and TF card slot. Its small form factor makes it easy to embed into various product applications.

Makers needing integrated AI vision

This board suits developers building embedded Linux devices that require on-board NPU and ISP capabilities for computer vision tasks. The integrated processors and camera interface streamline development for edge AI projects. Buyers who need more than 128MB of flash storage or require additional connectivity options not present on this minimal design should look at other platforms. It is not intended for applications demanding high-speed networking or multiple camera inputs.

128MB SLC NAND flash capacity

The single specification that decides fit is the 128MB SLC NAND flash memory soldered on the board. This fixed capacity determines the maximum firmware and data space available without external storage. Developers must ensure their Linux distribution and application footprint fit within this limit. The TF card slot provides removable storage expansion for larger datasets or system images.

特長

  • Compact castellated-hole design simplifies product integration
  • RV1103 chip combines ARM Cortex-A7 and RISC-V cores
  • On-board NPU and ISP accelerate AI vision tasks
  • 128 MB SLC NAND flash provides reliable onboard storage
  • TF card slot and CSI camera interface expand peripheral options

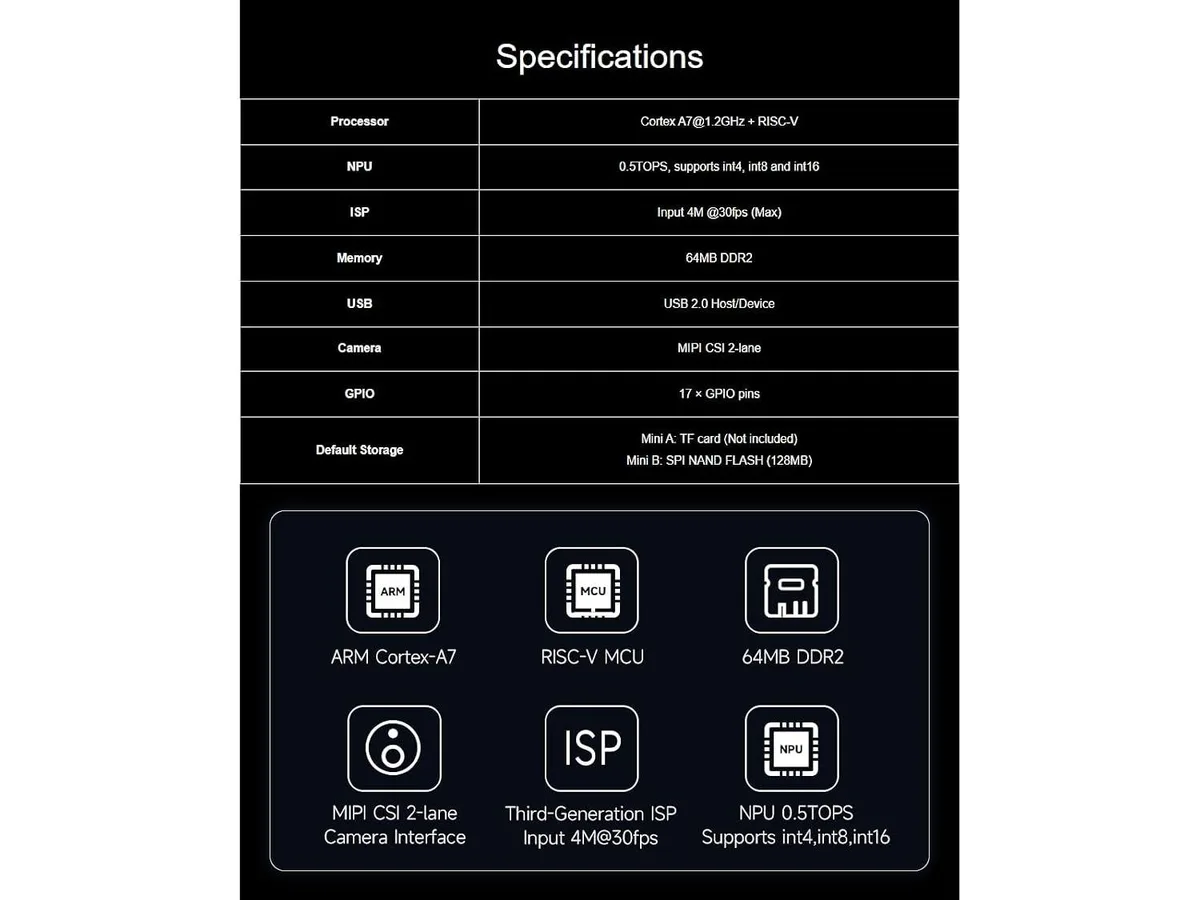

仕様

BrandLORDWORLD

この商品に関する質問

Will the castellated holes with immersion gold design let me solder this Pico Mini directly onto my existing carrier board?

Yes, the castellated holes with immersion gold finish are designed for direct surface-mount soldering onto a carrier board, allowing the module to be embedded without additional headers.

How can I verify the RV1103 chip and 128MB SLC NAND flash are functioning after I power the board?

Connect the USB Type-C port to a host PC; the board will enumerate as a Linux device, letting you access the serial console and run commands to confirm CPU, NPU, ISP and flash operation.

Does the box include a CSI camera module or a TF card, or must I purchase them separately?

The board provides a CSI camera interface and a TF card slot, but neither a camera module nor a TF card is included; both must be sourced separately.
