Green rectangular circuit board with gold pogo pins, micro USB port, SIM slot, audio jack and two small LEDs

LORDWORLD

LORDWORLD SIM7600G-H 4G HAT development board

SKU CH-T5J1-P5MZ8

Adds global LTE Cat-4 and GNSS to Raspberry Pi or PC via pogo pin or MicroUSB with SIM slot, audio jack and AT-command control

  • Global 2G/3G/4G connectivity with the SIM7600G-H module
  • Dual connection options: pogo pins for Pi Zero or MicroUSB for other boards
  • Multi-constellation GNSS: GPS, BeiDou, Glonass and LBS positioning
  • Onboard audio jack and decoder for voice calls
  • AT command control per 3GPP TS 27.007 and 27.005 standards

Global 4G HAT for Raspberry Pi and PC

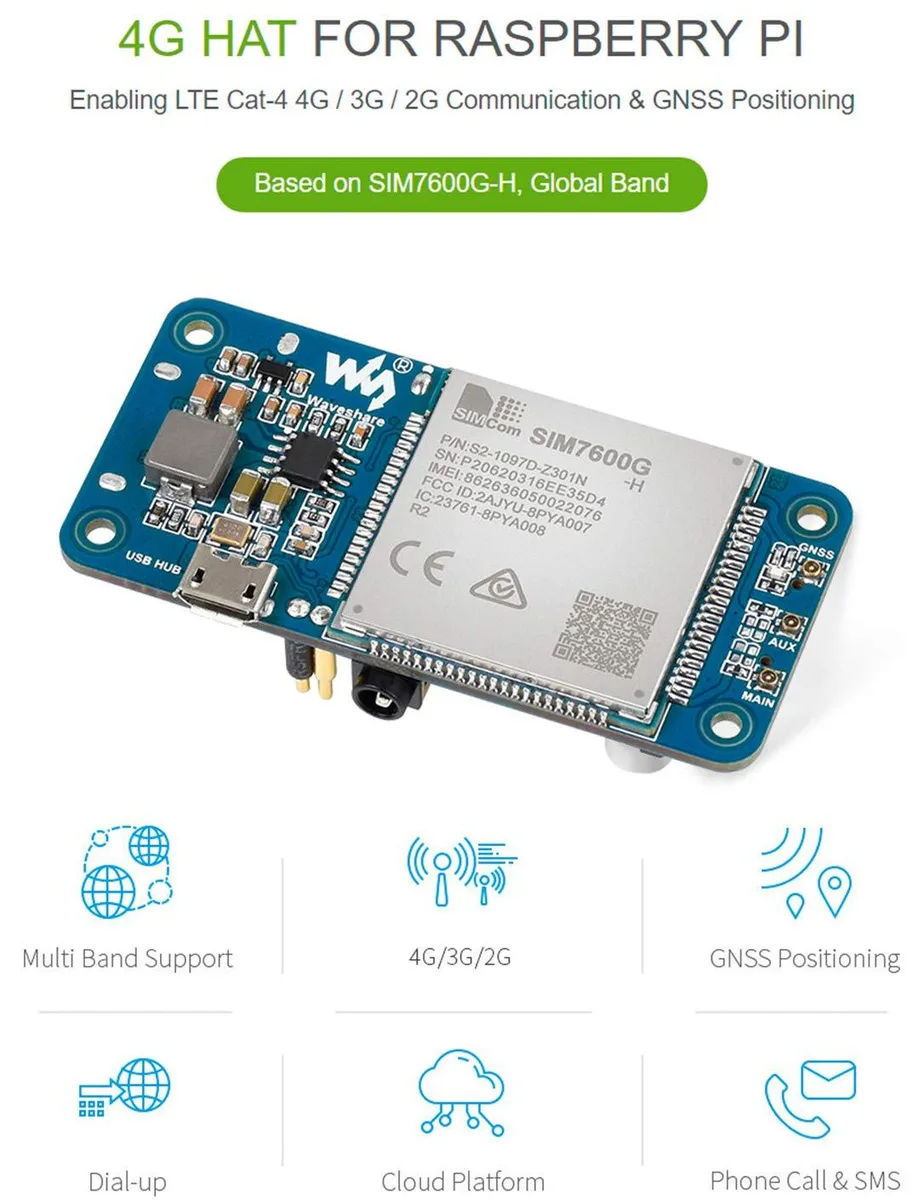

The LORDWORLD SIM7600G-H module adds LTE Cat-4 connectivity to Raspberry Pi Zero, other Pi boards, or a PC using pogo pins or a MicroUSB connector. It supports 2G, 3G, and 4G networks worldwide with up to 50 Mbps uplink and 150 Mbps downlink. An onboard USB hub provides extra ports while the module handles dial-up, voice calls, SMS, TCP, UDP, HTTP, and FTP. A SIM slot accepts 1.8 V or 3 V cards.

Upgrade from no cellular or single-band hardware

Projects limited to Wi-Fi or Ethernet gain mobile broadband with global band coverage. The jump is worth it when deployment sites lack fixed internet or when a single board must roam across regions. GNSS support adds GPS, BeiDou, Glonass, and LBS positioning without a separate receiver. Audio jack and decoder enable voice calls, while SAT Class 3 and USAT support extend SIM toolkit capabilities.

Makers adding mobile data to Pi or PC prototypes

Suits developers building IoT gateways, asset trackers, or remote sensors who need AT-command control via 3GPP TS 27.007, 27.005, and V.25TER. Not for designs requiring 5G speeds, carrier-specific bands not covered by the global module, or form factors incompatible with pogo-pin or MicroUSB attachment. Buyers needing more than two status LEDs or a different antenna connector should look elsewhere.

特長

  • Global 2G/3G/4G connectivity with the SIM7600G-H module
  • Dual connection options: pogo pins for Pi Zero or MicroUSB for other boards
  • Multi-constellation GNSS: GPS, BeiDou, Glonass and LBS positioning
  • Onboard audio jack and decoder for voice calls
  • AT command control per 3GPP TS 27.007 and 27.005 standards

仕様

BrandLORDWORLD

この商品に関する質問

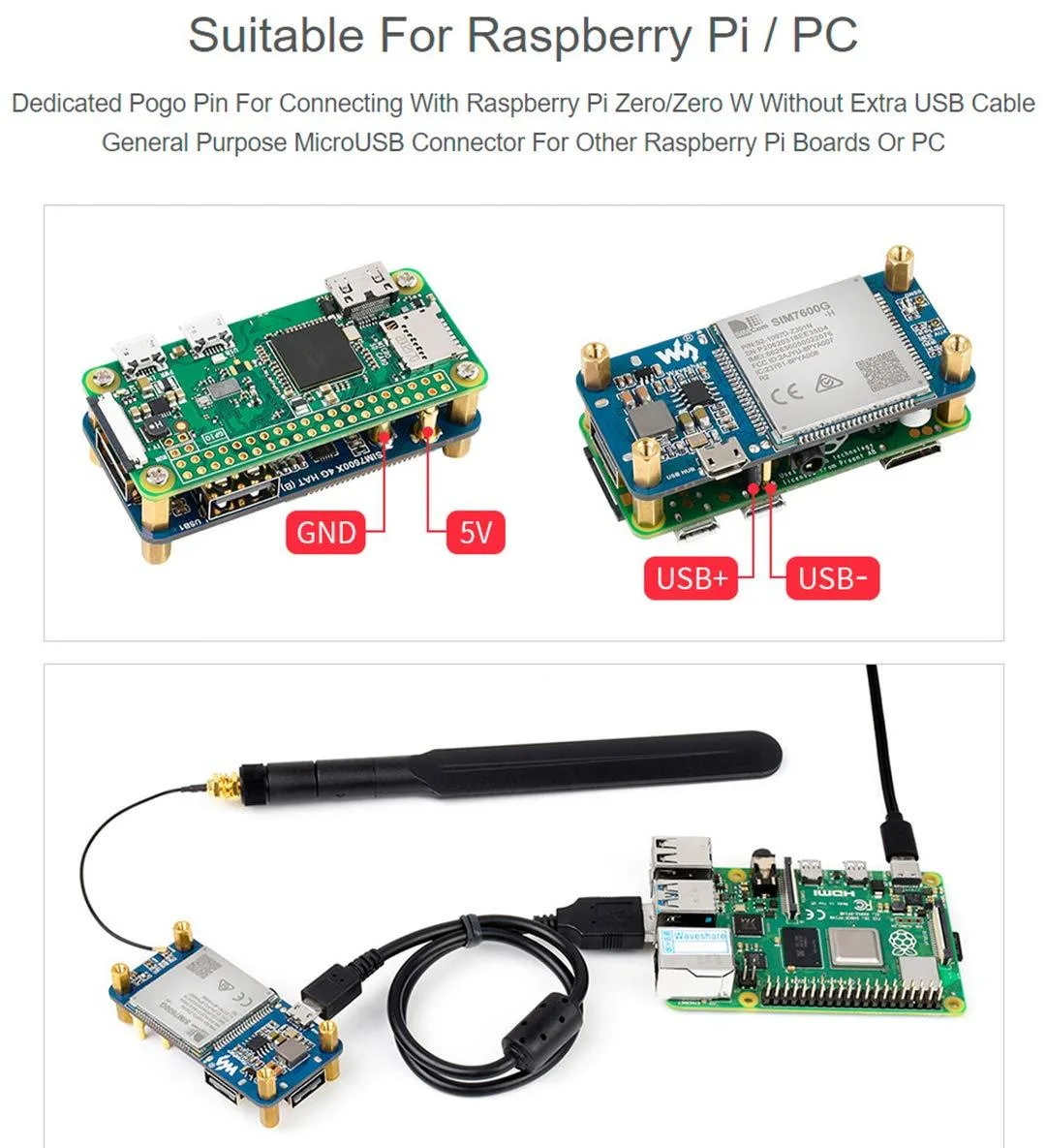

How does the SIM7600G-H 4G HAT attach to a Raspberry Pi Zero or Zero W?

It uses a dedicated pogo pin connector that mates directly with the Zero or Zero W header, so no extra cables are needed for those models.

Which connection method do I use for a Raspberry Pi 4 or a PC, and what mistake should I avoid?

Plug the board into the Pi 4 or PC via the MicroUSB port; the common error is leaving the pogo pins in place, which prevents the MicroUSB link from working.

What SIM card voltages does the onboard slot accept, and will I need to replace the module for a different voltage?

The slot supports both 1.8V and 3V SIM cards, so you can swap carriers without changing the module; only the SIM card itself may need replacement later.
