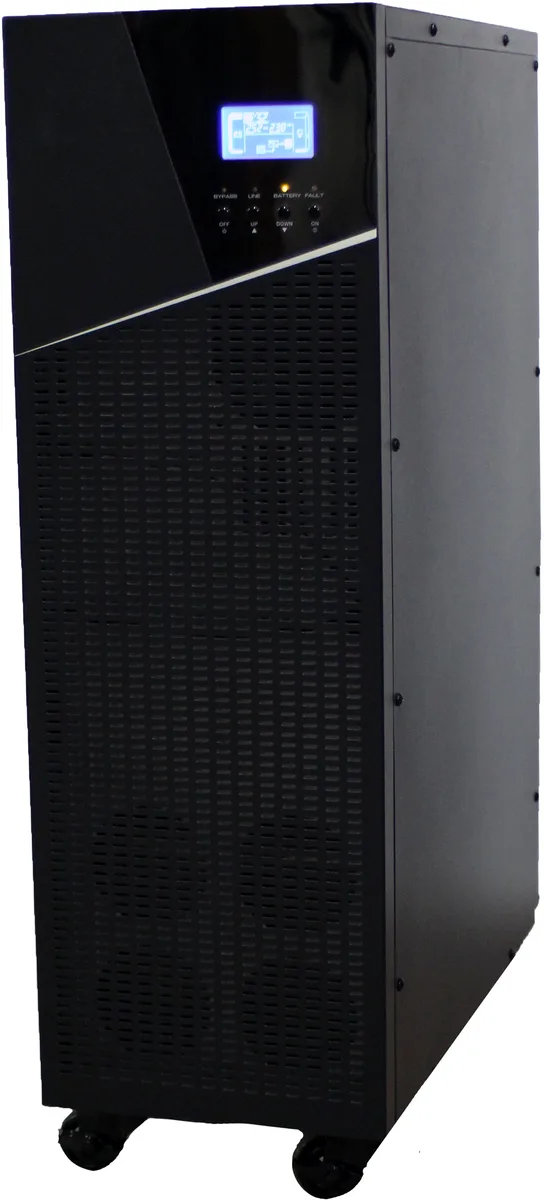

Tall rectangular tower UPS in dark finish, LCD display on front, heavy industrial build

MINUTEMAN

MINUTEMAN ED6KTF 6000VA UPS 208V/240V 237 lbs

SKU CH-APDK-6R4MT MPN ED6KTF

A true on-line double-conversion UPS delivering 6000VA with configurable 208VAC or 240VAC output, an isolation transformer for 120VAC support, and extended runtime via external battery packs

  • International Version208V/240V
  • VA Rating6000VA
  • Output Voltage120/208/220/230/240VAC
  • Battery ReplaceableB00007
  • Surge Energy Rating972 Joules
  • Dimensions32.54" x 9.8" x 22.1"

Model ED6KTF

他に 16点の構成を表示
  • True on-line double-conversion topology delivers clean 6000VA power
  • 0 output power factor supports full 6000W load without derating
  • Configurable 208VAC or 240VAC output matches facility voltage
  • Output isolation transformer enables 120VAC full-load support
  • Extended runtime available through external battery packs

True On-Line Double-Conversion UPS

The MINUTEMAN ED6KTF is a 6000VA true on-line, double-conversion uninterruptible power supply designed for environments requiring continuous, conditioned power. It accepts a hardwired 208V or 240V input and delivers configurable output voltages including 120, 208, 220, 230 and 240VAC. The unit weighs 237 lbs and measures 32.54 by 9.8 by 22.1 inches.

Output Isolation Transformer and Bypass

An internal output isolation transformer enables full-load 120VAC support across the configurable voltage range. Automatic internal bypass and a maintenance bypass allow service continuity without interrupting connected equipment. The replaceable battery uses part number B00007 and runtime can be extended through external battery packs.

Surge Rating and Power Factor Limits

Surge protection is rated at 972 Joules for the installation. The unit operates at a 1.0 output power factor, meaning the 6000VA rating equals 6000W of real power capacity. Buyers needing higher surge energy absorption or a lower input voltage than 208VAC should verify compatibility before installation.

特長

  • True on-line double-conversion topology delivers clean 6000VA power
  • 0 output power factor supports full 6000W load without derating
  • Configurable 208VAC or 240VAC output matches facility voltage
  • Output isolation transformer enables 120VAC full-load support
  • Extended runtime available through external battery packs

仕様

BrandMINUTEMAN
SeriesENDEAVOR
ModelED6KTF
International Version208V/240V
VA Rating6000VA
Output Voltage120/208/220/230/240VAC
Battery ReplaceableB00007
Surge Energy Rating972 Joules
Dimensions32.54" x 9.8" x 22.1"
Weight237 lbs.
配送重量107.50 kg
梱包サイズ826 × 561 × 249 mm

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

How often will the B00007 battery pack need to be replaced under normal operation?

The B00007 battery module is user-replaceable and typically lasts three to five years depending on discharge cycles and ambient temperature.

What limits continuous output when the UPS runs at full 6000 VA load for extended periods?

The 1.0 power factor rating means the 6000 VA unit delivers 6000 watts continuously; the first limit reached is the 6000 watt thermal ceiling of the double-conversion inverter.

How much heat does the 237 lb cabinet reject when it powers a full load all day?

At full load the double-conversion topology dissipates several hundred watts as heat, requiring adequate room ventilation to keep internal temperatures within design limits.
