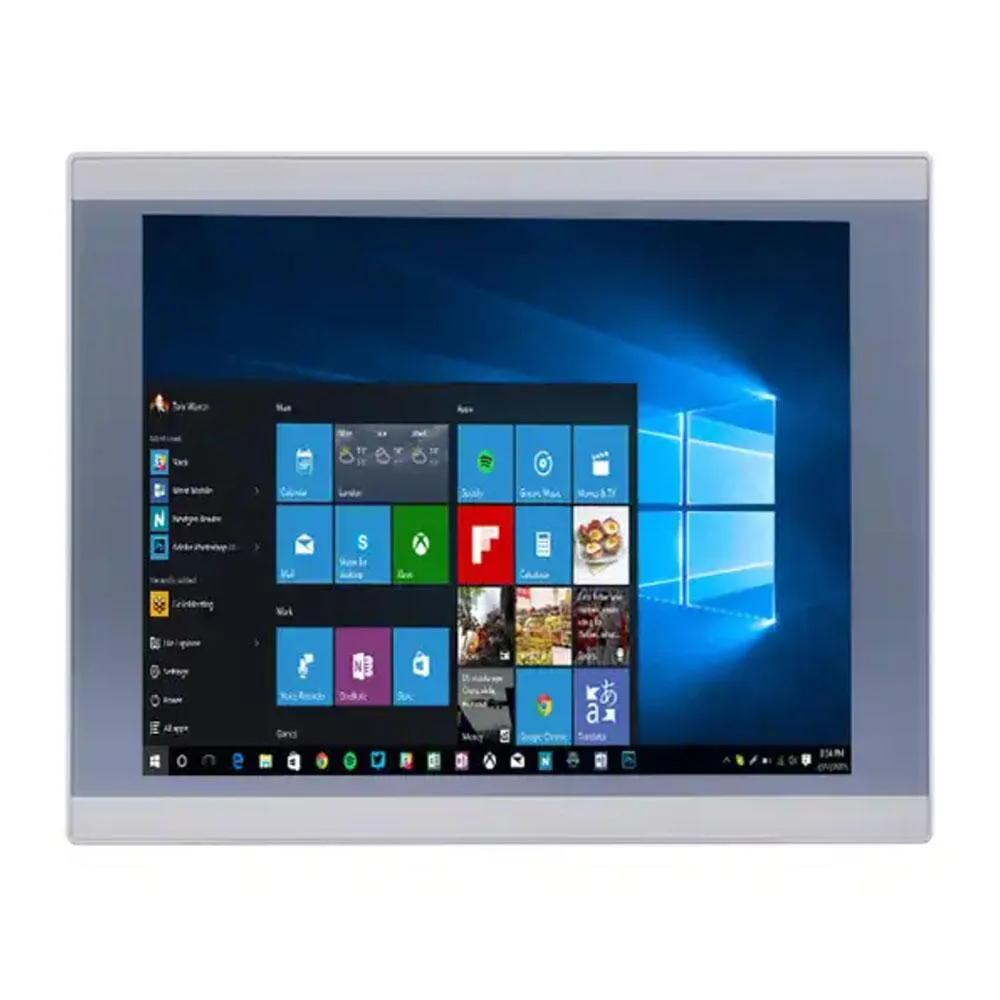

Silver 12.1 inch industrial all-in-one panel PC with IP65 front bezel and projected capacitive touchscreen

partaker

partaker A1 12.1" All-in-One PC i5-8265U 16GB 512GB

SKU CH-4TT8-PKB9J

Industrial 12.1" IP65 touch panel PC with i5-8265U, 16GB DDR4 and 512GB SSD for continuous operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i5 8th Gen

CPU Name Intel Core i5-8265U

GPU Intel UHD Graphics

Memory 16GB DDR4

SSD 512GB

HDD None

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i5-8265U with 16 GB DDR4 handles industrial workloads
  • 512 GB SSD plus multiple expansion slots for flexible storage

Industrial 12.1" Panel PC

The Partaker A1 integrates an Intel Core i5-8265U processor with 16GB DDR4 memory and a 512GB SSD inside a 12.1-inch IP65-rated touchscreen. It ships with Windows 11 Pro pre-installed and offers HDMI, VGA, dual LAN, dual COM ports and four USB ports for industrial connectivity. The fanless aluminium chassis enables silent 24/7 operation in environments from 0 to 50°C.

Upgrade from legacy panel PCs

This unit replaces older all-in-one terminals that lack IP65 front protection, modern I/O or 64GB maximum memory support. The jump is worthwhile when an application needs 10-point projected capacitive touch, dual independent display outputs via HDMI and VGA, or expansion through Mini PCIe with a SIM slot for 4G connectivity. Buyers who require a larger display area or higher native resolution should consider other form factors.

Embedded mounting with standard cut-out

Installation uses the supplied embedded buckle kits into a 301 x 229mm panel cut-out, with wall, desktop or cantilever alternatives. The 12V DC input accepts 100-240V AC via the included adapter, and the BIOS watchdog timer supports auto power-on after power loss. Ensure the operating temperature stays within 0-50°C with the fitted SSD; the 2.5-inch SATA bay and mSATA slot allow storage expansion but require compatible drive heights.

特長

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i5-8265U with 16 GB DDR4 handles industrial workloads
  • 512 GB SSD plus multiple expansion slots for flexible storage

仕様

ModelA1-PA-121TPC-CE6B(I58)-16G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

What are the cut-out dimensions for the embedded mounting buckles?

The embedded buckle kits require a rectangular opening of 301 mm by 229 mm to fit the 306.8 mm by 235.12 mm chassis.

Which screw or latch secures the panel after the buckles are seated, and is it included?

The embedded buckle kits supplied in the packing list lock the unit into the cut-out; no separate screws or latches are required.

When will the backlight reach its rated minimum lifetime of 30,000 hours?

At continuous 24-hour operation the 350 cd/m² LED backlight is rated for at least 30,000 hours, roughly three and a half years.
