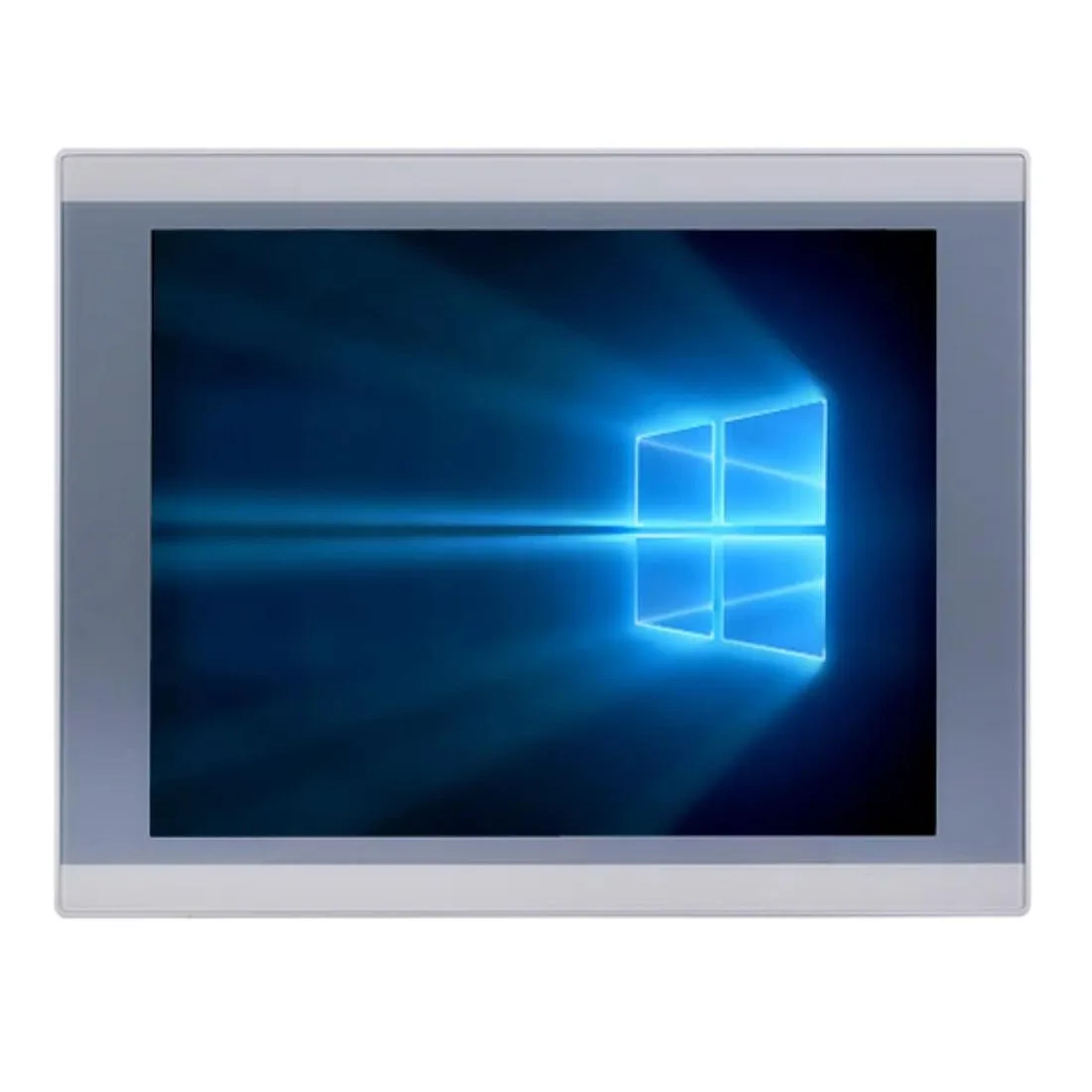

Silver 12.1 inch fanless all-in-one panel PC with IP65 front bezel and projected capacitive touchscreen

partaker

partaker A1 12.1" Industrial Panel PC i5-1135G7 16GB DDR4 256GB

SKU CH-Y525-AZW2X

A 12.1-inch fanless industrial panel PC with IP65 front protection, 10-point capacitive touch, Intel Core i5-1135G7, 16GB DDR4 and 256GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 16GB DDR4

SSD 256GB

HDD None

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • IP65 front panel protects against dust and water jets
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Intel Core i5-1135G7 with Iris Xe Graphics delivers responsive performance
  • 16 GB DDR4 and 256 GB SSD provide fast memory and storage
  • Fanless aluminium alloy design runs silently 24/7

12.1" IP65 Industrial Panel PC

The Partaker A1 integrates a 12.1 inch TFT LED display with a projected capacitive touchscreen into a fanless aluminium chassis. An Intel Core i5-1135G7 processor with Iris Xe graphics drives Windows 11 Pro on 16 GB of DDR4 memory and a 256 GB SSD. The front panel meets IP65 protection for dust and water jets.

Suited for embedded industrial control

This unit fits machine interfaces, kiosks and process visualisation where a compact sealed front and silent operation are required. The 10-point touch supports gloved use and the wide 80-degree viewing angles aid readability. Buyers needing a larger display area or higher brightness for direct sunlight should consider other form factors.

16 GB DDR4 with 64 GB ceiling and dual drive bays

The two SODIMM slots accept DDR4-3200 modules up to 64 GB total for memory-intensive SCADA or historian tasks. Storage expansion uses one M.2 2260/2280 slot supporting PCIe x1 or SATA plus one 2.5 inch SATA bay for additional SSD or HDD capacity.

特長

  • IP65 front panel protects against dust and water jets
  • 10-point capacitive touchscreen enables precise multi-touch control
  • Intel Core i5-1135G7 with Iris Xe Graphics delivers responsive performance
  • 16 GB DDR4 and 256 GB SSD provide fast memory and storage
  • Fanless aluminium alloy design runs silently 24/7

仕様

ModelA1-PA-121TPC-CE6B(I5B)-16G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity16GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

Do I need to buy a 12 V DC power source to run this panel PC?

The unit ships with a 12 V DC power supply and a power cord, so no separate source is required.

Will my existing VGA monitor work as a second display alongside the built-in 12.1 inch 1024 x 768 screen?

Yes, the HDMI and VGA outputs both support external monitors while the internal panel remains active.

How can I verify the 10-point capacitive touch screen is functioning correctly after installation?

Open the Windows 11 calibration tool and confirm all ten simultaneous touch points register across the 12.1 inch display.
