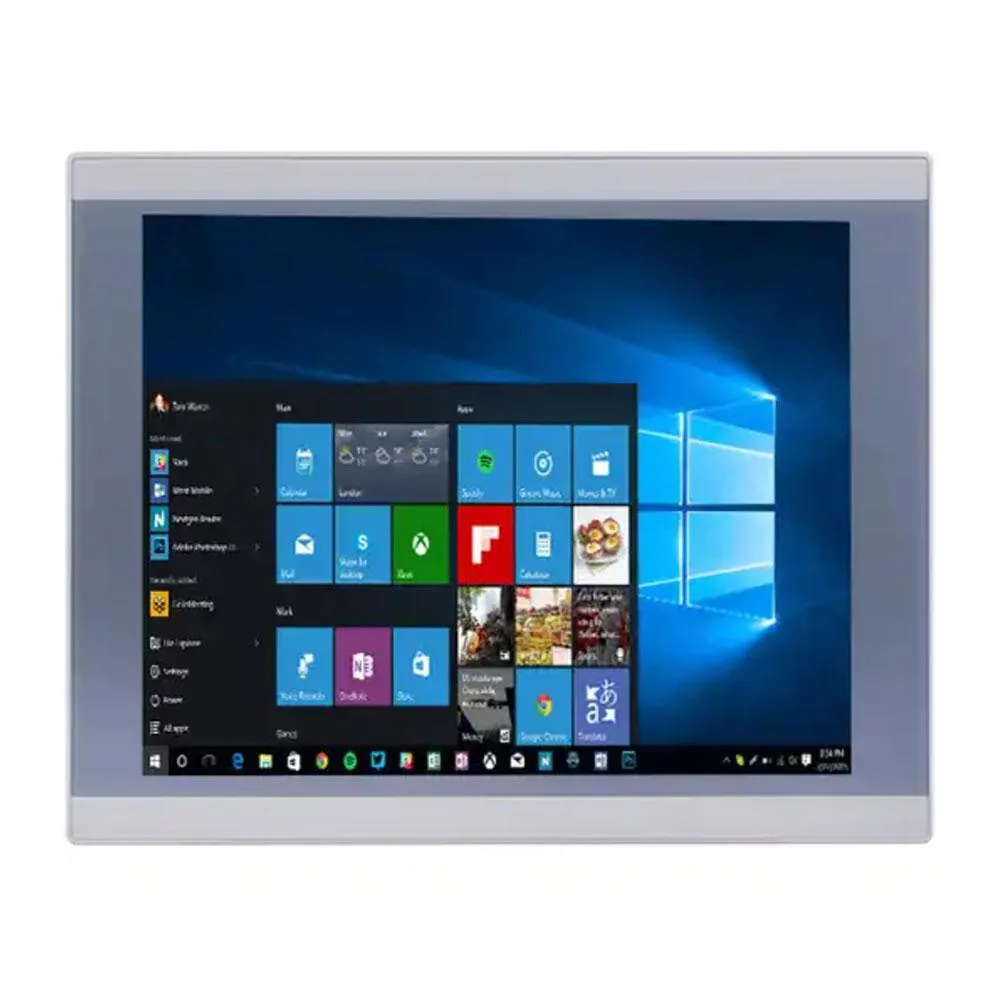

Silver 12.1 inch fanless industrial panel PC with IP65 front bezel and capacitive touchscreen

partaker

partaker A1 12.1" industrial panel PC i7-8565U 32GB 512GB

SKU CH-3PZN-VV5EG

12.1-inch IP65-rated fanless panel PC with 10-point capacitive touch, Intel Core i7-8565U, 32 GB DDR4 and 512 GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD None

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen supports multi-touch input
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i7-8565U with 32GB DDR4 handles industrial workloads
  • 512GB SSD plus mSATA and M.2 slots allow storage expansion

Industrial Panel PC with IP65 Protection

The Partaker A1 is a 12.1 inch all-in-one computer built for industrial environments. Its front panel meets IP65 rating against dust and water jets, and the 10-point projected capacitive touchscreen supports gloved operation. An Intel Core i7-8565U processor with 32GB DDR4 memory and a 512GB SSD runs Windows 11 Pro out of the box. Fanless aluminium alloy cooling enables silent 7 x 24 hour operation.

Connectivity Limits in Industrial Settings

The unit provides HDMI and VGA video outputs alongside two LAN ports, two COM ports, two USB 3.0 and two USB 2.0 ports. Expansion is restricted to a single Mini PCIe slot with a SIM socket for wireless modules. The 12V DC input accepts 100-240V AC via the supplied adapter. Operating temperature ranges from 0 to 50°C with the installed SSD, and the 1024 x 768 panel reaches 350 cd/m2 brightness with 80-degree viewing angles.

Upgrade Path from Legacy Panel PCs

This system replaces older fan-cooled industrial terminals that require regular filter maintenance and produce audible noise. The jump is worthwhile when silence, front-panel water resistance and modern I/O such as USB 3.0 and dual gigabit LAN are needed. It is not suited for applications demanding higher screen resolution, wider temperature ranges beyond 50°C, or more than two serial ports. Memory can be expanded to 64GB across two SODIMM slots, and additional storage fits via mSATA, M.2 2280 and 2.5 inch SATA bays.

特長

  • IP65 front panel resists dust and water ingress
  • 10-point capacitive touchscreen supports multi-touch input
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i7-8565U with 32GB DDR4 handles industrial workloads
  • 512GB SSD plus mSATA and M.2 slots allow storage expansion

仕様

ModelA1-PA-121TPC-CE6B(I78)-32G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

Should I choose the 32 GB DDR4 or upgrade to the 64 GB maximum?

The unit ships with 32 GB DDR4-2400 in two SODIMM slots and supports up to 64 GB total, so the factory configuration leaves both slots available for a simple upgrade if workloads demand more memory.

How does the 1024 x 768 panel perform in a real machine?

The 12.1 inch TFT LED screen delivers 350 cd/m2 brightness, 1000:1 contrast and 80-degree viewing angles in all directions, with a 10-point projected capacitive touch rated for 200 million touches.

What does the HDMI port actually cap in practice?

The HDMI output is driven by the Intel UHD Graphics integrated in the i7-8565U and supports a second display alongside the built-in panel or VGA for dual-monitor setups.
