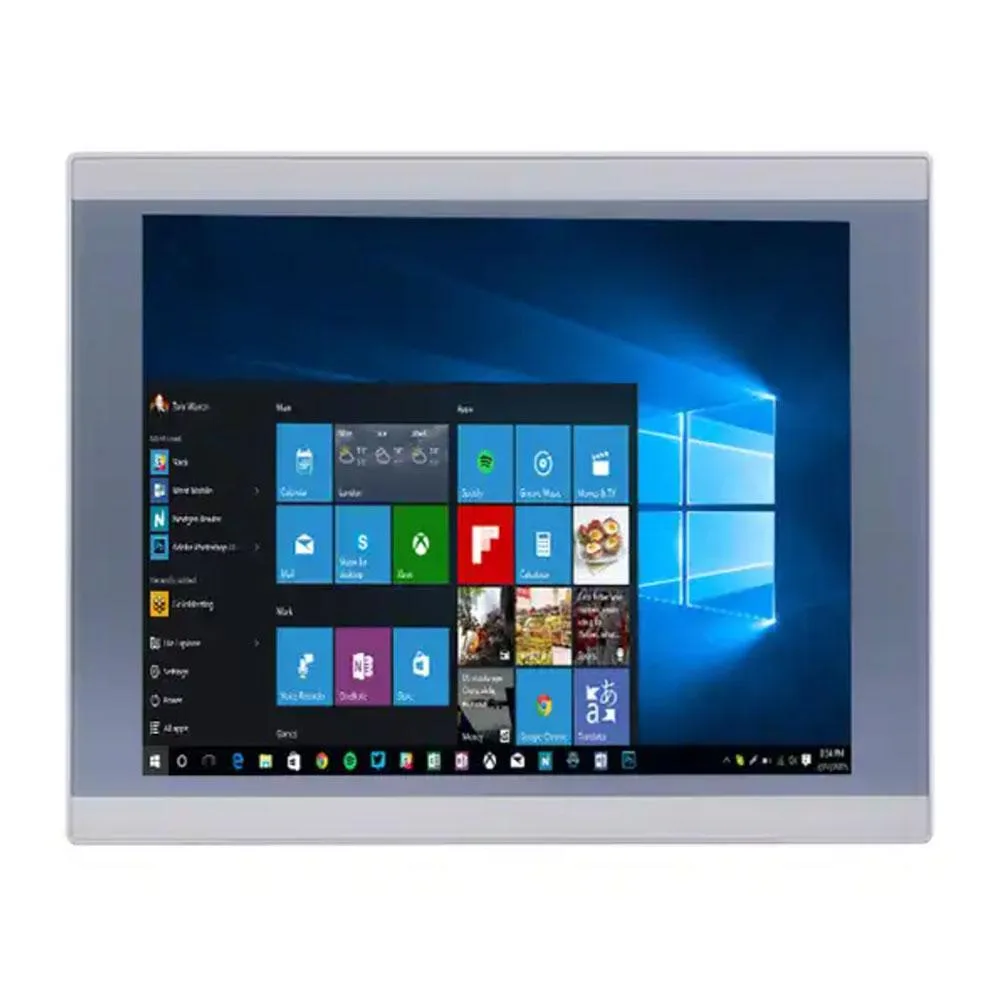

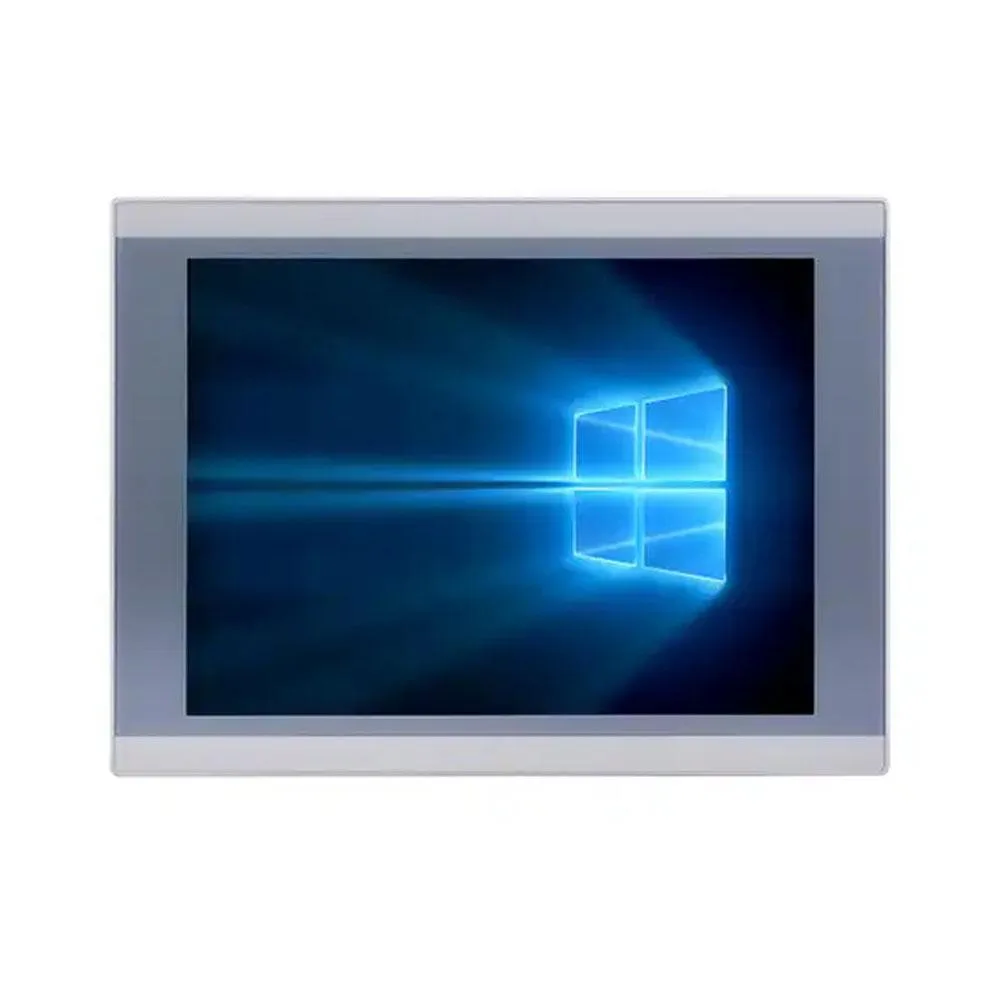

Silver 12.1 inch industrial all-in-one panel PC with resistive touchscreen

partaker

Partaker A2-PA-121TPC-CE5B(I78)-32G512G 12.1" All-in-One PC

SKU CH-ME7J-TZA3M

A 12.1" IP65-rated industrial panel PC with a high-temperature 5-wire resistive touchscreen, Intel Core i7-8565U processor, 32GB DDR4 memory, 512GB SSD and fanless aluminium cooling for 24/7 operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD None

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • IP65 front panel resists dust and water ingress
  • Intel Core i7-8565U up to 4.60 GHz handles heavy workloads
  • 32 GB DDR4 with 64 GB max capacity supports multitasking
  • Fanless aluminium alloy cooling runs silently 24/7
  • 5-wire resistive touch rated for 35 million touches

Industrial All-in-One with IP65 Front Panel

The Partaker A2-PA-121TPC-CE5B(I78)-32G512G is a 12.1 inch all-in-one computer built for industrial environments. Its front panel meets IP65 protection and the resistive touchscreen operates in high temperatures. A fanless aluminium chassis enables silent 7 x 24 hour operation. Windows 11 Pro is pre-installed for immediate deployment.

Upgrade from Fan-Cooled or Non-IP Rated Units

This system replaces panel PCs that rely on active cooling or lack front-panel ingress protection. The jump is worth it when dust, moisture or noise constraints rule out ventilated designs. The 5-wire resistive screen withstands 35 million touches and functions with gloves. The Core i7-8565U processor reaches 4.60 GHz for demanding control tasks.

Build Integration and Expansion

The unit measures 306.8 x 235.12 x 54.5 mm with a 301 x 229 mm cut-out for embedded mounting. It accepts 12 V DC input from a 100-240 V AC adapter. I/O includes HDMI, VGA, two LAN, two COM, two USB 3.0, two USB 2.0 and audio. A Mini PCIe slot with SIM holder adds wireless connectivity. Memory expands to 64 GB DDR4 across two SODIMM slots. Storage options cover mSATA, M.2 2280 and 2.5 inch SATA bays.

特長

  • IP65 front panel resists dust and water ingress
  • Intel Core i7-8565U up to 4.60 GHz handles heavy workloads
  • 32 GB DDR4 with 64 GB max capacity supports multitasking
  • Fanless aluminium alloy cooling runs silently 24/7
  • 5-wire resistive touch rated for 35 million touches

仕様

ModelA2-PA-121TPC-CE5B(I78)-32G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

What are the exact cut-out dimensions for the 12.1" panel mount?

The embedded installation requires a 301 x 229 mm opening hole for the 306.8 x 235.12 mm front panel, secured with the included buckle kits.

How do you install the operating system on the M.2 2280 NVME PCIE X4/SATA SSD slot?

Insert the M.2 drive at an angle into the keyed slot, press down, and secure with the retention screw; the pre-installed Windows 11 Pro will detect it automatically.

When should the 5-wire resistive touchscreen be replaced based on its rated durability?

The touchscreen is rated for 35 million touches and the backlight for 30000 hours minimum; plan replacement when either limit is approached in continuous use.
