Compact 13.3 inch fanless all-in-one panel PC with resistive touchscreen and aluminium alloy chassis

partaker

Partaker A3 13.3″ all-in-one PC i7-1165G7 32GB DDR4 512GB SSD

SKU CH-WBXT-1CQGV

A 13.3″ industrial panel PC with an IP65 front, fanless aluminium chassis, Intel Core i7-1165G7, 32 GB DDR4, 512 GB SSD and a five-wire resistive touchscreen

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity32GB DDR4
  • SSD512GB

Memory Capacity 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD None

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • IP65 front panel protects against dust and water in harsh environments
  • Intel Core i7-1165G7 with 4.70 GHz turbo handles continuous industrial workloads
  • 32GB DDR4-3200 memory runs multi-tasking applications without lag
  • Fanless aluminum alloy cooling operates silently with zero moving parts
  • Dual LAN plus 2× COM and 4× USB ports connect legacy and modern equipment

Industrial panel PC for 24/7 operation

The Partaker A3 is a 13.3" all-in-one panel PC built around an Intel Core i7-1165G7 processor with Intel Iris Xe graphics. It ships with Windows 11 Pro, 32GB of DDR4 memory and a 512GB SSD. The IP65-rated front panel and five-wire resistive touchscreen are designed for continuous industrial use.

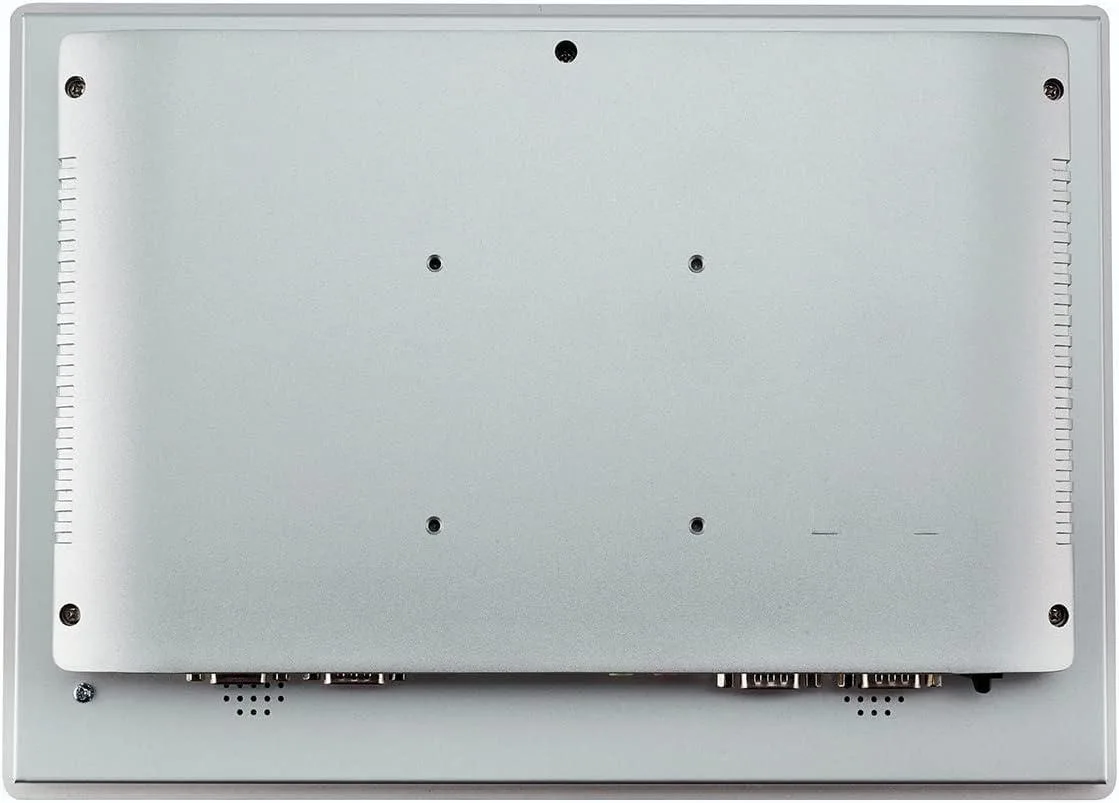

Fanless aluminium chassis with embedded mounting

Passive cooling eliminates moving parts for silent, maintenance-free operation in embedded, wall-mounted or desktop installations. The unit requires a 12V DC supply from the included 100-240V AC adapter. I/O includes HDMI, VGA, dual LAN, two COM ports, audio, two USB 3.0 and two USB 2.0 ports. Expansion is available via M.2 Key E for WIFI6 and Key B for 5G with a SIM slot.

32GB DDR4 and 512GB storage with room to grow

Two SODIMM slots support up to 64GB of DDR4-3200 memory. Storage can be expanded through an M.2 2260/2280 slot (PCIe x1 or SATA) and a 2.5" SATA bay. The 1280x800 TFT LED panel reaches 300 cd/m² brightness with a 70°/70°/55°/55° viewing cone. Operating temperature ranges from 0 to 50°C with SSD installed.

特長

  • IP65 front panel protects against dust and water in harsh environments
  • Intel Core i7-1165G7 with 4.70 GHz turbo handles continuous industrial workloads
  • 32GB DDR4-3200 memory runs multi-tasking applications without lag
  • Fanless aluminum alloy cooling operates silently with zero moving parts
  • Dual LAN plus 2× COM and 4× USB ports connect legacy and modern equipment

仕様

ModelA3-PA-133TPC-CE5A(I7B)-32G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
SSD512GB
HDDNo
Screen Size13.3"
TouchscreenYes

このモデルの他のバージョン

同シリーズにさらに 5点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

What is the maximum operating temperature before the fanless cooling reaches its limit?

The aluminium-alloy passive design is rated for continuous operation up to 50 °C with the installed SSD.

How much noise and heat does the system produce during 24/7 operation?

The fanless chassis runs completely silent; all waste heat is dissipated through the aluminium alloy body.

Which power source must already be on site for the unit to start?

A 12 V DC supply fed from the included 100-240 V AC adapter is required.
