Green PCB PCIe card with silver RJ45 port and metal bracket

Wavlink

Wavlink WL-NWP001 1G PCIe network card

SKU CH-K9PW-P4A83 MPN WL-NWP001

Adds a 1000 Mbps Ethernet port via PCIe with RTL8111H controller, low-profile bracket included

  • Speed1000Mbps
  • InterfacePCI-Express
  • Wireless Speed1000/100/10Mbps
  • LEDs1 x Link(Green), 1 x Ethernet (Yellow)
  • Windows VistaWindows 11/10/8/8.1/7/XP/Vista, Linux
  • Features- 1Gbps PCle Ethernet controller supports up to 1000Mbps spe

Class 1000M, PCIE

  • 1000M, PCIE
  • 10G, PCIE
  • 2.5G, Single RJ45
  • 5G, Sing RJ45

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

Option PCIe 1 Gbps - 1 Port RJ45

  • PCIe 10 Gbps - 1 Port RJ45
  • PCIe 1 Gbps - 1 Port RJ45
  • 5G - Single RJ45
  • 2.5G - 1 Port RJ45

取り消し線の付いたバージョンは存在しますが、こちらでは取り扱っていません。

  • 1 Gbps speed for fast file transfers and HD streaming

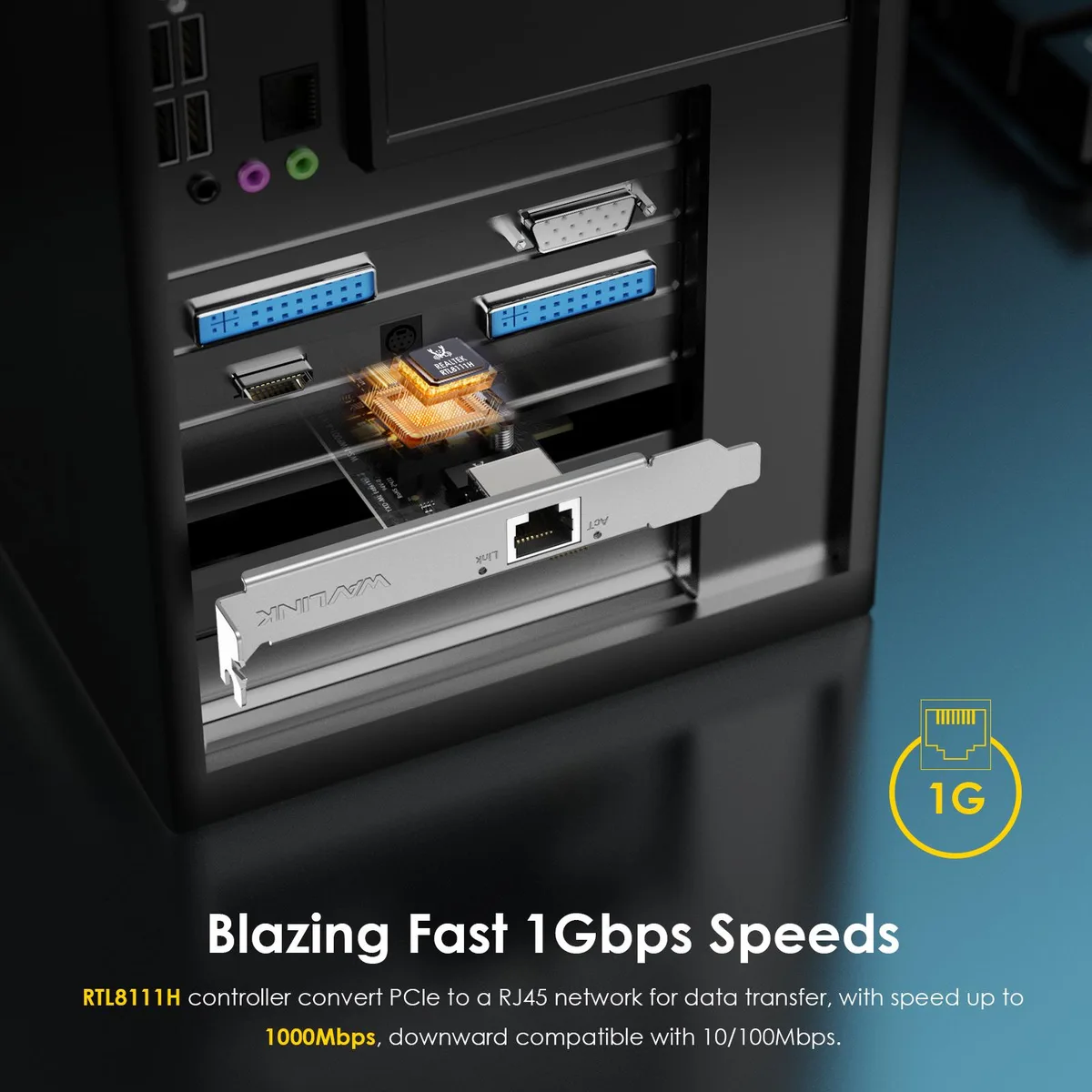

  • Realtek RTL8111H controller delivers reliable wired performance

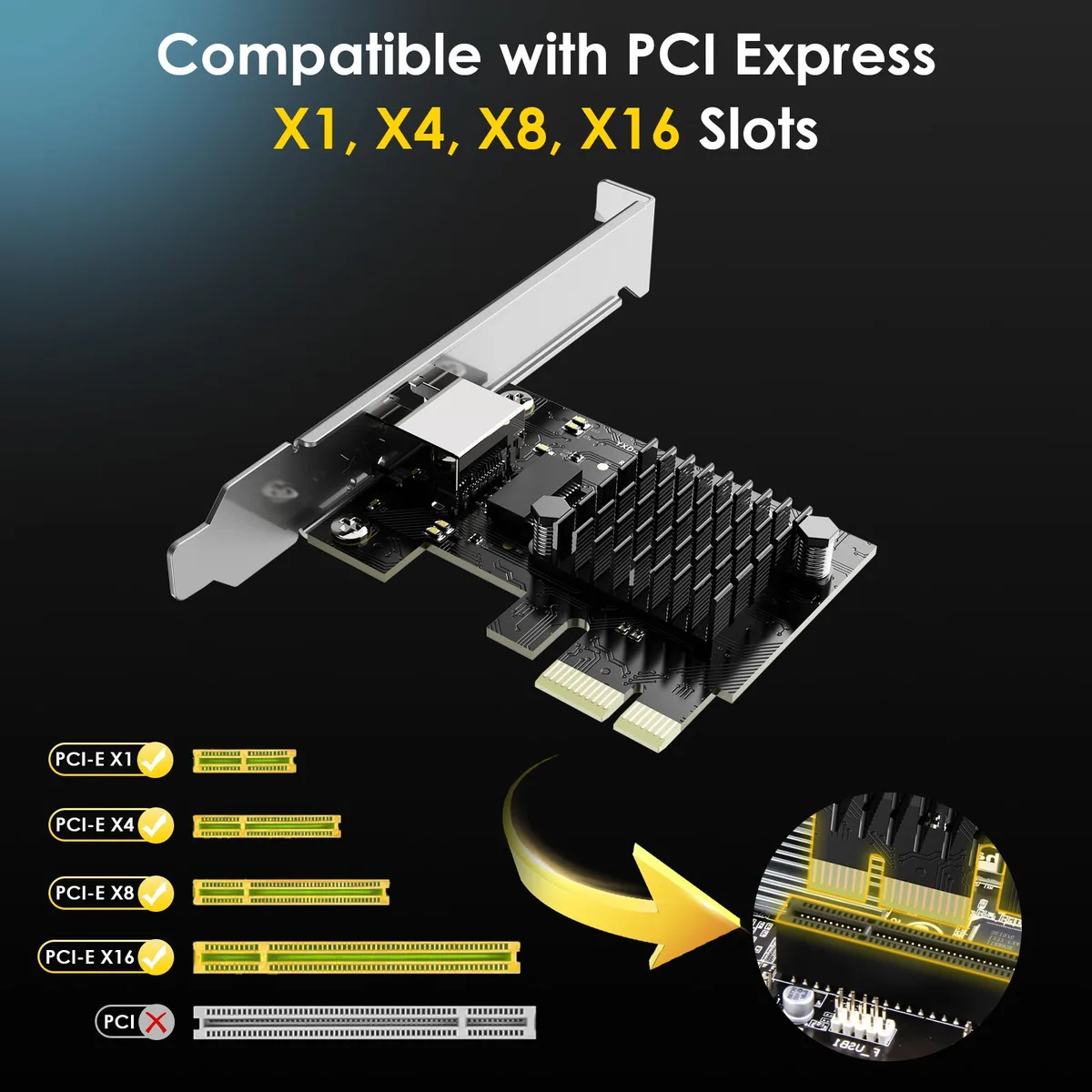

  • Fits PCIe x1, x4, x8 and x16 slots on most motherboards
  • Works with Windows 11, 10, 8.1, 8, 7, XP, Vista and Linux
  • Low-profile bracket included for small-form-factor cases

What this card adds to a desktop

The Wavlink WL-NWP001 puts a single 1G RJ45 port onto any free PCIe x1, x4, x8 or x16 slot. It is aimed at owners of older boards with failed onboard Ethernet or at builders using a mini-tower case that needs a low-profile bracket.

Metal shielding and bracket choice

A metal cover reduces electromagnetic interference while the heatsink keeps the RTL8111H controller cool under load. The box includes both a full-height and a low-profile bracket plus two screws so the card fits standard and slim chassis without extra parts.

Replacing a 100Mbps link or dead onboard port

The jump makes sense when your current connection caps at 100Mbps or the motherboard port has stopped working; the card negotiates 1000, 100 or 10Mbps automatically and works with existing CAT5E cables. Buyers who need multi-gigabit speeds or a second independent port should look elsewhere.

特長

  • 1 Gbps speed for fast file transfers and HD streaming
  • Realtek RTL8111H controller delivers reliable wired performance
  • Fits PCIe x1, x4, x8 and x16 slots on most motherboards
  • Works with Windows 11, 10, 8.1, 8, 7, XP, Vista and Linux
  • Low-profile bracket included for small-form-factor cases

仕様

BrandWAVLINK
ModelWL-NWP001
Part Number1* RJ45 Ethernet port
Speed1000Mbps
InterfacePCI-Express
Wireless Speed1000/100/10Mbps
LEDs1 x Link(Green), 1 x Ethernet (Yellow)
Windows VistaWindows 11/10/8/8.1/7/XP/Vista, Linux
Features- 1Gbps PCle Ethernet controller supports up to 1000Mbps speed and compatible with 100/10Mbps Network Standard.
- Support Wake On LAN(SI/S3/S5), PXE Boot and Jumbo Frame up to 9KB.
- Compatible with PCIE x1/x2/x4/x8/x16 interface.
- Support low-profile and full-height brackets for mini and standard tower PC.
- Fully compatible with Windows 11/10/8.1/8/7/XP/Vista, Linux.
Package Contents1 x 1Gbps PCIe Network Card
1 x Low-Profile Bracket
2 x Screws
1 x Quick Start Guide
Class1000M, PCIE

このモデルの他のバージョン

同シリーズにさらに 1点

同じファミリーで、メモリ・クーラー・クロックが異なります — 購入前に比較してください。

この商品に関する質問

What PCIe lane widths does the WL-NWP001 support, and what speed does that cap the port at?

The card fits PCIe x1, x2, x4, x8 and x16 slots and runs at 1000 Mbps, with 100/10 Mbps backward compatibility.

Which brackets and fasteners are supplied so the card fits a low-profile or standard case?

A low-profile bracket, a standard bracket and two screws are included for either chassis height.

How do I install the WL-NWP001, and what step is often missed?

Remove the plastic film from the PCIe edge connector, insert the card into any PCIe slot, secure the chosen bracket with the screws, then install the Realtek 8111H driver for Windows 11/10/8.1/8/7/XP/Vista or Linux.
