Black metal AC/DC adapter controller with four-way PWM splitter cable

Westinghouse 123A-4 36W 3-12V Fan Speed Controller with 4-Way Splitter

SKU CH-CHD8-ABZEF MPN 123A-4

Adjusts 3–12 V DC fan speed up to 36 W and splits power to four 3-pin or 4-pin fans from 100–240 V AC input

  • Product name123A-4
  • included1x 36W AC DC Adapter controller with 4 way PMW Splitter Cabl
  • weight0.168 kilograms
  • description1x 36W AC DC Adapter controller with 4 way PMW Splitter Cabl
  • finishBlack
  • ColorBlack

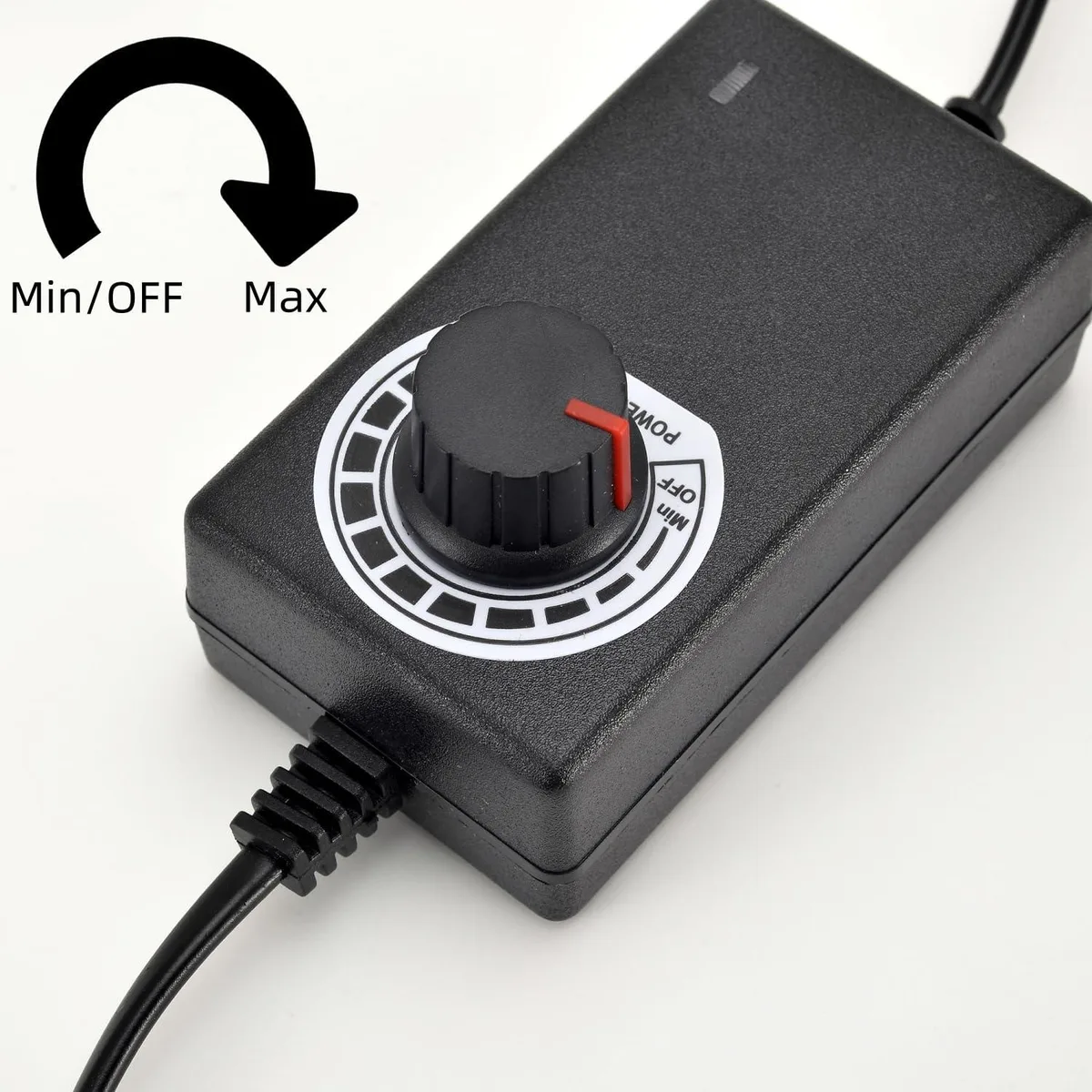

  • Adjust fan speed precisely with 3-12V DC adjustable output up to 36W
  • Power from any mains worldwide with 100-240V AC input at 50/60Hz
  • Control four fans at once using included 4-way PWM splitter cable for 3-pin or 4-pin
  • Place unit conveniently with 1.7m total cable reach combining AC input DC output and splitter
  • Lightweight metal housing at 0.168kg fits easily in PC cases AV racks or console setups

Fan speed controller for PC and AV gear

This Westinghouse 123A-4 unit converts 100-240V AC mains power into an adjustable 3-12V DC output rated at 36W. It is built for enthusiasts who want precise speed control over up to four 3-pin or 4-pin fans in computers, amplifiers, receivers or consoles.

Four-way PWM splitter cable included

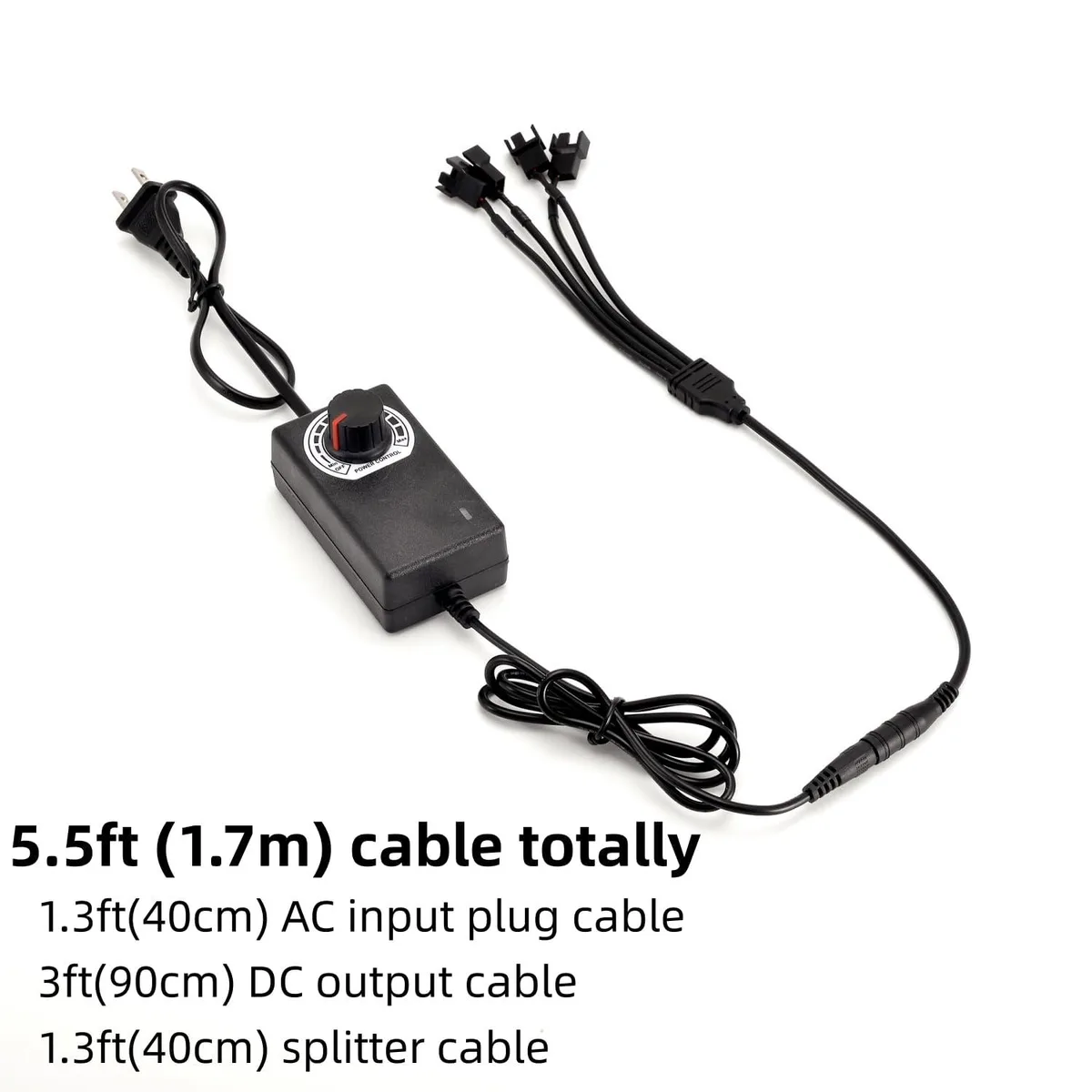

The bundled splitter lets a single controller manage four fans at once, so all connected units ramp up or down together. A 5.5ft total cable reach — comprising 1.3ft AC input, 3ft DC output and 1.3ft splitter — gives flexible routing inside cases or equipment racks without extra extensions.

Metal housing with standard fan headers

The black metal enclosure weighs 0.168kg and measures 14.33in wide by 12.83in high by 9.06in deep. It accepts both 3-pin and 4-pin connectors, so builders can mix fan types without adapters, while the wide AC input range removes the need for a separate voltage selector when moving gear between regions.

特長

  • Adjust fan speed precisely with 3-12V DC adjustable output up to 36W
  • Power from any mains worldwide with 100-240V AC input at 50/60Hz
  • Control four fans at once using included 4-way PWM splitter cable for 3-pin or 4-pin
  • Place unit conveniently with 1.7m total cable reach combining AC input DC output and splitter
  • Lightweight metal housing at 0.168kg fits easily in PC cases AV racks or console setups

仕様

BrandWestinghouse
Model123A-4
Product name123A-4
included1x 36W AC DC Adapter controller with 4 way PMW Splitter Cable
weight0.168 kilograms
description1x 36W AC DC Adapter controller with 4 way PMW Splitter Cable, Tokatuker, 123A-4
finishBlack
ColorBlack
materialMetal
dimensions14.33in W x 12.83in H x 9.06in D

この商品に関する質問

Does the 36W adapter or the 4-way PWM splitter cable need periodic replacement?

The unit is a sealed AC-DC adapter with no user-serviceable parts; the 4-way splitter cable and controller are designed to last the life of the installation.

What limits continuous operation when four fans draw the full 36W?

The 3-amp current ceiling on the 3-12V DC output is the first limit reached under sustained load.

How much heat and noise does the controller produce when running all day at 12V?

The metal-cased adapter runs silently with no fan of its own; warmth stays within normal levels for a 36W external power supply.
