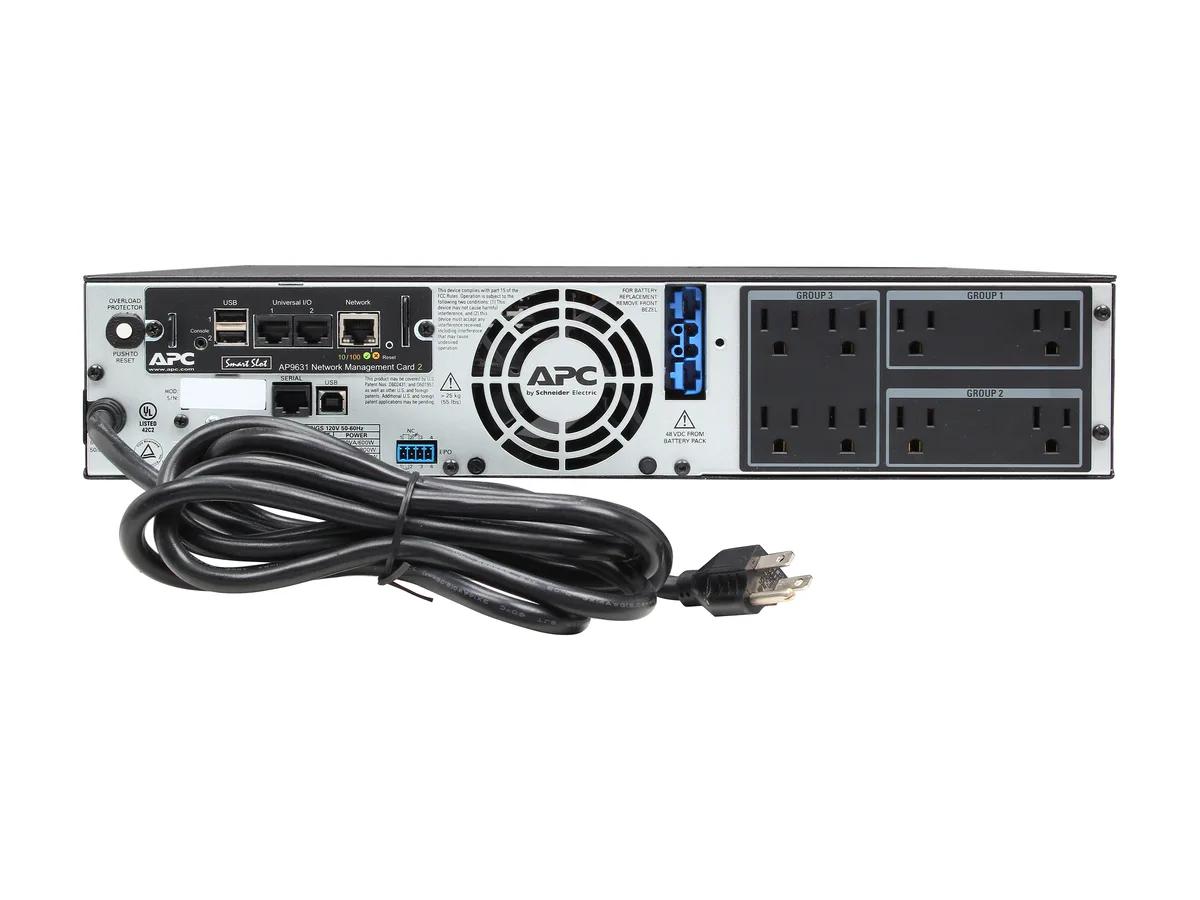

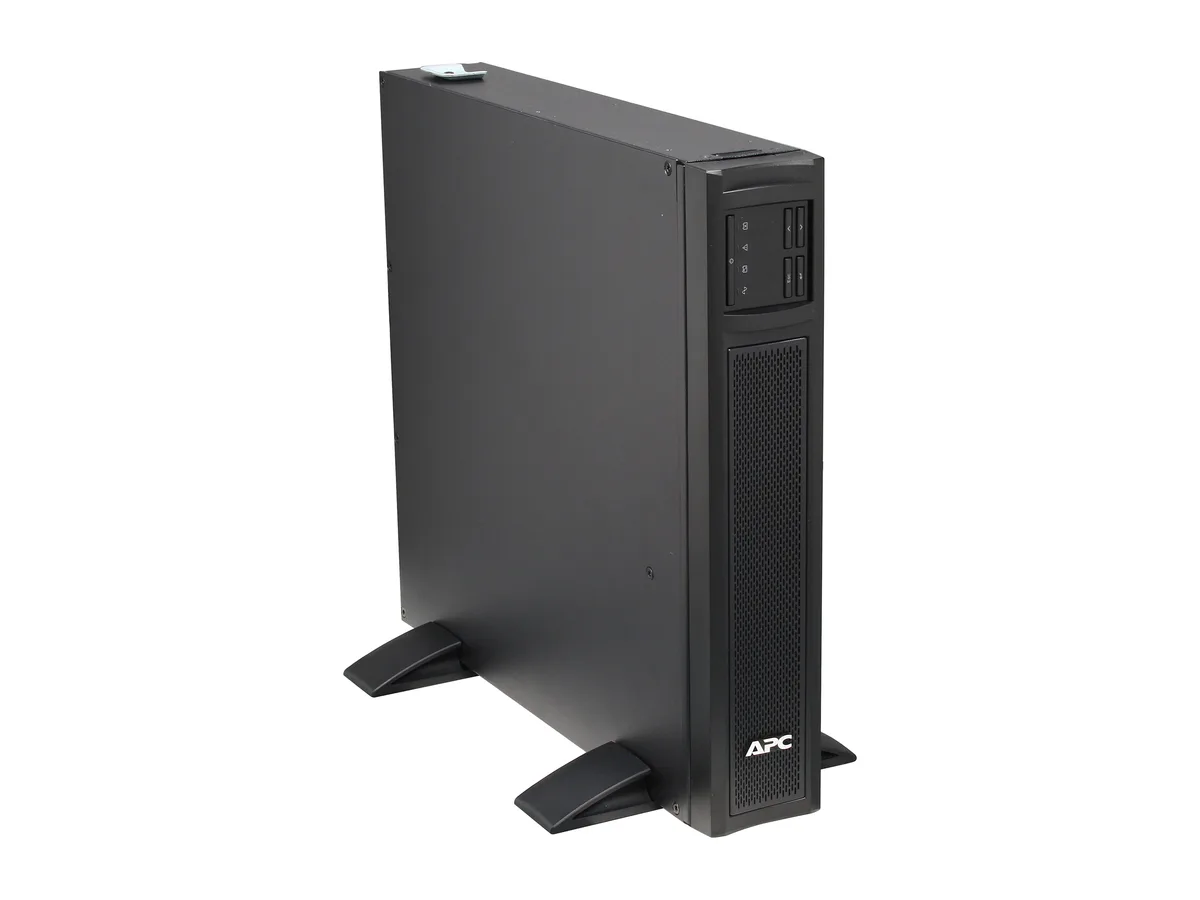

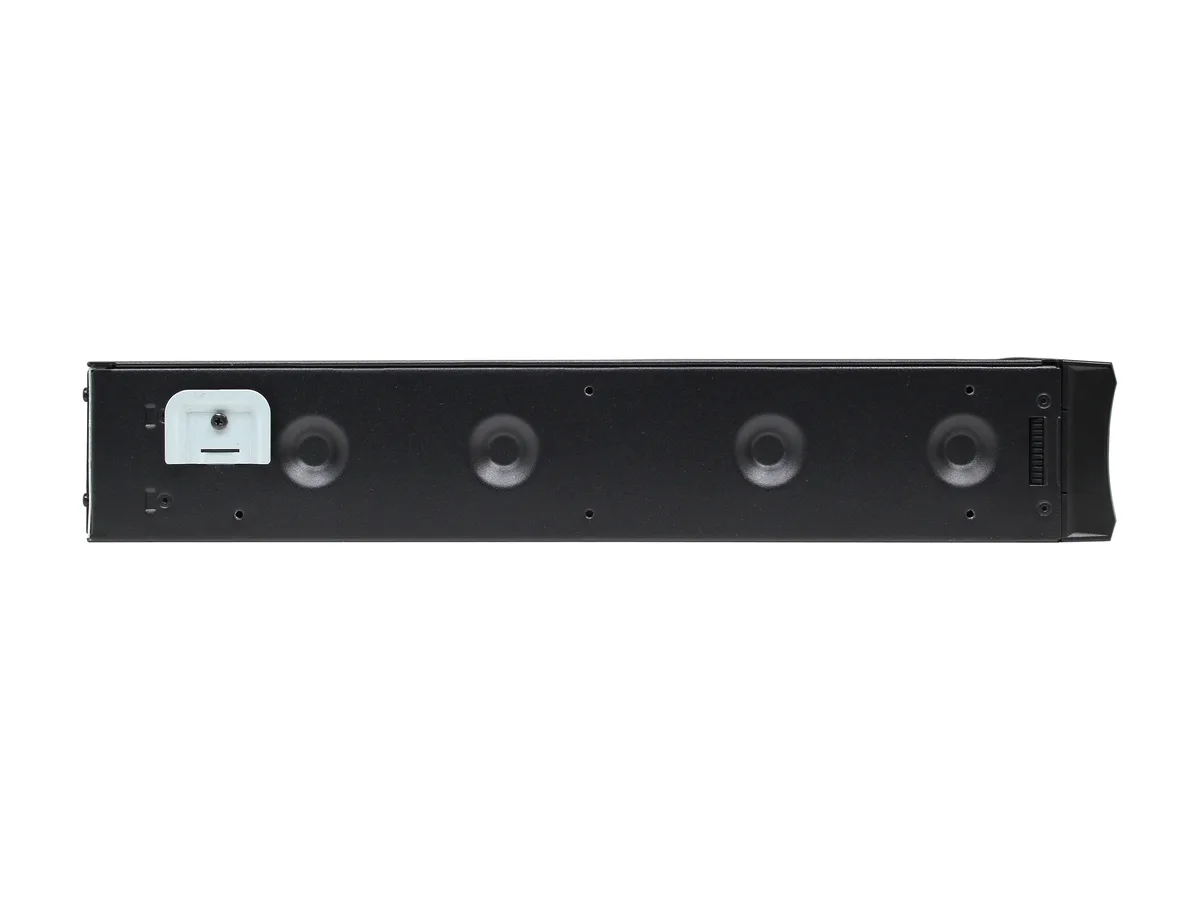

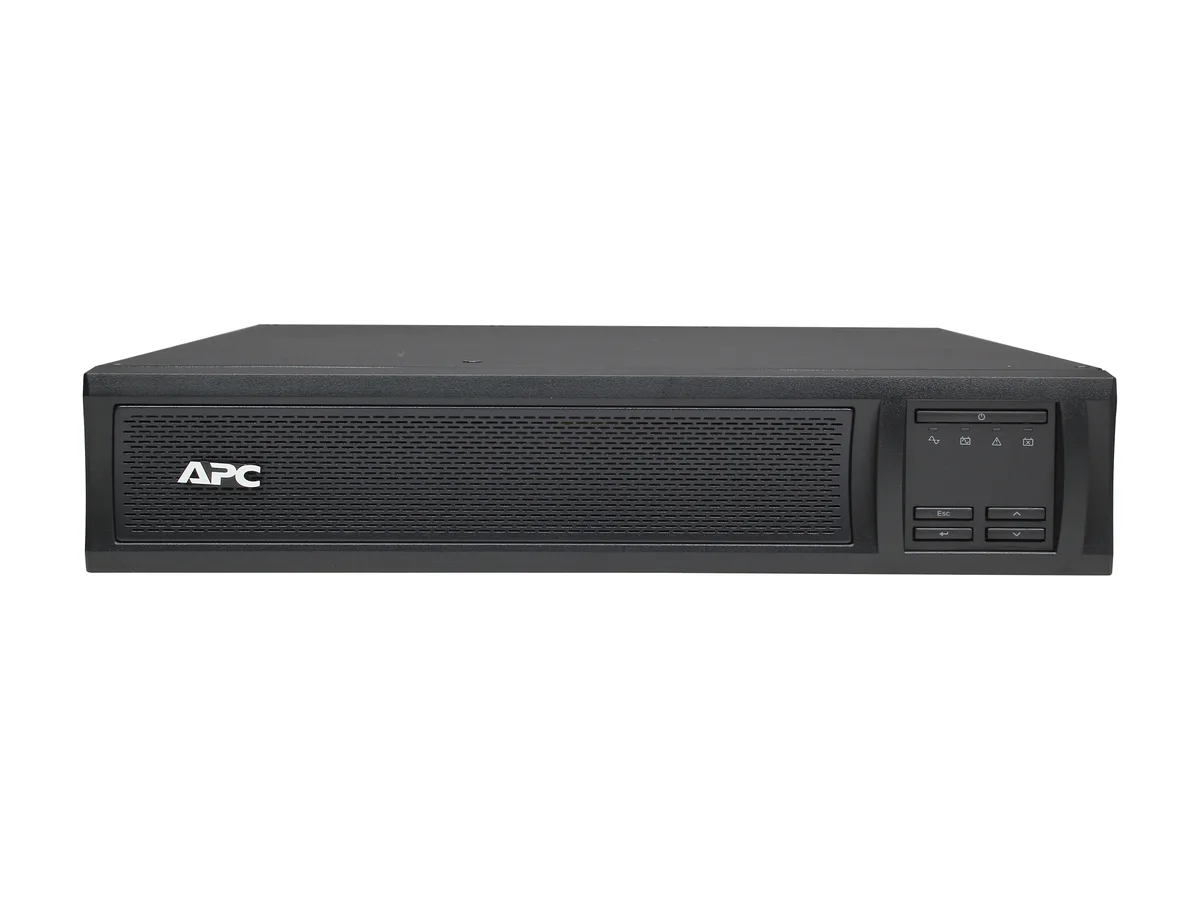

Rectangular 2U rackmount UPS in black metal with front LCD display and eight rear outlets

APC

APC Smart-UPS X SMX1500RM2UNC 1440VA 1200W 2U UPS

SKU CH-ZN8D-Y838S MPN SMX1500RM2UNC

Rack-mountable battery backup delivers 1200 watts across eight NEMA 5-15R outlets with a 600 joule surge rating and SmartSlot plus USB management

  • International Version120V
  • Input Voltage Range82 - 143V Adjustable range: 75 - 154V
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • Input ConnectionNEMA 5-15P
  • VA Rating1440 VA
  • Watts1200 Watts

Options SMX1500RM2UNC

구성 7개 더 보기

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • 1200 W continuous output powers critical loads
  • 1440 VA apparent capacity handles peak demands
  • Eight NEMA 5-15R outlets connect multiple devices
  • SmartSlot and USB ports enable remote management
  • 2U rackmount form factor fits standard cabinets

Product identity

The APC Smart-UPS X SMX1500RM2UNC is a 2U rackmount uninterruptible power supply rated at 1440 VA and 1200 W. It delivers 120 V output from a 120 V input through eight NEMA 5-15R receptacles. The unit suits network closets, server racks or edge sites that need battery-backed runtime for critical loads.

Pre-installation checks

Verify that your facility provides a NEMA 5-15P branch circuit within the 82 V to 143 V nominal window, adjustable down to 75 V and up to 154 V. Confirm the rack or shelf can accept a 2U form factor and that the connected equipment does not exceed the 1200 W rating. Ensure a SmartSlot or USB management path is available if remote monitoring is required.

Sustained-load behaviour

The sealed lead-acid battery module (replaceable with part PCRBC115) recharges in approximately three hours after a discharge event. During extended outages the UPS maintains regulated 120 V output while audible alarms signal low-battery and overload conditions. Surge protection is rated at 600 joules for continuous transient suppression.

주요 특징

  • 1200 W continuous output powers critical loads
  • 1440 VA apparent capacity handles peak demands
  • Eight NEMA 5-15R outlets connect multiple devices
  • SmartSlot and USB ports enable remote management
  • 2U rackmount form factor fits standard cabinets

사양

BrandAPC
SeriesSmart-UPS X
ModelSMX1500RM2UNC
International Version120V
Input Voltage Range82 - 143V
Adjustable range: 75 - 154V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionNEMA 5-15P
VA Rating1440 VA
Watts1200 Watts
Output Voltage120V
Output Frequency50/60Hz +/- 3 Hz
Outlets8
Outlet Type(8) NEMA 5-15R
Battery TypeSealed Lead Acid
Battery Recharge Time3 hour(s)
Battery ReplaceablePCRBC115
AlarmsAlarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Interface PortSmart-Slot, USB
Rackmountable2U
Surge Energy Rating600 Joules
FeaturesReceptacles: 8 x NEMA 5-15RLoad Capacity (VA): 1500 VALoad Capacity (Watt): 1200 WInput Voltage: 110 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 5.80 MinuteMaximum Battery Recharge Time: 3 HourHeight: 3.5" (88.9 mm)Width: 17" (431.8 mm)Depth: 19.3" (490.2 mm)Rack Height: 2UForm Factor: Tower/Rack MountableWeight (Approximate): 24.77 kgPackage Contents: Smart-UPS X 1500 VA Tower/Rack Mountable UPSCD with SoftwareDocumentation CDInstallation GuideRack Mounting HardwareRack Mounting Support RailsRemovable Support FeetTemperature ProbeUSB CableNetwork CardGreen Compliant: Ye
Dimensions3.50" x 17.01" x 19.29" (H x W x D)
Weight54.72 lbs.

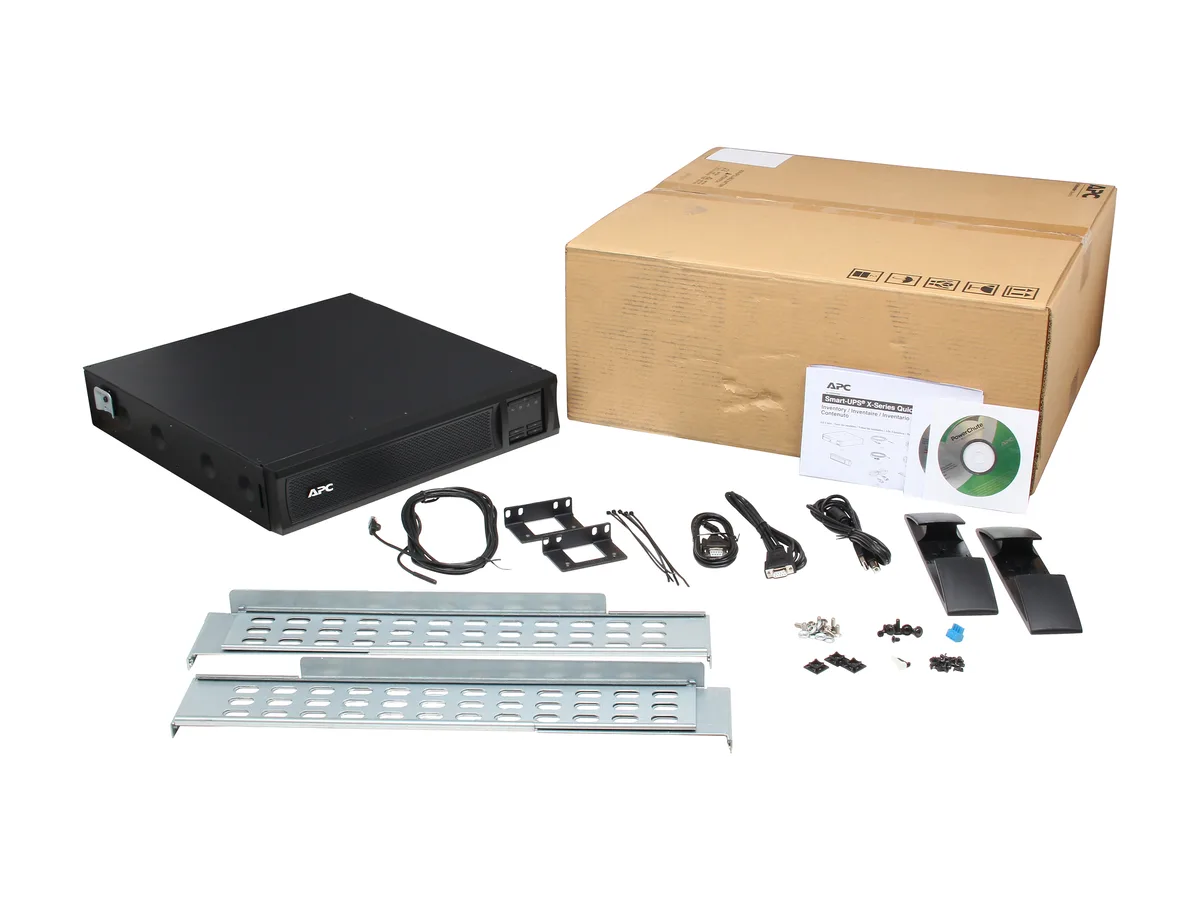

Package Contents90245L
배송 무게30.70 kg
포장 크기635 × 593 × 254 mm

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What outlets are included and do I need to buy any cables separately?

The unit provides eight NEMA 5-15R outlets and ships with a NEMA 5-15P input cord; no extra cables are required for basic operation.

How do I decide between the VA and watt ratings when sizing my load?

Use the 1200 W figure for real power draw and the 1440 VA figure for apparent power; size your connected equipment so neither value is exceeded.

What does the 600 joule surge rating mean for my rack equipment?

It indicates the energy the UPS can absorb in a single surge event, protecting attached devices from transient voltage spikes.
