ASUS A23 Light and Shadow Insight Edition Case Accessory

Compact chassis for Micro-ATX and Mini-ITX builds

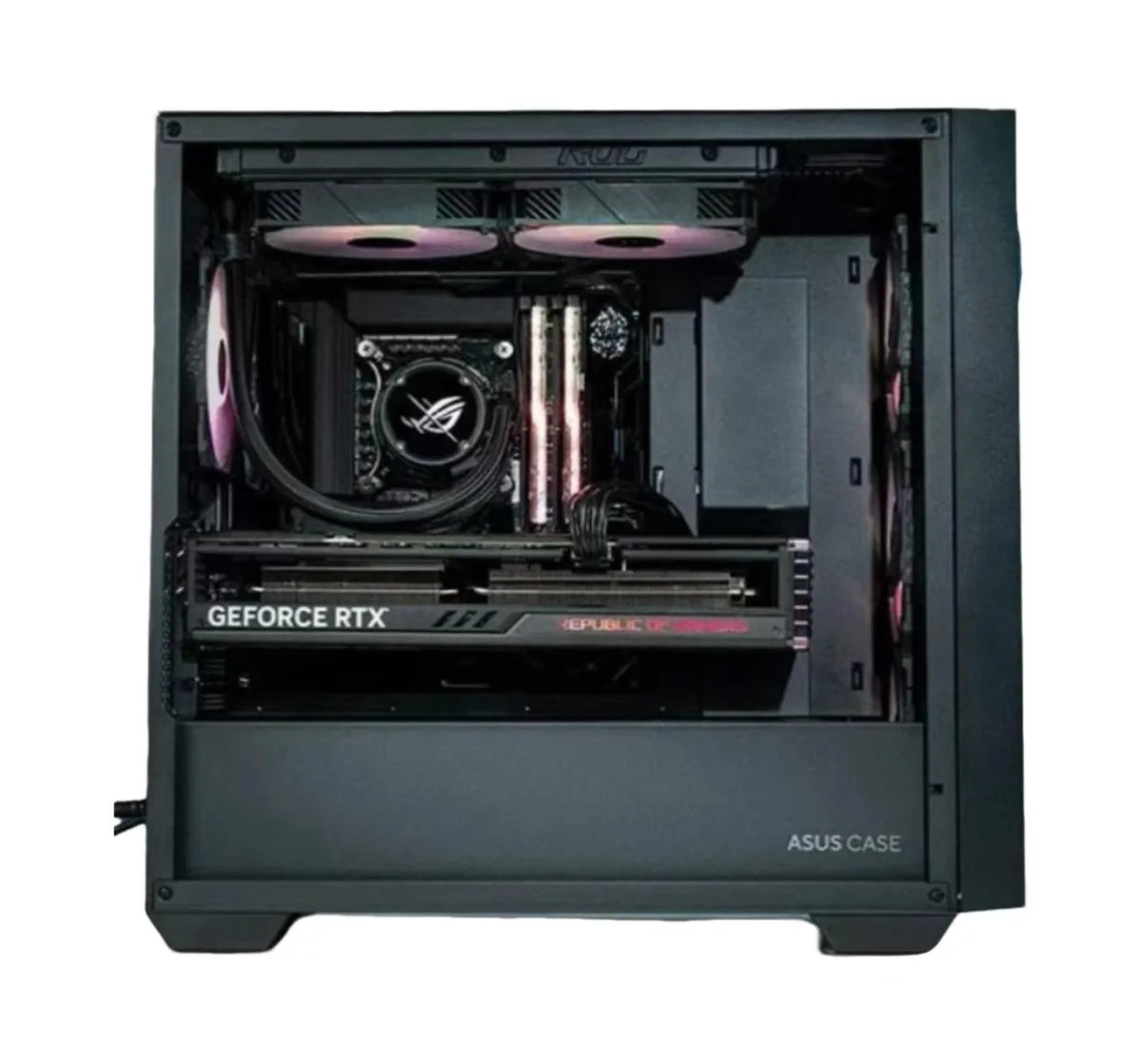

The ASUS A23 Light and Shadow Insight Edition is a steel, tempered-glass and plastic case finished in black that accepts Micro-ATX, Mini-ITX and rear-mounted Micro-ATX motherboards. It provides five PCIe slots and supports graphics cards up to 380 mm long. CPU coolers up to 165 mm tall fit inside, while the power-supply cavity takes units up to 210 mm deep.

Front-panel I/O and flexible radiator mounts

Two USB 3.0 ports running at 5 Gbps and two audio jacks sit alongside the power and reset buttons for easy access. Radiator mounts at the front and top accept 120, 140, 240, 280 and 360 mm units, while the rear takes a 120 mm radiator. Fan mounts mirror this layout with space for three 120 mm or two 140 mm fans at front and top, plus one 120 mm fan at the rear. Dust filters cover front, top and bottom intakes.

Straightforward assembly with 33 mm cable routing

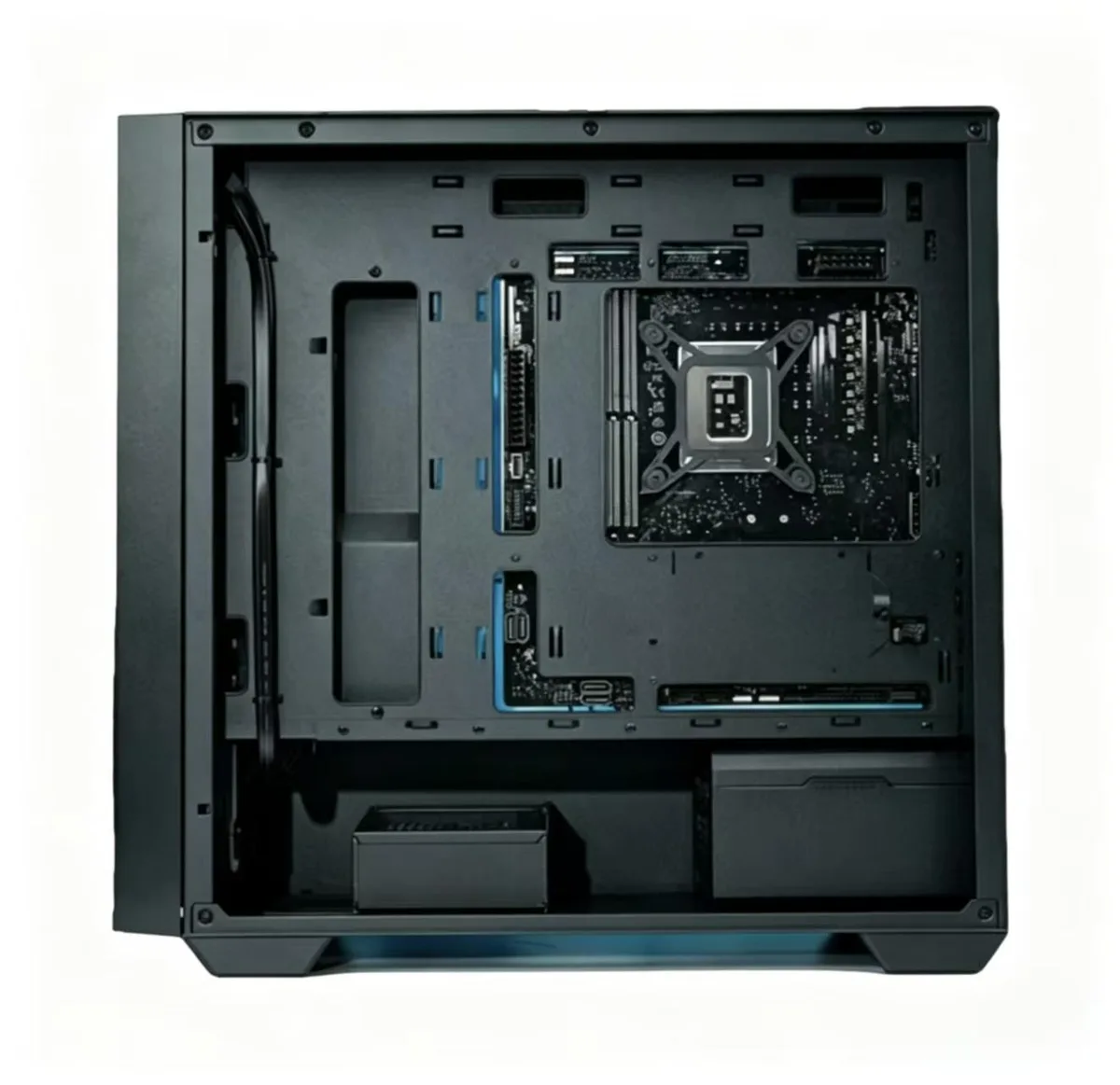

Side panels remove for open access to the 33 mm cable-management channel behind the motherboard tray. Drive installation uses two combined 2.5/3.5-inch bays plus a dedicated 2.5-inch bay. The case weighs 7.5 kg and measures 220×430×465 mm without feet or 220×450×478 mm with feet. Builders needing ATX or E-ATX motherboard support, more than five expansion slots, or a longer power-supply cavity should look elsewhere.
