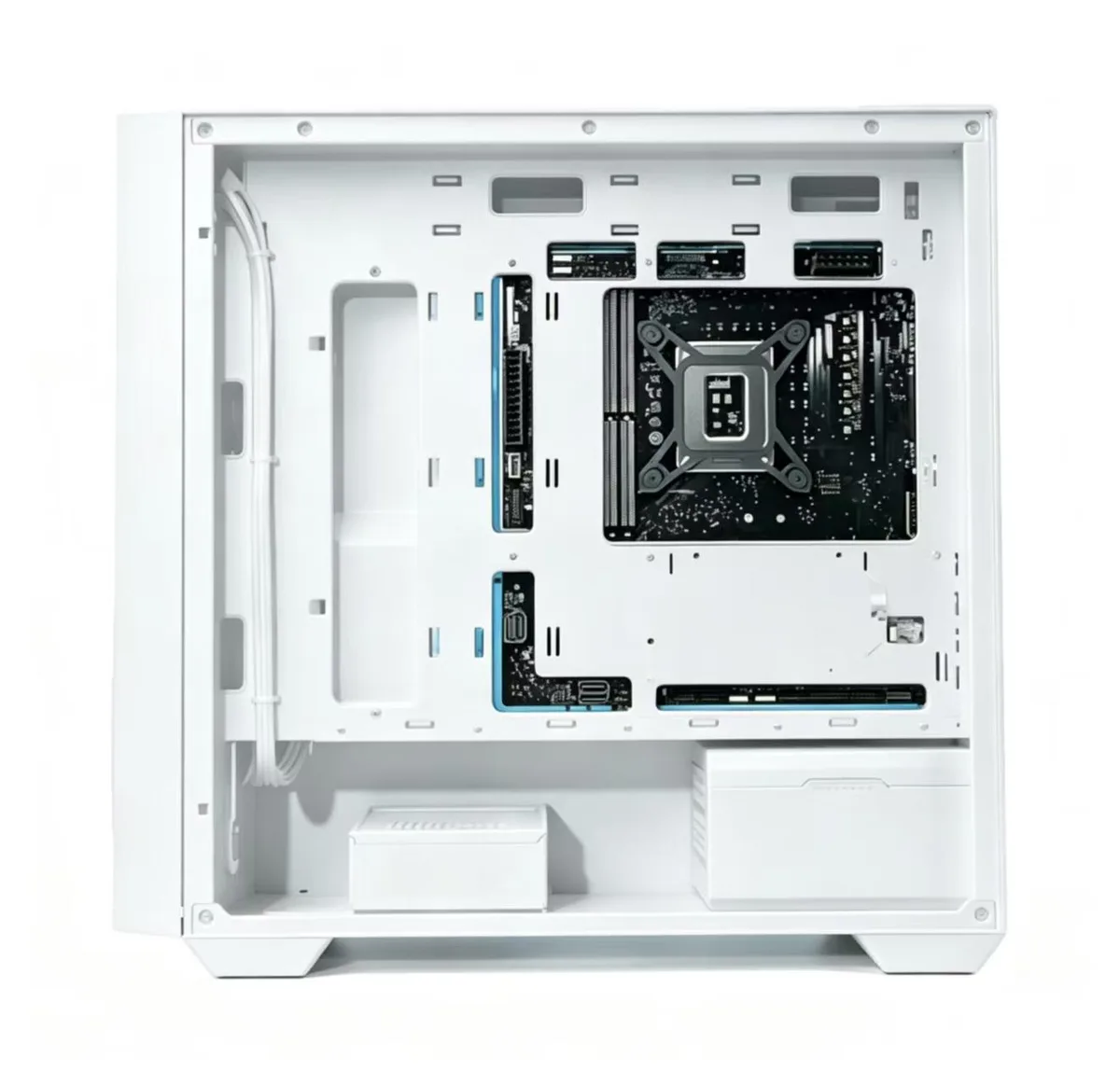

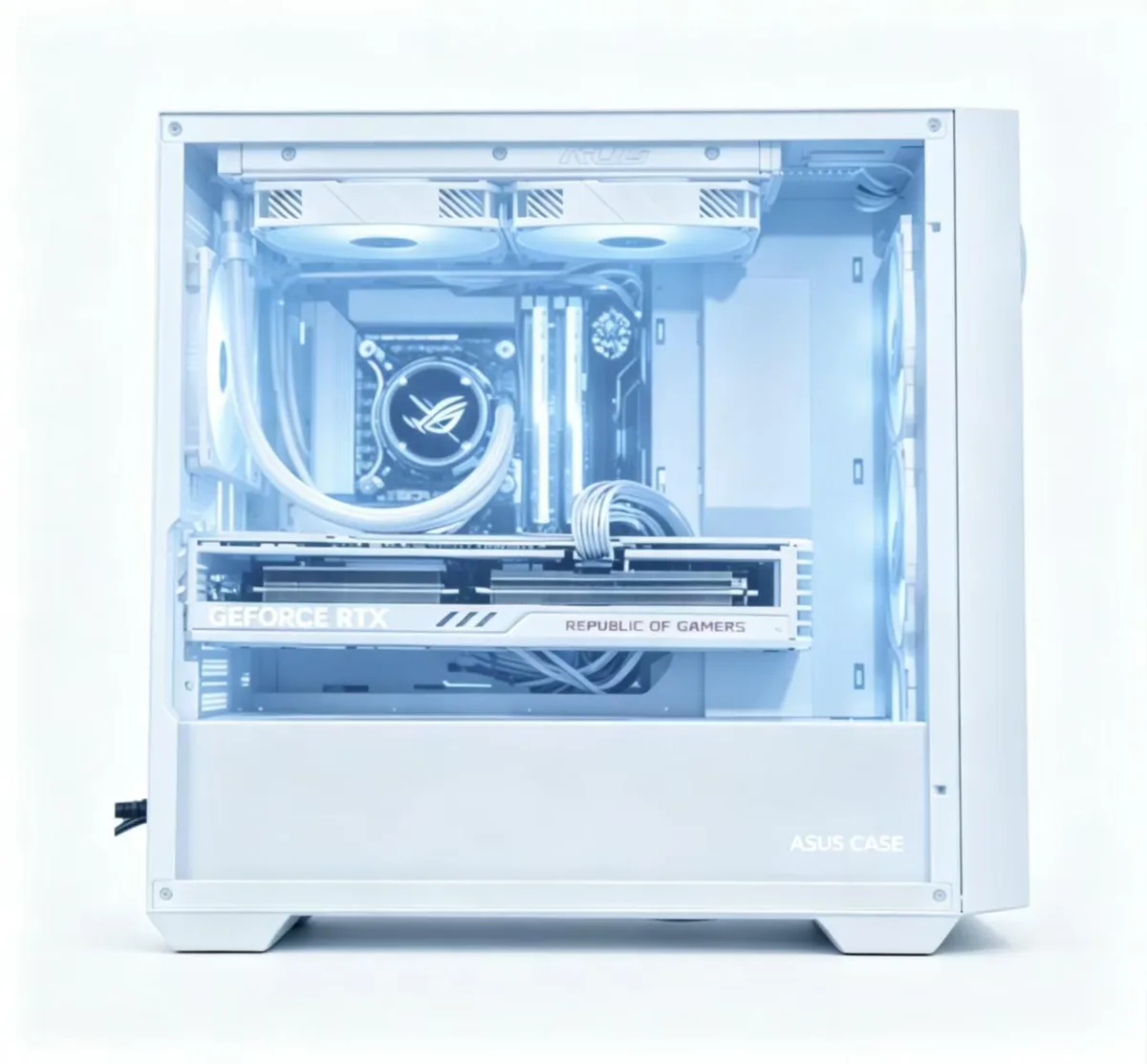

White steel tower case with tempered glass side panel, front USB and audio ports, top dust filter visible

ASUS

ASUS A23 Light and Shadow Insight Edition case accessory white

SKU CH-VHKS-89GFK

A compact white chassis for Micro-ATX and Mini-ITX builds with 360 mm radiator mounts, front USB 3.0 and tempered-glass panels

  • Motherboard CompatibilityMicro-ATX Mini-ITX Rear-Mounted Micro-ATX
  • ColorWhite
  • Case MaterialSteel,Tempered Glass,Plastic
  • With Power SupplyNo
  • Front Ports2×USB 3.0 (5 Gbps) 2×Audio Jacks 1×Power Button 1×Reset Butt
  • Supports Micro-ATX, Mini-ITX and rear-mounted Micro-ATX builds
  • Fits a 360 mm radiator front or top for liquid cooling
  • Front panel gives two USB 3.0 ports at 5 Gbps plus audio jacks
  • Steel, tempered glass and plastic chassis weighs 7.5 kg
  • 33 mm cable routing space keeps the interior tidy

Compact Micro-ATX Chassis for Liquid Cooling Builds

The ASUS A23 Light and Shadow Insight Edition is a white steel and tempered-glass case that accepts Micro-ATX, Mini-ITX and rear-mounted Micro-ATX motherboards. It targets builders who want a 360 mm radiator in a 220 mm-wide footprint.

Tool-Less Panels and Generous Cable Room

Side glass panels lift off without screws and the 33 mm routing channel behind the motherboard tray keeps cables tidy. Front dust filters slide out for cleaning, but the front panel connectors are fixed to the chassis so the entire assembly must move when the board is swapped.

Verify GPU Length and Radiator Clearance First

The case fits graphics cards up to 380 mm and CPU coolers up to 165 mm tall. A 360 mm radiator mounts at the front or top, yet the 210 mm power-supply limit may restrict some longer ATX units. Only two 2.5/3.5-inch bays and one dedicated 2.5-inch bay are provided, so storage-heavy builds need external solutions.

주요 특징

  • Supports Micro-ATX, Mini-ITX and rear-mounted Micro-ATX builds
  • Fits a 360 mm radiator front or top for liquid cooling
  • Front panel gives two USB 3.0 ports at 5 Gbps plus audio jacks
  • Steel, tempered glass and plastic chassis weighs 7.5 kg
  • 33 mm cable routing space keeps the interior tidy

사양

Motherboard CompatibilityMicro-ATX
Mini-ITX
Rear-Mounted Micro-ATX
ColorWhite
Case MaterialSteel,Tempered Glass,Plastic
With Power SupplyNo
Front Ports2×USB 3.0 (5 Gbps)
2×Audio Jacks
1×Power Button
1×Reset Button
BrandASUS

이 상품에 대한 질문

How can I confirm the case is functioning correctly after building my PC?

Power on the system and verify the front power and reset buttons operate, then connect a device to the two USB 3.0 (5 Gbps) ports and check audio through the two front jacks.

What comes in the box and which essential components must I purchase separately?

The case includes the steel, tempered glass and plastic chassis with dust filters on the front, top and bottom; you must buy a power supply, motherboard, CPU cooler, graphics card, storage drives and any cooling fans or radiators.

Which motherboard form factor should I choose for this case?

Select a Micro-ATX, Mini-ITX or Rear-Mounted Micro-ATX board; all three are supported and fit within the 220 mm width and five PCIe slots.
