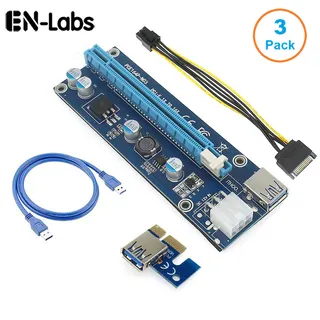

Three PCIe 1x to 16x riser boards with USB 3.0 cables and SATA power adapters

EN-Labs

EN-Labs 006C PCIe 1x to 16x Riser Card 3-Pack

SKU CH-PJ1B-AE47G

Three PCIe 1x to 16x riser cards with 60 cm USB 3.0 cables, four 270 uF solid capacitors, voltage regulation, overcurrent protection and SATA-to-6-pin power adapters

  • TypeRiser Card
  • External USB Ports3x USB Ports
  • Specifications----Board size: approx.12.8cm x 4.2cm x 1.0cm/5.03" x 1.65"
  • FeaturesVER 006C PCl-E 16x to 1x Powered Riser Adapter Card isthe pe

Type Riser Card

External USB Ports 3x USB Ports

Model PCI Express 1

  • PCI Express 1
  • 009S
  • Three risers in one pack let you install multiple GPUs
  • Four 270 uF solid capacitors give stable power delivery
  • 6-pin PCIe power moves load off the motherboard
  • 60 cm USB 3.0 cable allows flexible GPU placement
  • SATA to 6-pin adapter connects directly to your PSU

PCIe 1x to 16x Riser Cards

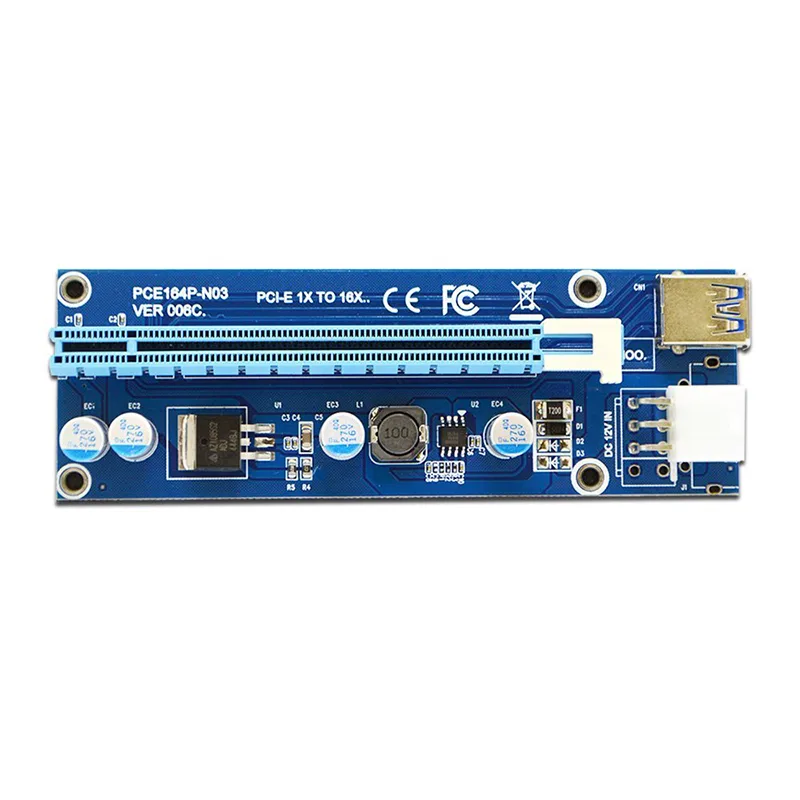

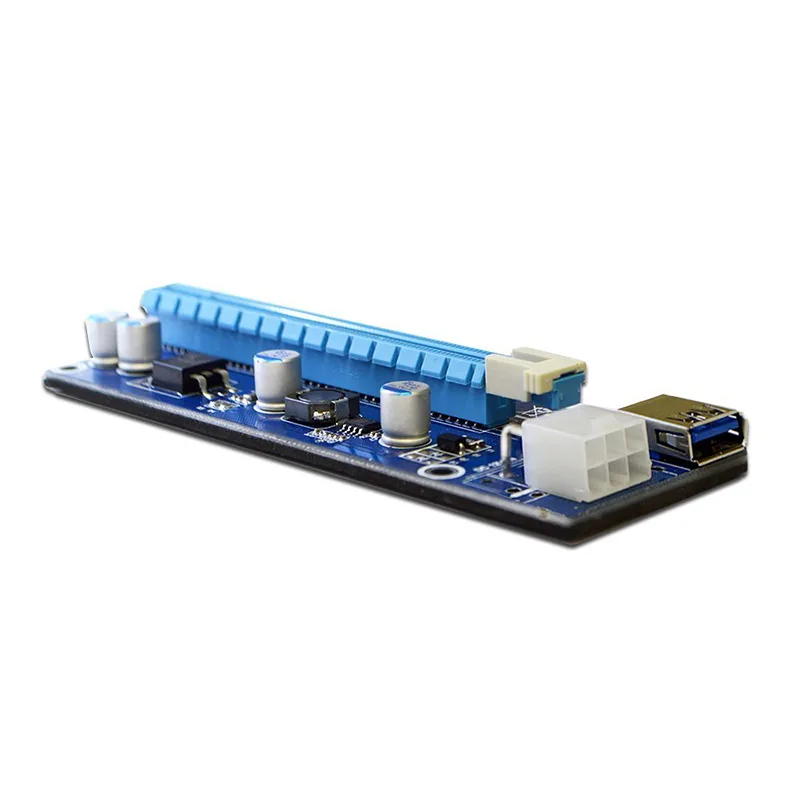

This three-pack of EN-Labs 006C riser cards converts a single PCIe lane into a full-length 16x slot using a 60 cm USB 3.0 cable. Each board measures 12.8 cm by 4.2 cm by 1.0 cm and carries four 270 uF solid capacitors plus voltage regulation and overcurrent protection. Power is supplied through a 6-pin PCIe connector with an included SATA to 6-pin adapter cable.

Builders expanding GPU density

The cards suit miners or compute users who need to mount multiple graphics cards away from the motherboard without driver installation. They are not suited for builds that require native 16-lane bandwidth or for systems lacking spare 6-pin power connectors and SATA power leads.

Cabling and mounting extras

The bundle provides three 60 cm USB 3.0 extension cables and three SATA-to-6-pin power cables so each riser can draw auxiliary power directly from the PSU. Four mounting holes on the 16x side allow the adapter board to be secured in a mining frame or open-air chassis.

주요 특징

  • Three risers in one pack let you install multiple GPUs
  • Four 270 uF solid capacitors give stable power delivery
  • 6-pin PCIe power moves load off the motherboard
  • 60 cm USB 3.0 cable allows flexible GPU placement
  • SATA to 6-pin adapter connects directly to your PSU

사양

BrandEn-Labs
Series311009V6C
Model006C
TypeRiser Card
External USB Ports3x USB Ports
Specifications----Board size: approx.12.8cm x 4.2cm x 1.0cm/5.03" x 1.65" x 0.39"----4x 270uF FP solid capacitors
FeaturesVER 006C PCl-E 16x to 1x Powered Riser Adapter Card isthe perfect solution for setting up Ethereum mining rigs 4 High Quality Solid Capacitors for stable and safe power delivery. Multiple Voltage Regulation Components (Voltage Regulating Diode and Linear Regulator) Overcurrent Protection (Surface Mounted Fuse) to safeguard your components in the event of a short circuit. Thin and fast USB 3.0 cable available to connect PCI-E 1X and PCI-E 16X sides for more free installation and faster data transfer for graphics card. 6-pin PCI-E power to 15-pin SATA power cable for direct connection

이 모델의 다른 버전

같은 라인업에서 2개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

Do I need a free PCIe 1x, 4x, 8x or 16x slot on my motherboard to install each 006C riser?

Yes, each riser plugs into any PCIe 1x, 4x, 8x or 16x slot and provides a 16x connector for the graphics card.

Can I keep my existing SATA power cables and use the included 6-pin to 15-pin SATA cable to feed the riser?

The 6-pin to 15-pin SATA cable connects the riser's 6-pin input directly to a SATA power connector from your PSU, reducing load on the motherboard.

How can I verify the 270uF solid capacitors and voltage regulation are functioning after I build the rig?

The board powers the GPU through the 6-pin connector; stable operation under mining load confirms the capacitors and regulation are working.
