GIGABYTE
GIGABYTE MS33-AR1 server motherboard E-ATX LGA 4677 C741 16 DIMM 128GB 10G LAN
Extended ATX server board with LGA 4677 socket, 16 DDR5 DIMM slots up to 128GB, and dual 10GbE LAN
- CPU Socket TypeLGA 4677
- CPU TypeIntel Xeon
- Number of Processor Support1
- DDR StandardDDR5 memory supported only
- Memory StandardUp to 4800 MHz (1DPC), 4400MHz (2DPC)
- Maximum Memory Supported128GB
- Supports 4th Gen Intel Xeon Scalable processors via LGA 4677 socket
- 16 DDR5 DIMM slots deliver up to 128GB memory capacity
- Dual 10GbE LAN ports provide high-throughput networking
- Extended ATX form factor fits standard server chassis
- 2 SlimSAS connectors enable 8 SATA 6Gb/s drives
Extended ATX server motherboard

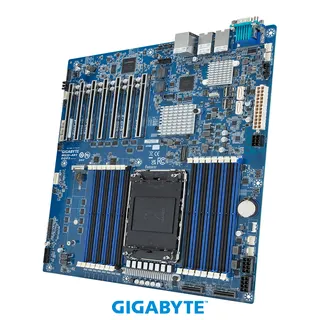

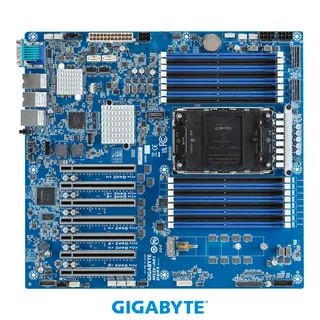

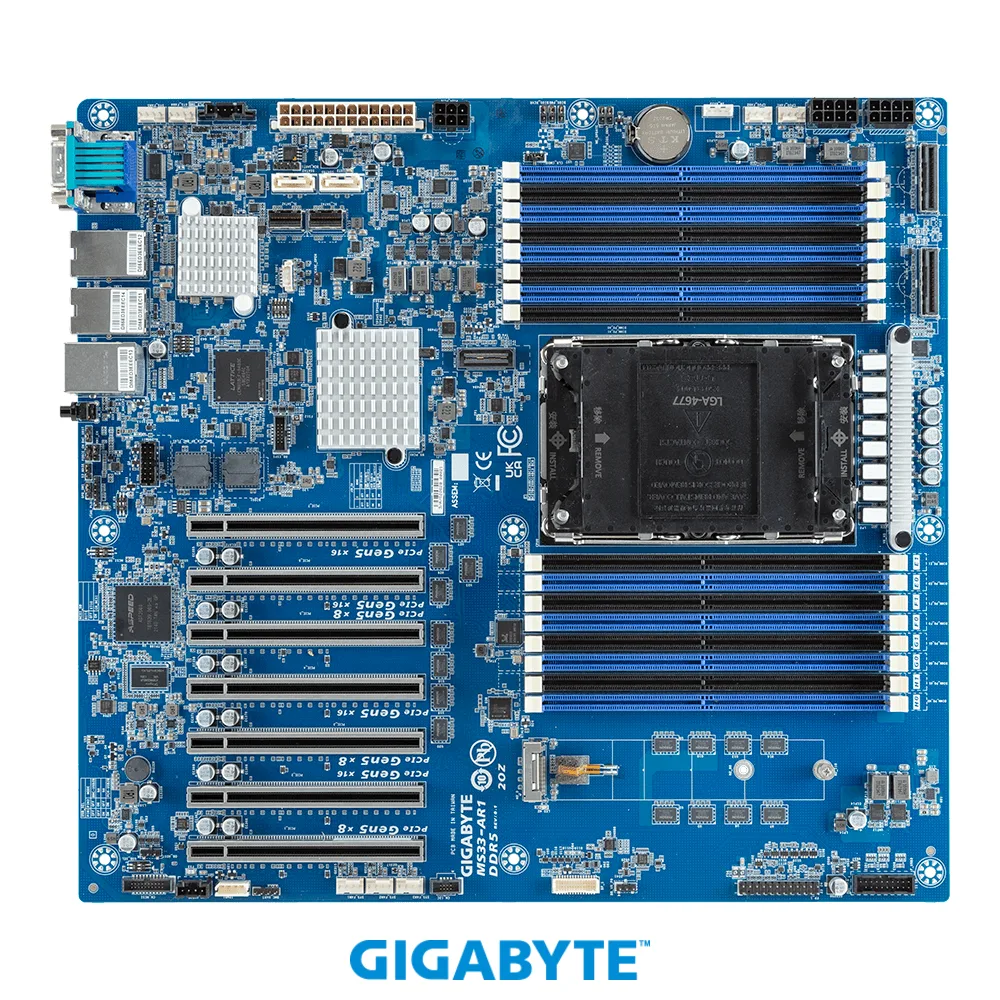

The GIGABYTE MS33-AR1 is an Extended ATX server motherboard built for the LGA 4677 socket and the Intel C741 chipset. It accepts a single Intel Xeon processor and provides sixteen DDR5 DIMM slots across eight channels, with a maximum memory capacity of 128 GB.
Single-processor platforms with 10 GbE needs
This board suits deployments that need one processor, eight-channel DDR5 memory and dual 10 GbE BASE-T ports driven by the Broadcom BCM57416 controller. A dedicated management port and Aspeed AST2600 graphics are also included. Builders who require dual-socket configurations or more than twelve SATA connections should look at other form factors.
Sixteen DDR5 slots capped at 128 GB
The sixteen DIMM sockets support DDR5 RDIMMs at up to 4800 MHz with one module per channel or 4400 MHz with two per channel, but the total installed memory cannot exceed 128 GB. This limit decides whether the platform can hold the dataset a given workload requires.
주요 특징
- Supports 4th Gen Intel Xeon Scalable processors via LGA 4677 socket
- 16 DDR5 DIMM slots deliver up to 128GB memory capacity
- Dual 10GbE LAN ports provide high-throughput networking
- Extended ATX form factor fits standard server chassis
- 2 SlimSAS connectors enable 8 SATA 6Gb/s drives
사양
| Brand | GIGABYTE |
|---|---|
| Model | MS33-AR1 |
| Part Number | MS33-AR1 |
| CPU Socket Type | LGA 4677 |
| CPU Type | Intel Xeon |
| Number of Processor Support | 1 |
| DDR Standard | DDR5 memory supported only |
| Memory Standard | Up to 4800 MHz (1DPC), 4400MHz (2DPC) |
| Maximum Memory Supported | 128GB |
| Onboard Video Chipset | Aspeed AST2600 |
| Number of LAN | 3 |
| LAN Chipset | BCM 57416 |
| Max LAN Speed | 10Gbps |
| USB 3.2 | 2 x USB 3.2 Gen1 |
| Form Factor | Extended ATX |
| Dimensions (W x L) | 304.8W x 330.2D (mm) |
| 배송 무게 | 1.88 kg |
| 포장 크기 | 406 × 356 × 76 mm |
이 상품에 대한 질문
Does the GIGABYTE MS33-AR1 include mounting hardware or cables, or must I buy them separately?
The product is supplied as the motherboard only; screws, rails, and any SlimSAS or SATA cables required for the 8 x SATA 6Gb/s ports must be purchased separately.
Should I populate all 16 DIMM slots to reach the 128 GB maximum, or can I use fewer modules?
The board supports up to 128 GB across 16 slots; using fewer higher-capacity DDR5 RDIMMs is possible, but the 4800 MHz speed applies at 1 DPC and drops to 4400 MHz at 2 DPC.
What real-world throughput can I expect from the two 10 Gb/s BASE-T LAN ports once the server is running?
Each Broadcom BCM57416 port delivers up to 10 Gbps line rate; actual throughput depends on CPU load, storage speed, and network conditions, but the hardware ceiling is 10 Gb/s per port.
