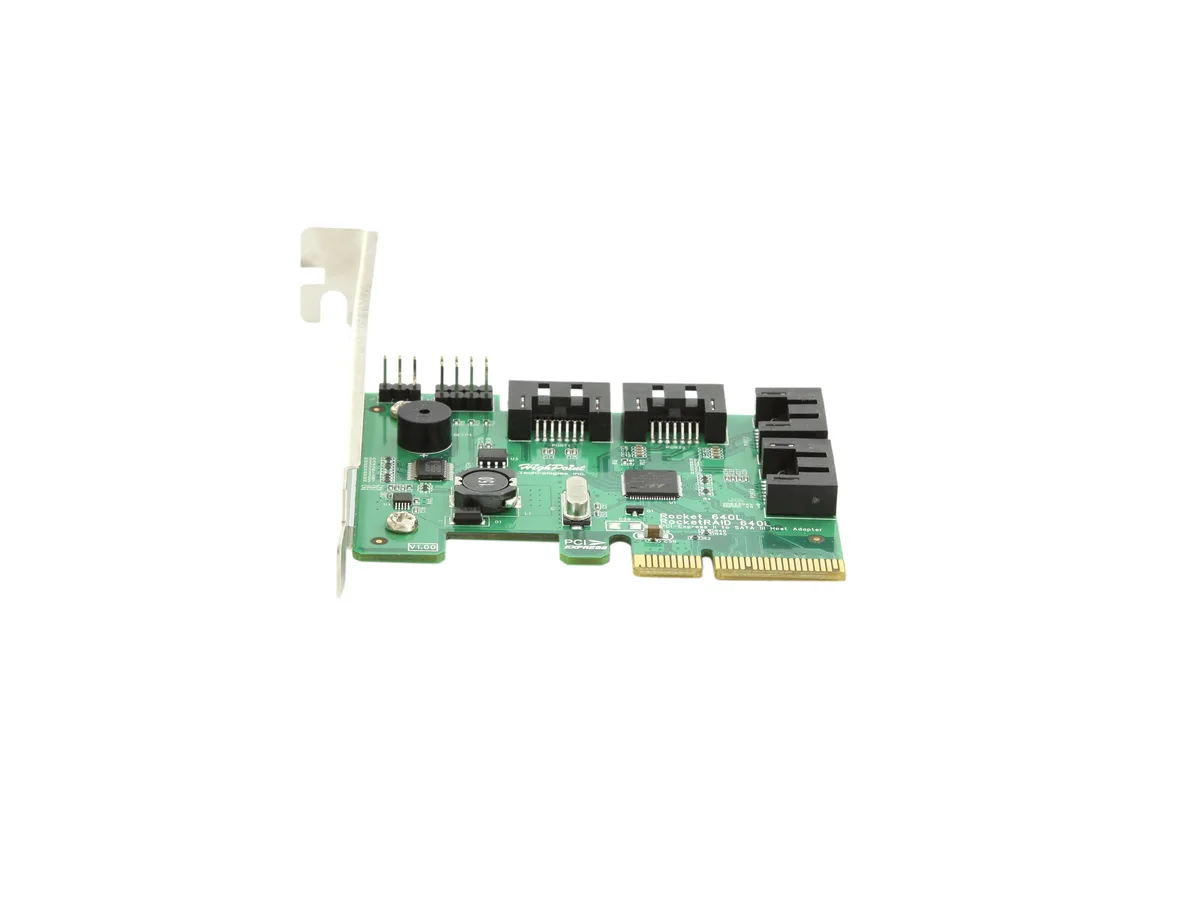

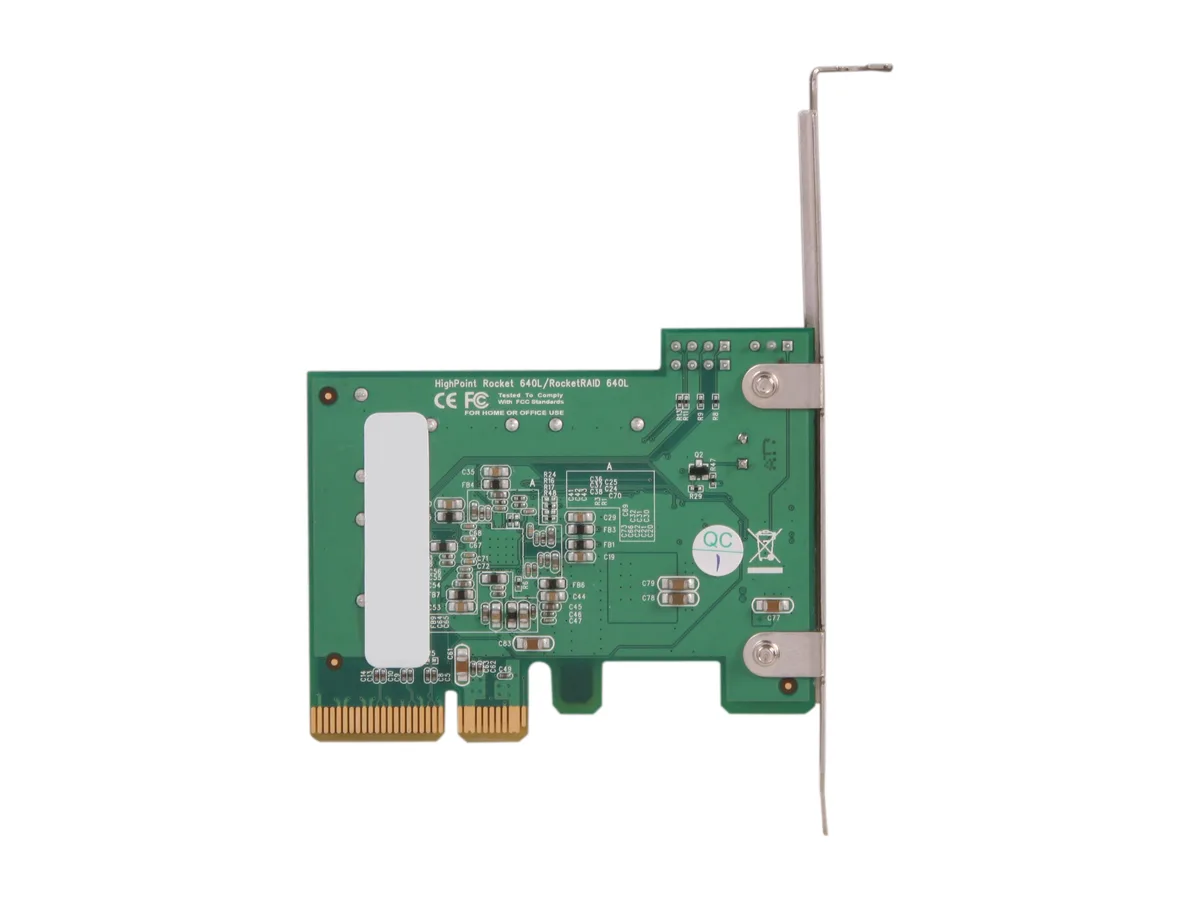

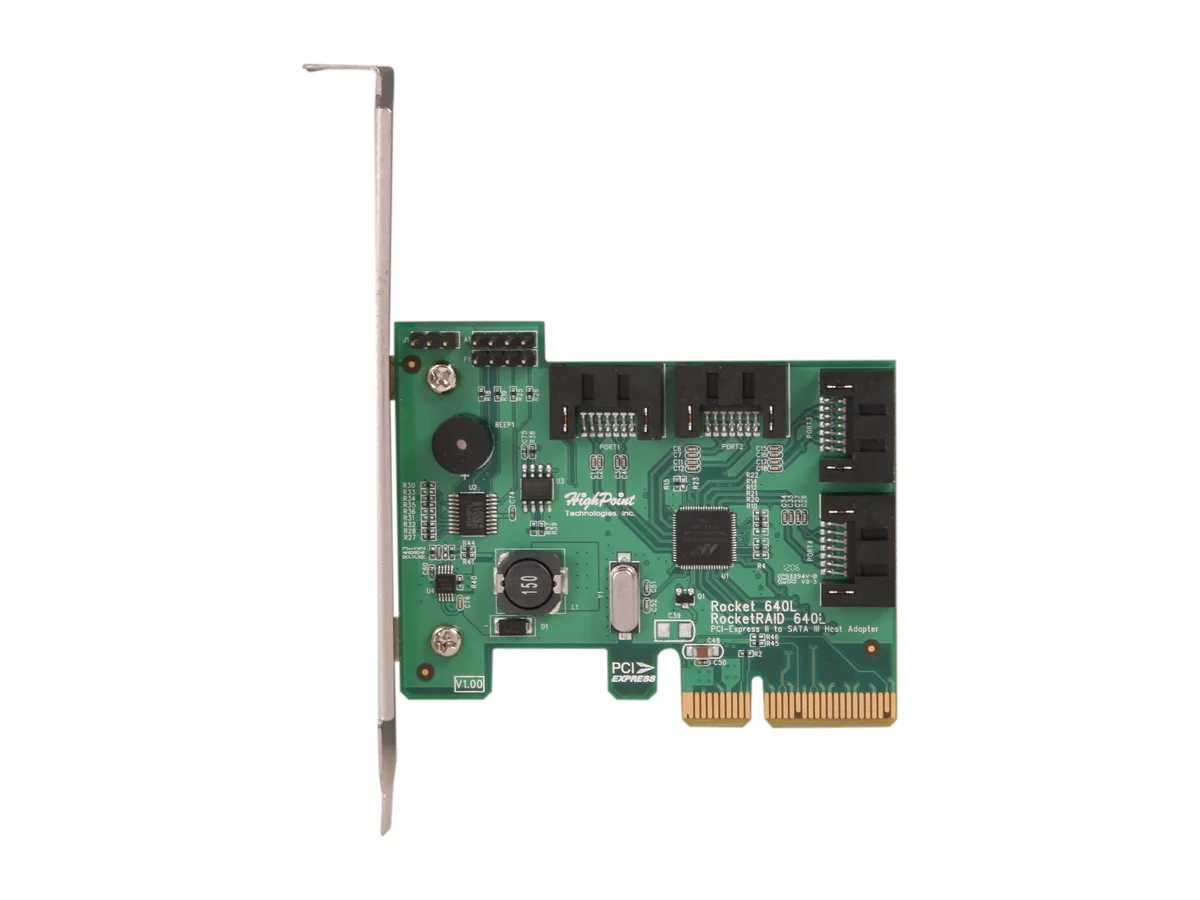

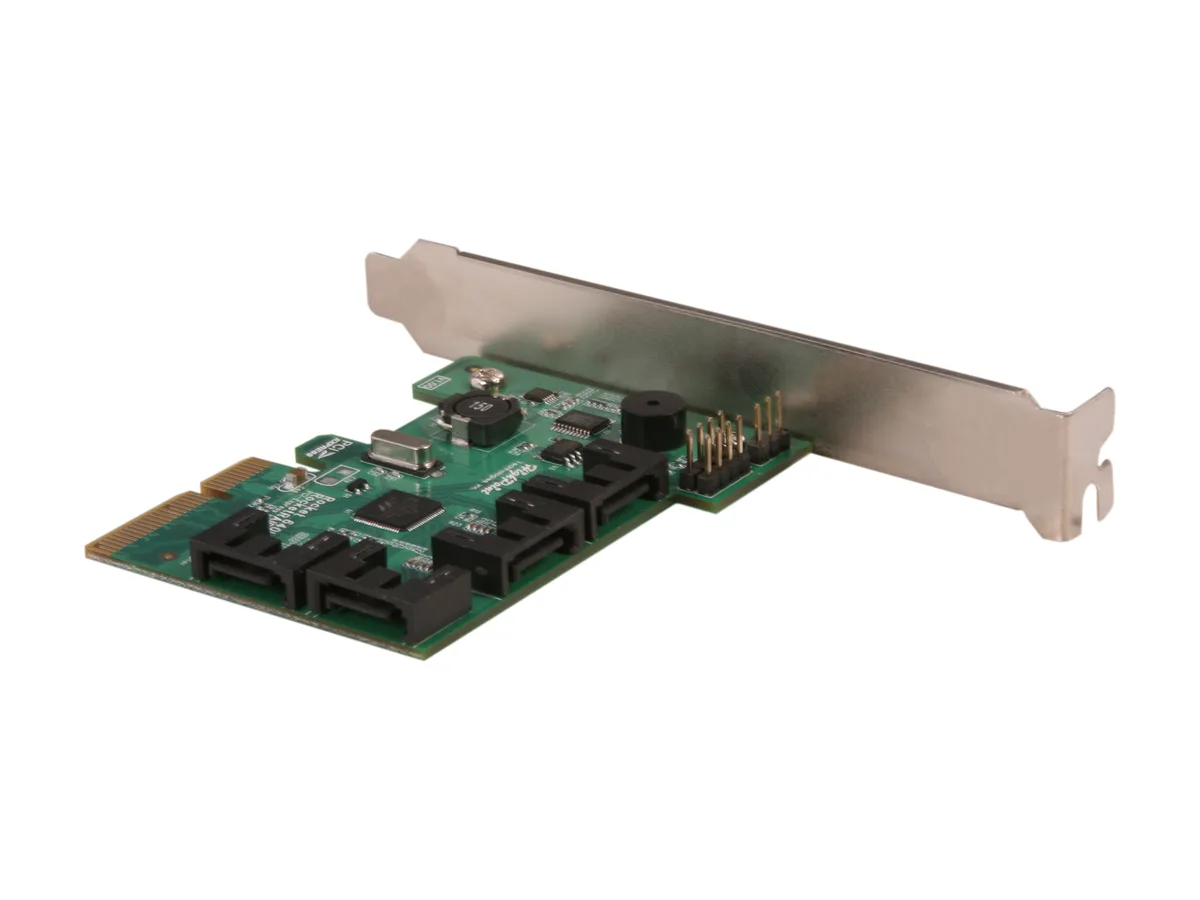

Low-profile RAID card with four SATA ports, silver bracket, green PCB

HighPoint Technologies, Inc.

HighPoint Technologies, Inc. RocketRAID 640L RAID controller

SKU CH-PSVT-SH1W2 MPN RocketRAID 640L

A low-profile PCIe 2.0 x4 card adds four SATA 6.0Gb/s ports with RAID 0, 1, 5, 10 and JBOD support

  • Form FactorLow Profile
  • TypeSATA
  • Internal Connectors4 x SATA 6.0Gb/s
  • InterfacePCI-Express 2.0 x4
  • Transfer RateUp to 6Gb/s
  • RAIDRAID 0/1/5/10 JBOD
  • Four SATA 6.0Gb/s ports connect up to four drives
  • RAID 0/1/5/10 JBOD protects data or boosts speed
  • PCI-Express 2.0 x4 interface fits modern motherboards
  • Low-profile 3.12" x 2.56" card suits compact cases
  • Web-based RAID management simplifies array setup

Low-profile SATA RAID card

The HighPoint RocketRAID 640L is a low-profile PCI-Express 2.0 x4 controller that adds four internal SATA 6.0Gb/s ports. It supports RAID 0, 1, 5, 10 and JBOD modes with hot-swap and hot-plug capability. A web-based management interface handles array configuration. Driver support covers Windows 7, Server 2008, Vista and Linux distributions.

Desktop and workstation storage upgrades

This card suits builders adding up to four SATA hard drives or SSDs to a desktop PC or workstation that has a free x4 slot. It also fits servers needing a low-profile RAID HBA for 3TB and larger drives. It is not for systems that lack a PCI-Express 2.0 x4 slot or need more than four internal SATA connections. Buyers requiring driver support for operating systems beyond those listed should verify compatibility first.

Four-port 6Gb/s SATA connectivity

The single specification that decides fit is the four internal SATA 6.0Gb/s connectors running on a PCI-Express 2.0 x4 host interface. This limits the card to four drives at up to 6Gb/s each and requires a compatible motherboard slot. The low-profile bracket measures 3.12 by 2.56 inches. No other interface or port count is provided.

주요 특징

  • Four SATA 6.0Gb/s ports connect up to four drives
  • RAID 0/1/5/10 JBOD protects data or boosts speed
  • PCI-Express 2.0 x4 interface fits modern motherboards
  • Low-profile 3.12" x 2.56" card suits compact cases
  • Web-based RAID management simplifies array setup

사양

BrandHighPoint
ModelRocketRAID 640L
Form FactorLow Profile
TypeSATA
Internal Connectors4 x SATA 6.0Gb/s
InterfacePCI-Express 2.0 x4
Transfer RateUp to 6Gb/s
RAIDRAID 0/1/5/10 JBOD
Operating Systems SupportedDriver support for Microsoft Windows 7, 2008, Vista, and Linux distributions
Dimensions3.12"(L) x 2.56"(W) x 0.06"(H)
FeaturesSupports up to 4 SATA 6Gb/s and 3Gb/s HDD/SSD
Supports 3TB and larger hard drives
Hot-Swap and Hot-Plug
Web-Based RAID Management Interface

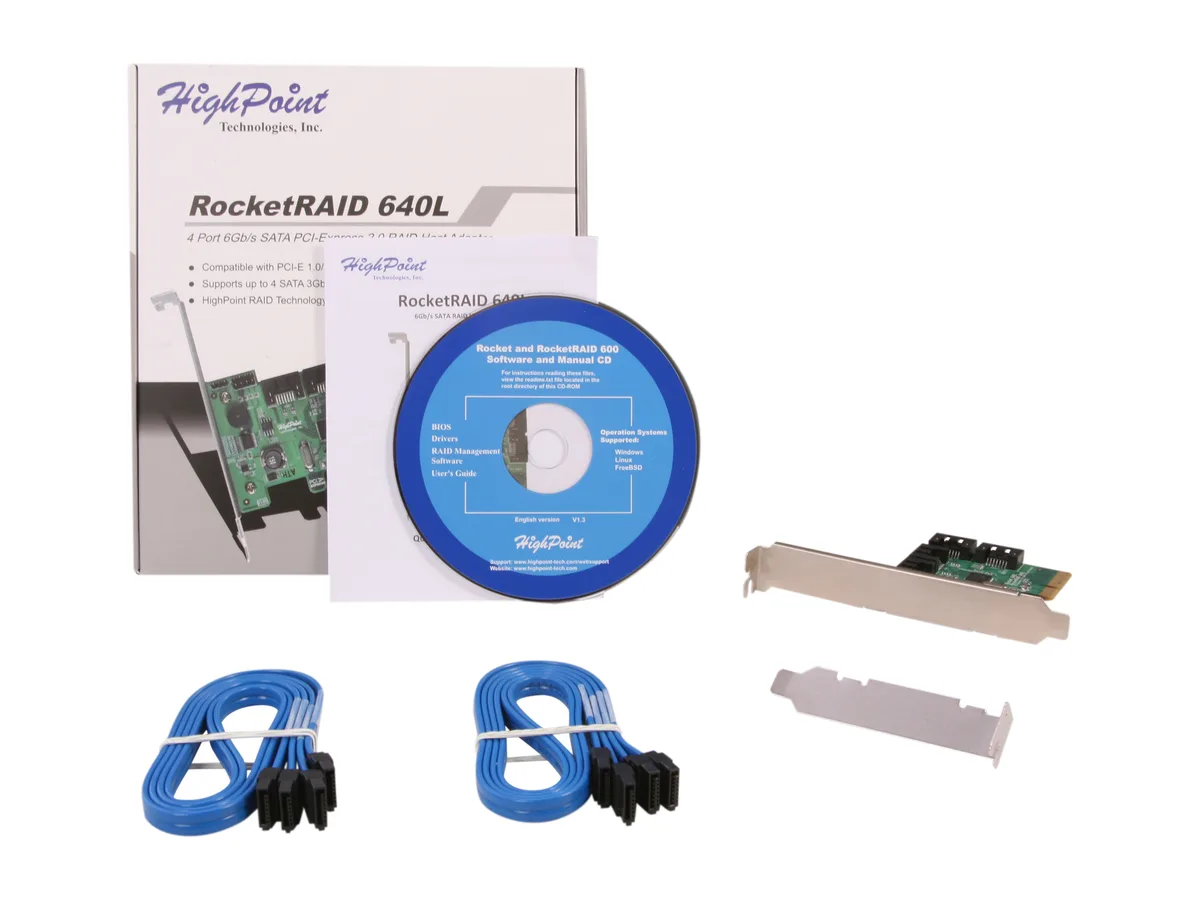

Package ContentsRocketRAID 640L HBA
CD (Driver software)
Quick Installation Guide
4x SATA to SATA cables
배송 무게0.21 kg
포장 크기196 × 175 × 33 mm

이 상품에 대한 질문

Does the low-profile RocketRAID 640L fit in a standard PCI-Express 2.0 x4 slot?

Yes, the card uses a low-profile form factor measuring 3.12" long by 2.56" wide and connects via a PCI-Express 2.0 x4 interface.

What is the common mistake when installing the four SATA 6.0Gb/s internal connectors?

Builders sometimes forget to attach the four included SATA-to-SATA cables to each internal port before closing the case.

How do I update the RAID firmware on this controller later?

Use the web-based RAID management interface to apply firmware updates and monitor array health over time.
