ICY DOCK
ICY DOCK MB522SP-B dual 2.5 to 3.5 SATA SAS hdd accessory
Fits a 3.5" bay to hot-swap two 2.5" SATA or SAS drives up to 9.5mm tall at 6Gbps
- ColorBlack
- Conversion Tray2 x 2.5" Drive to 3.5" Bay
- Mobile Rack InterfaceSATA I/II/III/SAS
- Protection CaseMultiple Drives
- Specifications1.00" x 4.00" x 5.06" 0.53 lb. Support Drive Height: Up to 9

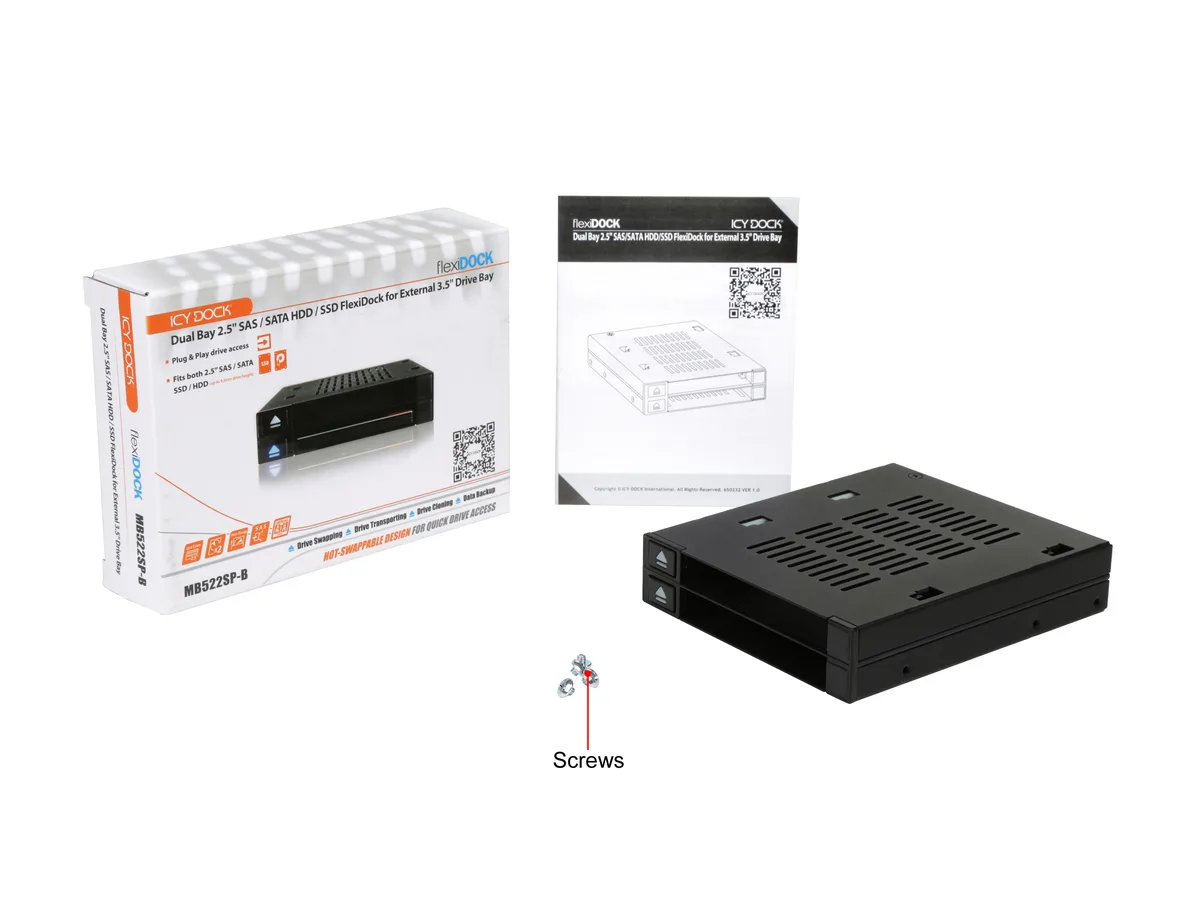

- Package ContentsDevice, user manual, screws
Option 2-Bay
- 2-Bay
- 1-Bay
- HDD + SSD
취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.
- Supports two 2.5″ SAS/SATA drives in one 3.5″ bay
- Tray-less hot-swap with individual eject buttons and activity LEDs
- Full metal chassis with ABS plastic for protection and heat dissipation
- Fits any external 3.5″ or floppy bay without trays
- Direct SATA connection delivers up to 6 Gb/s transfer speed
Dual 2.5-inch SATA/SAS dock

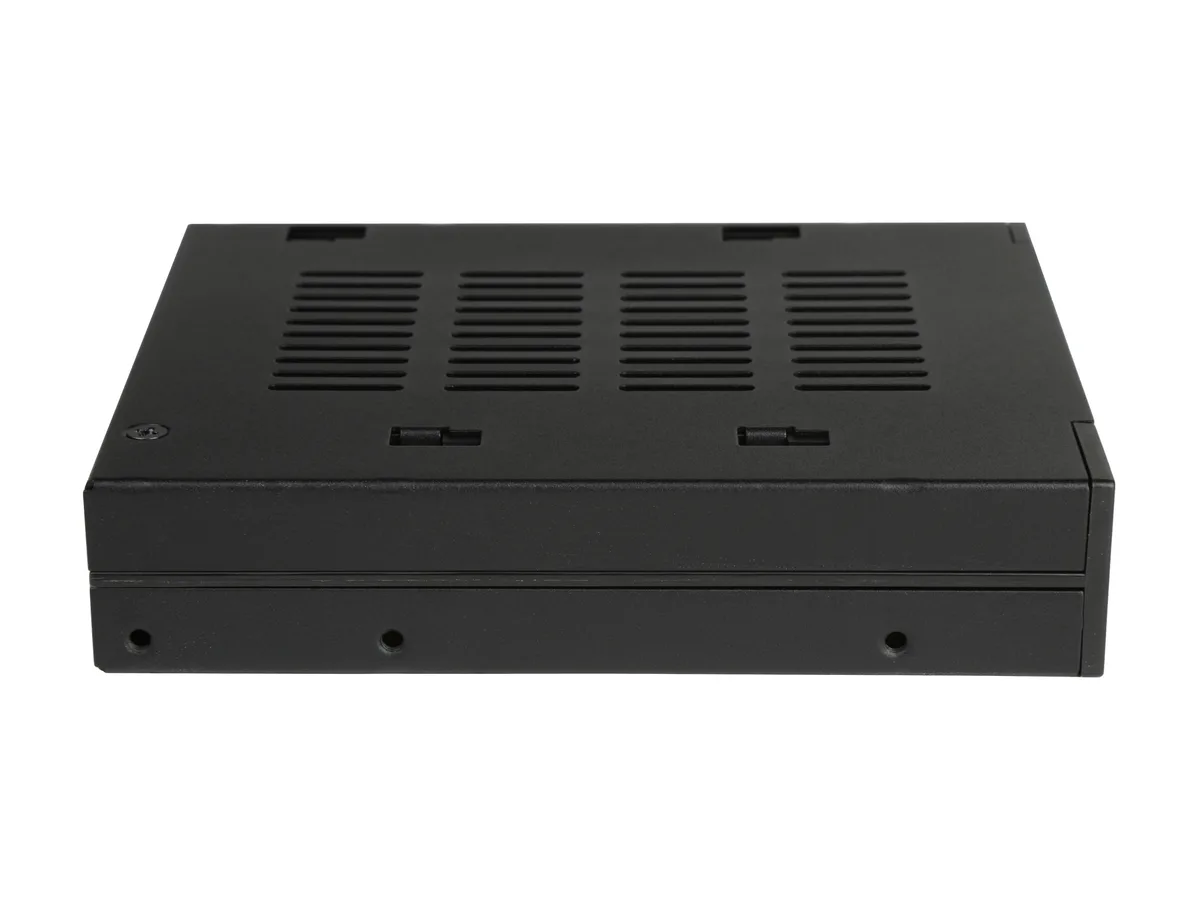

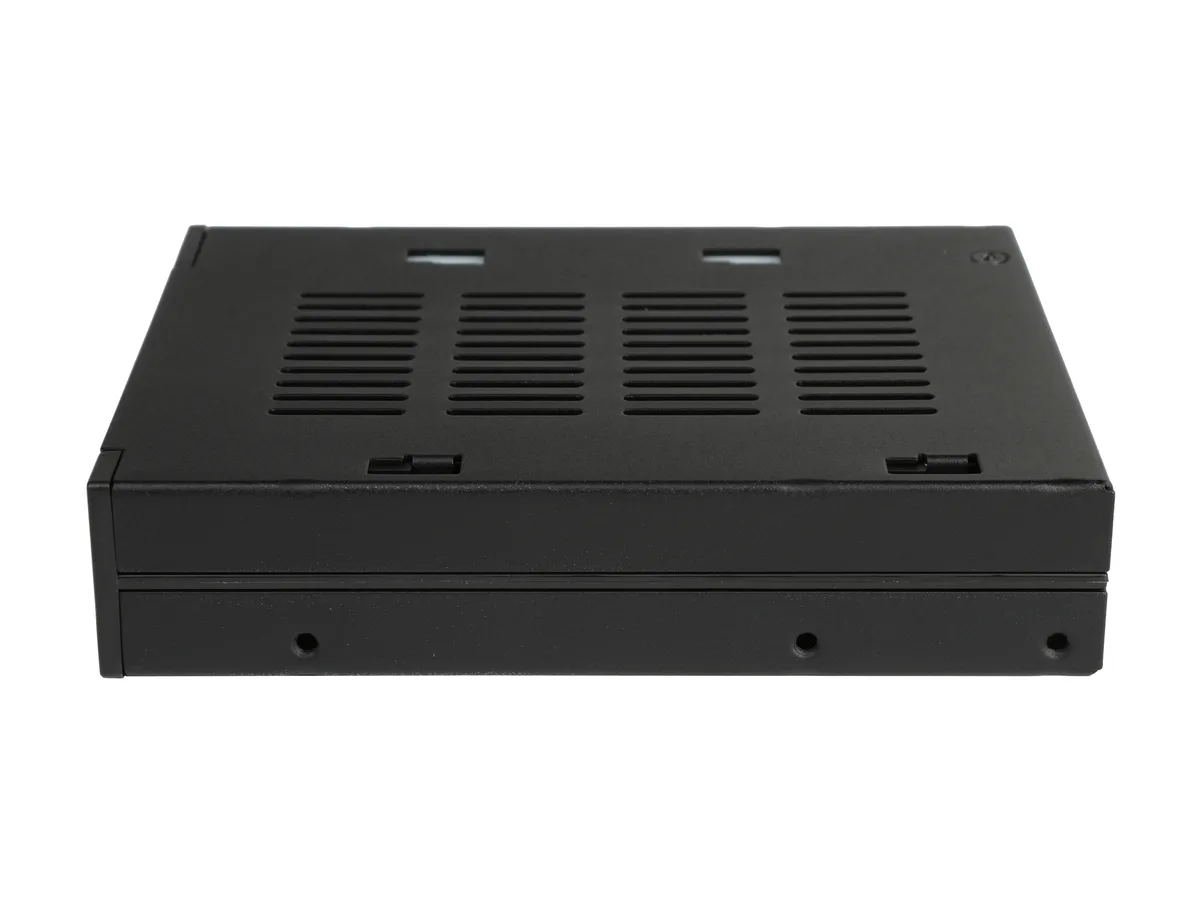

The ICY DOCK MB522SP-B converts a single external 3.5-inch drive bay into two hot-swappable slots for 2.5-inch SATA or SAS hard drives and SSDs. It accepts bare drives from 5 mm to 9.5 mm thick without trays or caddies. A full metal chassis with ABS plastic panels provides structural rigidity and drive protection.
Builders using legacy 3.5-inch or floppy bays
This unit suits system integrators and enthusiasts who want to repurpose an unused 3.5-inch front bay for modern 2.5-inch storage. It is not for cases that only offer 5.25-inch bays, nor for users who need more than two drive positions or a tray-based mounting system.
Tray-less hot-swap with direct SATA connection

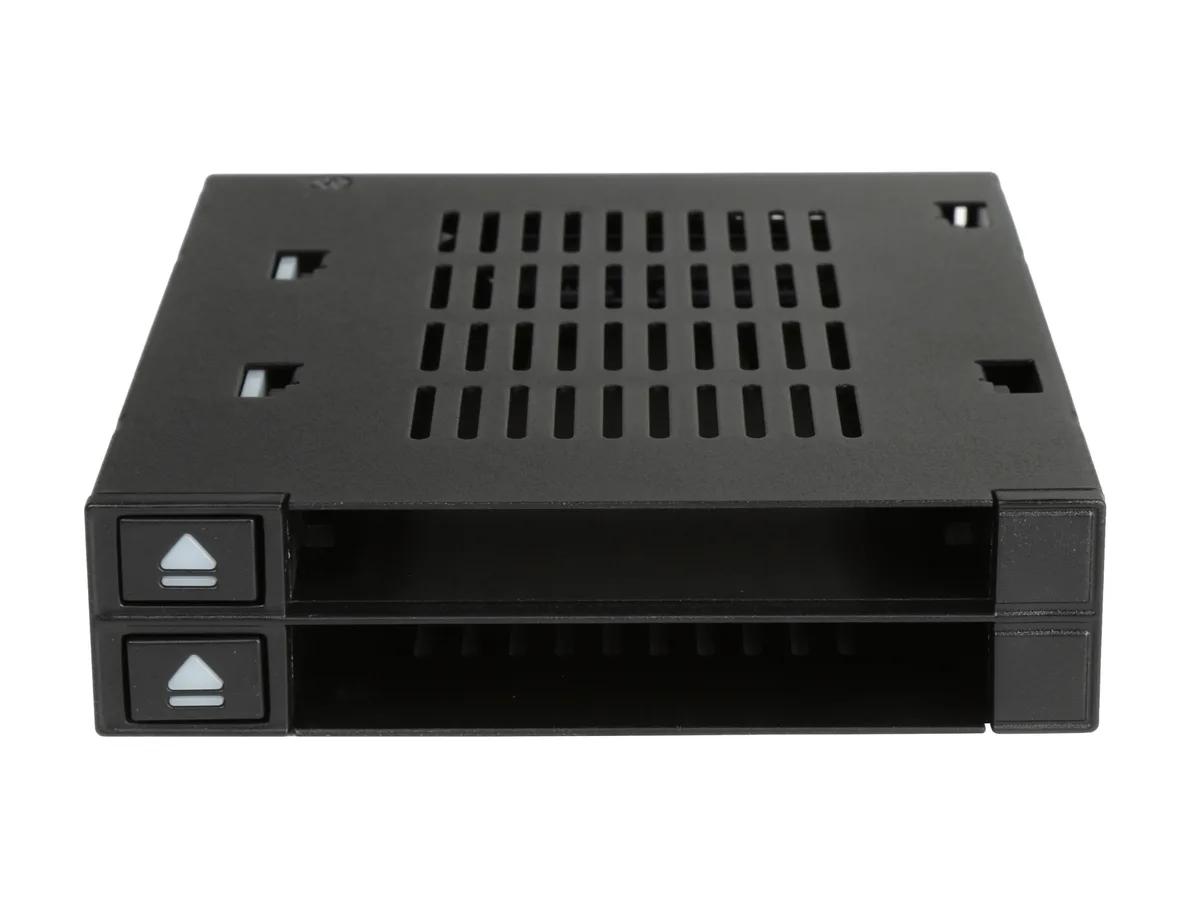

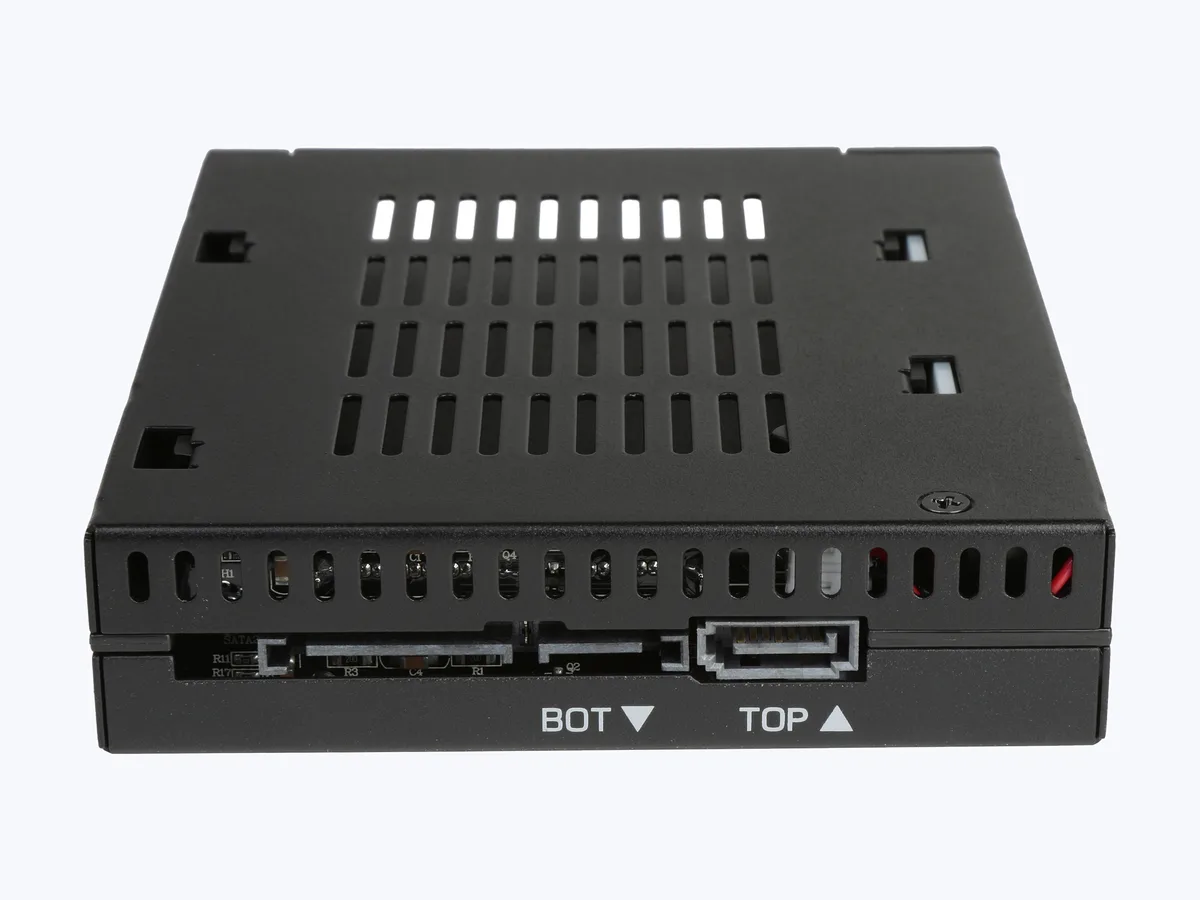

Drives insert directly into the backplane and eject via individual safety buttons with integrated activity LEDs. The interface supports SATA I, II and III as well as SAS at up to 6 Gb/s, limited only by the installed drive’s own speed.
주요 특징
- Supports two 2.5″ SAS/SATA drives in one 3.5″ bay
- Tray-less hot-swap with individual eject buttons and activity LEDs
- Full metal chassis with ABS plastic for protection and heat dissipation
- Fits any external 3.5″ or floppy bay without trays
- Direct SATA connection delivers up to 6 Gb/s transfer speed
사양
| Brand | ICY DOCK |
|---|---|
| Model | N/A |
| Color | Black |
| Conversion Tray | 2 x 2.5" Drive to 3.5" Bay |
| Mobile Rack Interface | SATA I/II/III/SAS |
| Protection Case | Multiple Drives |
| Specifications | 1.00" x 4.00" x 5.06" 0.53 lb. Support Drive Height: Up to 9.5mm drive height Transfer Rate: Up to 6Gb/sec (Depending on hard drive speed) Insert & Extract Connection via: Direct SATA hard drive connection LED Indiciator: Power (Solid blue), HDD access (Flashing Blue) Hot-Swap Function: Yes |
| Package Contents | Device, user manual, screws |
| Features | Supports docking up to 4 x 2.5” SAS/SATA HDD/SSD with SATA hot-swap functionality (5mm – 9.5mm) Fits any external 5.25” bay Full metal chassis with industrial ABS plastic for full protection Completely tray-less design accepts bare drives without screws or holders Drive door-less design for quick hot-swapping Safety enhanced drive ejection button to prevent accidental drive ejection Large individual drive eject buttons Individual tamper-proof drive power button with cool blue drive activity LED High performance 40mm cooling fan with an easily accessible fan speed control Powered all |
| Option | 2-Bay |
| 배송 무게 | 0.29 kg |
| 포장 크기 | 150 × 112 × 33 mm |
이 상품에 대한 질문
How many 2.5 inch SAS or SATA drives can the MB522SP-B hold at once?
The MB522SP-B holds two 2.5 inch SAS or SATA drives simultaneously in a single 3.5 inch bay.
Does the enclosure need a fan or external power to keep drives cool during all-day operation?
The full-metal chassis uses passive airflow through ventilation slots; no fan or extra power connector is required.
What type of drive bay must the PC already have for this unit to fit?
The unit mounts in any standard external 3.5 inch drive bay or legacy floppy bay.
