iStarUSA Inc.
iStarUSA Inc. TC-1U30FX8 1U Flex ATX 300W server power supply
Delivers 300W in a 1U Flex ATX form factor with 80 Plus Bronze efficiency and active PFC
- TypeFlex ATX / ATX12V
- Single/RedundantSingle
- Maximum Power300W
- Main Connector20+4Pin
- Output Current+3.3V@16A, +5V@18A, +12V1@15A, +12V@15A, [email protected] ,
- Fans1
- Delivers 300W continuous power for 1U rack servers
- 80 Plus Bronze certification cuts energy waste at 80% typical efficiency
- Active PFC meets EN61000-3-2 for cleaner mains current
- Triple protection guards against over-voltage, short-circuit and over-current
- Thermal fan control keeps acoustics low under varying loads
1U Flex ATX server power supply

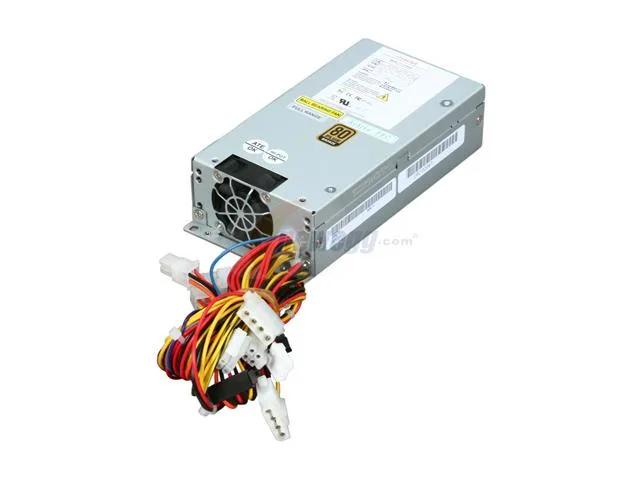

The iStarUSA TC-1U30FX8 is a 300W single-unit power supply built to the Flex ATX and ATX12V standards. It fits a 1U rackmount chassis and delivers 80 Plus Bronze efficiency with active power factor correction meeting EN61000-3-2.
Suited for compact rack builds needing 300W

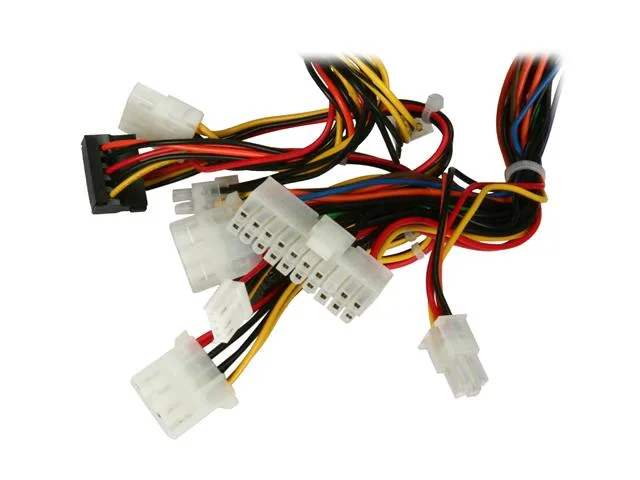

This unit suits administrators assembling 1U servers or workstations that require a 20+4 pin main connector, one 4+4 pin 12V connector, three Molex and one floppy lead. Builds demanding redundant power, higher wattage or different connector counts should look elsewhere.
Verify chassis depth and connector needs
Confirm the 3.20" x 1.60" x 5.90" enclosure clears your 1U chassis and that the provided cable set matches your motherboard and drive requirements. The supply includes thermal fan speed control and holds RoHS compliance.
주요 특징
- Delivers 300W continuous power for 1U rack servers
- 80 Plus Bronze certification cuts energy waste at 80% typical efficiency
- Active PFC meets EN61000-3-2 for cleaner mains current
- Triple protection guards against over-voltage, short-circuit and over-current
- Thermal fan control keeps acoustics low under varying loads
사양
| Brand | iStarUSA |
|---|---|
| Model | TC-1U30FX8 |
| Type | Flex ATX / ATX12V |
| Single/Redundant | Single |
| Maximum Power | 300W |
| Main Connector | 20+4Pin |

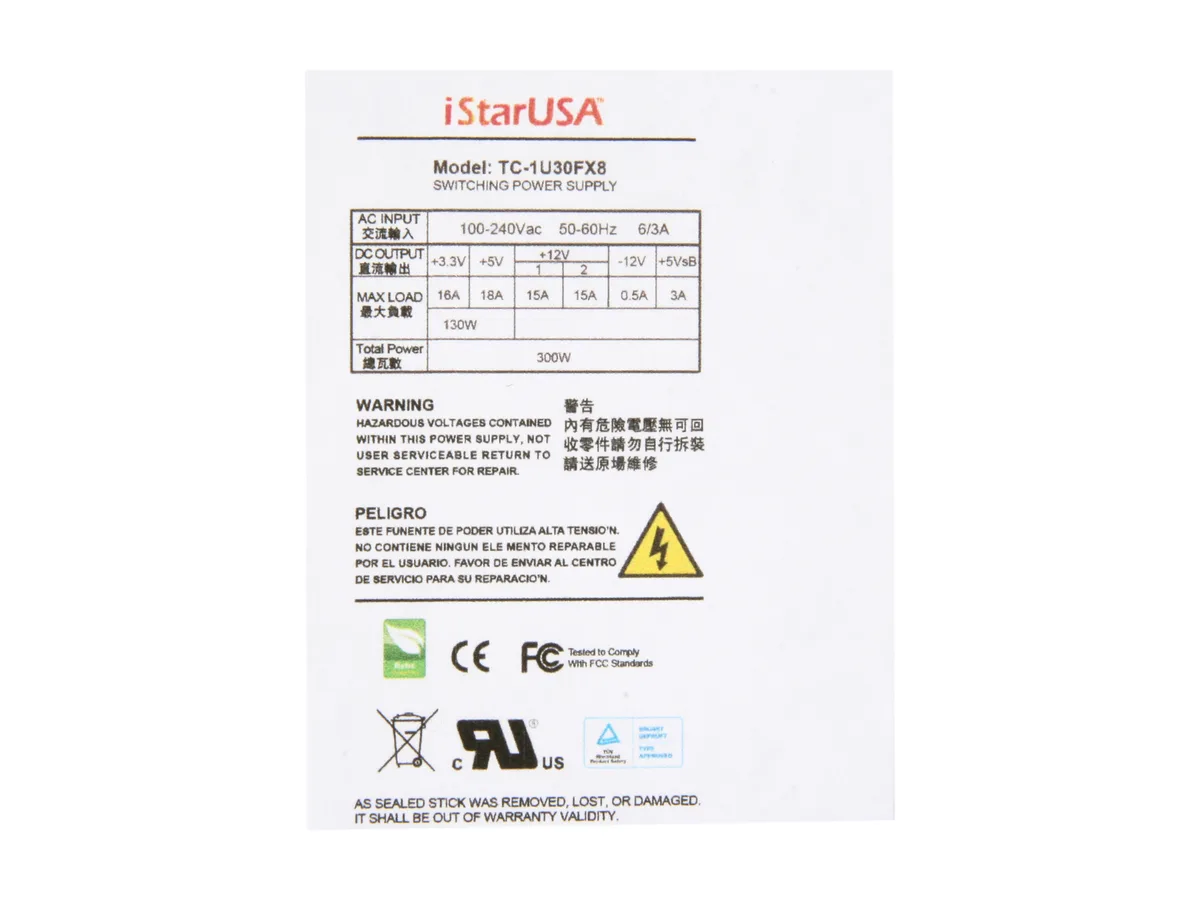

| Output Current | +3.3V@16A, +5V@18A, +12V1@15A, +12V@15A, [email protected] , [email protected] |
| Fans | 1 |
| Protection | Output Over Voltage Protection Short Circuit Protection Over Current Protection |
| Features | 100% Hi-pot, ATE, and Burn-in Tested Output Over Voltage, Short Circuit, and Over Current Protection Low Noise and Ripple Thermal Fan Speed Control Function Compatible with European Union Directive 2002/95/EC (RoHS) Active Power Factor Correction (PFC) Meet EN61000-3-2 80 Plus Bronze High Efficiency |
| Dimensions | 3.2" x 1.6" x 5.9" |
| 배송 무게 | 1.07 kg |
| 포장 크기 | 226 × 183 × 69 mm |
이 상품에 대한 질문
What motherboard power connector does the 20+4Pin main connector on this unit mate with?
The 20+4Pin main connector fits any ATX12V motherboard socket that accepts a 20-pin or 24-pin plug, so it works with both older 20-pin boards and current 24-pin designs.
Will the single 4+4Pin 12V connector power a legacy CPU that only has a 4-pin 12V socket?
Yes, the 4+4Pin 12V connector splits into two 4-pin halves; one half plugs directly into a 4-pin CPU power header while the other half can be left unconnected.
After installation, how can I confirm the 80% efficiency rating is being met?
Measure AC input power and total DC output power under typical load; if the DC output divided by AC input is at or above 80%, the unit is operating within its rated efficiency.
