LORDWORLD ESP32-C5 1.47inch LCD Development Board with Pre-soldered Headers
A 1.47-inch 262K-colour LCD board with a 32-bit RISC-V core at 240 MHz, Wi-Fi 6 and Bluetooth 5 for AIoT prototyping
- Ready-to-code board with pre-soldered headers
- 47 inch 172×320 262K colour LCD for vivid UI
- Dual RISC-V cores up to 240 MHz for responsive AIoT tasks
- Wi-Fi 6 plus Bluetooth 5 (LE) with Mesh support
- GPIO header and onboard TF slot expand peripheral options

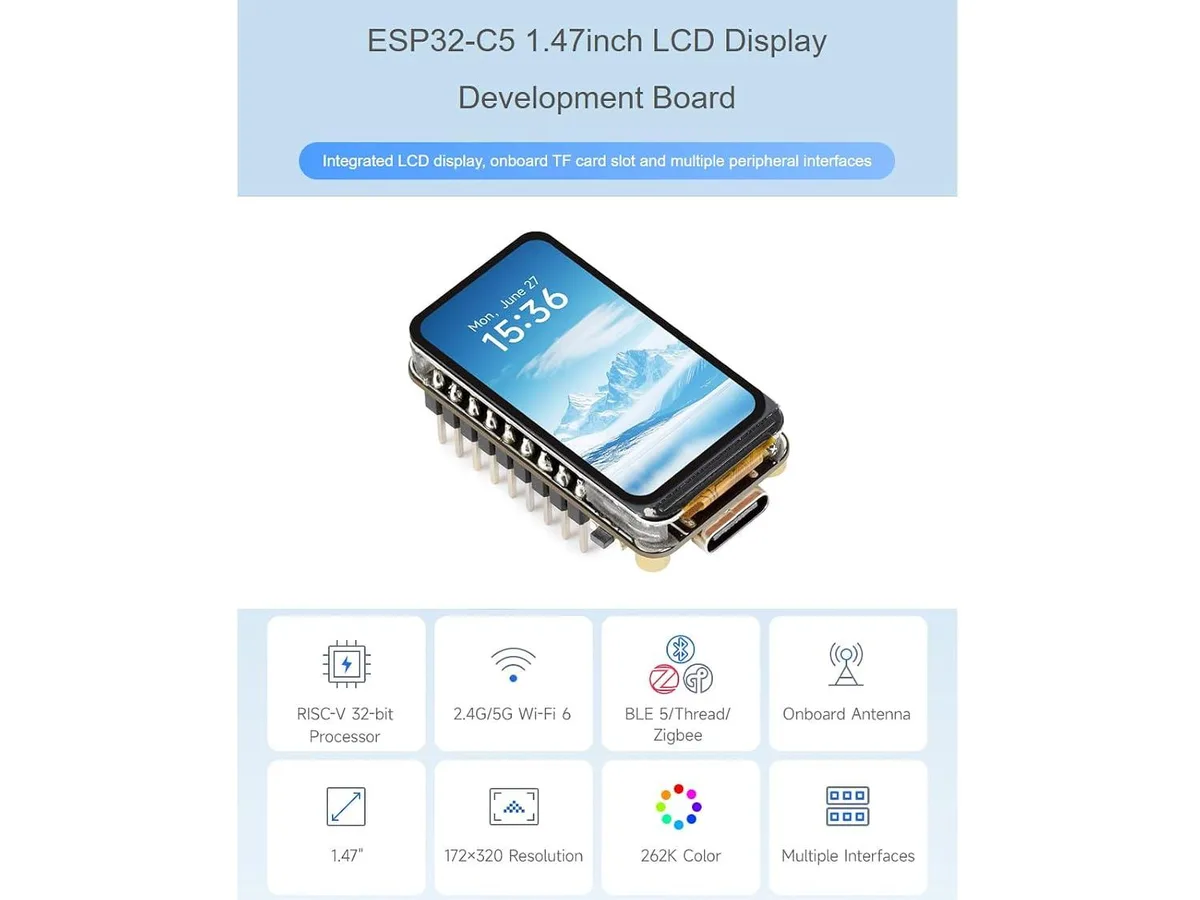

ESP32-C5 development board with integrated LCD
This board combines an ESP32-C5 microcontroller with a built-in 1.47 inch colour display and pre-soldered headers. It targets engineers and hobbyists building compact human-machine interfaces or wireless sensor nodes. The integrated TF card slot adds local storage for logs or assets without extra wiring.
1.47 inch 172×320 LCD with 262K colour depth
The display resolution and colour count are the decisive figures for any graphical interface. They determine how much information fits on screen and whether icons, charts or text remain legible. No external screen driver or connector is required because the panel is already mounted on the PCB.

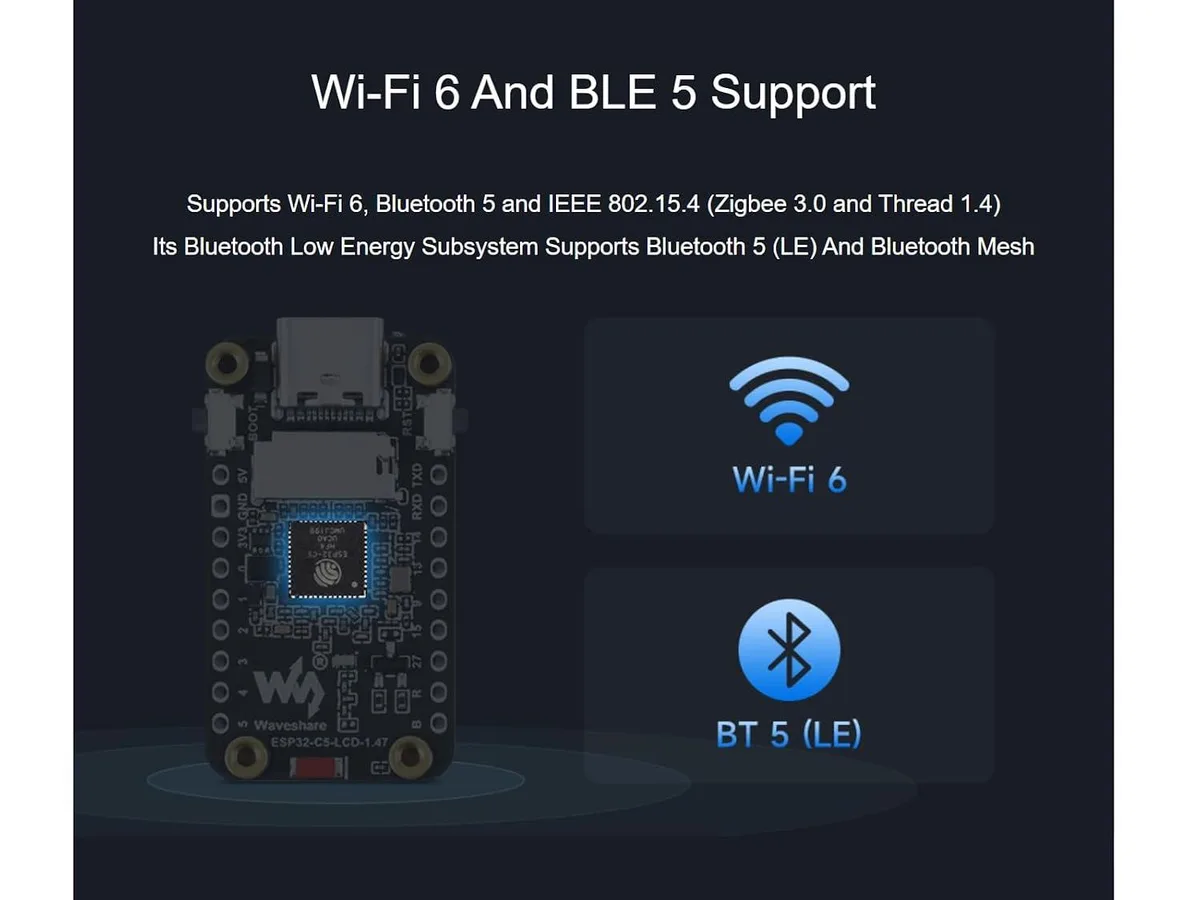

GPIO header, TF slot, Wi-Fi 6 and Bluetooth 5
The pre-soldered GPIO header exposes the chip’s peripheral interfaces for sensors, actuators or additional radios. Onboard Wi-Fi 6 and Bluetooth 5 provide IP connectivity and mesh networking in a single module. Builders who need a larger display, a different radio standard or a board without a screen should look elsewhere.
주요 특징
- Ready-to-code board with pre-soldered headers
- 47 inch 172×320 262K colour LCD for vivid UI
- Dual RISC-V cores up to 240 MHz for responsive AIoT tasks
- Wi-Fi 6 plus Bluetooth 5 (LE) with Mesh support
- GPIO header and onboard TF slot expand peripheral options
사양
| Brand | LORDWORLD |
|---|
이 상품에 대한 질문
What does the 240 MHz RISC-V processor mean for real-time display and wireless tasks?
The dual-core RISC-V processor running at up to 240 MHz handles the 1.47 inch LCD, Wi-Fi 6 and Bluetooth 5 stacks simultaneously, leaving headroom for sensor polling and local AIoT logic.
Which wireless standards are actually supported and what throughput ceiling do they impose?
The board provides Wi-Fi 6 on 2.4 GHz and Bluetooth 5 LE plus IEEE 802.15.4 for Zigbee 3.0 and Thread 1.4, so the practical ceiling is the 2.4 GHz Wi-Fi 6 PHY rate.
What physical mounting points or connectors does the board expose for enclosure design?
Pre-soldered GPIO headers give direct access to the ESP32-C5 pins, while the integrated 172×320 LCD and onboard TF card slot sit flush on the PCB for front-panel mounting.
