LORDWORLD ESP32-C6 1.47inch Touch LCD Development Board 172x320 262K Color Pre-soldered Header

ESP32-C6 Development Board with Touch LCD

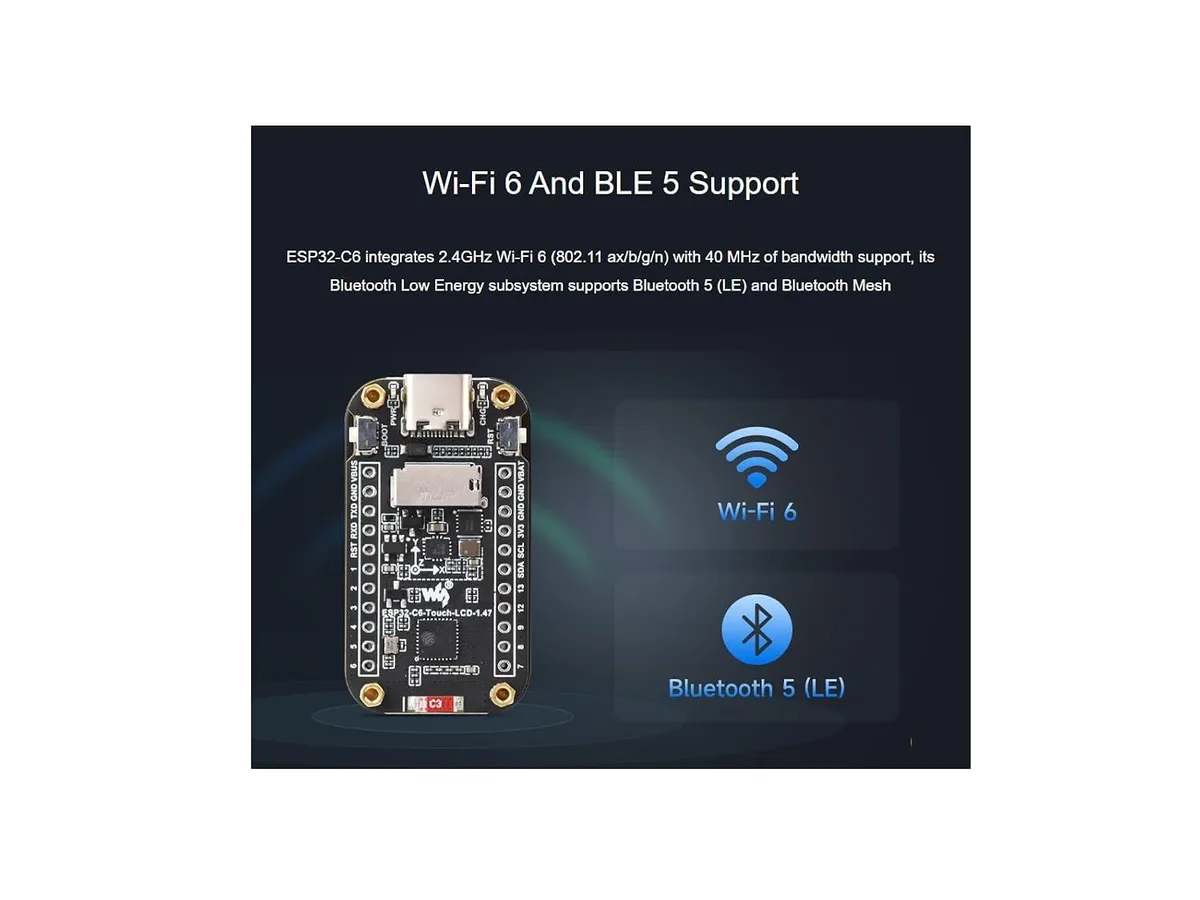

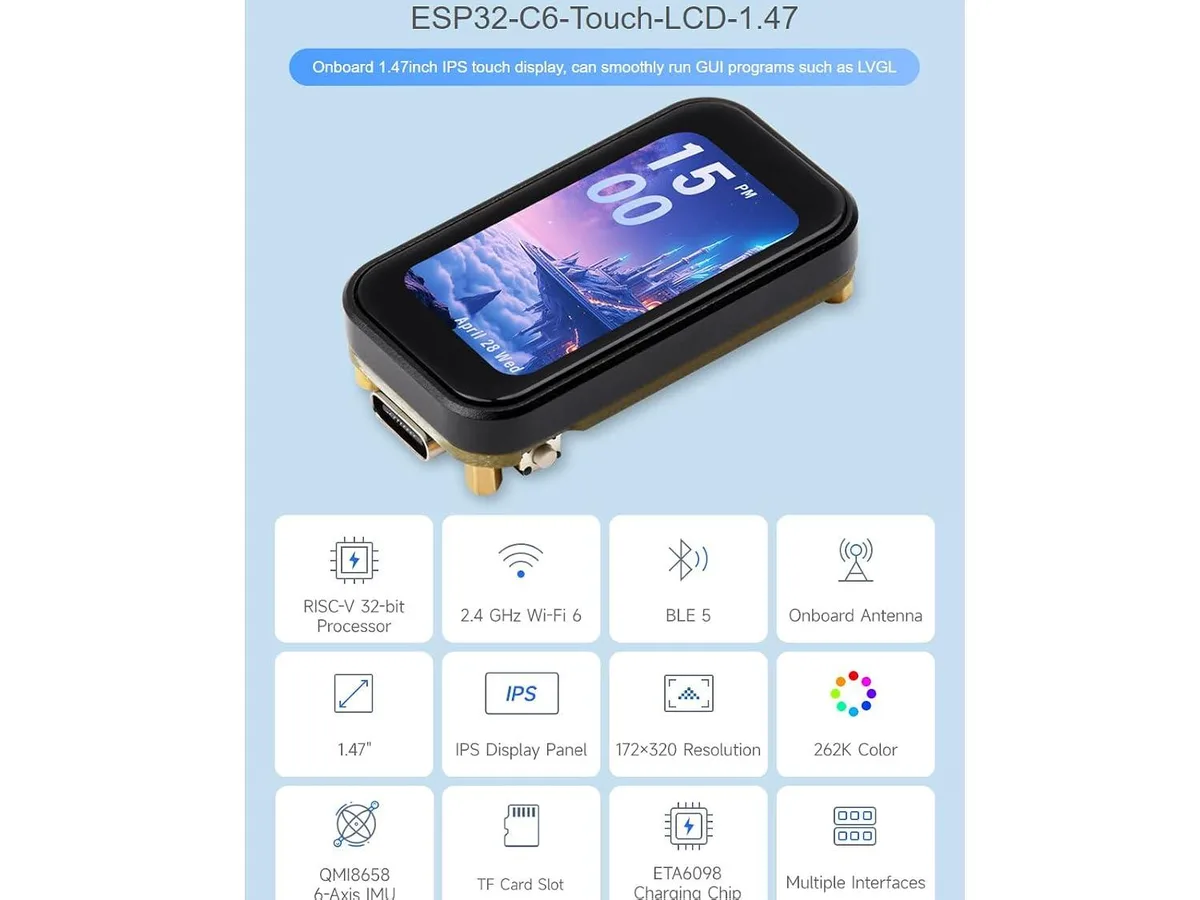

The LORDWORLD board integrates an ESP32-C6 microcontroller with a 1.47inch IPS capacitive touch display. A 32-bit RISC-V processor runs at up to 160 MHz alongside a low-power 32-bit RISC-V core. The panel delivers 172×320 resolution with 262K colour depth. Connectivity includes Wi-Fi 6 on the 2.4 GHz band with 40 MHz bandwidth and Bluetooth 5 LE with Mesh support. A pre-soldered GPIO header allows immediate peripheral expansion.

Makers building compact AIoT prototypes

Developers who need a ready-to-run LVGL platform with wireless connectivity will benefit from the integrated touch screen and dual RISC-V architecture. Projects requiring larger displays, higher resolution panels, or wired Ethernet interfaces should consider alternative hardware. The board targets battery-aware designs thanks to its low-power core and efficient wireless stack.

Fits breadboard or custom PCB workflows via

The pre-soldered header exposes pins for sensors, actuators or additional radios without soldering. Onboard Wi-Fi 6 and Bluetooth 5 LE remove the need for separate radio modules in 2.4 GHz environments. The AXS5106L touch driver handles the capacitive panel directly, freeing processor cycles for application logic. Power and data share the same USB connection used for programming.
