Rectangular green circuit board with a 7 inch IPS touchscreen and small camera module attached

LORDWORLD

LORDWORLD ESP32-P4-WIFI6 7inch IPS Touch Display Development Board with OV5647 Camera

SKU CH-HE77-B3XHC

A 7-inch IPS touch display board with a 1024 × 600 screen, 5-point capacitive touch, OV5647 camera, Wi-Fi 6, Bluetooth 5, CAN, RS485, UART, I2C.

  • 7-inch IPS display with 160° viewing angle for clear visuals from any side
  • Capacitive 5-point touch enables responsive multi-finger control for interactive projects
  • Dual ESP32-P4 and ESP32-C6 cores deliver high-performance edge computing power
  • OV5647 camera plus CAN, RS485, UART and I2C expand peripheral connectivity
  • Onboard ES8311 audio codec and ES7210 echo cancellation support AI voice interaction

IoT Development Board for Edge AI

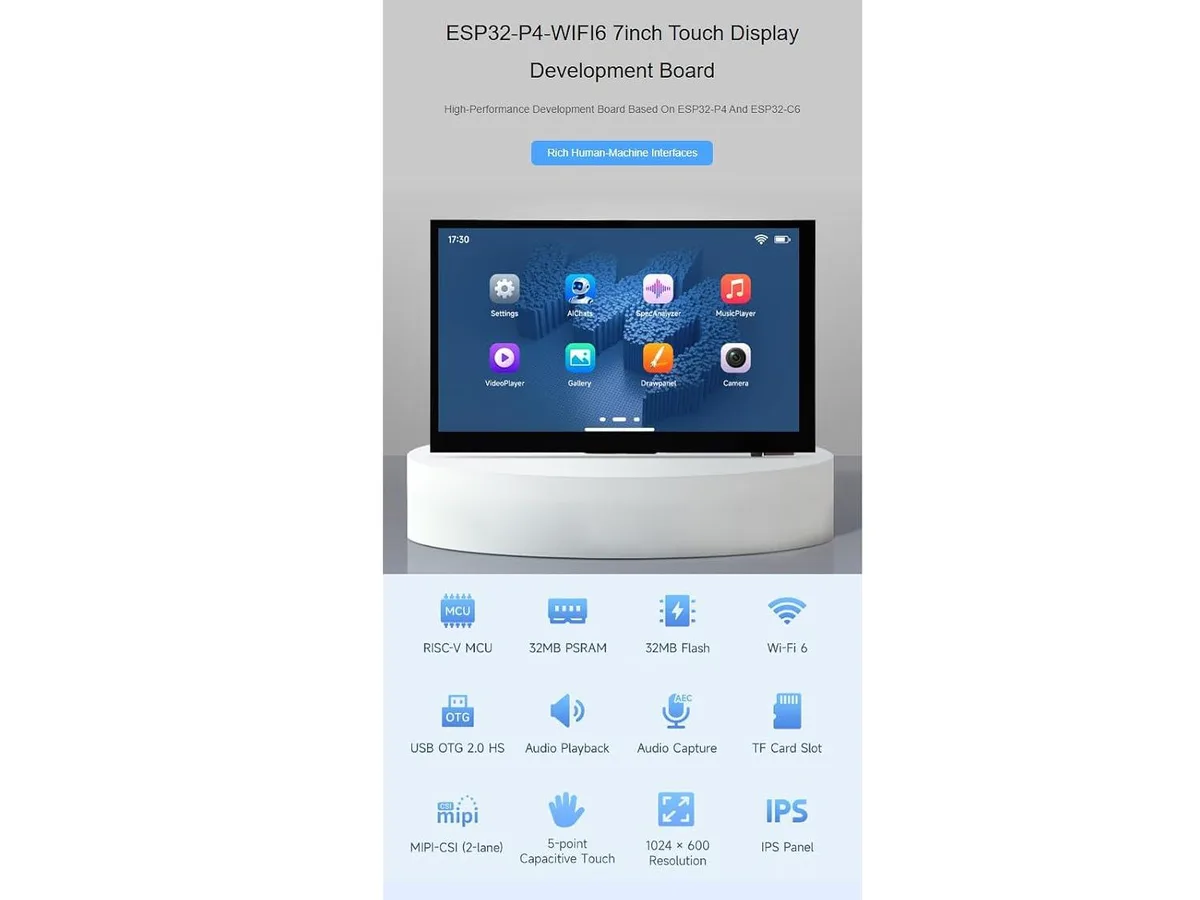

The LORDWORLD ESP32-P4-WIFI6 board combines an ESP32-P4 and ESP32-C6 dual-core architecture with a 7inch IPS touch display and OV5647 camera module. It targets makers and engineers building human-machine interface prototypes, smart home controllers, or AI-powered edge devices requiring integrated vision and voice capabilities.

1024 × 600 5-Point Capacitive Touch Screen

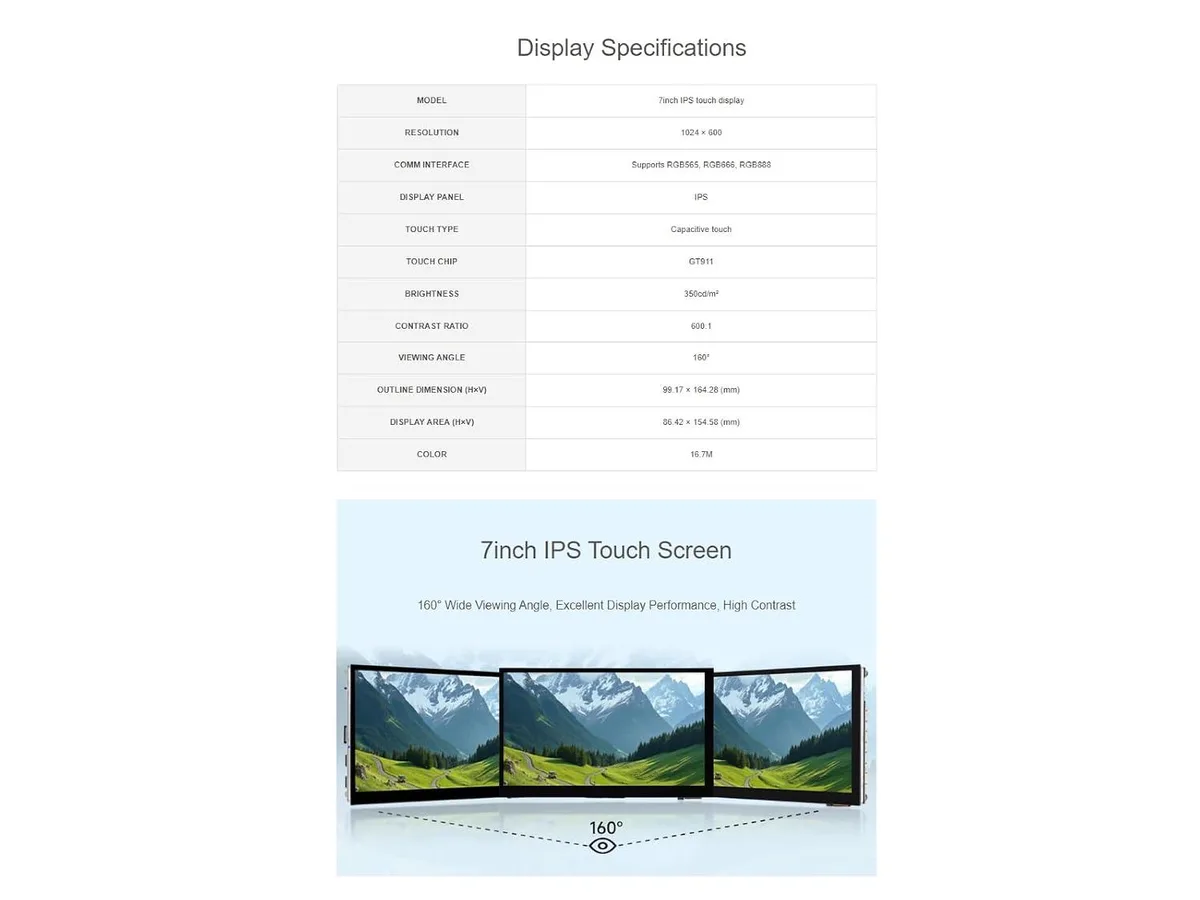

The 7inch IPS panel delivers a 160° viewing angle with high contrast for clear visibility. Its capacitive layer registers up to 5 simultaneous touch points, providing the primary interactive interface for GUI development and on-device configuration without external peripherals.

Dual Wireless Radios and Peripheral Expansion

Onboard Wi-Fi 6 and Bluetooth 5 (LE) connectivity enable cloud access to platforms such as DeepSeek and Doubao for AI speech interaction. The ES8311 audio codec with ES7210 echo cancellation supports voice I/O, while CAN, RS485, UART, and I2C headers allow sensor and actuator integration for complete edge solutions.

주요 특징

  • 7-inch IPS display with 160° viewing angle for clear visuals from any side
  • Capacitive 5-point touch enables responsive multi-finger control for interactive projects
  • Dual ESP32-P4 and ESP32-C6 cores deliver high-performance edge computing power
  • OV5647 camera plus CAN, RS485, UART and I2C expand peripheral connectivity
  • Onboard ES8311 audio codec and ES7210 echo cancellation support AI voice interaction

사양

BrandLORDWORLD

이 상품에 대한 질문

What does the 1024 × 600 resolution mean for on-screen content?

The 7‑inch IPS panel renders 1024 by 600 pixels with a 160° viewing angle, so text, graphics and camera frames stay sharp and readable from wide angles.

What does Wi‑Fi 6 and Bluetooth 5 (LE) cap in practice?

Wi‑Fi 6 handles the wireless link to cloud AI services such as DeepSeek or Doubao, while Bluetooth 5 LE manages low‑power peripheral connections.

What mounting holes or cut‑out does the 7‑inch board need?

The development board integrates the 7‑inch IPS touch module, OV5647 camera, ES8311 audio codec and ES7210 echo cancellation circuit, with expansion headers for CAN, RS485, UART and I2C peripherals.
