Small green circuit board with 1.47 inch colour screen and pin headers

LORDWORLD

LORDWORLD ESP32-S3 1.47inch LCD Development Board Type B

SKU CH-ZGA5-1SKR6

Development board with 1.47 inch IPS LCD, 172x320 resolution, 262K colours, ESP32-S3 dual-core processor at 240 MHz, Wi-Fi, Bluetooth 5, TF card slot and 6-axis IMU

  • 47 inch IPS display with 172 x 320 resolution and 262K colour
  • 240 MHz LX7 dual core processor for AIoT workloads
  • Wi-Fi at 2.4 GHz with 40 MHz bandwidth and Bluetooth 5 LE
  • Onboard TF card slot plus 6 axis IMU for data logging
  • GPIO header enables expansion of multiple peripherals

ESP32-S3 1.47inch LCD Development Board

The LORDWORLD ESP32-S3 1.47inch LCD Development Board Type B is a compact IoT edge device built around a 32-bit LX7 dual-core processor running at up to 240 MHz. It targets makers and engineers developing AIoT applications that require onboard graphics, wireless connectivity, and sensor integration in a single module.

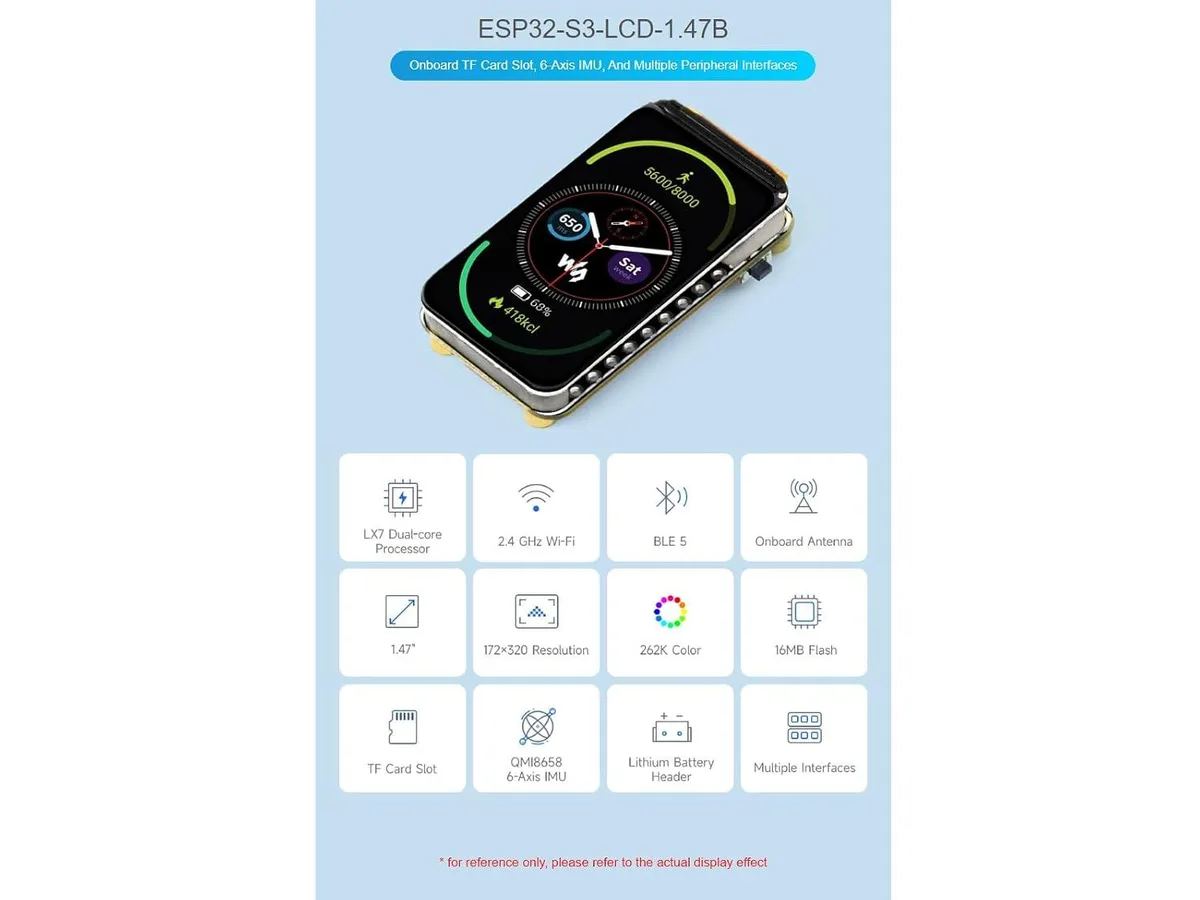

1.47inch IPS display with TF card slot and 6-axis

The board includes a 1.47 inch IPS panel with a 172x320 resolution and 262K colour depth, suitable for LVGL-based GUI programs. A TF card slot provides local storage expansion, while the 6-axis IMU adds motion sensing. GPIO headers allow further peripheral expansion for custom hardware interfaces.

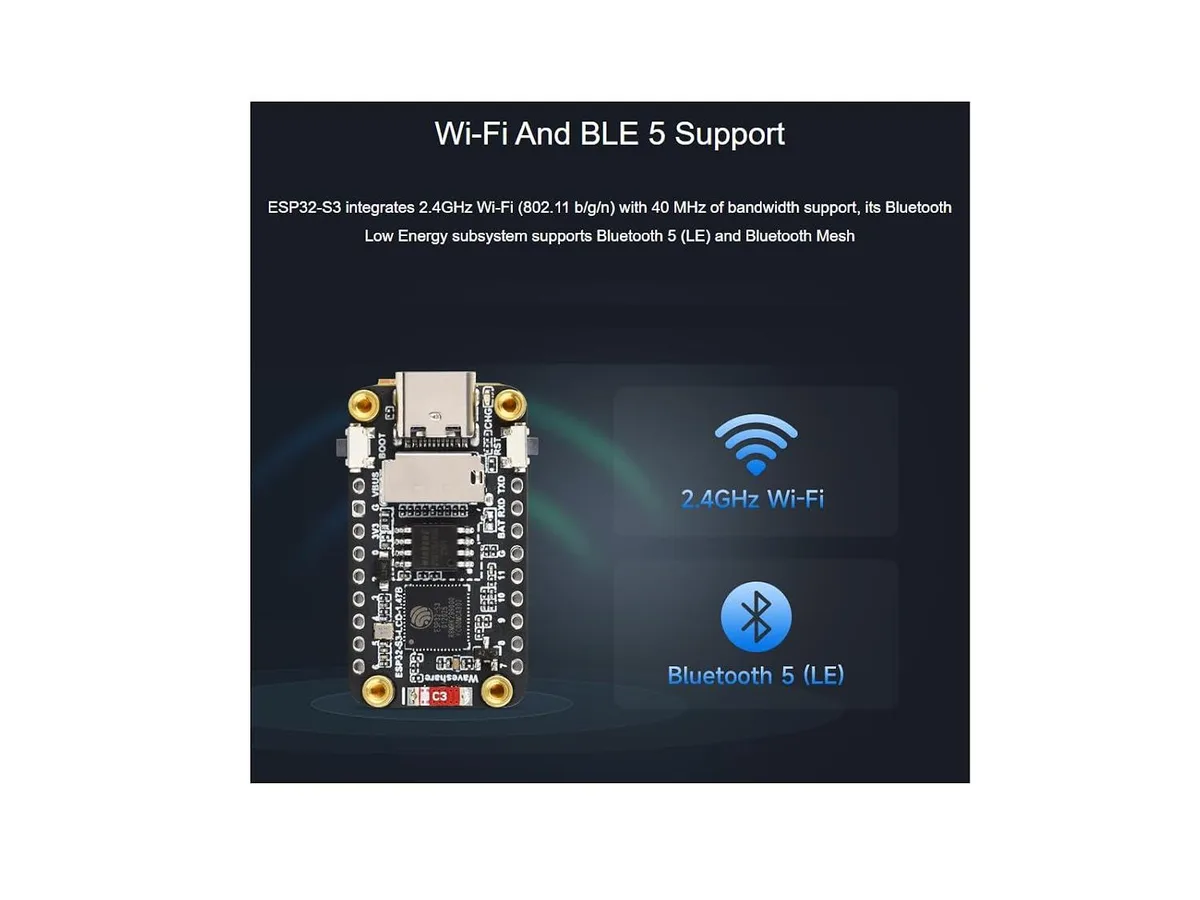

240 MHz dual-core with 2.4 GHz Wi-Fi and Bluetooth 5

The ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz bandwidth and a Bluetooth Low Energy subsystem supporting Bluetooth 5 (LE) and Bluetooth Mesh. This combination delivers sustained wireless throughput and AI compute capability for long-running edge workloads without relying on burst performance alone.

주요 특징

  • 47 inch IPS display with 172 x 320 resolution and 262K colour
  • 240 MHz LX7 dual core processor for AIoT workloads
  • Wi-Fi at 2.4 GHz with 40 MHz bandwidth and Bluetooth 5 LE
  • Onboard TF card slot plus 6 axis IMU for data logging
  • GPIO header enables expansion of multiple peripherals

사양

BrandLORDWORLD

이 상품에 대한 질문

How many GPIO pins does the ESP32-S3 provide for connecting sensors all day?

The board exposes a GPIO header that supports multiple peripheral expansions, letting you attach sensors, actuators or other modules directly to the 32-bit LX7 dual-core processor.

Does the 1.47 inch IPS display and 240 MHz processor generate noticeable heat during continuous LVGL GUI rendering?

The ESP32-S3 integrates 2.4 GHz Wi-Fi 802.11 b/g/n and Bluetooth 5 LE with a 40 MHz bandwidth, and the compact development board runs typical GUI workloads without active cooling.

What power source must I already have to run this development board?

The board is powered through its USB connection, so you need a standard USB cable and a 5 V USB power supply or computer port to operate it.
