Five-inch touchscreen development board with IPS display and exposed circuitry

LORDWORLD

LORDWORLD ESP32-S3 5inch Capacitive Touch LCD Development Board 1024×600 IPS

SKU CH-QJ5B-KHY0M

A 5-inch IPS touchscreen development board with a 1024×600 display, dual-core processor, 2.4 GHz WiFi and CAN, RS485 and I2C interfaces

  • Crisp visuals from 1024×600 IPS panel
  • Smooth multi-point control via 5-point capacitive touch
  • Dual-core 32-bit processor handles demanding IoT tasks
  • Flexible expansion with CAN, RS485 and I2C interfaces
  • Wireless connectivity through 2.4 GHz WiFi and BLE 5

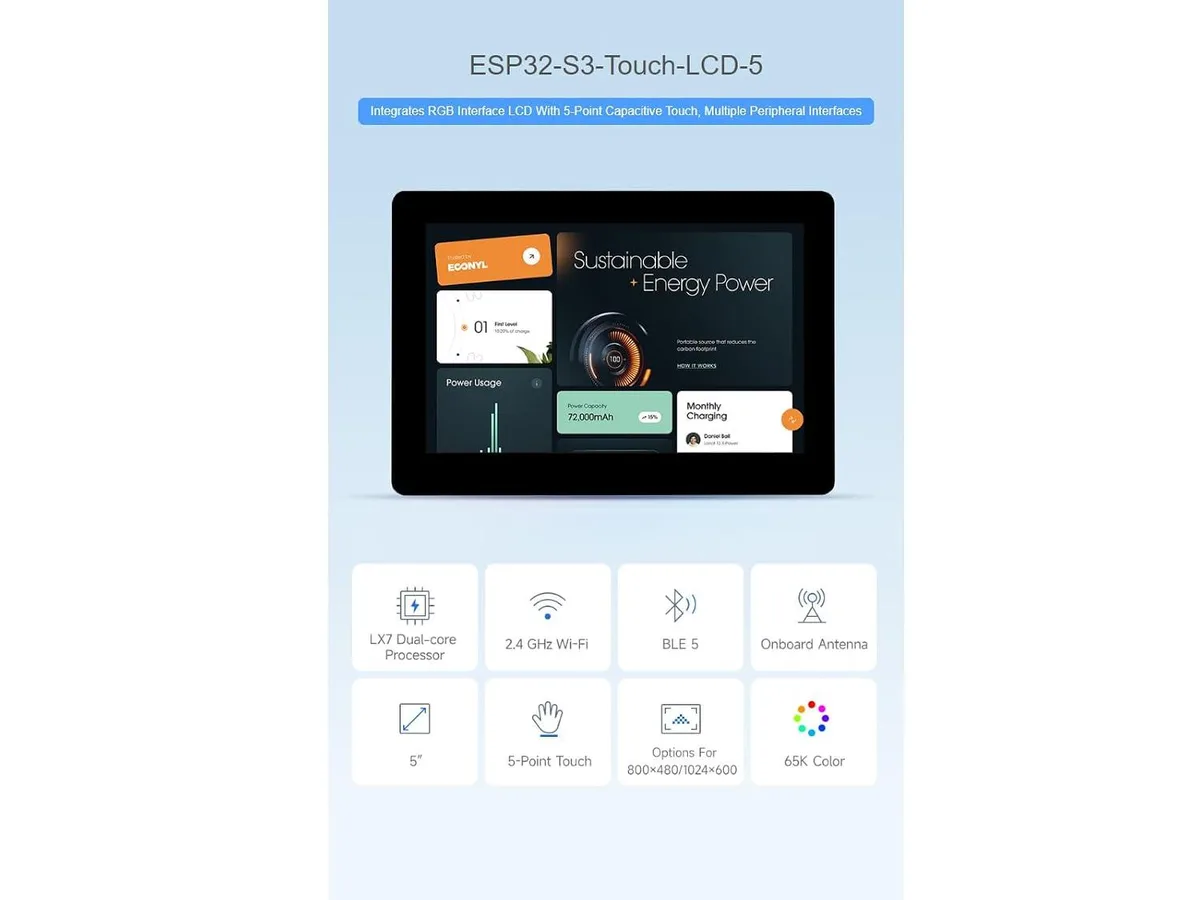

ESP32-S3 5-inch Touch LCD Development Board

The LORDWORLD board pairs an ESP32-S3 dual-core processor with a 5-inch IPS display running at 1024×600 resolution. Five-point capacitive touch input connects through an I2C interface for responsive multi-point interaction. The platform targets makers building IoT edge devices that need integrated graphics and touch in a single module.

Integrated RGB interface

An RGB interface drives the LCD directly without an external bridge, reducing component count. CAN and RS485 ports enable industrial-grade networking, while isolated IO protects the MCU from field transients. These built-in peripherals let developers wire sensors, actuators and field buses straight to the board.

32-bit LX7 dual-core headroom with 2.4 GHz wireless

The 32-bit LX7 dual-core architecture handles real-time control, UI rendering and 2.4 GHz Wi-Fi and BLE 5 communication simultaneously. Complex multi-tasking workloads stay responsive, though applications needing heavy floating-point math or large frame buffers will exhaust on-chip memory. Projects requiring additional storage or a second radio must add external hardware.

주요 특징

  • Crisp visuals from 1024×600 IPS panel
  • Smooth multi-point control via 5-point capacitive touch
  • Dual-core 32-bit processor handles demanding IoT tasks
  • Flexible expansion with CAN, RS485 and I2C interfaces
  • Wireless connectivity through 2.4 GHz WiFi and BLE 5

사양

BrandLORDWORLD

이 상품에 대한 질문

What will need replacement first on the ESP32-S3 5inch Touch LCD B under heavy daily use?

The 5-point capacitive touch layer driven over I2C is the component most likely to wear before the IPS panel itself.

Which limit appears first when the board runs continuously at full load?

The 32-bit LX7 dual-core processor hits its thermal ceiling before the 2.4 GHz WiFi or BLE 5 radios saturate.

How much heat and noise does the development board produce when left on all day?

Passive cooling keeps it silent; the IPS display and ESP32-S3 chip generate only modest warmth during sustained operation.
