Rectangular development board with 7 inch IPS touchscreen display showing 1024 by 600 resolution

LORDWORLD

LORDWORLD ESP32-S3 7inch Touch Display Development Board Type B 1024×600

SKU CH-YTYR-0G9M2

A 7 inch IPS touch display with 1024 × 600 resolution, adjustable backlight and 170° viewing angle for ESP32-S3 development

  • Sharp 1024×600 IPS panel with 170° viewing angle
  • Adjustable backlight plus lithium battery voltage monitoring
  • Responsive capacitive touch with 65K colour depth
  • Sensor, CAN, RS485 and I2C interfaces for expansion
  • ESP32-S3 core delivers Wi-Fi and BLE 5 connectivity

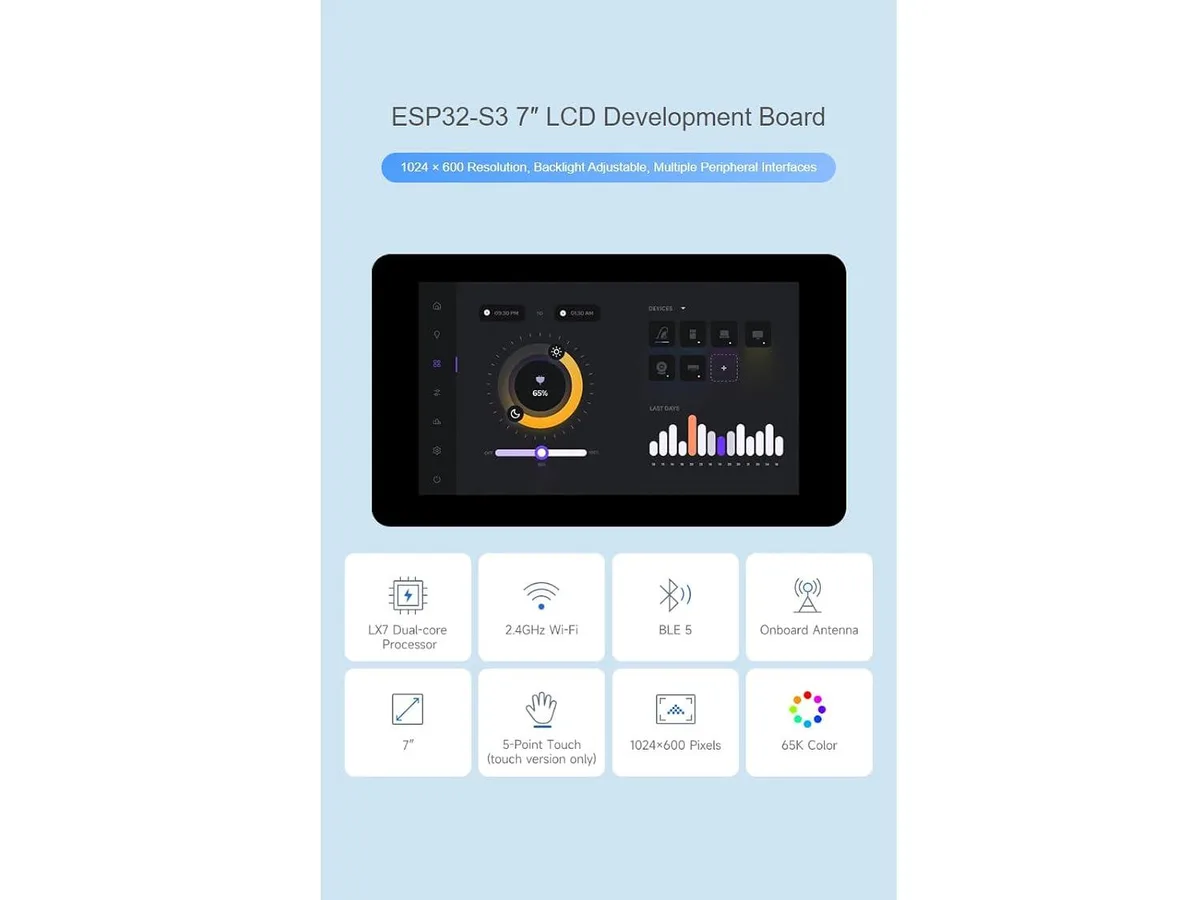

ESP32-S3 7-inch Touch Development Board

The LORDWORLD ESP32-S3 board combines a 1024×600 IPS LCD with a capacitive touch panel and an ESP32-S3 microcontroller. It targets makers building IoT edge devices that need local display and wireless connectivity. The 65K colour screen offers a 170° viewing angle for clear visibility in prototypes and finished projects.

Installing the board and common pitfalls

Connect power, then flash firmware via the USB port using standard ESP32 toolchains. The board exposes sensor, CAN, RS485 and I2C headers for peripheral expansion. Miswiring the CAN or RS485 lines is the most frequent issue; verify pin assignments against the schematic before applying power. Backlight adjustment and lithium-battery voltage monitoring are handled in software.

Sustained-load behaviour

The IPS panel maintains consistent colour and contrast during continuous operation. Backlight level can be dimmed in code to reduce heat and power draw over long runs. The ESP32-S3 runs Wi-Fi and Bluetooth BLE 5 radios alongside the display without thermal throttling under normal ambient conditions. Stable voltage regulation supports extended data-logging or HMI tasks.

주요 특징

  • Sharp 1024×600 IPS panel with 170° viewing angle
  • Adjustable backlight plus lithium battery voltage monitoring
  • Responsive capacitive touch with 65K colour depth
  • Sensor, CAN, RS485 and I2C interfaces for expansion
  • ESP32-S3 core delivers Wi-Fi and BLE 5 connectivity

사양

BrandLORDWORLD

이 상품에 대한 질문

How can I confirm the ESP32-S3 7inch Touch Display Development Board Type B is working correctly after powering it up?

The 1024×600 IPS panel should light up with a 170° viewing angle and show 65K colour; touch response on the capacitive layer verifies the display and controller are functional.

What accessories are included with the board and what must I source separately?

The development board itself is supplied; sensors, CAN, RS485 or I2C modules and a lithium cell for voltage monitoring are not included and must be purchased separately.

Which version should I choose if I need the higher-resolution 1024×600 panel with backlight control and battery monitoring?

Select the Type B version; it is the upgraded variant that provides the 1024×600 resolution, adjustable backlight and lithium-battery voltage monitoring.
