LORDWORLD
LORDWORLD RP2040-Plus Mini Board development board
Pico-compatible RP2040 board with 26 GPIO pins, 4 MB flash, USB-C and a higher-current DC-DC regulator running up to 133 MHz
- Dual-core Arm Cortex M0+ at 133 MHz for responsive real-time tasks
- 4 MB onboard flash stores larger firmware without external memory
- USB-C connector simplifies power and data with a single reversible cable
- Higher-current DC-DC chip powers demanding peripherals directly from the board
- 26 multi-function GPIO pins enable flexible sensor and actuator integration
Pico-compatible RP2040 board

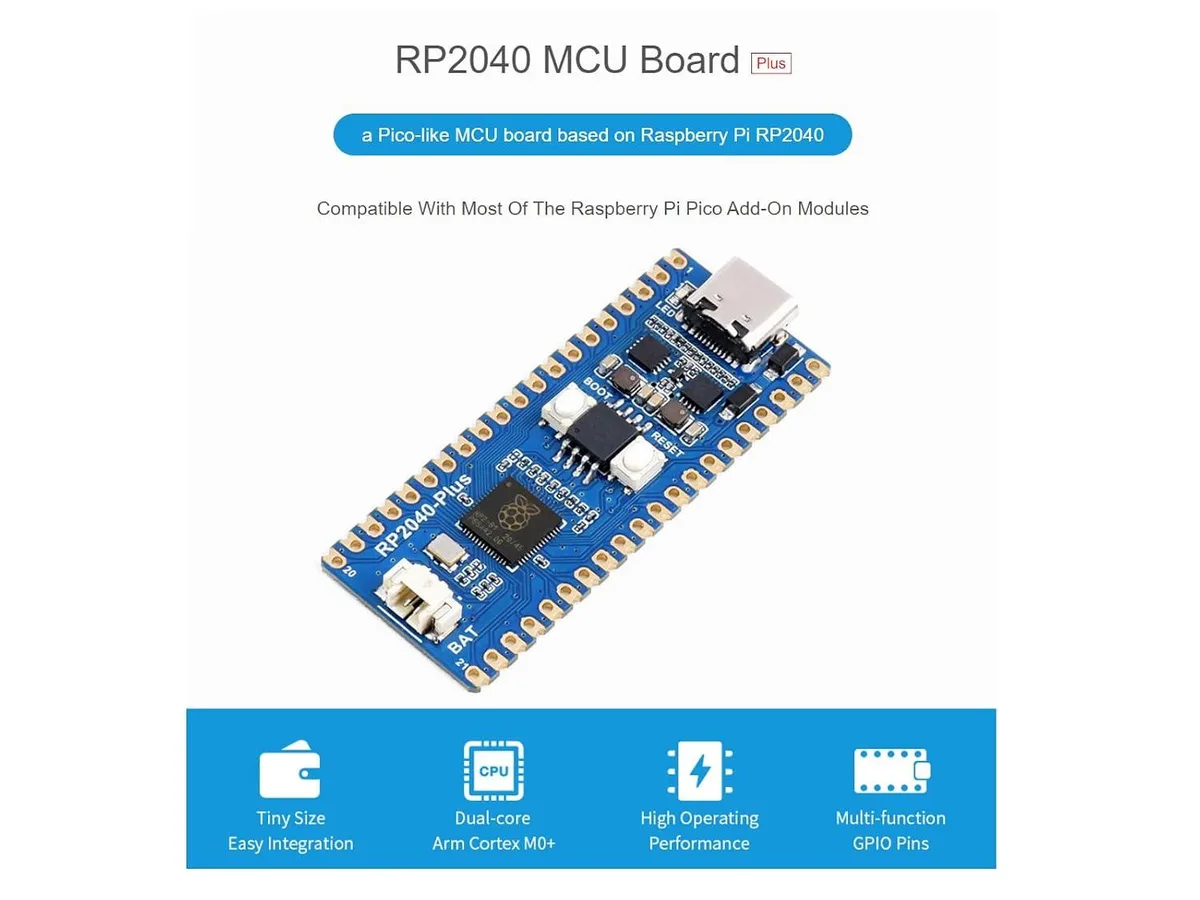

The LORDWORLD RP2040-Plus Mini Board is a development board built around the Raspberry Pi RP2040 microcontroller. It provides a dual-core Arm Cortex M0+ processor running up to 133 MHz with 26 multi-function GPIO pins for flexible integration. The board targets makers and developers working on embedded IoT edge applications. It supports development in C/C++ and MicroPython with extensive SDK resources.
USB-C power and 4 MB flash limits
The board uses a USB-C connector for power and data instead of the micro-USB found on the reference design. Onboard flash is fixed at 4 MB, which sets the maximum storage for firmware and file systems without external memory. The higher current DC-DC chip improves power delivery for attached peripherals. A recharge header is included for battery-backed projects.
Castellated pins and Pico form factor
Castellated edges and the standard 26-pin layout allow the module to be soldered directly onto a carrier PCB or used with existing Raspberry Pi Pico add-on modules. The compact footprint suits space-constrained prototypes and permanent installations. Builders needing more GPIO or a different pinout will need a separate breakout or a larger controller board.
주요 특징
- Dual-core Arm Cortex M0+ at 133 MHz for responsive real-time tasks
- 4 MB onboard flash stores larger firmware without external memory
- USB-C connector simplifies power and data with a single reversible cable
- Higher-current DC-DC chip powers demanding peripherals directly from the board
- 26 multi-function GPIO pins enable flexible sensor and actuator integration
사양
| Brand | LORDWORLD |
|---|
이 상품에 대한 질문
What makes the Plus Version A different from a standard Pico?
The Plus Version A adds onboard 4MB Flash, a USB-C connector, a recharge header, and a higher current DC-DC chip while keeping the same RP2040 dual-core processor and 26 GPIO pins.
How fast does the dual-core Arm Cortex M0+ processor run in practice?
The RP2040 runs up to 133 MHz, giving real-world performance suitable for C/C++ and MicroPython projects with the comprehensive SDK and tutorials provided.
What does the USB-C connector actually provide for this board?
The USB-C connector supplies power and data for programming the RP2040, and works with the higher current DC-DC chip to support more demanding add-on modules.
