Green rectangular circuit board with silver connectors and chips

LORDWORLD

LORDWORLD RP2350-PiZero development board 16MB flash

SKU CH-0PMV-BMVE2

Development board with RP2350 dual-core microcontroller, DVI output, TF card slot, PIO-USB, 520KB SRAM and 16MB flash

  • RP2350 microcontroller with dual-core Arm Cortex-M33 and dual-core Hazard3 RISC-V cores
  • 16MB onboard flash plus 520KB SRAM for larger firmware and data storage
  • Onboard DVI interface enables direct video output without extra hardware
  • TF card slot and PIO-USB port expand storage and USB connectivity options
  • 40-pin GPIO header compatible with Raspberry Pi ecosystem for add-on boards

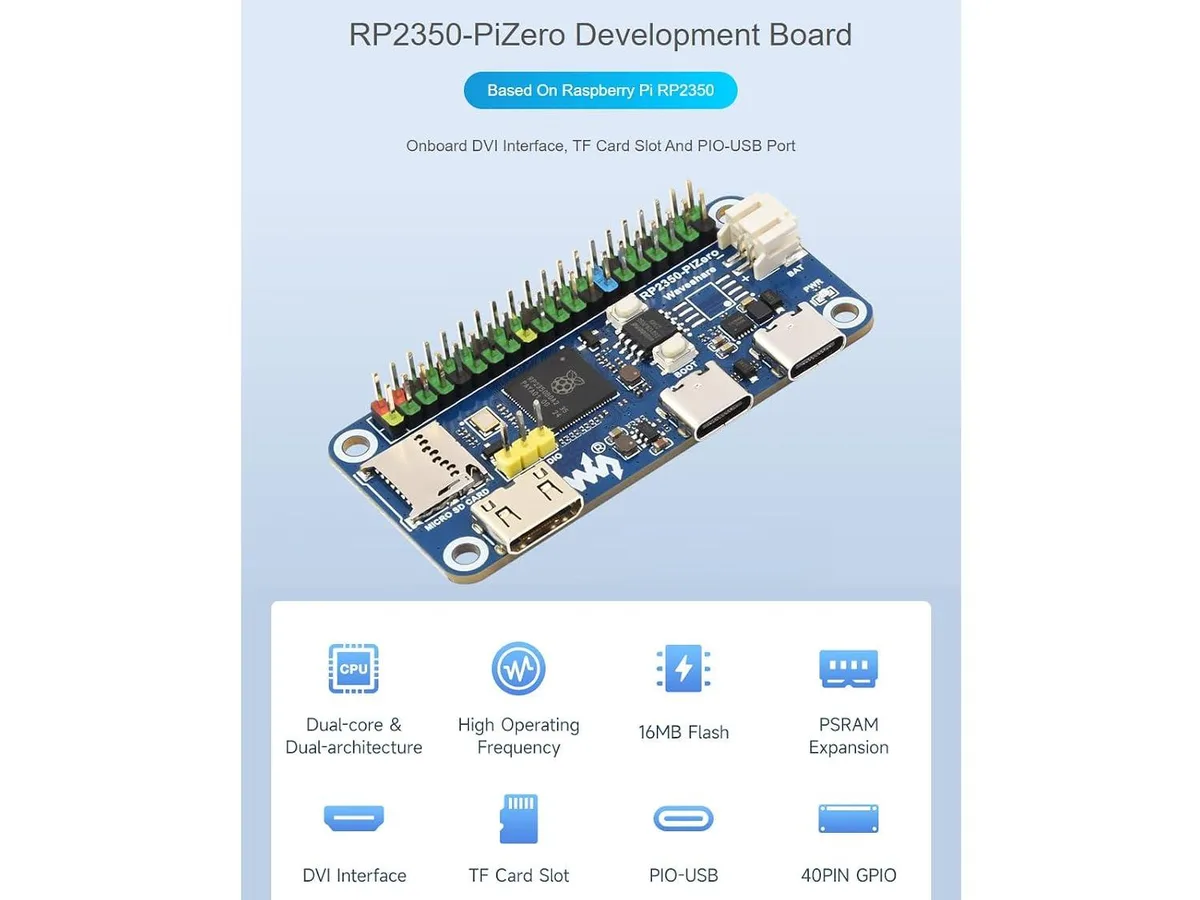

RP2350-PiZero development board

The LORDWORLD RP2350-PiZero development board is a compact IoT edge device built around the Raspberry Pi RP2350 microcontroller. It targets makers, educators and embedded developers who want a Pi Zero form factor with integrated video and storage interfaces. The dual-core, dual-architecture design lets you choose between Arm Cortex-M33 cores and open-hardware Hazard3 RISC-V cores.

Check GPIO, DVI and power before ordering

Verify that your project can use the 40-pin GPIO header layout for HATs or custom circuits. Ensure you have a DVI-compatible display or suitable adapter for the onboard video output. Confirm your power supply can deliver a stable 5 V to the board’s USB port. A micro-SD card is required for the TF card slot if your application needs removable storage beyond the 16 MB onboard flash.

Soldered headers, DVI and TF slot for daily use

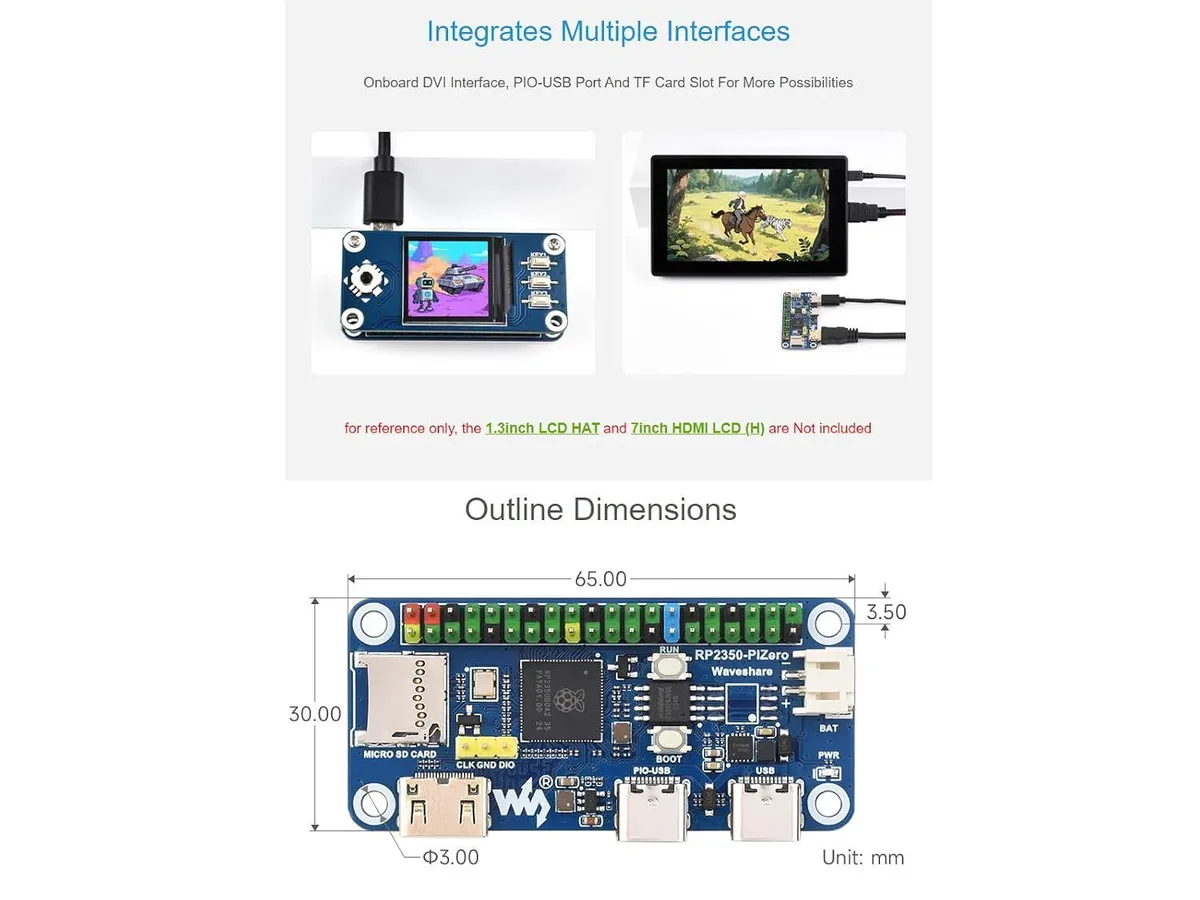

The board ships with the 40-pin header already populated, so you can stack HATs or plug jumper wires without extra soldering. The DVI connector provides a direct digital video path for GUI or dashboard projects. The TF card slot accepts standard micro-SD cards for logging or boot media. The PIO-USB port adds a programmable USB interface for custom device or host roles. All connectors are mounted on a single-sided PCB that fits the standard Pi Zero outline.

주요 특징

  • RP2350 microcontroller with dual-core Arm Cortex-M33 and dual-core Hazard3 RISC-V cores
  • 16MB onboard flash plus 520KB SRAM for larger firmware and data storage
  • Onboard DVI interface enables direct video output without extra hardware
  • TF card slot and PIO-USB port expand storage and USB connectivity options
  • 40-pin GPIO header compatible with Raspberry Pi ecosystem for add-on boards

사양

BrandLORDWORLD

이 상품에 대한 질문

What comes in the box with the RP2350-PiZero board and what must I add?

The board ships with 16MB flash and 520KB SRAM onboard; you supply a TF card for extra storage, a DVI display cable, and a 40PIN GPIO header if you need to connect HATs.

Which RP2350 variant should I pick for this board?

This model uses the RP2350B dual-core, dual-architecture chip giving you two Arm Cortex-M33 cores or two Hazard3 RISC-V cores to choose from in software.

What does the 16MB flash figure mean when I start coding?

It provides 16MB of non-volatile program storage on the board itself, so your firmware and file system reside there without an external chip.
