Green rectangular development board with 40-pin GPIO header and multiple sensor chips

LORDWORLD

LORDWORLD Sense HAT (C) development board 40PIN GPIO QMI8658C AK09918 SHTC3 LPS22HB TCS34725 SGM58031 I2C

SKU CH-8P4Y-609RA

Adds nine onboard sensors and a four-channel ADC to a Raspberry Pi via the 40-pin GPIO header

  • Standard 40PIN GPIO header fits Raspberry Pi boards
  • QMI8658C plus AK09918 gives 9-axis motion and magnetic sensing
  • SHTC3 temperature and humidity sensor monitors ambient conditions
  • LPS22HB barometric sensor tracks atmospheric pressure changes
  • TCS34725 color sensor identifies object colours accurately

Sense HAT (C) with 40-pin GPIO

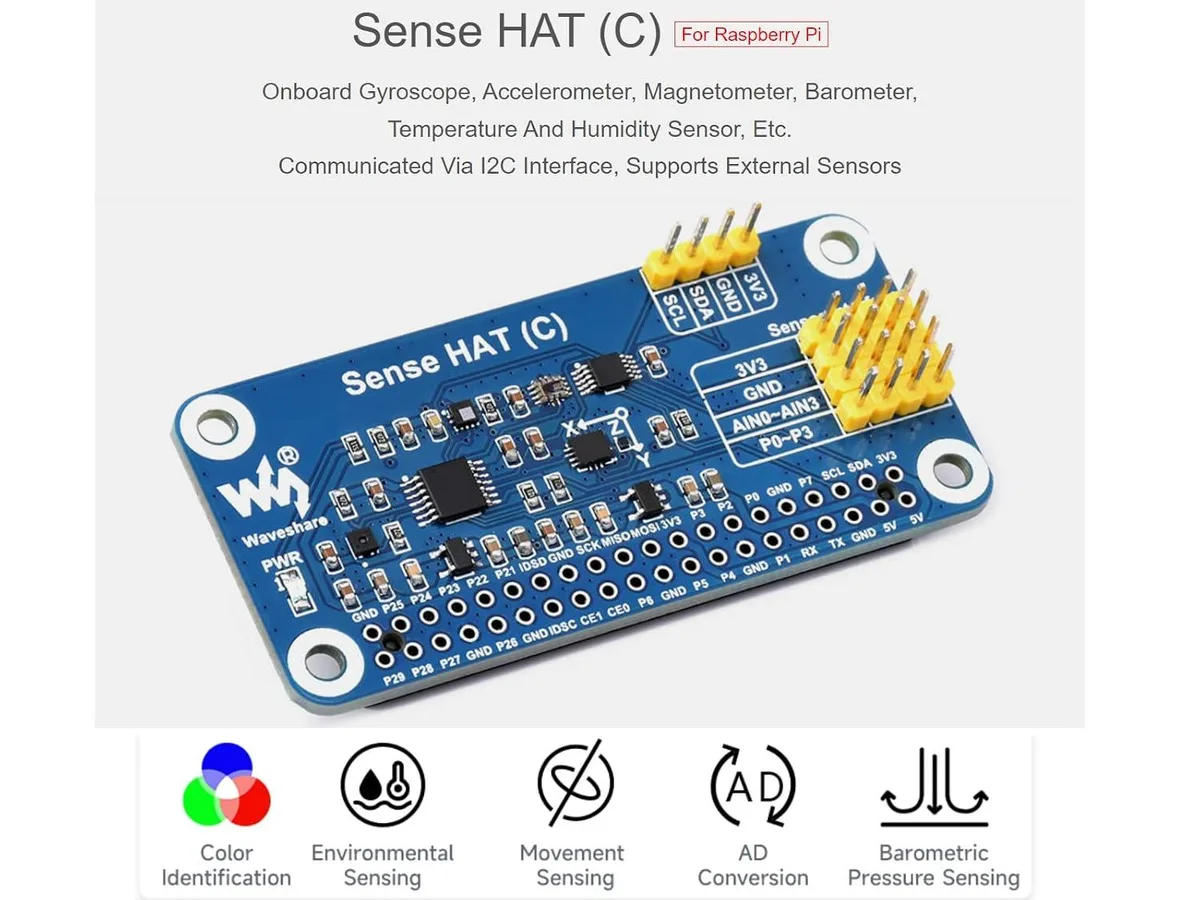

This development board adds a multi-sensor array to Raspberry Pi models via the standard 40-pin GPIO extension header. It carries a QMI8658C and AK09918 for nine-axis motion tracking, plus SHTC3, LPS22HB, TCS34725, and SGM58031 sensors. I2C control pins allow connection to other host boards such as STM32. Development resources and manuals with Raspberry Pi and STM32 examples are included.

Makers needing nine-axis motion

Suits hobbyists and educators building Raspberry Pi projects that require accelerometer, gyroscope, magnetometer, temperature, humidity, pressure, and colour detection in one module. The onboard 4-channel 16-bit ADC expands analogue input options for additional external sensors. Not for users who only need basic GPIO breakout without integrated sensors, or projects requiring wireless connectivity or onboard processing not provided by this board.

Nine-axis IMU plus five environmental sensors

The QMI8658C and AK09918 combine for 3-axis accelerometer, gyroscope, and magnetometer data. SHTC3 measures temperature and humidity while LPS22HB reads barometric pressure. TCS34725 identifies object colours and SGM58031 provides four channels of 16-bit ADC for analogue expansion. Headroom exists for adding further sensors via the exposed I2C pins. Limited by the host board’s I2C bandwidth and GPIO availability for complex multi-sensor logging.

주요 특징

  • Standard 40PIN GPIO header fits Raspberry Pi boards
  • QMI8658C plus AK09918 gives 9-axis motion and magnetic sensing
  • SHTC3 temperature and humidity sensor monitors ambient conditions
  • LPS22HB barometric sensor tracks atmospheric pressure changes
  • TCS34725 color sensor identifies object colours accurately

사양

BrandLORDWORLD

이 상품에 대한 질문

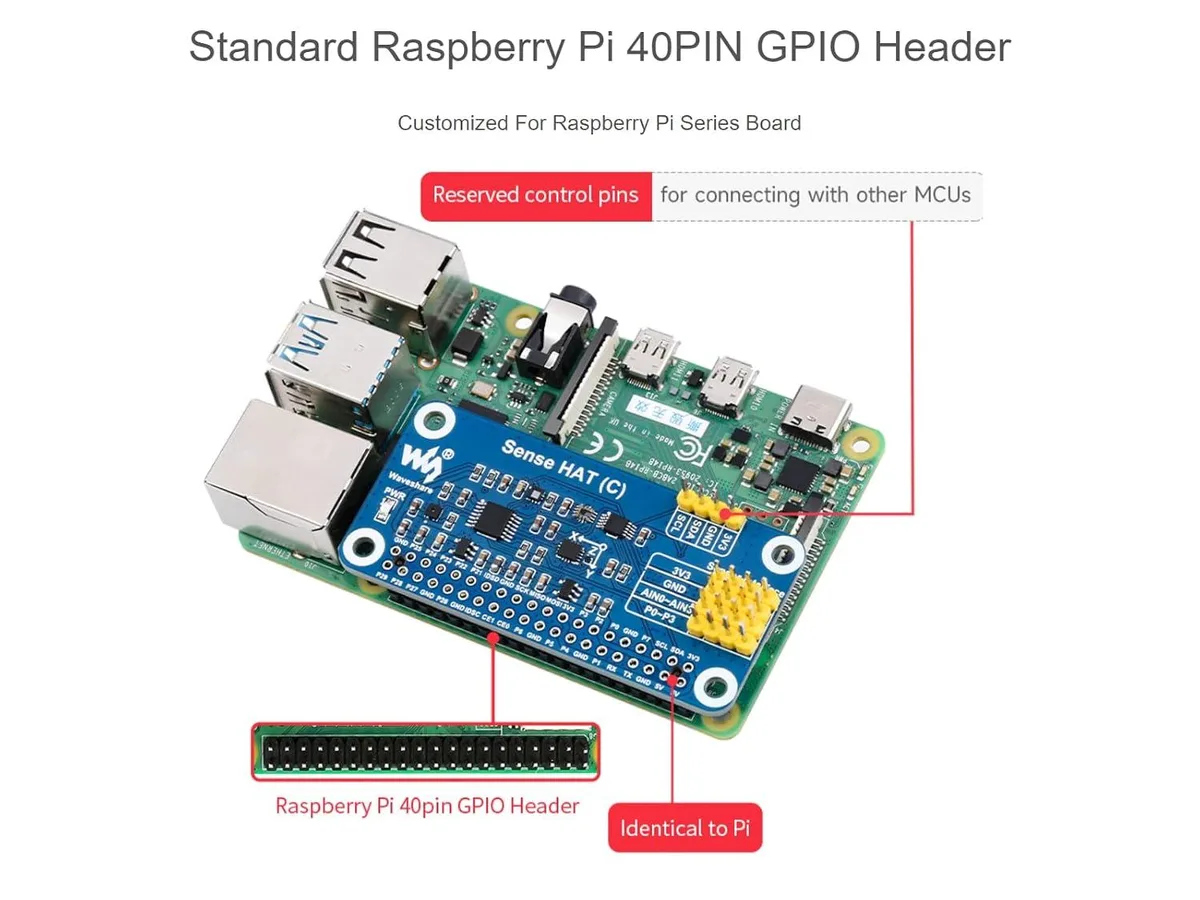

Which Raspberry Pi boards does the 40PIN GPIO header on this Sense HAT (C) fit?

The 40PIN GPIO extension header matches the Raspberry Pi 4, 3 B+, 3 B, 2 B, B+, 3 A+, A+ and Zero series boards.

Can the onboard I2C control pins drive an STM32 host instead of a Raspberry Pi?

Yes, the exposed I2C control pins let you connect an STM32 or other host board directly.

How do I confirm the QMI8658C and AK09918 motion sensors are streaming data after setup?

Run the provided Raspberry Pi or STM32 example code and verify accelerometer, gyroscope and magnetometer readings appear on the console.
