Black USB 3.0 adapter box with SATA and dual IDE connectors, 12V power supply and cable

LUOM

LUOM E-yield E01 USB 3.0 to IDE/SATA Hard Drive Adapter

SKU CH-86TR-SSE1R

Connects 2.5" and 3.5" IDE and SATA drives via USB 3.0 with a 12 V power supply, accessing up to three drives simultaneously at up to 5 Gbps

  • ColorBlack
  • InterfaceUSB 3.0
  • Windows VistaWorks with Windows Vista
  • Form Factor3.5"
  • Connect 2.5" and 3.5" SATA or IDE drives via USB 3.0
  • Access three drives simultaneously for fast data transfer between them
  • Achieve up to 5 Gbps transfer speed with USB 3.0 interface
  • Supports drives up to 6 TB capacity for large backups
  • Works with Windows, Mac OS and Linux without extra drivers

USB 3.0 to IDE/SATA Adapter

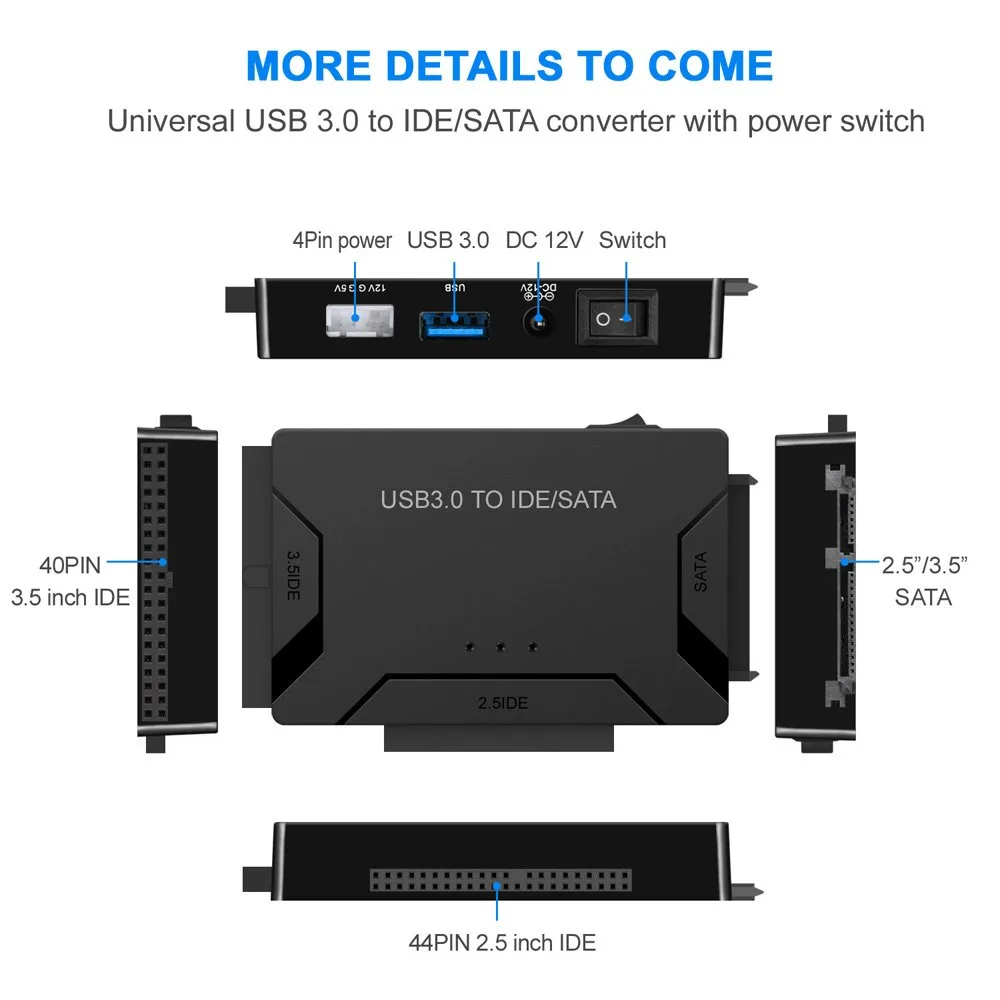

This LUOM E-yield E01 adapter connects 2.5 or 3.5 inch SATA and IDE hard drives or solid-state drives to a computer through a USB 3.0 port. It suits technicians and home users who need to duplicate, copy, backup or transfer data from legacy or current drives without installing them internally. The device includes a SATA II connector plus 40pin and 44pin IDE connectors. It also supports optical drives such as DVD-ROM and CD-RW.

Replaces Internal Drive Bays

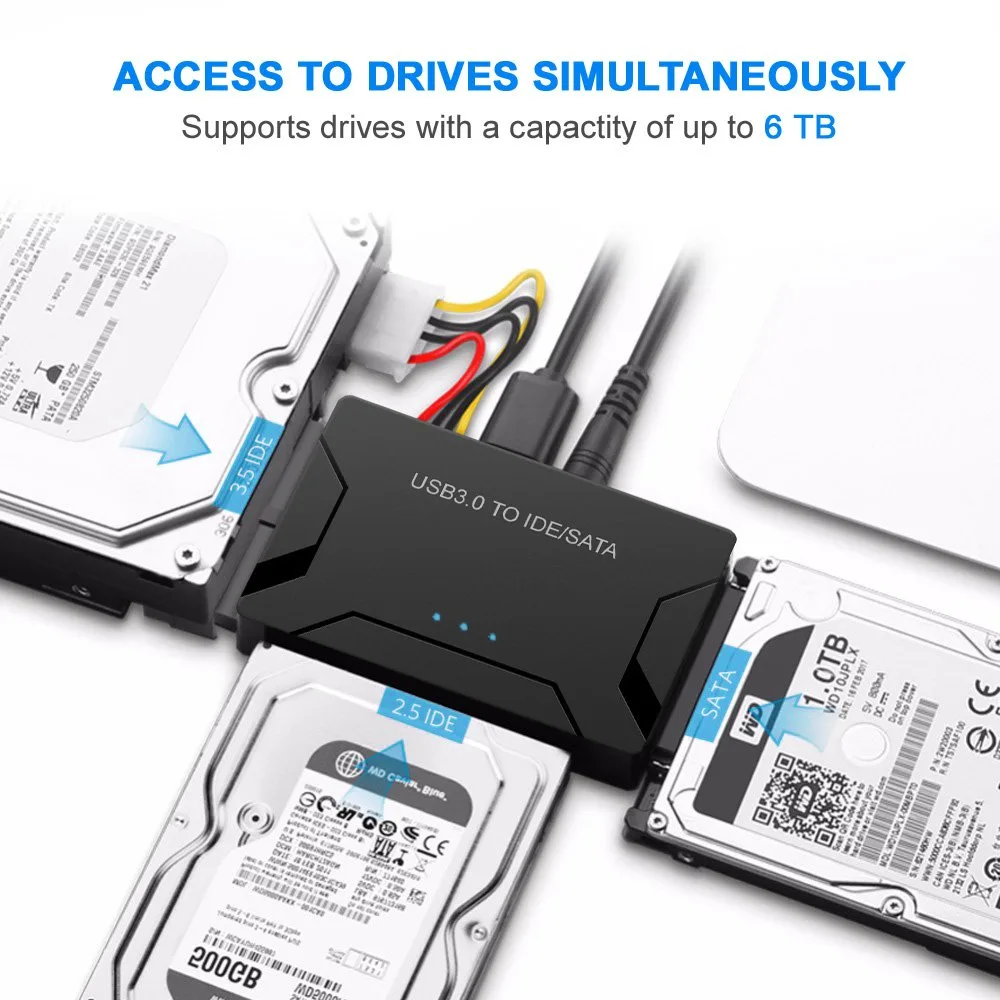

The adapter replaces the need for spare internal SATA or IDE ports and drive bays when accessing up to three drives at once. The jump is worth it when you must move large amounts of data between different drive types or recover files from older systems. It supports drives up to 6 TB and delivers transfer rates up to 5 Gbps while remaining backward compatible with USB 2.0 and 1.1. Compatible systems include Windows XP through 10, Mac OS 9 and 10, and Linux.

Plug-and-Play Setup

Installation is plug-and-play with the included 12V/2A power supply and USB 3.0 cable; no driver installation is required for the listed operating systems. An LED indicator shows working status during transfers. The main issue arises if the power adapter is not connected for 3.5 inch drives, which need external power to spin up. Ensure the correct IDE connector (40pin for 3.5 inch, 44pin for 2.5 inch) is used for each drive.

주요 특징

  • Connect 2.5" and 3.5" SATA or IDE drives via USB 3.0
  • Access three drives simultaneously for fast data transfer between them
  • Achieve up to 5 Gbps transfer speed with USB 3.0 interface
  • Supports drives up to 6 TB capacity for large backups
  • Works with Windows, Mac OS and Linux without extra drivers

사양

BrandLUOM
ModelE-yield E01
ColorBlack
InterfaceUSB 3.0
Windows VistaWorks with Windows Vista
Form Factor3.5"

이 상품에 대한 질문

Does the LUOM E-yield E01 adapter need a separate power connection for a 3.5 inch IDE hard drive?

Yes, the 12 V 2 A power supply must be plugged in to run any 3.5 inch drive, whether IDE or SATA.

Which cable do I plug in first when connecting a 2.5 inch SATA SSD to the LUOM E-yield E01?

Connect the SATA data cable to the drive and the adapter, then insert the USB 3.0 cable into the computer; the drive powers from the USB port so no external supply is needed.

How do I know when to replace the 12 V 2 A power supply that comes with the LUOM E-yield E01?

Replace it if the LED indicator fails to light, drives spin down during transfers, or the adapter becomes unreliable with 3.5 inch drives.
