Tower UPS with LCD display and six NEMA 5-15R outlets

MINUTEMAN

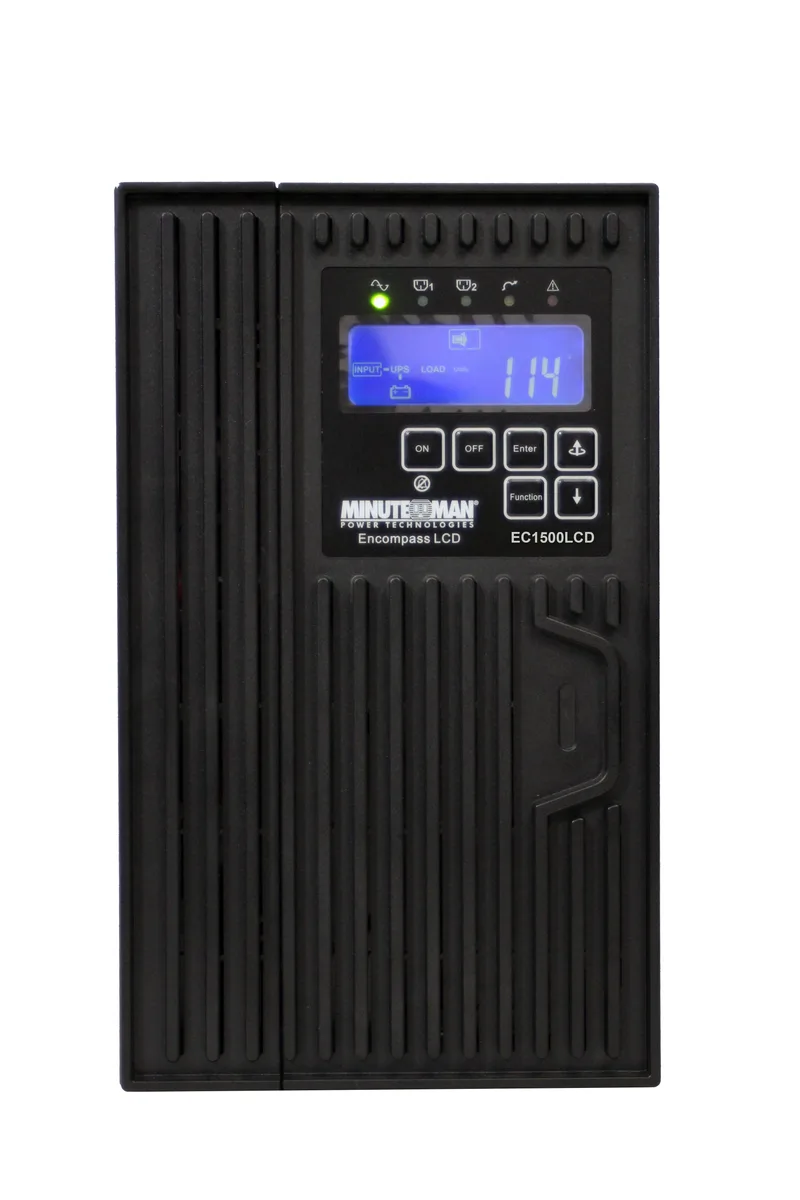

MINUTEMAN EC1500LCD 1500VA 1350W UPS 6 NEMA 5-15R Tower

SKU CH-90M6-KSQX1 MPN EC1500LCD

On-line double-conversion UPS delivering 1500 VA and 1350 W with 6 NEMA 5-15R outlets and 0.9 power factor

  • International Version120V
  • Input Voltage Range0 V AC - 160 V AC
  • Input Frequency50/60Hz +/- 6Hz Auto-sensing
  • Input ConnectionNEMA 5-15P
  • VA Rating1500VA
  • Watts1350W

Model EC1500LCD

구성 7개 더 보기

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • True on-line double-conversion technology provides continuous clean power
  • 9 output power factor delivers 1350W real power from 1500VA rating
  • Hot-swappable battery replacement enables maintenance without downtime
  • Independent battery bypass maintains surge protection even with dead batteries
  • User-selectable 110V, 120V or 127V output matches diverse equipment needs

Encompass Series On-Line UPS

The Minuteman EC1500LCD is a true on-line, double-conversion UPS rated at 1500VA and 1350W. It delivers continuous sinewave output with a 0.9 power factor for critical servers, network gear and security systems. The unit accepts a wide 0 to 160V AC input range and auto-senses 50 or 60Hz frequency. Tower form factor suits rack or floor placement.

Six NEMA 5-15R Outlets and Hot-Swappable Battery

Six NEMA 5-15R receptacles are arranged in two independently controllable banks for load shedding. The front-panel LCD shows real-time status and alarms for easy monitoring. A sealed lead-acid battery module (BM0077) is user-replaceable without powering down connected equipment. Independent Battery Bypass maintains voltage regulation and surge protection even with depleted or removed batteries.

DB-9 and RJ-45 Management with Extended Runtime

Communication ports include a DB-9 serial connector and an RJ-45 jack for optional SNMP card integration. SentryHD software enables remote monitoring and graceful shutdown scripting. At full 1350W load the battery provides 5 minutes of runtime; at half load it extends to 15 minutes. Recharge to 90 percent capacity requires 8 hours from total discharge. Surge energy rating is 254 joules.

주요 특징

  • True on-line double-conversion technology provides continuous clean power
  • 9 output power factor delivers 1350W real power from 1500VA rating
  • Hot-swappable battery replacement enables maintenance without downtime
  • Independent battery bypass maintains surge protection even with dead batteries
  • User-selectable 110V, 120V or 127V output matches diverse equipment needs

사양

BrandMINUTEMAN
ModelEC1500LCD
International Version120V
Input Voltage Range0 V AC - 160 V AC
Input Frequency50/60Hz +/- 6Hz Auto-sensing
Input ConnectionNEMA 5-15P
VA Rating1500VA
Watts1350W
Output Voltage120VAC, User selectable: 110VAC, 127VAC
Output Frequency50/60Hz +/-0.2Hz unless synchronized to line
Outlets6
Outlet Type(6) NEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 15 min
Full Load: 5 min
Battery Recharge Time8 hours to 90% from total discharge
Battery ReplaceableBM0077
Interface PortDB-9, RJ-45
ApprovalscULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)
Surge Energy Rating254 Joules
TemperatureOperating Temperature +32 to +104°F (0 to 40°C)
Storage Temperature +14 to +122°F (-10 to +50°C)
Humidity10% to 90% non-condensing
Dimensions17.4" x 6.8" x 11.4"
Weight48.1 lbs.
배송 무게23.13 kg
포장 크기556 × 404 × 267 mm

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What output voltages can the EC1500LCD deliver and how stable is the frequency?

The unit supplies user-selectable 110, 120 or 127 V AC with a frequency of 50/60 Hz ±0.2 Hz unless synchronised to the line.

What are the tower dimensions and which outlets are provided?

The tower measures 11.4 in high, 6.8 in wide and 17.4 in deep and provides six NEMA 5-15R receptacles.

How is the battery replaced and what is the correct replacement module?

The battery is hot-swappable; use replacement module BM0077 and allow 8 hours for a 90 % recharge after total discharge.
