Gray aluminum M.2 NVMe enclosure with built-in cooling fan

Orico

Orico M.2 40Gbps NVMe drive enclosure with cooling fan

SKU CH-MAPH-V9G9M MPN M.2

Tool-free aluminium enclosure with built-in fan holds a single M.2 NVMe SSD up to 8 TB and delivers 40 Gbps over Thunderbolt 4, USB 3.2, 3.1, 3.0 and 2.0

  • ColorGray
  • TypeEnclosure
  • MaterialAluminum
  • HDD Count SupportedSingle SSD
  • Number of Bay1 Bay
  • Maximum Capacity (per Bay)Up to 8TB

HDD Count Supported Single SSD

Number of Bay 1 Bay

Size M.2 NVMe 40Gbps

Model 1 Bay

  • 1 Bay
  • 2 Bay
  • With Cover

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

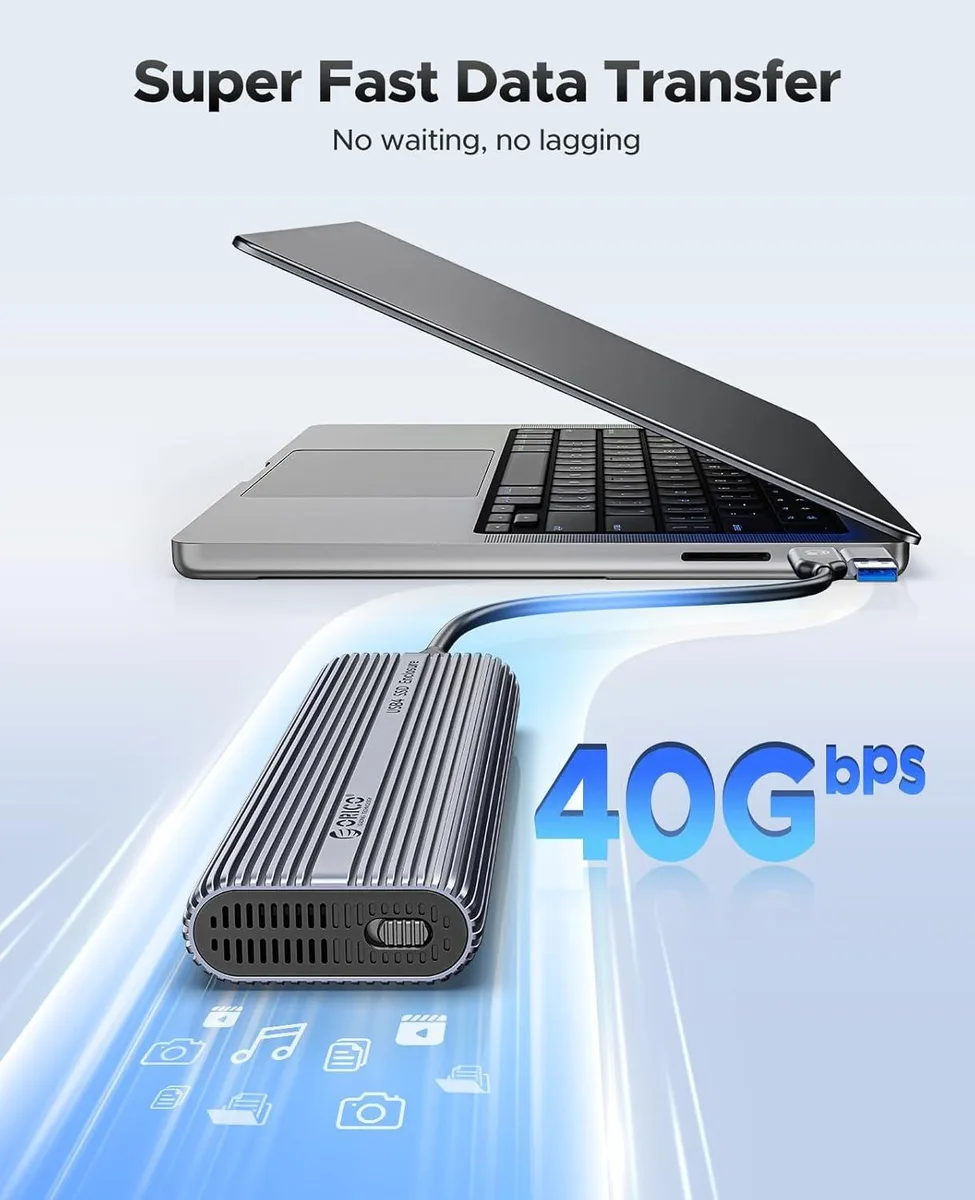

  • Blazing 40Gbps throughput moves massive files in seconds

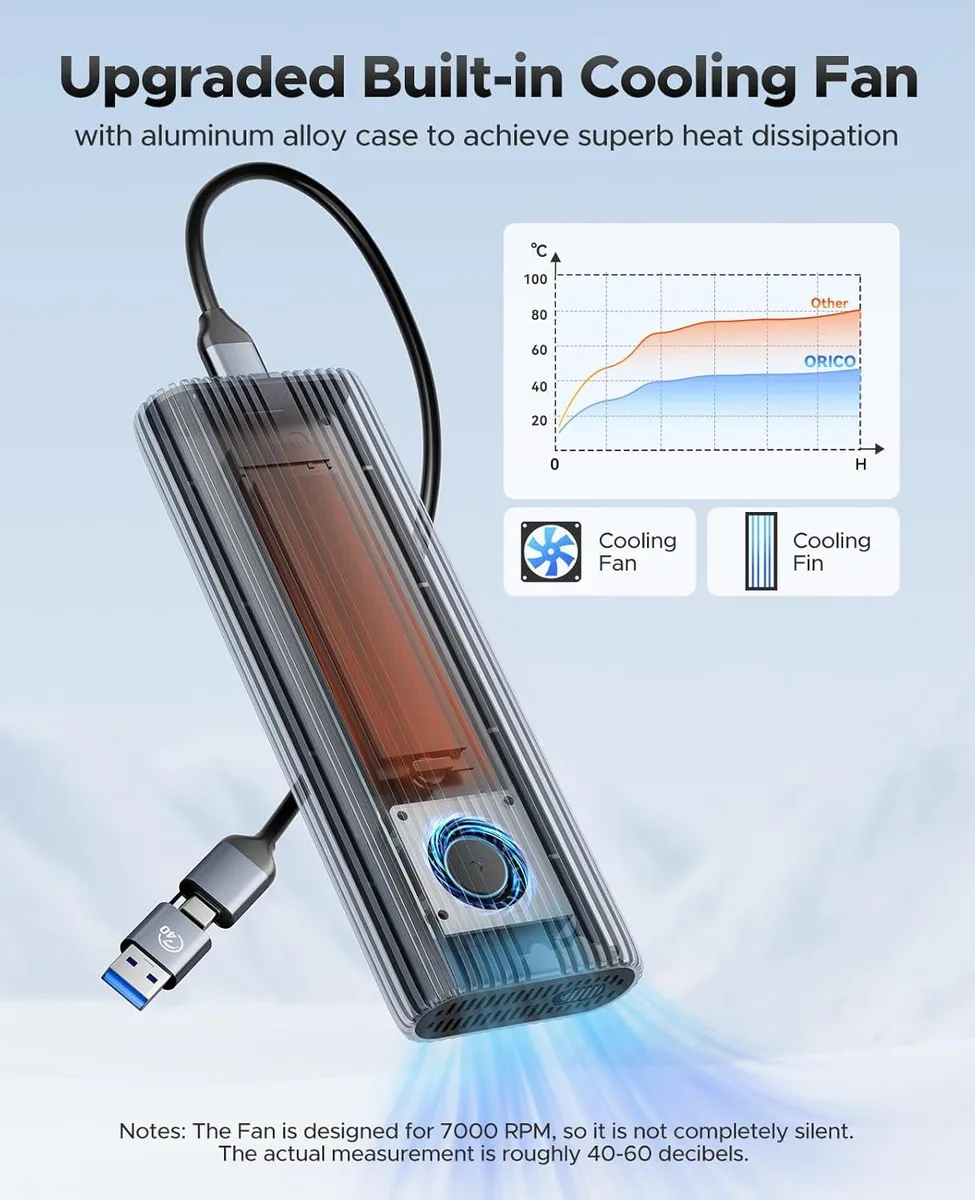

  • Built-in fan keeps SSD temperatures low for sustained speed
  • Tool-free aluminum shell fits 2230 2242 2260 2280 M-key drives
  • Thunderbolt 3 4 USB4 USB 3.2 3.1 3.0 2.0 backward compatible
  • Supports single NVMe SSD up to 8TB capacity

Tool-free aluminium NVMe enclosure

The ORICO ACOM2-U4-GY-BP is a single-bay M.2 NVMe SSD enclosure built from aluminium with a built-in cooling fan. It accepts 2230, 2242, 2260 and 2280 M-key drives up to 8TB and connects via a USB-C interface supporting 40Gbps bandwidth. Tool-free installation lets you swap drives in seconds without screws.

For creators and portable workflows

Professionals moving large video or project files between Thunderbolt 3, Thunderbolt 4, USB4 and USB 3.2 hosts will benefit from the sustained speeds and active cooling. Users limited to USB 2.0 or USB 3.0 ports will not reach the advertised throughput. Builders needing multi-bay RAID or SATA M.2 support should look elsewhere.

40Gbps USB-C interface decides fit

The enclosure delivers up to 40Gbps over USB-C and requires a host port rated for Thunderbolt 3, Thunderbolt 4 or USB4 to achieve that ceiling. On USB 3.2 Gen 2 ports the link tops out at lower speeds, and on USB 3.1 or 3.0 it drops further. Verify your device's port specification before purchase.

주요 특징

  • Blazing 40Gbps throughput moves massive files in seconds
  • Built-in fan keeps SSD temperatures low for sustained speed
  • Tool-free aluminum shell fits 2230 2242 2260 2280 M-key drives
  • Thunderbolt 3 4 USB4 USB 3.2 3.1 3.0 2.0 backward compatible
  • Supports single NVMe SSD up to 8TB capacity

사양

BrandORICO
SeriesORICO-ACOM2-U4-GY-BP
ModelORICO-ACOM2-U4-GY-BP
ColorGray
TypeEnclosure
MaterialAluminum
HDD Count SupportedSingle SSD
Number of Bay1 Bay
Maximum Capacity (per Bay)Up to 8TB
Dimensions150*55*22mm

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

How do I install an M.2 2280 SSD into the tool-free aluminium enclosure?

Slide the drive into the M-key slot at a slight angle, press it flat, then secure it with the built-in latch — no screwdriver required.

Will the cooling fan need cleaning or replacement over time?

The integrated fan runs continuously; periodic dust removal with compressed air keeps airflow effective, and the fan is not user-replaceable.

At what point does sustained write speed hit the 40 Gbps interface ceiling?

Continuous large-file transfers will saturate the 40 Gbps Thunderbolt 4 or USB4 link before the SSD reaches its own 7000 MB/s limit.
