Compact 12.1 inch industrial all-in-one with flat IP65 front panel and aluminium fanless chassis

partaker

partaker A19 12.1" IP65 Core i3-10110U 32GB DDR4 1TB SATA all-in-one PC

SKU CH-R431-BHQZY

A 12.1" IP65 all-in-one panel PC with Core i3-10110U, 32GB DDR4, 1TB SATA SSD, Windows 11 Pro and fanless aluminium cooling

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i3 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i3 10th Gen

Memory Capacity 32GB DDR4

SSD 1TB

  • IP65 front panel resists water and dust in harsh environments
  • 32 GB DDR4 memory handles multiple industrial applications simultaneously
  • 1 TB SATA SSD provides fast boot and ample local storage
  • Intel Core i3-10110U delivers up to 4.10 GHz for responsive control tasks
  • Fanless aluminium chassis runs silently from 0 to 50 °C commercial range

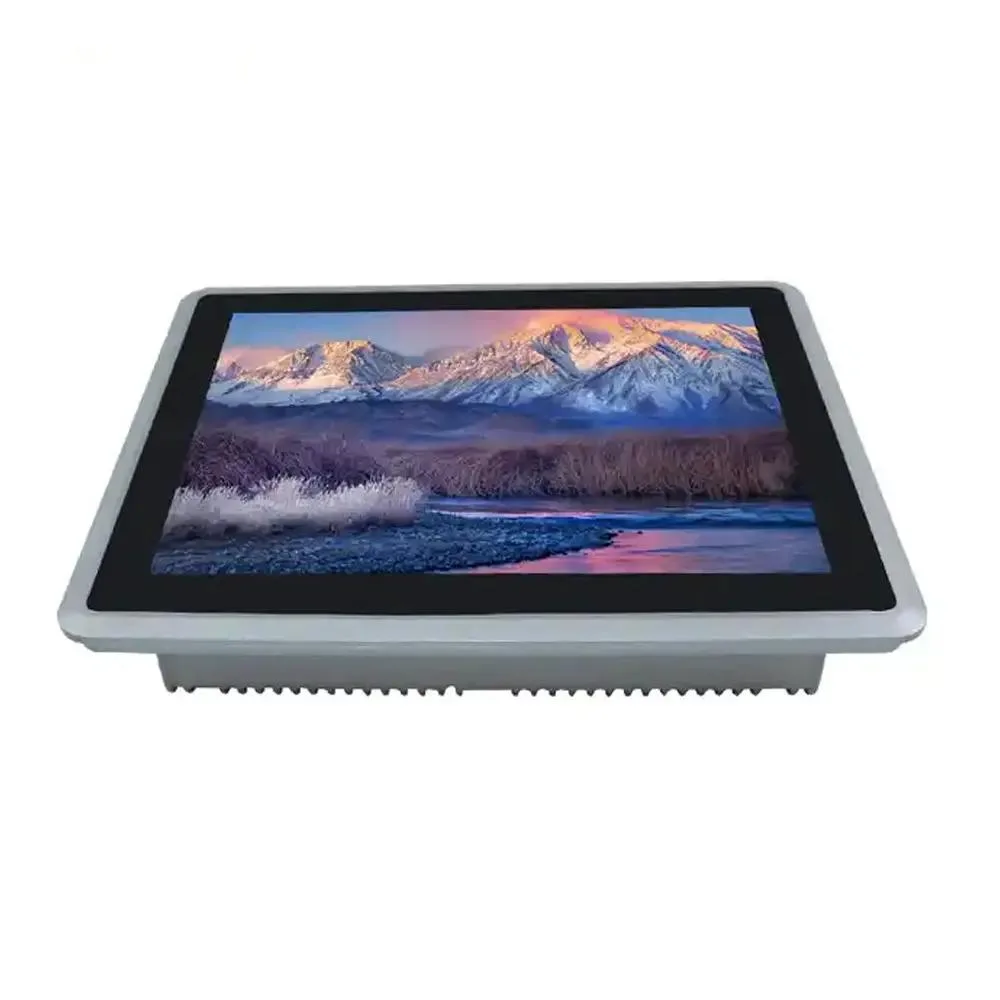

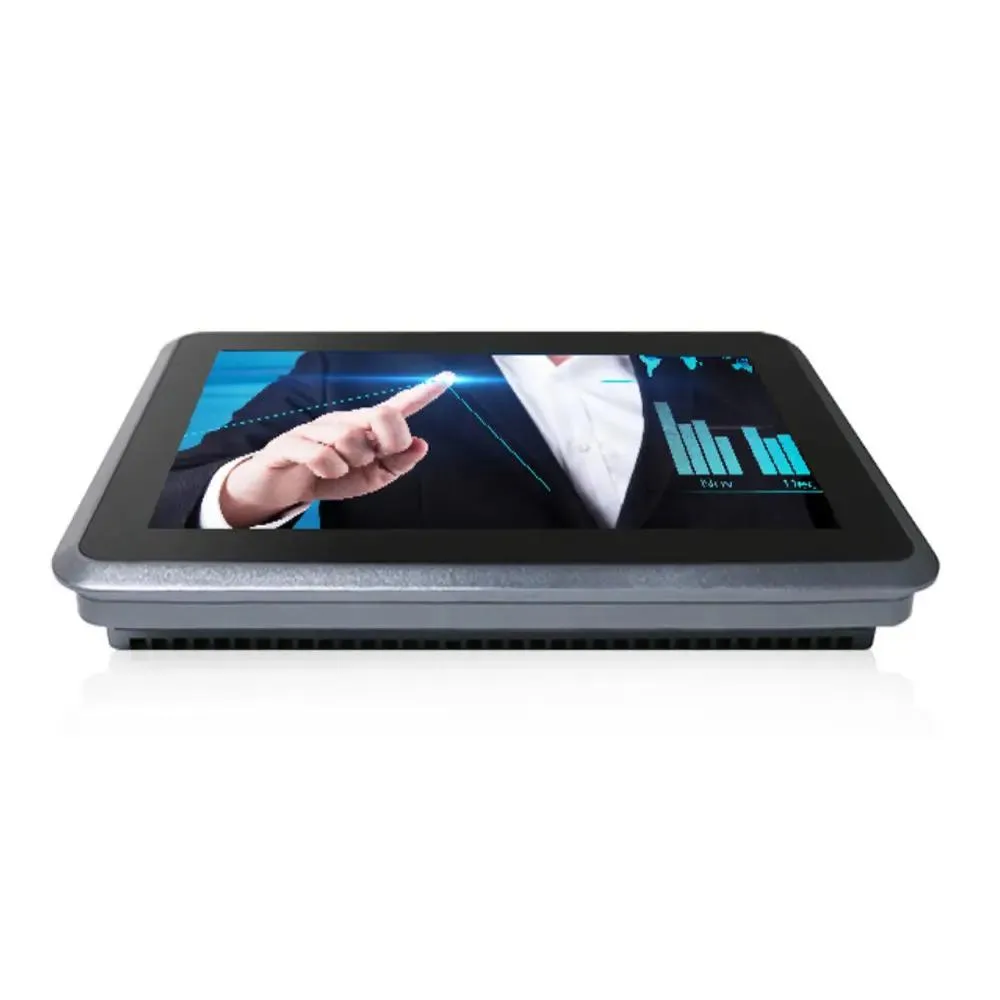

12.1" IP65 industrial all-in-one PC

The Partaker A19 is a new 12.1-inch industrial panel PC with an IP65-rated front panel, Intel Core i3-10110U processor, 32 GB DDR4 memory and a 1 TB SATA SSD. It runs Windows 11 Pro on a fanless aluminium chassis designed for continuous operation in demanding environments. The 4:3 resistive touchscreen delivers 1024 x 768 resolution at 350 cd/m² brightness.

Suited for embedded automation and control

This unit fits machine builders and system integrators who need a compact, fanless computer with dual Intel LAN, two COM ports supporting RS232/422/485, HDMI output and wide 9–36 V DC input. The operating range spans 0–50 °C for commercial SSDs or –20 °C to 60 °C with industrial storage. Buyers who require a larger display area, higher pixel density or a different touch technology should consider other form factors.

32 GB DDR4 soldered limit

Memory is provided by a single SODIMM DDR4-2666 module and the platform maximum is 32 GB, so no further RAM expansion is possible. The storage bay accepts one M.2 2280 SATA SSD and one 2.5-inch SATA drive with RAID 0/1 support. A Mini PCIe slot with SIM holder allows optional wireless expansion.

주요 특징

  • IP65 front panel resists water and dust in harsh environments
  • 32 GB DDR4 memory handles multiple industrial applications simultaneously
  • 1 TB SATA SSD provides fast boot and ample local storage
  • Intel Core i3-10110U delivers up to 4.10 GHz for responsive control tasks
  • Fanless aluminium chassis runs silently from 0 to 50 °C commercial range

사양

ModelA19-New-I3-10110U-32G1TBSSD
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i3 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD1TB
HDDNo
Screen Size12.1"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

Will the Intel Core i3-10110U throttle under continuous 7x24hr industrial workloads?

The fanless aluminum alloy chassis is rated for 7x24hr stability within the 0–50 °C commercial or –20–60 °C industrial temperature range, so sustained loads stay within thermal limits without active cooling.

How much acoustic noise and heat does the fanless design produce during all-day operation?

With no moving fans the system runs silently; the aluminum body acts as a heatsink, keeping surface temperatures within the specified operating envelope while drawing only 12 V 5 A typical power.

Which mounting hardware and voltage source are required before this panel PC can be installed?

You need a 9–36 V DC supply connected to the 2-pin Phoenix connector and one of the embedded, wall, desktop or cantilever mounting kits matching the 298.5 × 237 mm cut-out.
