Silver 12.1 inch industrial all-in-one panel PC with resistive touchscreen and fanless aluminium housing

partaker

Partaker A2-PA-121TPC-CE5B(I53) 12.1" all-in-one PC i5 3rd Gen 1.70GHz 4GB DDR3 128GB SSD

SKU CH-ZBXM-KYMBE

A 12.1" industrial all-in-one with IP65 front protection, Intel Core i5 3rd Gen 1.70GHz, 4GB DDR3L, 128GB SSD, resistive touchscreen and fanless aluminium housing

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU Name1.70GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 4GB DDR3

SSD

HDD None

  • None
  • 1TB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently in 0–50 °C environments
  • 5-wire resistive touch rated for 200 million operations
  • 1" 1024×768 display with 350 cd/m² brightness
  • Core i5-3rd Gen with 4 GB DDR3 and 128 GB SSD

Industrial 12.1" Panel PC with Resistive Touch

The Partaker A2-PA-121TPC-CE5B(I53) is a fanless all-in-one computer built around a 12.1 inch TFT LED display with a five-wire resistive touchscreen rated for 200 million touches. An Intel Core i5 3rd Gen processor running at 1.70GHz works with 4GB DDR3L memory and a 128GB mSATA SSD. The aluminium chassis carries an IP65 front rating and operates from 0 to 50°C with the installed SSD.

Suits embedded automation

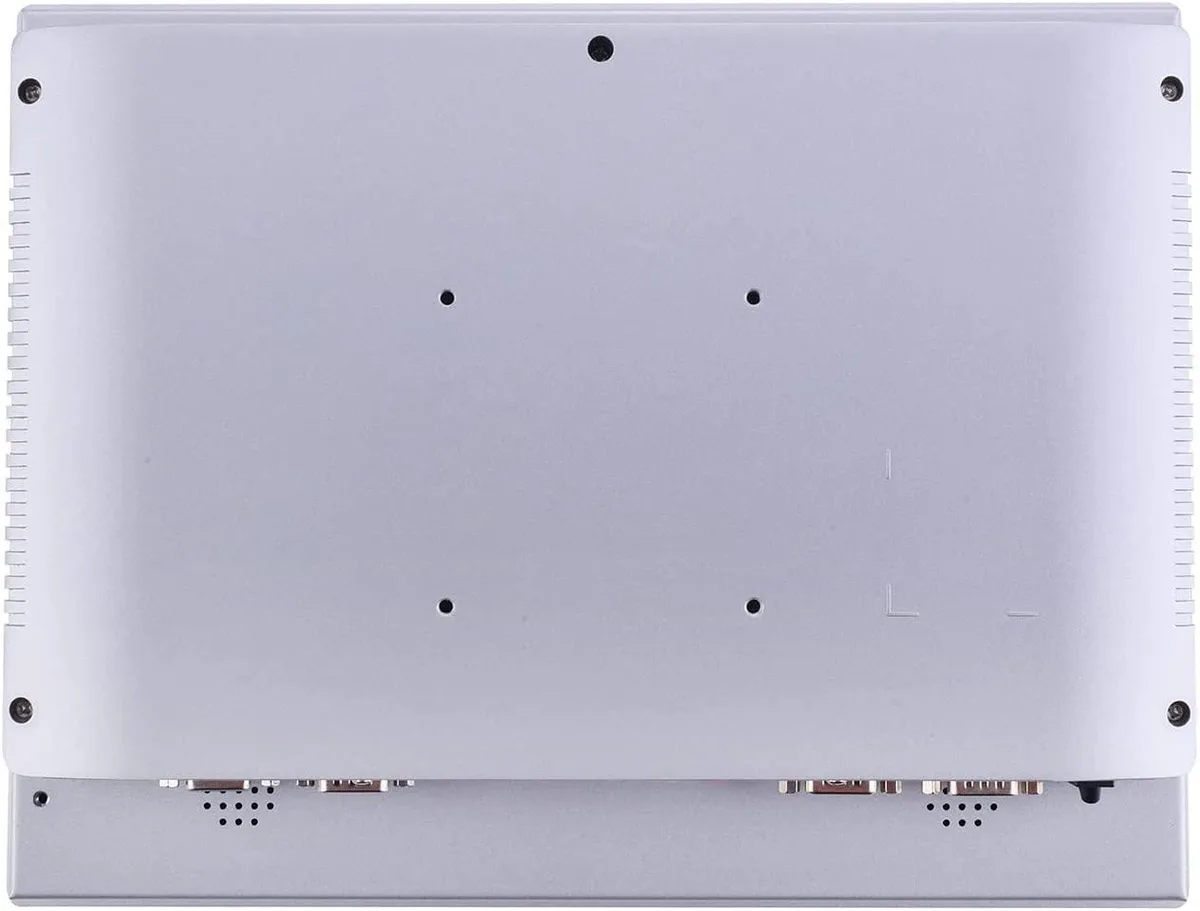

This unit fits machine builders who require dual COM ports, VGA and HDMI output, four USB 2.0 sockets and a Mini PCIe slot with a SIM holder for wireless expansion. VESA 75 mounting and embedded buckle kits support panel, wall or desktop installation. Buyers who need capacitive multi-touch, higher display brightness or a wider operating temperature range should look elsewhere.

Five-wire resistive touchscreen handles gloves

The 1024 x 768 panel delivers 350 cd/m² brightness with 1000:1 contrast and 86% transmittance at 550 nm. Its high-temperature resistive layer works reliably with gloved hands or stylus input in dusty or humid environments where capacitive screens fail. A 255-level watchdog timer and automatic power-on after power loss add reliability for unattended operation.

주요 특징

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently in 0–50 °C environments
  • 5-wire resistive touch rated for 200 million operations
  • 1" 1024×768 display with 350 cd/m² brightness
  • Core i5-3rd Gen with 4 GB DDR3 and 128 GB SSD

사양

ModelA2-PA-121TPC-CE5B(I53)-4G128G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU Name1.70GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity4GB DDR3
HDDNo
Screen Size12.1"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

How can I verify the 12.1" touchscreen and Intel Core i5 1.70GHz CPU are operating correctly after installation?

Power on the unit and confirm Windows 10 Pro loads on the 1024 x 768 panel. Test touch response across the five-wire resistive screen and check Task Manager for the i5 3rd Gen processor running at 1.70GHz with 4GB DDR3L memory detected.

Which items are included in the packing list and what must be purchased separately for expansion?

The box contains the panel PC, power supply, power cord, embedded buckle kits and warranty card. For Wi-Fi or 4G you must buy a Mini PCIe module and SIM card separately; additional RAM up to 8GB DDR3L or a 2.5" SATA drive are also optional purchases.

Should I choose the 4GB DDR3L / 128GB mSATA configuration or plan to upgrade memory and storage myself?

The system ships with 4GB DDR3L in one SODIMM slot and a 128GB mSATA SSD. One SODIMM slot remains free for up to 8GB total DDR3L, and a 2.5" SATA bay is available for a second SSD or HDD if more capacity is needed.
