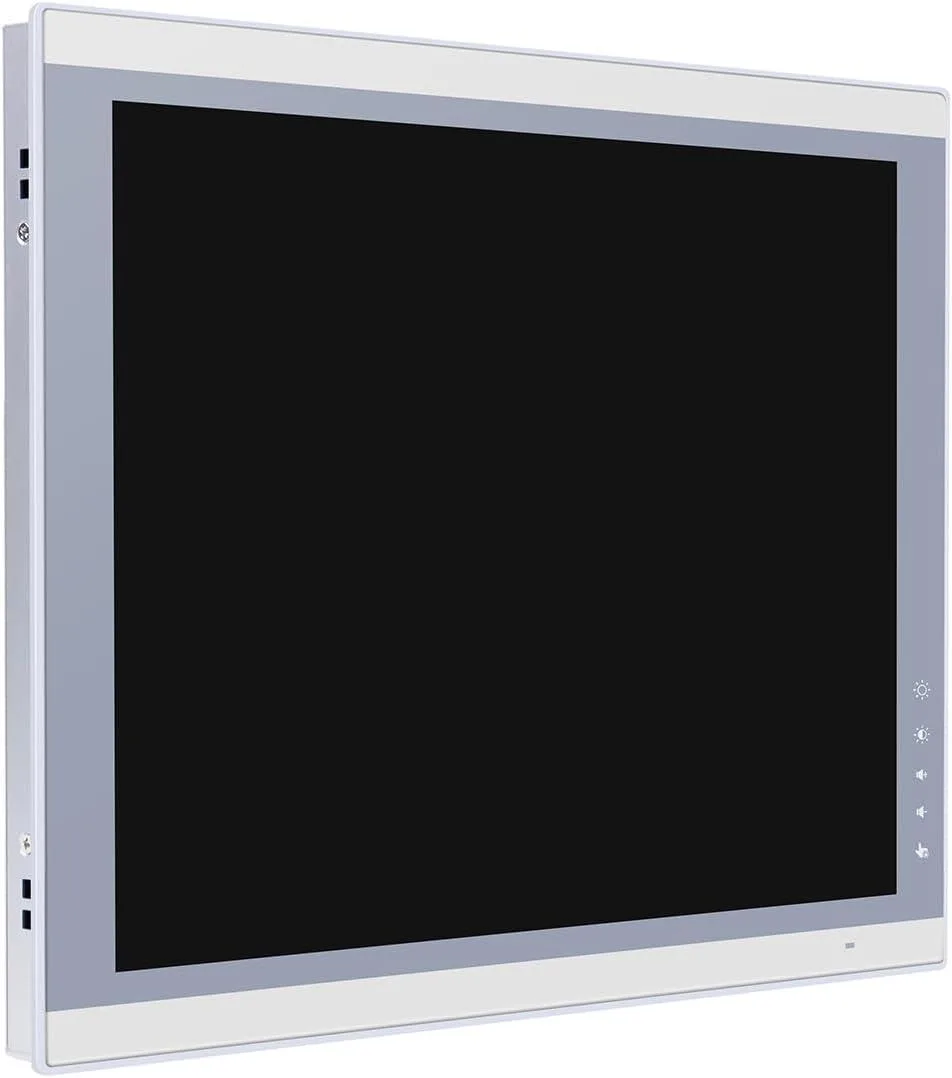

Gray 15-inch industrial all-in-one panel PC with IP65 front touchscreen and fanless aluminum chassis

partaker

partaker A23 all-in-one PC i7-6500U 16GB 256GB 1TB 15" IP65

SKU CH-H58A-7M33R

15-inch IP65 industrial all-in-one with Core i7-6500U, 16GB DDR4, 256GB SSD, 1TB HDD, 10-point touch, fanless aluminium chassis, HDMI, VGA, dual LAN, dual COM, Windows 11 Pro

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • CPU NameIntel Core i7-6500U
  • GPU/VGA TypeIntel HD Graphics 520

CPU Type Intel Core i7 6th Gen

CPU Name Intel Core i7-6500U

Memory Capacity 16GB DDR4

SSD 256GB

HDD 1TB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front protection withstands dust and water jets in harsh environments
  • 10-point capacitive touch enables precise multi-finger control for industrial operators
  • Fanless aluminium alloy cooling runs silently with zero moving parts to fail
  • Intel Core i7-6500U with 16GB DDR4 and 256GB SSD plus 1TB HDD handles automation workloads
  • 12V DC input with HDMI, VGA, dual LAN, dual COM and four USB ports simplifies integration

Industrial panel PC for continuous operation

The Partaker A23 is a 15-inch all-in-one computer with an IP65-rated front panel and fanless aluminium cooling. It runs on an Intel Core i7-6500U processor with 16GB of DDR4 memory, a 256GB SSD and a 1TB hard drive. Windows 11 Pro comes pre-installed for immediate deployment in industrial automation, kiosk or control-room roles.

Suits fixed installations needing dust

This unit targets engineers who need a sealed 10-point capacitive touchscreen that operates 24/7 between 0 and 50°C with the SSD installed. Buyers who require a higher-resolution display, a battery-backed mobile form factor or active cooling for sustained heavy compute loads should consider other form factors.

Check mounting cut-out and DC power before ordering

The embedded mounting aperture measures 348 by 272mm and the chassis depth is 54mm, so verify your enclosure cut-out and clearance. The system requires a 12V DC supply from the included 100-240V AC adapter. Confirm that your I/O plan uses the available HDMI, VGA, dual LAN, dual COM and four USB ports, and that any expansion uses the Mini PCIe slot with SIM holder.

주요 특징

  • IP65 front protection withstands dust and water jets in harsh environments
  • 10-point capacitive touch enables precise multi-finger control for industrial operators
  • Fanless aluminium alloy cooling runs silently with zero moving parts to fail
  • Intel Core i7-6500U with 16GB DDR4 and 256GB SSD plus 1TB HDD handles automation workloads
  • 12V DC input with HDMI, VGA, dual LAN, dual COM and four USB ports simplifies integration

사양

ModelA23-I7 6500U-16G256G1TB
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
CPU NameIntel Core i7-6500U
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity16GB DDR4
SSD256GB
HDD1TB
Screen Size15"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

Does this A23 panel PC need an external monitor to operate, or is the 15 inch 1024x768 touchscreen the primary display?

The built-in 15 inch TFT LED panel with 1024x768 resolution and 10-point capacitive touch is the primary display; no external monitor is required for operation.

Can I keep using my existing 12V DC power infrastructure with this unit, or does it need a different voltage?

The system accepts 12V DC input and includes a 100-240V AC to 12V DC power supply, so it works directly with a 12V DC source or the supplied adapter.

After mounting the A23 in a 348x272mm cut-out, how can I confirm the touchscreen and video are working correctly?

Power on the unit; the Windows 11 Pro desktop should appear on the 1024x768 screen and respond to 10-point touch input immediately.
