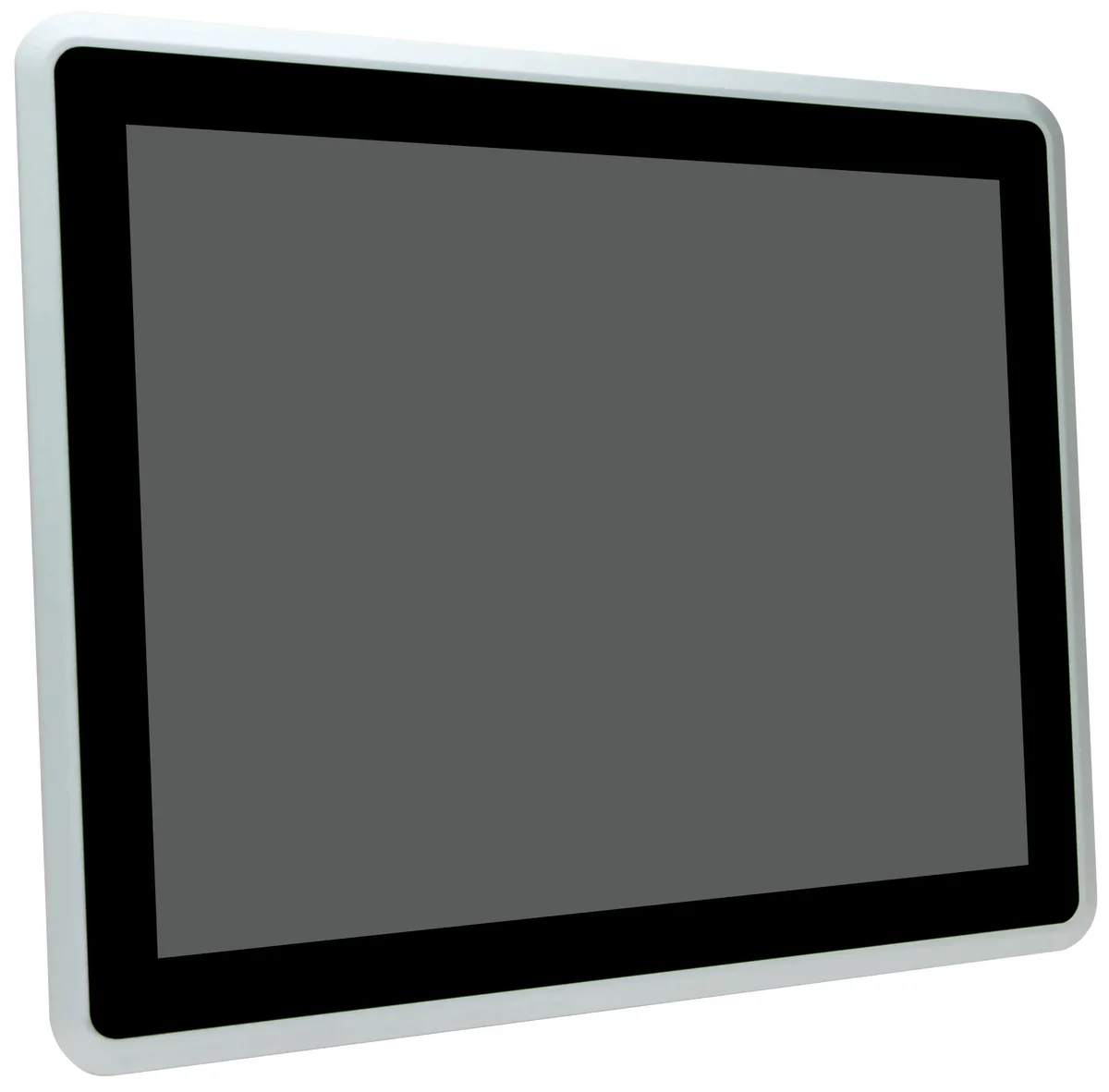

Gray 15 inch all-in-one industrial panel PC with resistive touchscreen and aluminum alloy shell

partaker

Partaker A27 all-in-one PC 15" resistive i5-8250U 8GB 256GB Windows 10 Pro

SKU CH-QBH0-5ASVQ

A 15-inch IP65-rated fanless all-in-one PC with resistive touchscreen, Intel Core i5-8250U, 8 GB DDR4, 256 GB storage, dual LAN, HDMI, dual COM and four USB ports

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8250U

A27 15" Resistive I5 8250U 8GB RAM / 256GB SSD

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silent in harsh sites
  • Resistive 15″ touchscreen rated to 50 million touches
  • Dual Gigabit LAN plus four USB and two COM ports
  • i5-8250U with 8 GB DDR4 and 256 GB storage

Industrial panel PC for harsh environments

The Partaker A27 is a 15 inch fanless all in one computer built into an IP65 rated aluminium front panel. It runs Windows 10 Pro on an Intel Core i5 8250U processor with 8GB of DDR4 memory and a 256GB mSATA drive. The resistive touchscreen supports multi touch input and is rated for 50 million touches.

Replaces exposed desktop towers in dusty

The sealed front panel and fanless design remove moving parts that fail in contaminants, while the wide temperature range of -20 to +60 Celsius suits unheated or outdoor enclosures. Dual gigabit LAN ports and two configurable RS232/485 serial ports connect directly to PLCs, sensors or legacy equipment without extra adapters. The jump is worth it when a standard office PC cannot survive the environment or mounting constraints.

Check mounting cutout

Installation requires a 355 by 279 mm panel cutout for embedded mounting. The unit ships with a 12V DC input; a 9 to 36V wide voltage option exists but is not included unless specified. Expansion relies on two mini PCIe slots for wireless modules and an internal mSATA slot for storage. Buyers who need more than two serial ports or additional GPIO channels must confirm the customisable options at purchase.

주요 특징

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silent in harsh sites
  • Resistive 15″ touchscreen rated to 50 million touches
  • Dual Gigabit LAN plus four USB and two COM ports
  • i5-8250U with 8 GB DDR4 and 256 GB storage

사양

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8250U
Screen Size15"
Screen TypeMulti-Touch Screen

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What panel cutout size does the 15 inch IP65 front panel need for embedded installation?

The front panel requires a 355 by 279 millimetre cutout for flush mounting in an enclosure.

How are the two COM ports configured out of the box, and what is the common wiring mistake?

COM1 and COM2 are set to RS232 or RS485 by jumper; the frequent error is leaving both on RS232 when the device needs RS485 differential signalling.

What is the rated touch lifespan and which storage slot will need attention first?

The resistive screen is rated for 50 million touches; the single mSATA SSD is the only internal drive and will be the first component to plan for replacement.
