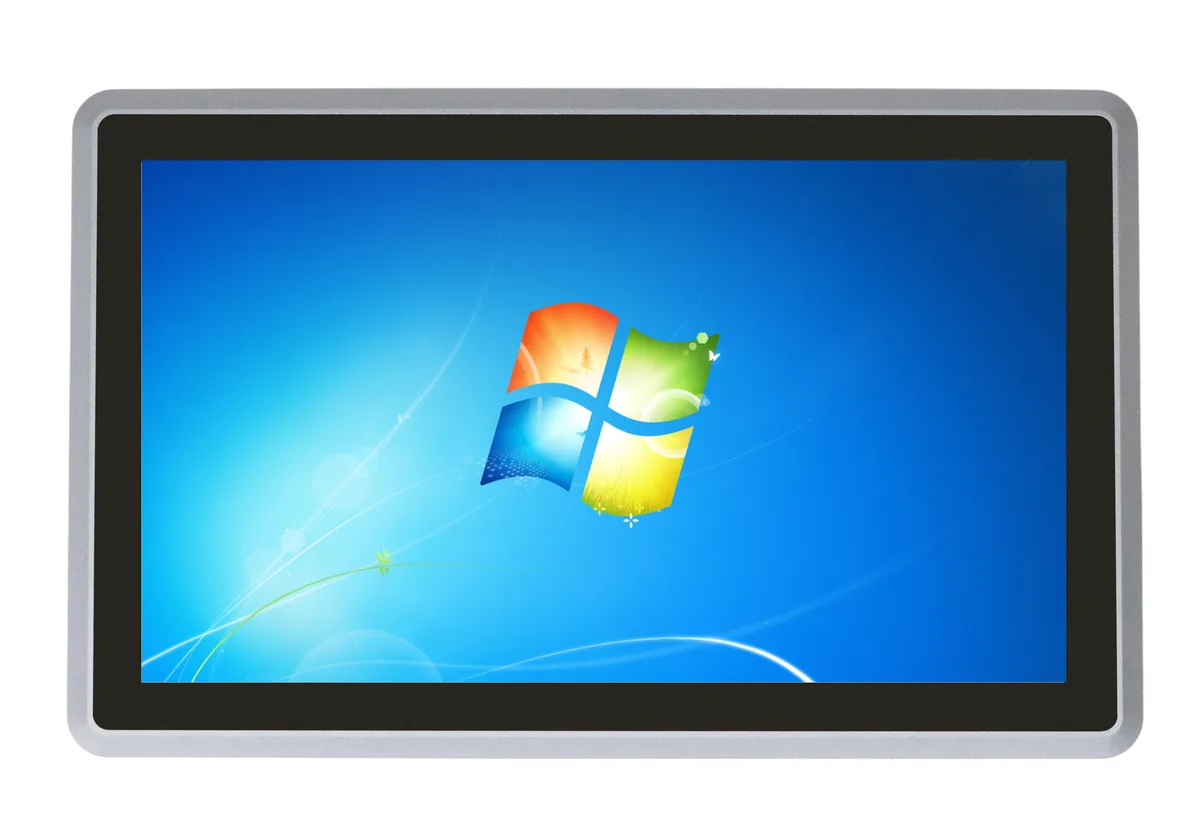

Gray 15.6 inch all-in-one PC with flat IP65 front panel and capacitive touchscreen

partaker

partaker A28 all-in-one PC 15.6" i3-5005U 16GB 512GB Windows 10 Pro

SKU CH-MJF9-44JCT

15.6-inch Full HD capacitive touch all-in-one with fanless aluminium chassis, IP65 front, dual LAN, dual COM, four USB, 16 GB DDR3 and 512 GB mSATA running Windows 10 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A28 15.6" Capacitive I3 5005U 16GB RAM / 512GB SSD

  • 6" Full HD display with capacitive touch for clear interaction
  • Fanless aluminium alloy chassis runs silently in dusty environments
  • IP65-rated front panel resists water and dust ingress
  • Dual Gigabit LAN plus four USB and two COM ports for industrial connectivity
  • Operates from -20 °C to +60 °C on 12 V DC with wide-voltage option

Industrial 15.6" All-in-One PC

The Partaker A28 is a fanless industrial panel PC built around an Intel Core i3-5005U processor running at 2.00 GHz. It integrates a 15.6 inch Full HD TFT-LCD with a capacitive touchscreen into an aluminium alloy chassis rated IP65 at the front. The system ships with Windows 10 Pro, 16GB of DDR3 memory and a 512GB mSATA SSD for deployed industrial applications.

Dual Gigabit LAN and Legacy I/O Limits

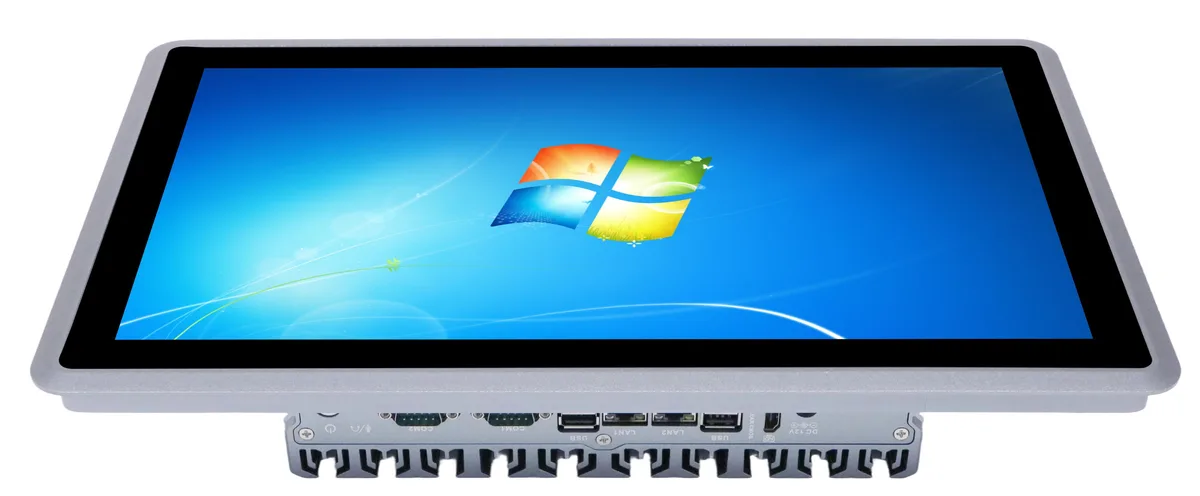

Connectivity centres on two Realtek Gigabit network ports, two configurable RS232/485 COM ports and four USB ports alongside a single HDMI output. Expansion relies on two mini PCIe slots that can host Wi-Fi, Bluetooth or cellular modules, while additional GPIO, COM or USB interfaces remain optional and are not included in the standard shipment. The DC input accepts 12 V by default with a customisable 9 to 36 V wide-range option.

Fanless -20 to +60 °C Operating Range

Silent, maintenance-free operation is guaranteed by the fanless design across a temperature span of -20 to +60 °C when equipped with a solid-state drive. This wide thermal envelope, combined with the IP65 front panel and panel-mount cutout of 385 by 234.3 mm, determines whether the unit suits harsh, dusty or wet environments without active cooling.

주요 특징

  • 6" Full HD display with capacitive touch for clear interaction
  • Fanless aluminium alloy chassis runs silently in dusty environments
  • IP65-rated front panel resists water and dust ingress
  • Dual Gigabit LAN plus four USB and two COM ports for industrial connectivity
  • Operates from -20 °C to +60 °C on 12 V DC with wide-voltage option

사양

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size15.6"
Screen TypeMulti-Touch Screen

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

How do I choose between the 16 GB DDR3 and the 512 GB mSATA SSD?

The 16 GB DDR3 is system memory for running programs; the 512 GB mSATA SSD is the storage drive for the OS and files. Both are fixed in this configuration.

What does the 2.00 GHz i3-5005U deliver in daily use?

The dual-core 2.00 GHz processor handles typical industrial HMI, SCADA clients and light multitasking within the fanless thermal envelope.

What does the dual Gigabit LAN actually cap at?

Each Realtek port negotiates to 1 Gb/s; total throughput depends on the switch and cabling, not the panel PC itself.
