Silver 13.3 inch all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A3 13.3" all-in-one PC Intel Core i5 3rd Gen 4GB DDR3 64GB SSD

SKU CH-QKHQ-KYK0J

A 13.3-inch industrial all-in-one with an IP65 front panel, fanless aluminium cooling, 4 GB DDR3 and a 64 GB SSD running Windows 10 Pro

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • GPU/VGA TypeIntel HD Graphics
  • Memory Capacity4GB DDR3

CPU Type Intel Core i5 3rd Gen

GPU/VGA Type Intel HD Graphics

Memory Capacity 4GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 64GB

  • 64GB
  • 256GB
  • 512GB

HDD None

  • None
  • 1TB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for 24/7 operation
  • 3" resistive touchscreen works with gloves or stylus
  • Expandable storage via mSATA and 2.5" SATA bays
  • 3rd gen Core i5 with 4 GB DDR3 handles industrial workloads

Industrial panel PC for embedded use

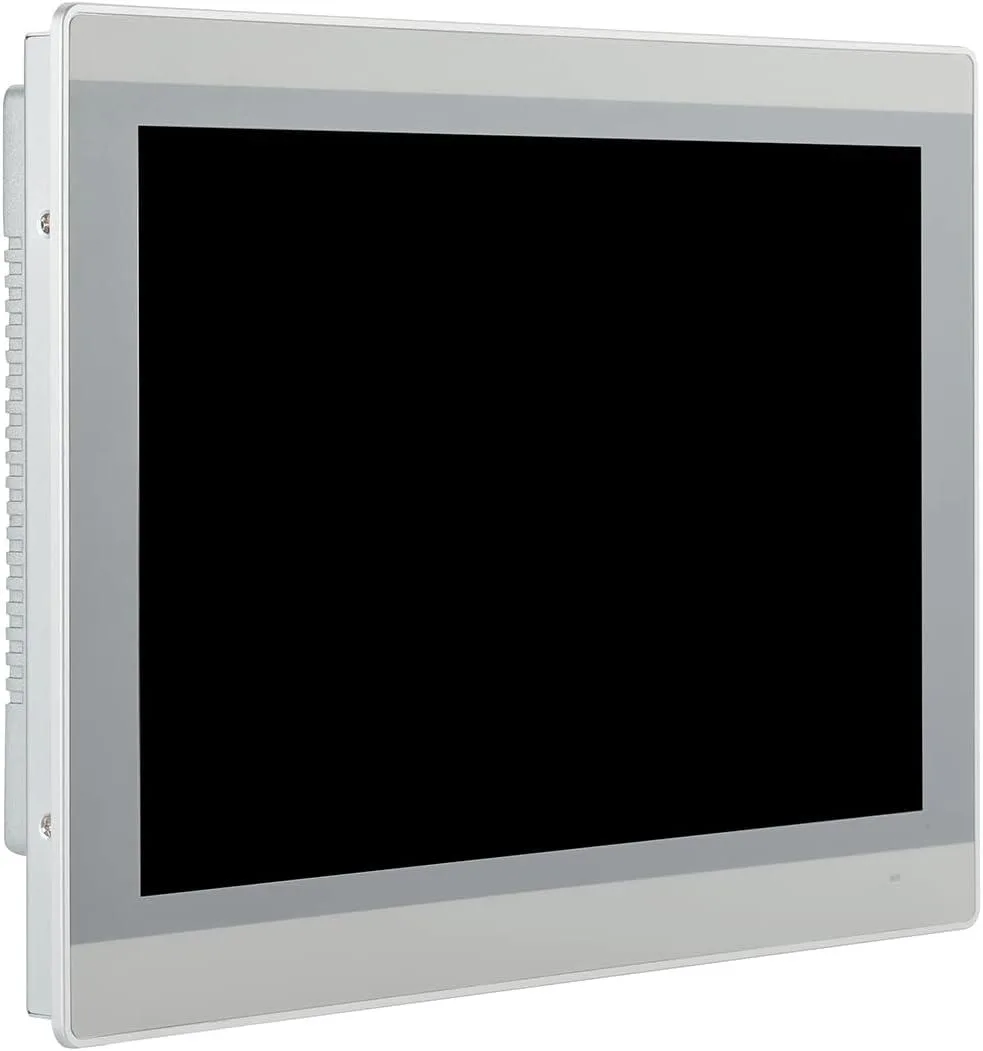

The Partaker A3 is a 13.3 inch all-in-one computer with an IP65 front panel and a five-wire resistive touchscreen. It runs on a third generation Intel Core i5 processor with Intel HD Graphics, 4GB of DDR3 memory and a 64GB SSD. The fanless aluminium chassis supports continuous operation in industrial environments.

Check power, mounting and expansion needs

The unit requires a 12V DC input supplied by the included 100-240V AC adapter. Verify the 326 by 232mm panel cut-out for embedded installation or plan for wall, desktop or cantilever mounting. Confirm whether your application needs the mini PCIe slot for wireless or 4G expansion and the SIM slot that accompanies it.

Replaces older panel PCs with limited I/O or cooling

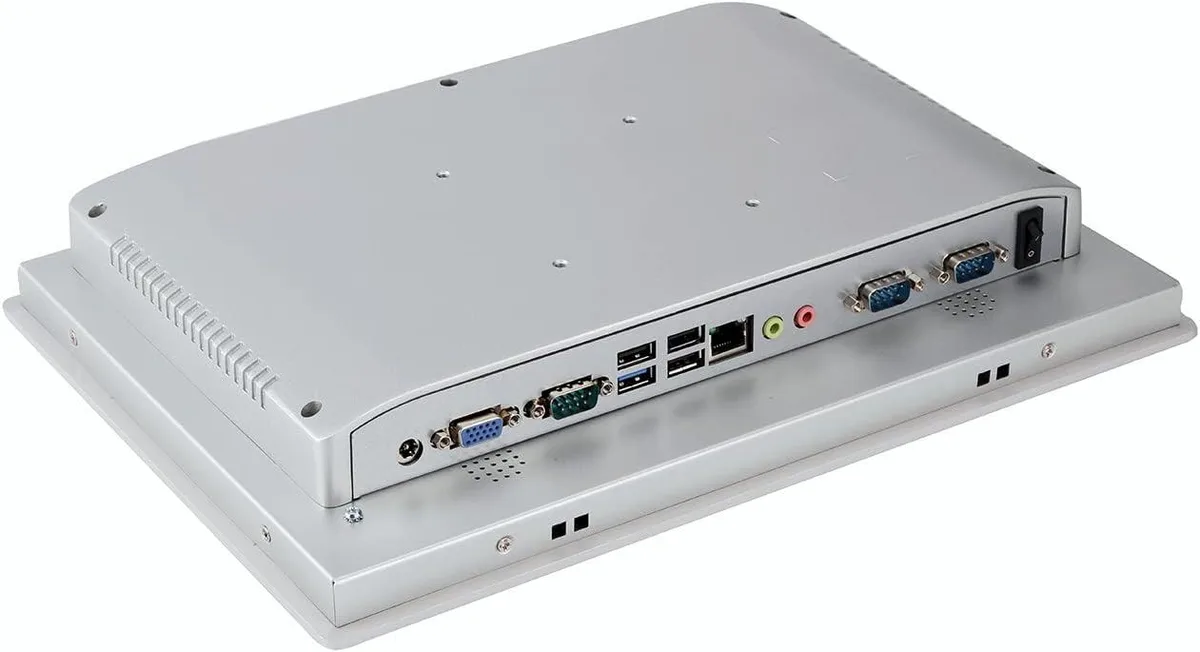

This system upgrades from devices that lack HDMI, VGA, four USB 2.0 ports, dual COM ports and audio jacks in a single fanless design. The jump is worthwhile when you need IP65 protection, a 300cd/m2 display with 1280x800 resolution and an operating range of 0 to 50°C with the fitted SSD.

주요 특징

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for 24/7 operation
  • 3" resistive touchscreen works with gloves or stylus
  • Expandable storage via mSATA and 2.5" SATA bays
  • 3rd gen Core i5 with 4 GB DDR3 handles industrial workloads

사양

ModelA3-PA-133TPC-CE5A(I53)-4G64G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
GPU/VGA TypeIntel HD Graphics
Memory Capacity4GB DDR3
SSD64GB
HDDNo
Screen Size13.3"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What comes in the box and what must I source myself?

The box contains the Partaker A3 panel PC, a power supply, a power cord, embedded buckle kits and a warranty card. You will need to buy any Wi-Fi or 4G module for the mini PCIe slot, a SIM card if using cellular, and any extra mSATA or 2.5" SATA storage beyond the included 64 GB SSD.

Should I pick the Windows 10 Pro or Linux Ubuntu version?

Choose Windows 10 Pro if you need native support for common industrial software and drivers; choose Linux Ubuntu if you prefer an open-source environment and are comfortable managing drivers yourself. Both ship on the same hardware with 4 GB DDR3L and 64 GB SSD.

What does the 1280 x 800 resolution mean for daily use on the 13.3" screen?

The 1280 x 800 panel gives a 16:10 aspect ratio with 300 cd/m² brightness and 800:1 contrast, so text and simple HMIs remain readable at the 70/55° viewing angles, but fine detail or multi-window work will feel cramped compared to full-HD displays.
