Silver 13.3 inch all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

partaker A3 13.3" all-in-one PC J1900 8GB DDR3 256GB SSD

SKU CH-RMXC-VCEE2

A compact 13.3-inch industrial panel PC with IP65 front protection, fanless cooling, Intel Celeron J1900, 8GB DDR3L and 256GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • GPU/VGA TypeIntel HD Graphics
  • Memory Capacity8GB DDR3

CPU Type Celeron

GPU/VGA Type Intel HD Graphics

Memory Capacity 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

HDD None

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for 24/7 operation
  • Intel Celeron J1900 reaches 2.42 GHz for responsive performance
  • 5-wire resistive touchscreen rated for 35 million touches

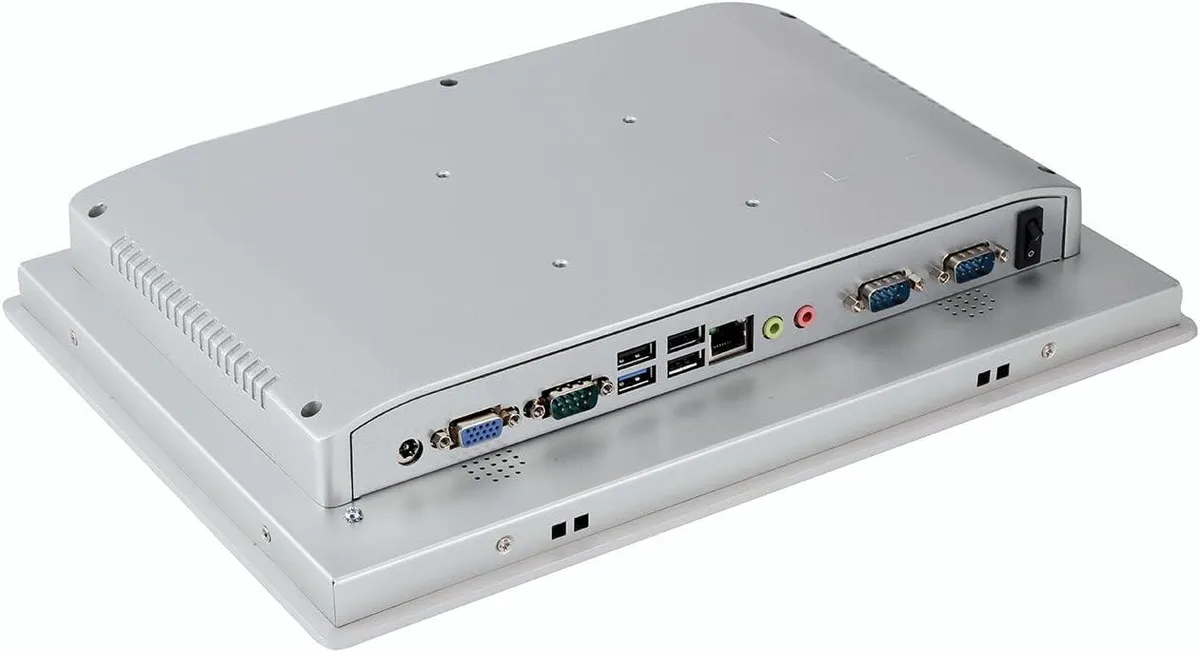

  • VGA, 3 COM, USB 3.0, 3 USB 2.0, LAN and audio ports

13.3" Industrial Panel PC for Embedded Use

The Partaker A3 is a compact all-in-one computer built around a 13.3" TFT LED display with an IP65-rated front panel. It runs on an Intel Celeron J1900 processor with 8GB of DDR3L memory and a 256GB SSD. The five-wire resistive touchscreen suits gloved operation in factories, kiosks or outdoor cabinets where dust and moisture are present.

Fanless Cooling for Silent 24/7 Operation

An aluminium alloy chassis dissipates heat without moving parts, so the system runs silently and survives continuous duty in 0–50 °C environments. The 12 V DC input accepts 100–240 V AC via the bundled adapter, drawing minimal power for always-on deployments. No internal fans mean less maintenance and no airflow path for contaminants.

Upgrade Path for Legacy Serial Equipment

Two internal drive bays — one mSATA and one 2.5" SATA — allow storage expansion without replacing the unit. Three COM ports, VGA, USB 3.0 and dual USB 2.0 connect older PLCs, barcode scanners or ticket printers directly. The Mini PCIe slot with SIM holder adds wireless links where cabling is impractical.

주요 특징

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for 24/7 operation
  • Intel Celeron J1900 reaches 2.42 GHz for responsive performance
  • 5-wire resistive touchscreen rated for 35 million touches
  • VGA, 3 COM, USB 3.0, 3 USB 2.0, LAN and audio ports

사양

ModelA3-PA-133TPC-CE5A(J19)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size13.3"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

How do I mount the A3 using the embedded buckle kits and what is the required cut-out size?

Cut a 326 x 232 mm opening in the panel or enclosure, then secure the unit with the supplied embedded buckle kits; the front bezel meets IP65 when seated correctly.

Which storage drives can I add later and what are the limits?

One mSATA SSD and one 2.5" SATA SSD or HDD are supported; the DDR3L SODIMM slot is already filled to its 8 GB maximum.

At what temperature does the fanless aluminium chassis start to throttle the J1900?

The system is rated for continuous operation up to 50 °C with the installed SSD; beyond that the processor will reduce speed to protect itself.
