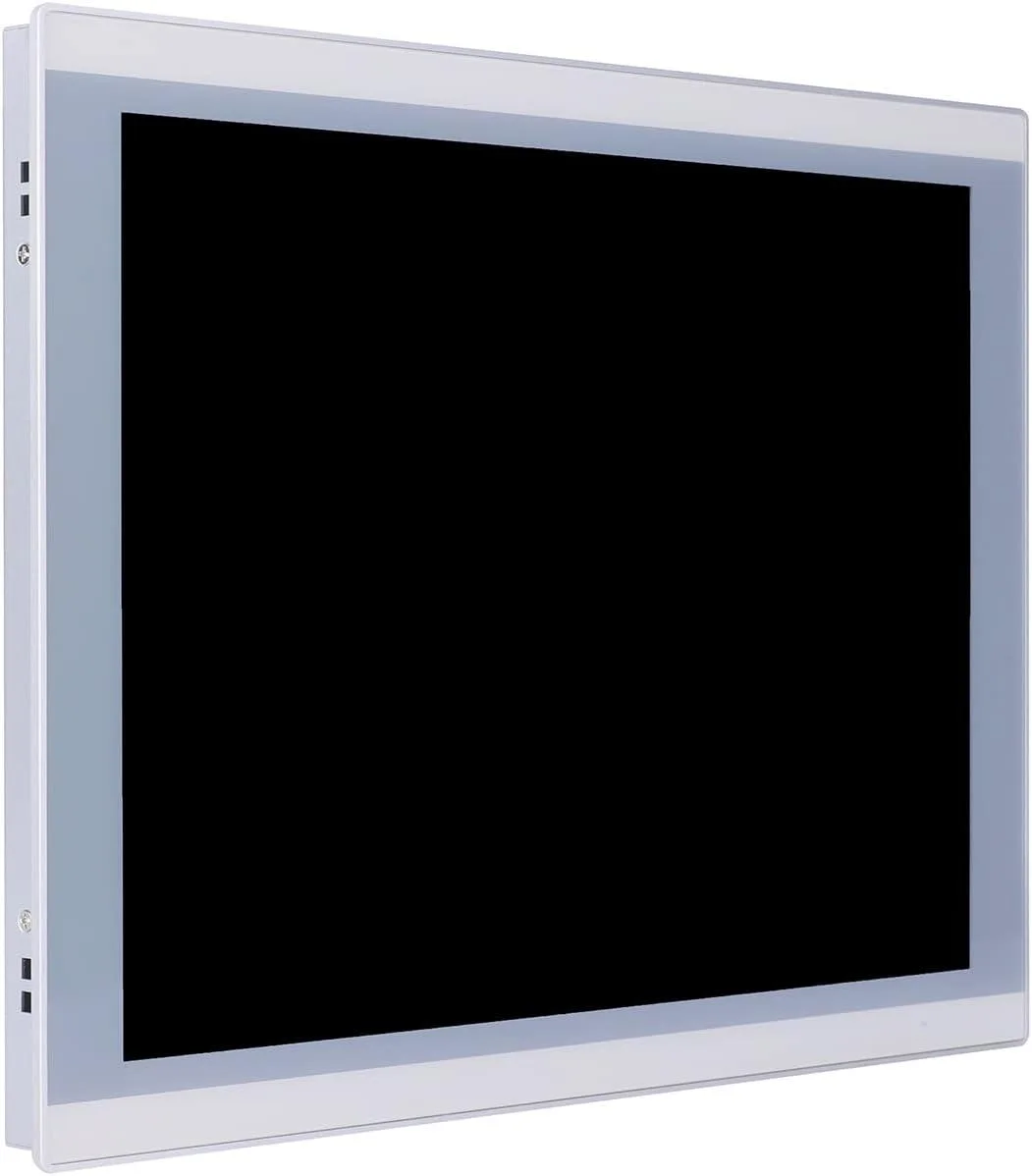

15 inch industrial panel PC aluminium fanless chassis IP65 resistive touchscreen

partaker

partaker A5 15" IP65 Industrial Panel PC i5-1135G7 32GB DDR4 512GB SSD 1TB HDD

SKU CH-GNQD-NAVEN

A 15-inch IP65-rated industrial panel PC with an Intel Core i5-1135G7, 32GB DDR4, 512GB SSD and 1TB HDD for harsh environments

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity32GB DDR4
  • SSD512GB

Memory Capacity 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD 1TB

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front panel resists dust and water in harsh environments
  • 5-wire resistive touchscreen works reliably up to 50 °C
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5-1135G7 with 32 GB DDR4 handles industrial workloads
  • Dual 512 GB SSD and 1 TB HDD storage for OS and data

Industrial All-in-One for Harsh Environments

This 15-inch panel PC combines an Intel Core i5-1135G7 processor with 32GB DDR4 memory, 512GB SSD and 1TB HDD in a single IP65-rated unit. The high-temperature 5-wire resistive touchscreen operates reliably in dusty or wet industrial settings. Windows 11 Pro is preinstalled for immediate deployment in factory automation or process control.

Fanless Cooling and Power Efficiency

An aluminium alloy chassis provides passive cooling for silent 24/7 operation without moving parts. The system draws power from a 12V DC supply compatible with 100-240V AC input. Operating temperatures range from 0 to 50°C with the SSD installed and 0 to 40°C when the hard drive is active.

Flexible Mounting and Expansion

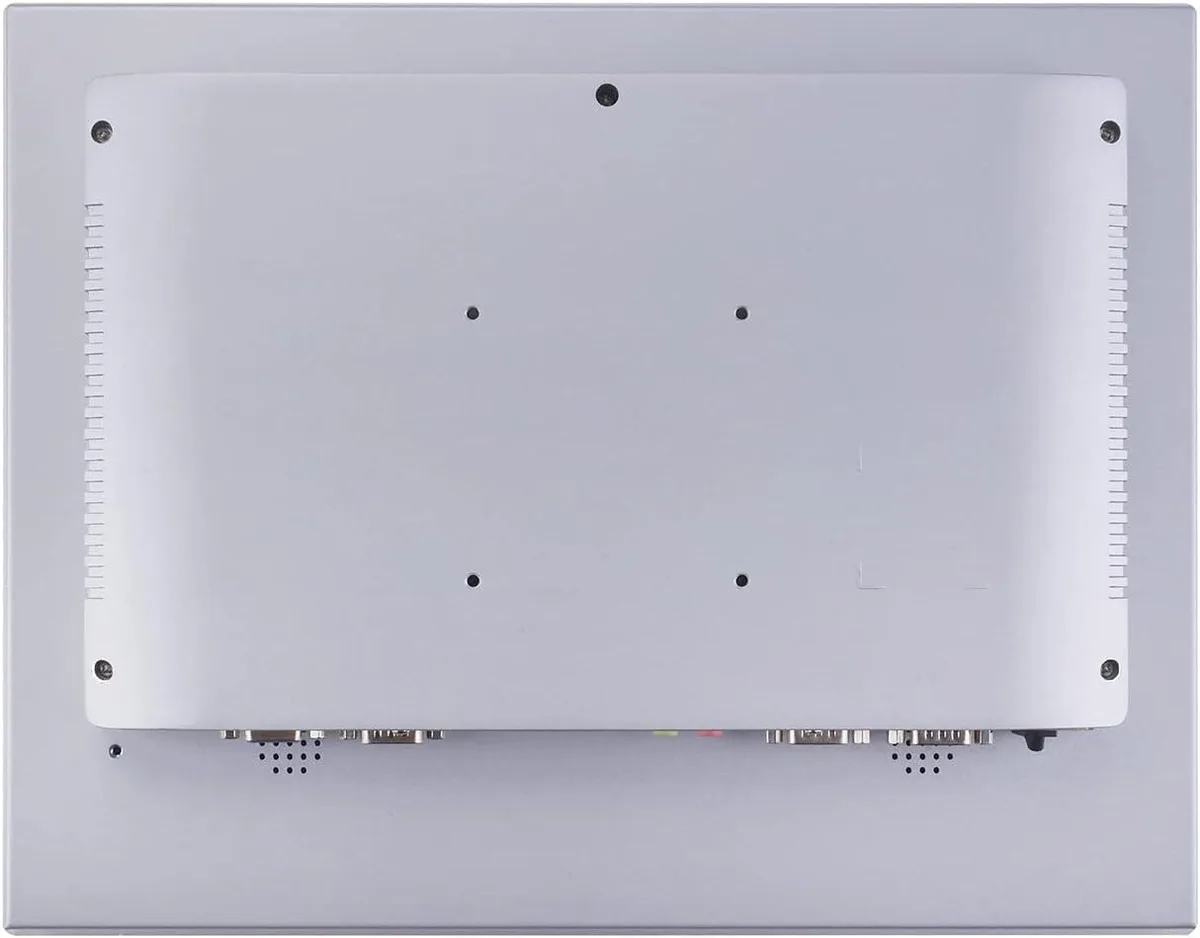

The unit fits a 348 by 272mm cut-out for embedded installation and also supports wall, desktop or cantilever mounting using the supplied buckle kits. I/O includes HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, audio, two COM ports and a power switch. Two M.2 slots accept WIFI6 or 5G modules with a SIM slot for wireless connectivity.

주요 특징

  • IP65 front panel resists dust and water in harsh environments
  • 5-wire resistive touchscreen works reliably up to 50 °C
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5-1135G7 with 32 GB DDR4 handles industrial workloads
  • Dual 512 GB SSD and 1 TB HDD storage for OS and data

사양

ModelA5-PA-150TPC-CE5A(I5B)-32G512G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
SSD512GB
HDD1TB
Screen Size15"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

How do I mount the panel PC and what is the exact cut-out size?

The unit needs a 348 x 272 mm opening for embedded installation; the mounting buckle kits included secure it from the rear.

Which storage drive will likely need replacement first and what are the slot types?

The 2.5" 1 TB HDD has moving parts and a lower temperature limit; the M.2 slot accepts 2260/2280 SATA or PCIe x1 SSDs and the 2.5" bay takes SATA drives.

At what ambient temperature does the HDD limit sustained operation?

With the 1 TB HDD installed the operating range tops out at 40 °C; above that the SSD-only configuration allows up to 50 °C.
