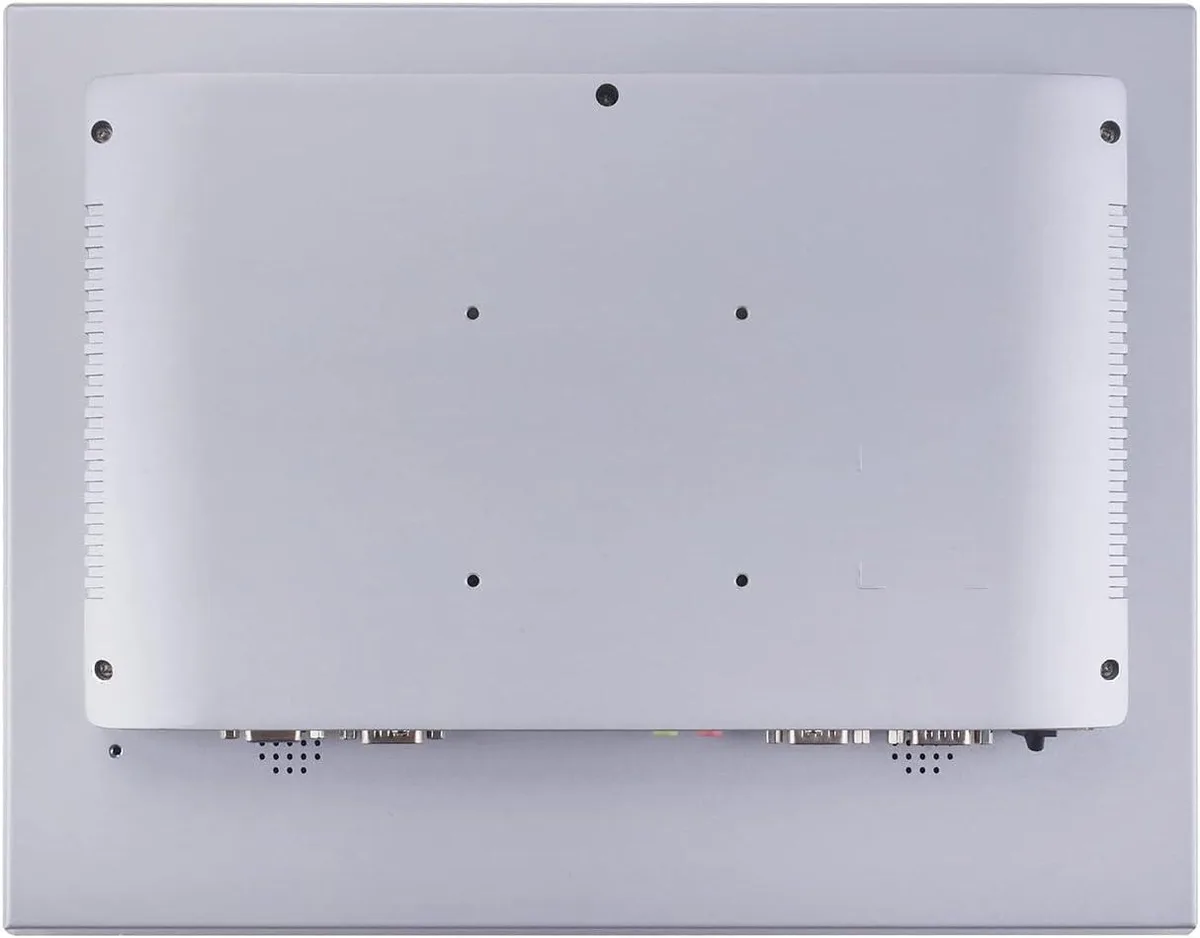

15-inch silver industrial all-in-one panel PC with resistive touchscreen

partaker

partaker A5 all-in-one PC 15" i7-1165G7 32GB DDR4 512GB SSD

SKU CH-31A0-106E2

15-inch IP65 industrial panel PC with i7-1165G7, 32GB DDR4, 512GB SSD and fanless aluminium cooling

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • GPU/VGA TypeIntel Iris Xe Graphics
  • Memory Capacity32GB DDR4
  • SSD512GB

Memory Capacity 32GB DDR4

SSD 512GB

  • 256GB
  • 512GB
  • 1TB

HDD None

취소선으로 표시된 버전은 존재하지만, 이곳에서는 취급하지 않습니다.

  • IP65 front panel resists dust and water ingress
  • 5-wire resistive touch works reliably up to 50 °C
  • Intel Core i7-1165G7 delivers 4.70 GHz boost for continuous industrial loads
  • Fanless aluminium chassis runs silently with zero moving parts
  • 32 GB DDR4 and 512 GB SSD pre-installed, expandable to 64 GB

Industrial panel PC for harsh environments

The Partaker A5 is a 15-inch all-in-one system built around an Intel Core i7-1165G7 processor with 32GB of DDR4 memory and a 512GB SSD. Its front panel carries an IP65 rating and a high-temperature 5-wire resistive touchscreen designed for reliable operation in dusty, wet or vibration-prone settings. The fanless aluminium chassis runs silently and supports continuous 24/7 duty cycles. Windows 11 Pro is pre-installed for immediate deployment.

32GB DDR4 and 512GB SSD with internal expansion

Dual SODIMM slots support DDR4-3200 up to 64GB, giving headroom for memory-intensive industrial applications. The M.2 2260/2280 slot accepts PCIe x1 or SATA SSDs, while a 2.5-inch bay adds further SATA storage flexibility. An M.2 Key E slot is available for WIFI6 and a Key B slot with SIM holder supports 5G modules. The resistive touchscreen is rated for 35 million touches and maintains 80±5% transmittance at 550 nm wavelength.

Fanless cooling from 0 to 50°C

Passive aluminium alloy cooling eliminates moving parts and acoustic noise while dissipating heat across the full operating range of 0 to 50°C with the installed SSD. The 12V DC input accepts 100-240V AC via the supplied adapter. Typical brightness of 350 cd/m² and a 1000:1 contrast ratio remain stable across the temperature span. Backlight life is rated at a minimum of 30,000 hours. The unit weighs 3.6 kg and fits a 348 x 272 mm panel cut-out for embedded, wall-mounted, desktop or cantilevered installation.

주요 특징

  • IP65 front panel resists dust and water ingress
  • 5-wire resistive touch works reliably up to 50 °C
  • Intel Core i7-1165G7 delivers 4.70 GHz boost for continuous industrial loads
  • Fanless aluminium chassis runs silently with zero moving parts
  • 32 GB DDR4 and 512 GB SSD pre-installed, expandable to 64 GB

사양

ModelA5-PA-150TPC-CE5A(I7B)-32G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity32GB DDR4
SSD512GB
HDDNo
Screen Size15"
TouchscreenYes

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

Will the 12 V DC input work with my existing 12 V industrial power bus?

Yes, the unit accepts 12 V DC directly and the included supply covers 100–240 V AC at 50–60 Hz for bench testing.

How can I verify the 5-wire resistive touchscreen is calibrated after installation?

Touch each corner of the 1024 × 768 panel; the cursor should land within 2 mm and the 350 cd/m² backlight stays even across 80° horizontal viewing angles.

Does the box include the M.2 Key E Wi-Fi 6 module or must I source it separately?

The packing list covers the panel PC and power supply only; the M.2 Key E slot for Wi-Fi 6 and the Key B slot for 5G are empty and need separate modules.
